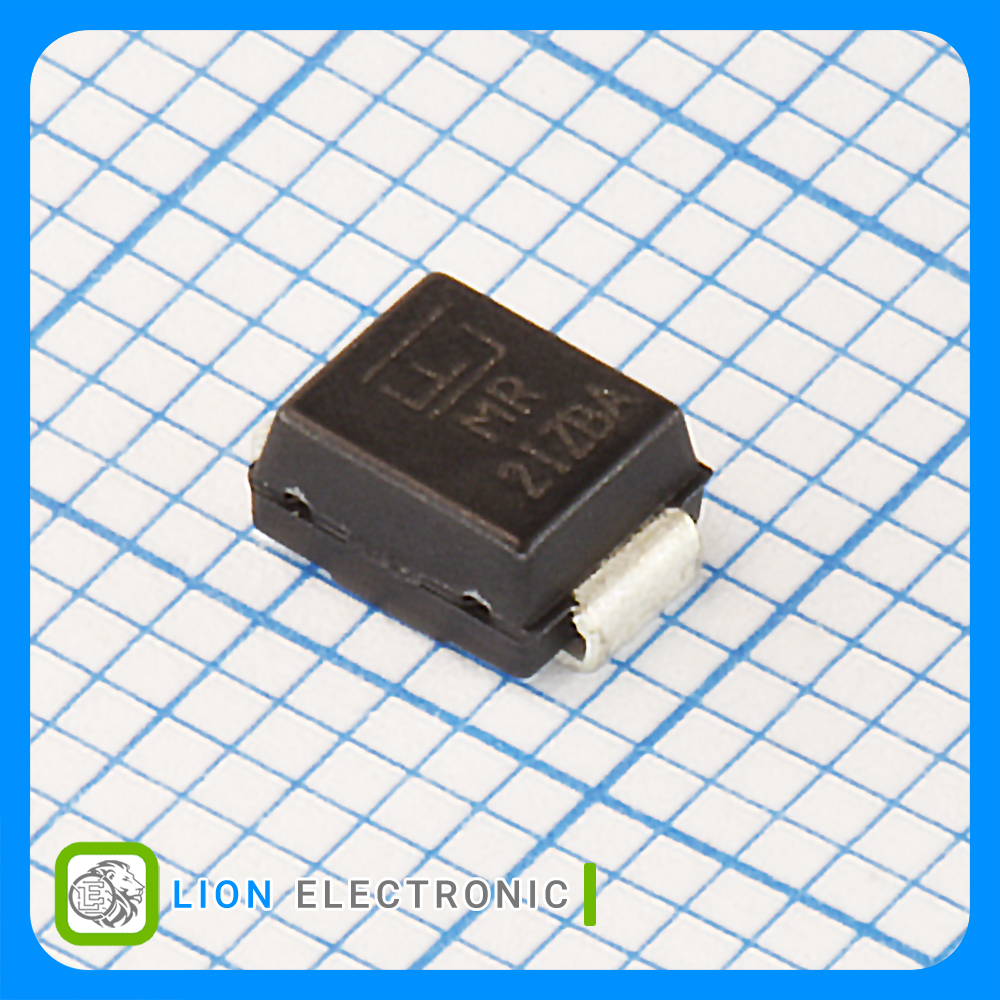

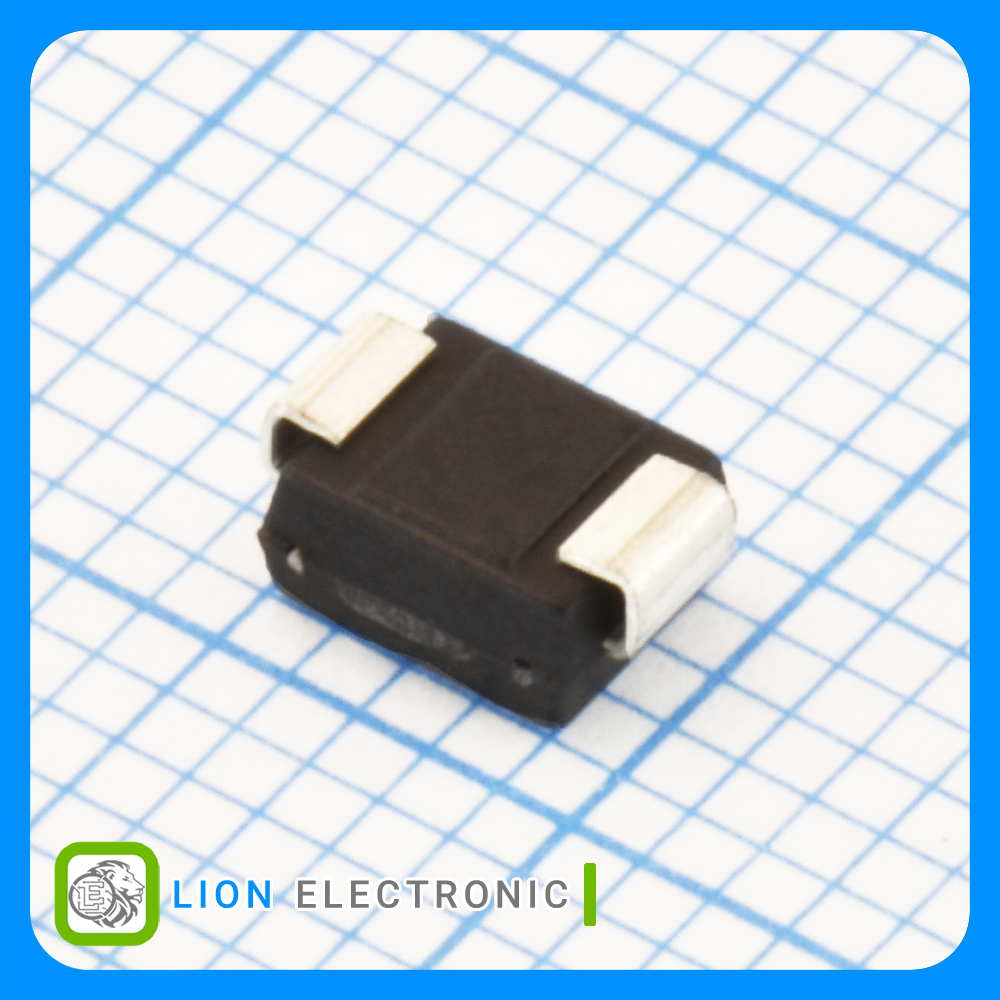

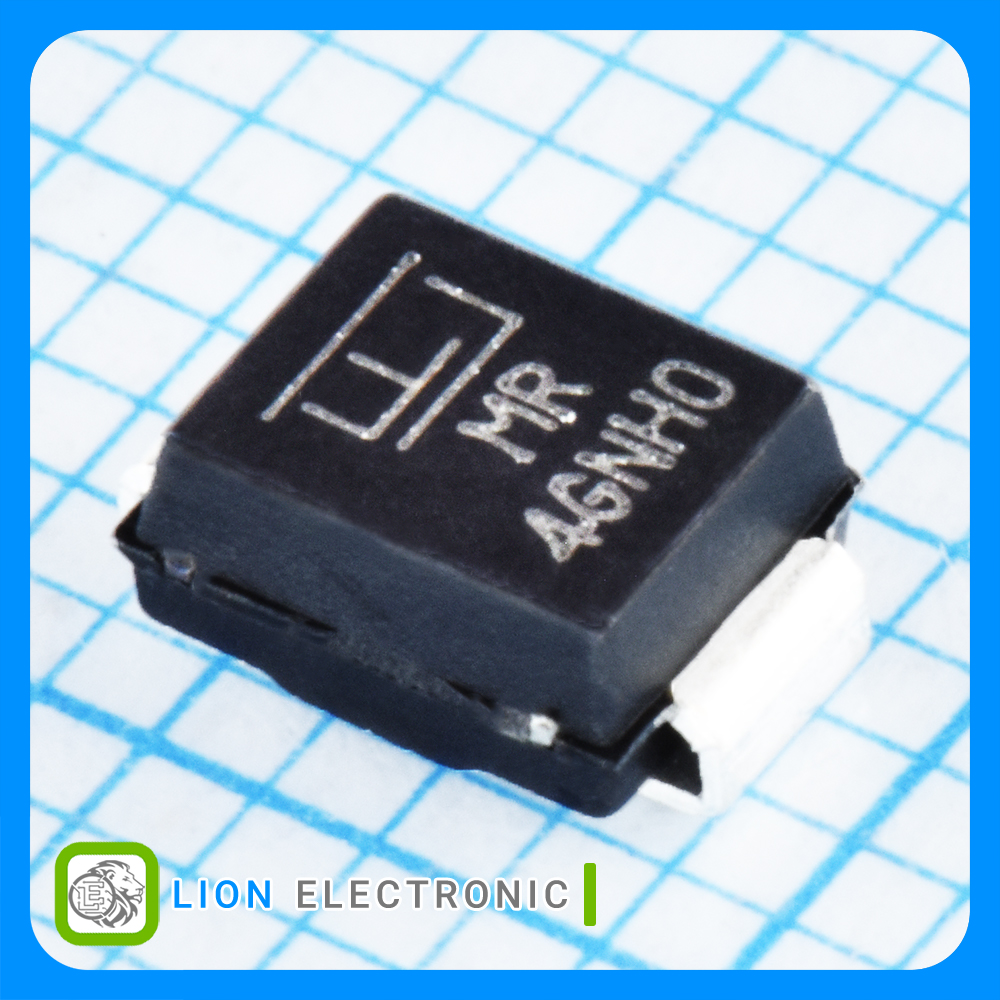

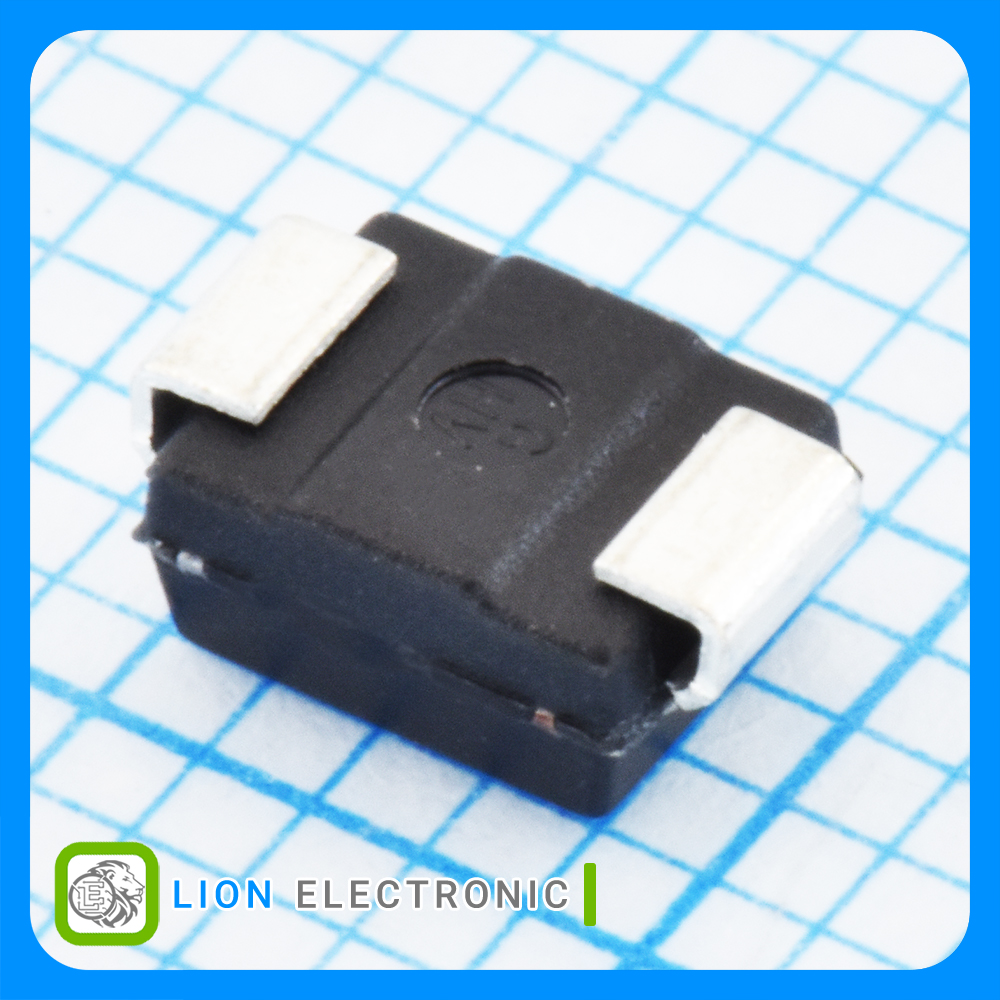

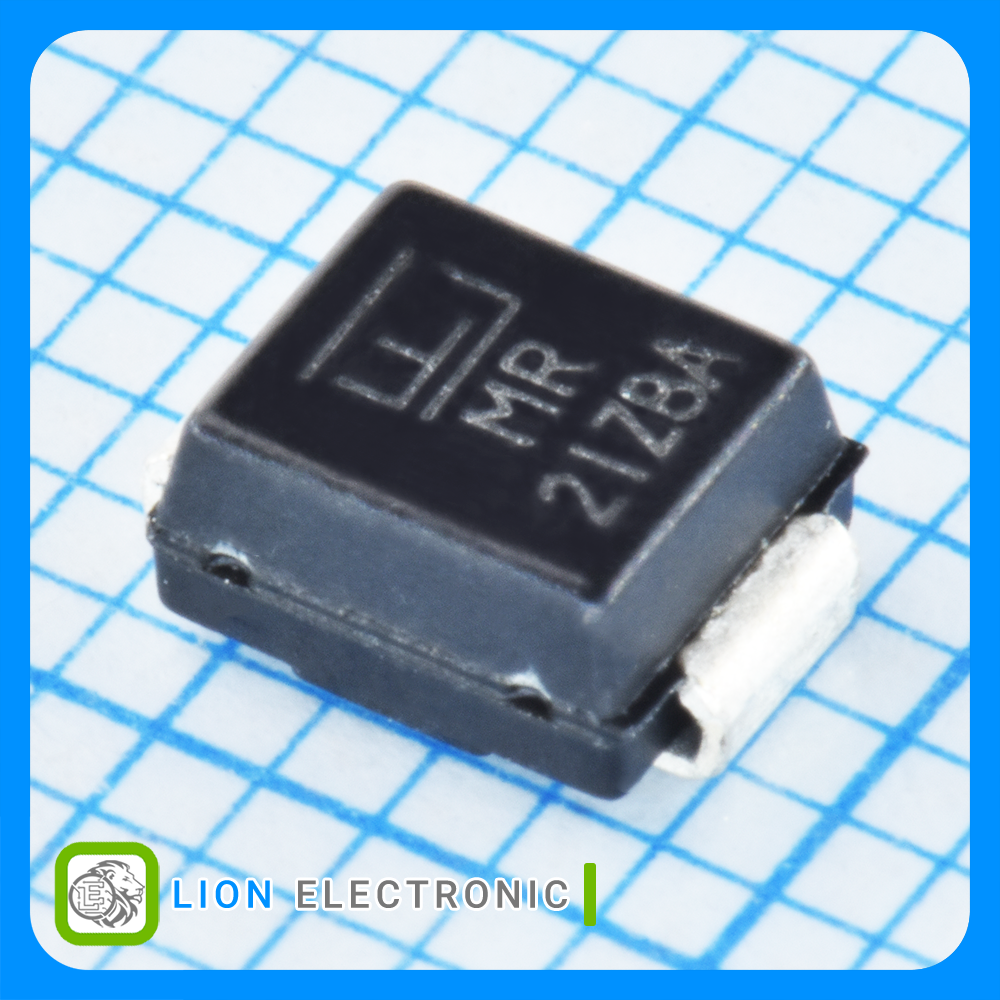

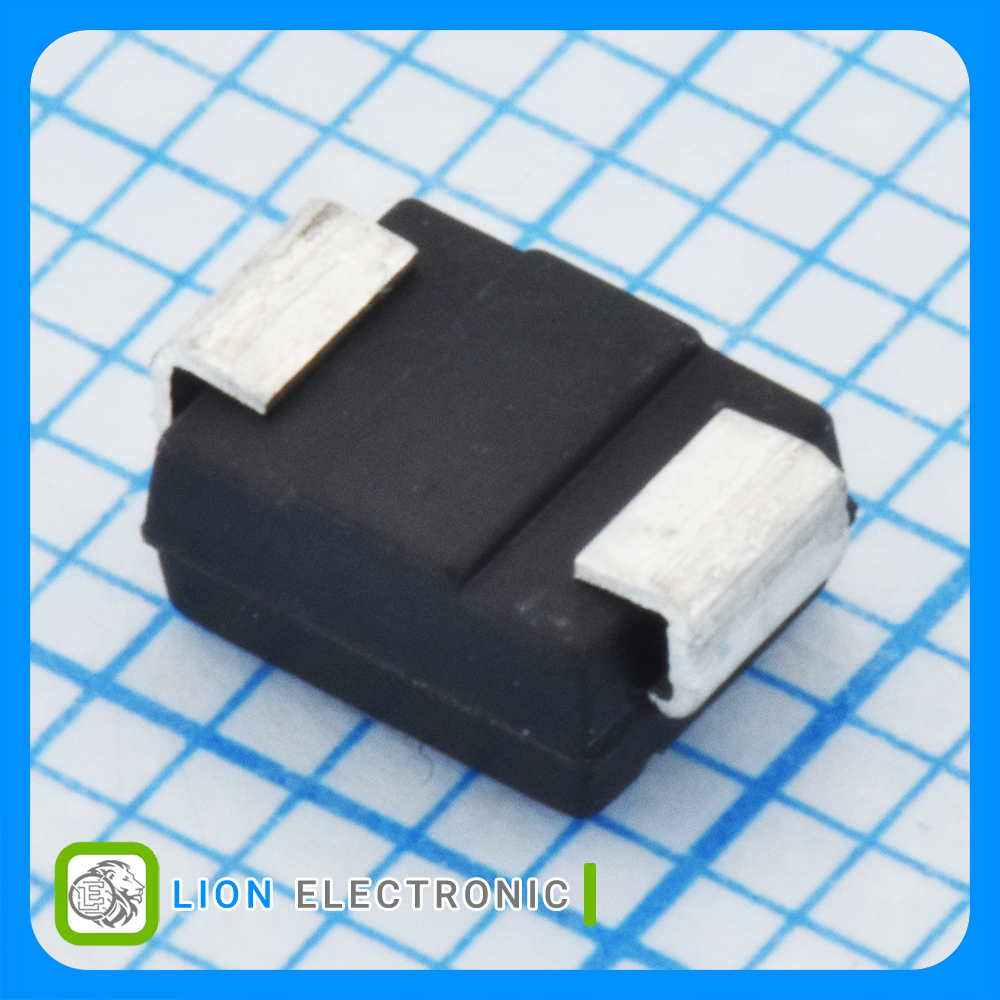

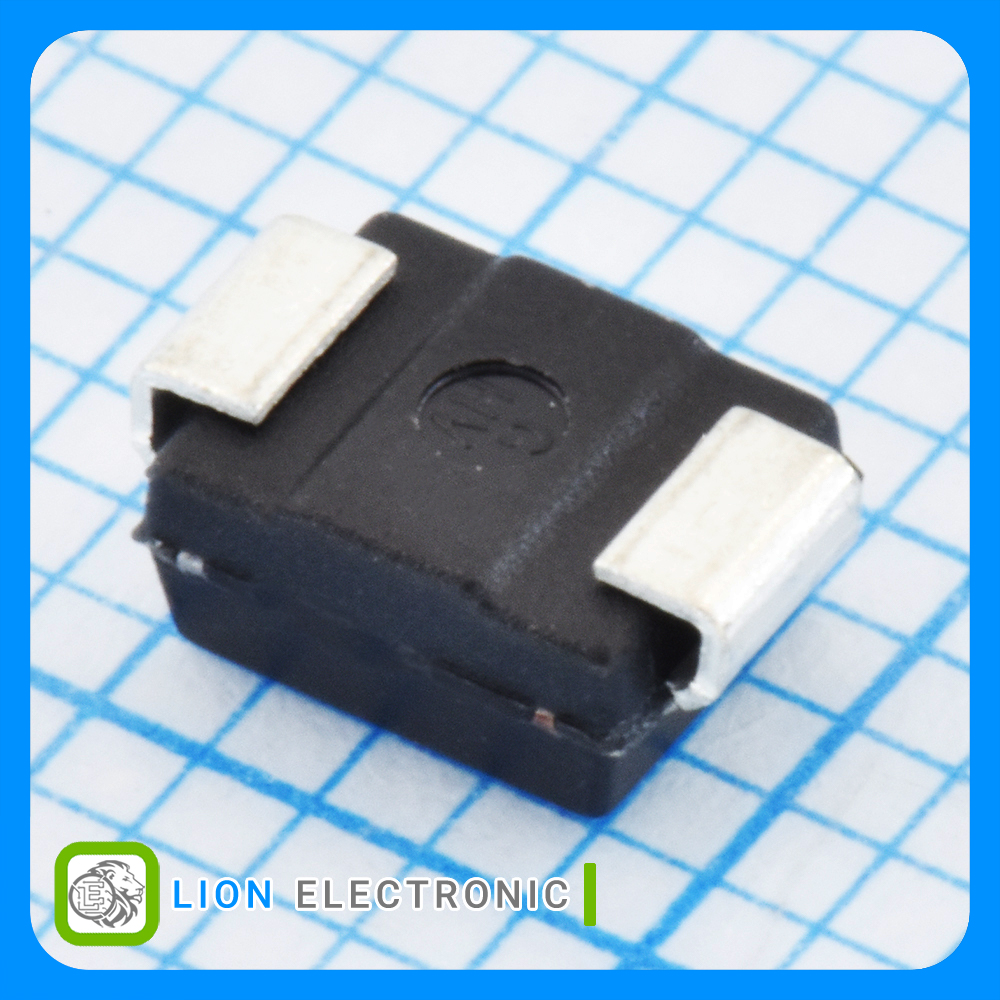

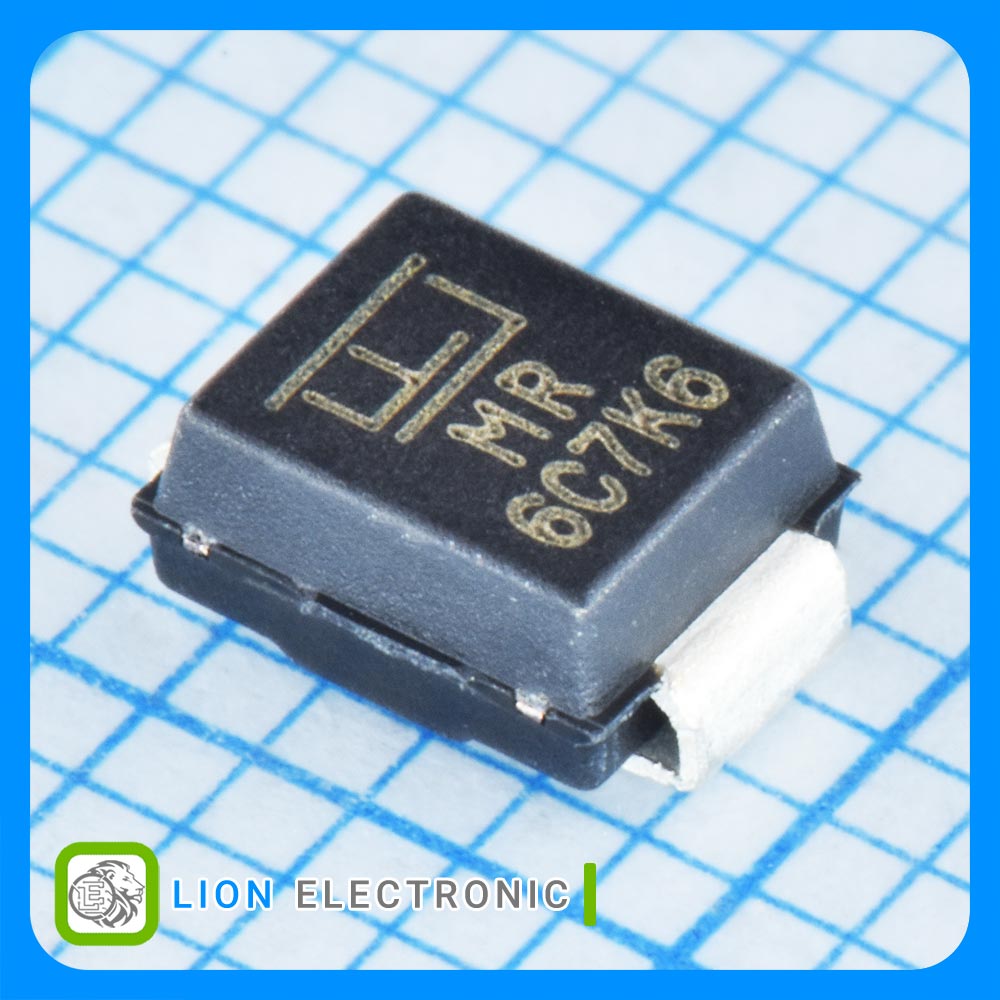

SMBJ40A
SMBJ40A
Part Number
3037
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکطرفه 40 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Unidirectional 40V, 600W with DO-214AA (SMB) Package
معرفی
دیود TVS یکطرفه 40 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Unidirectional 40V, 600W with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 40V
- Breakdown Voltage: 44.4V
- Clamping Voltage: 64.5V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 9.3A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تی وی اس SMBJ40A

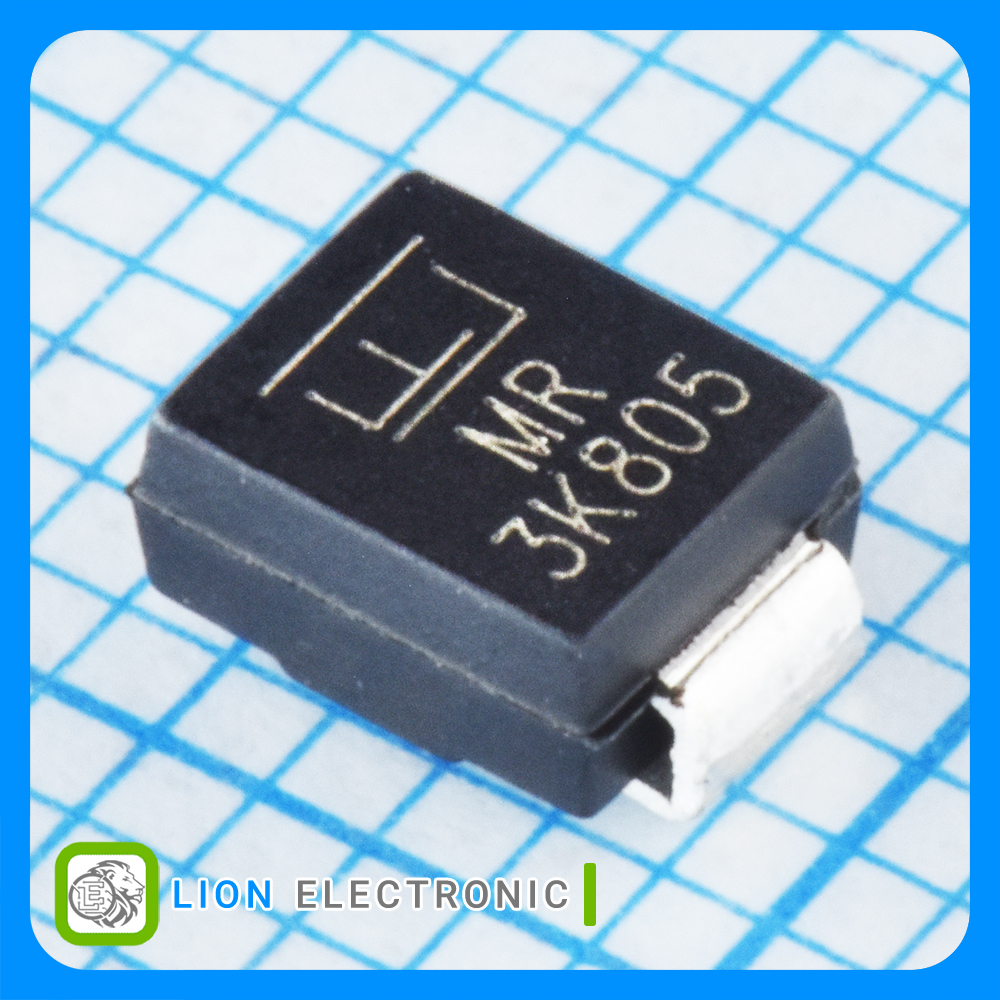

دیود تی وی اس SMBJ40A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
40V
Working Voltage
9.3A
Ipp - Peak Pulse Current
N/A
Cd - Diode Capacitance
64.5V
Clamping Voltage
44.4V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
