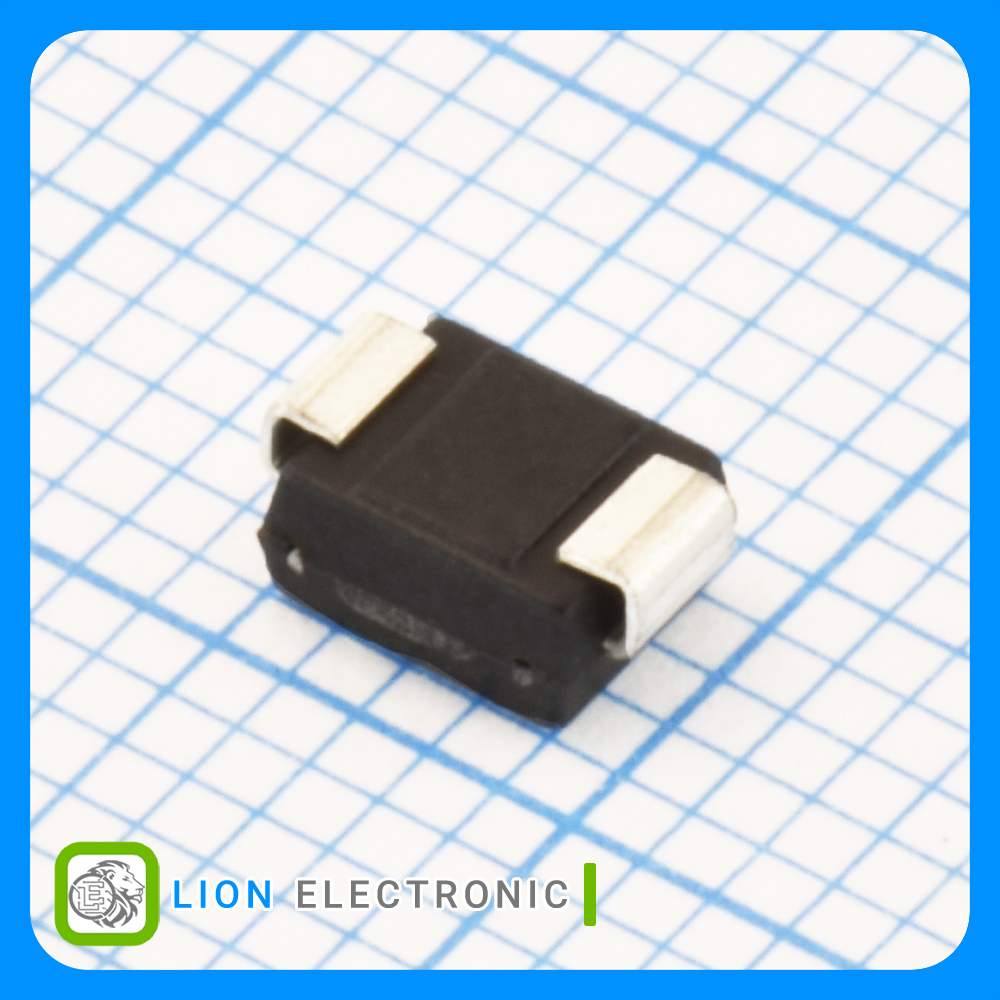

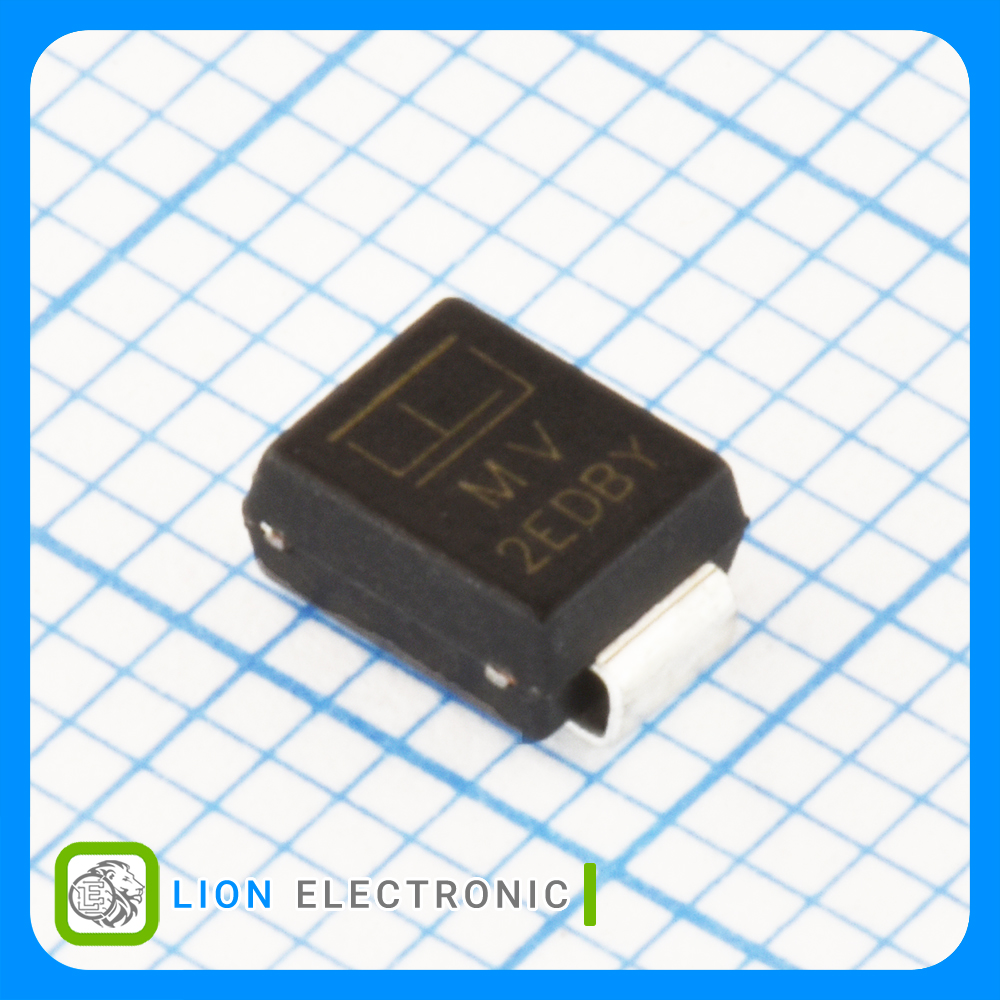

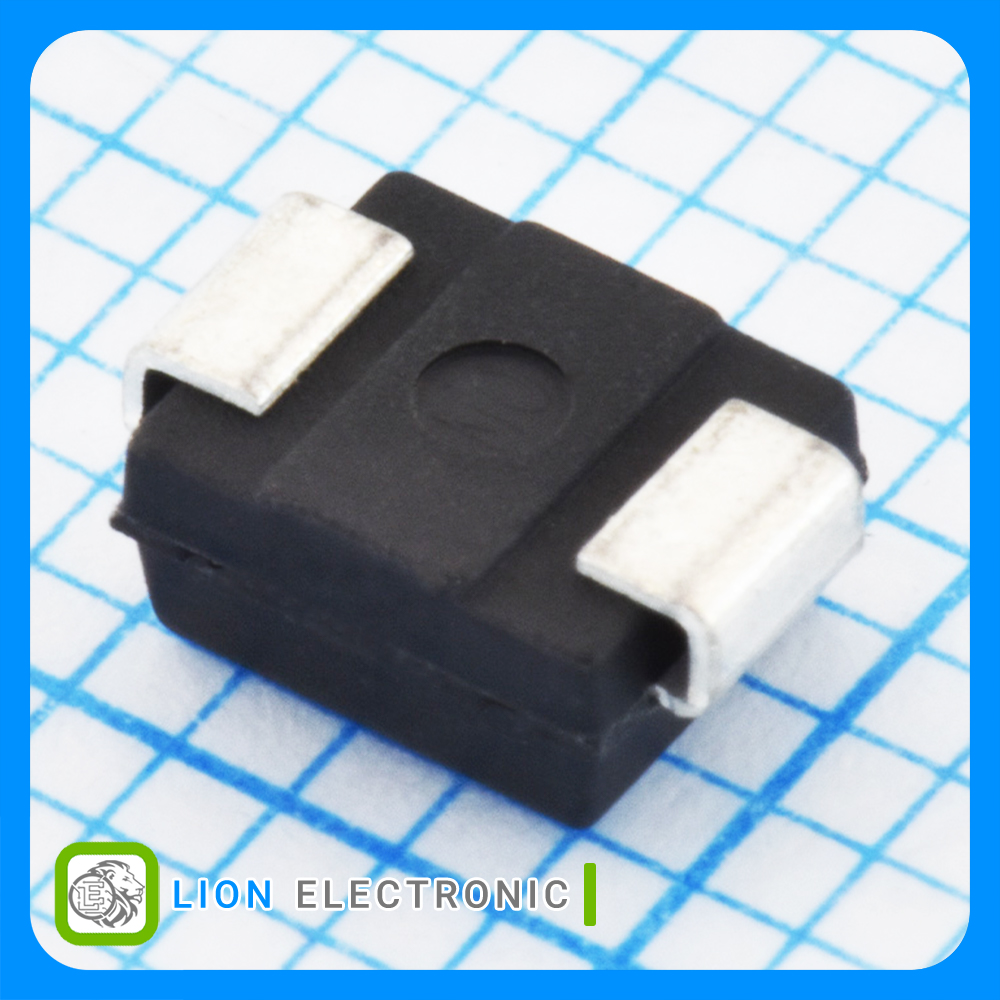

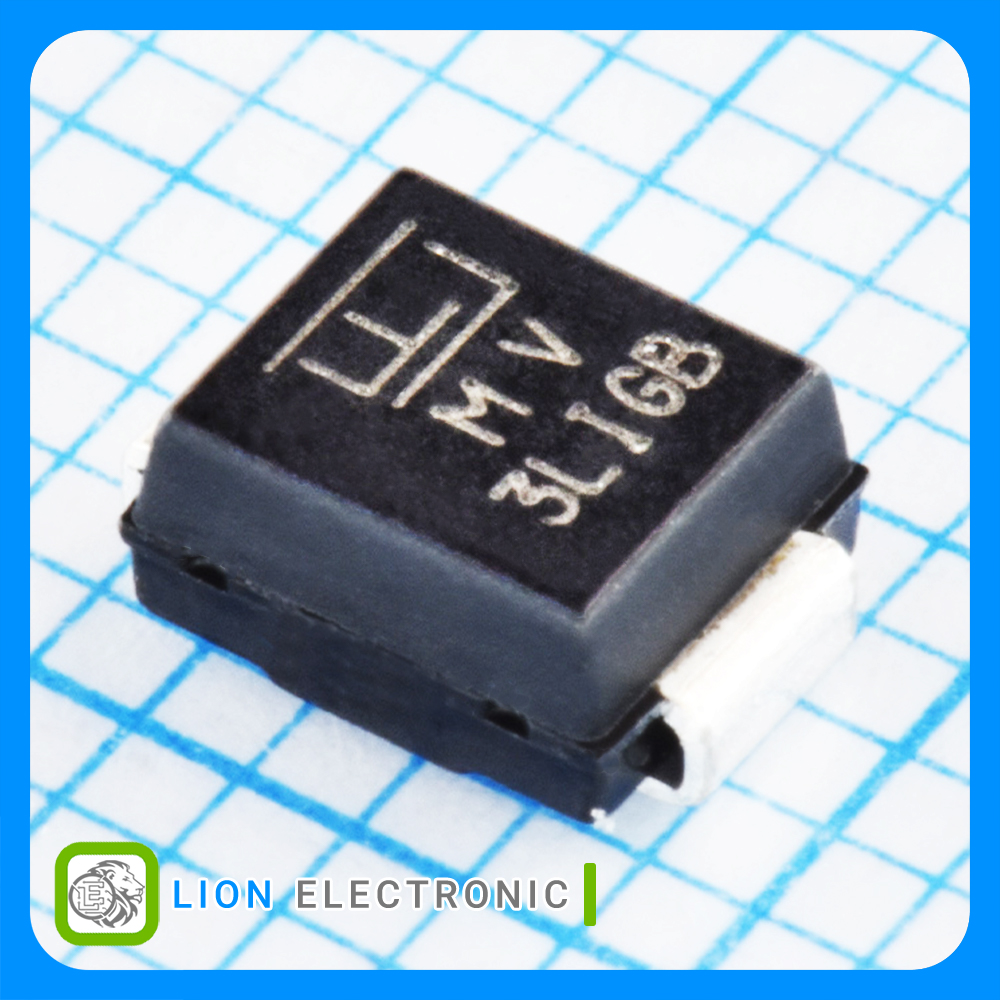

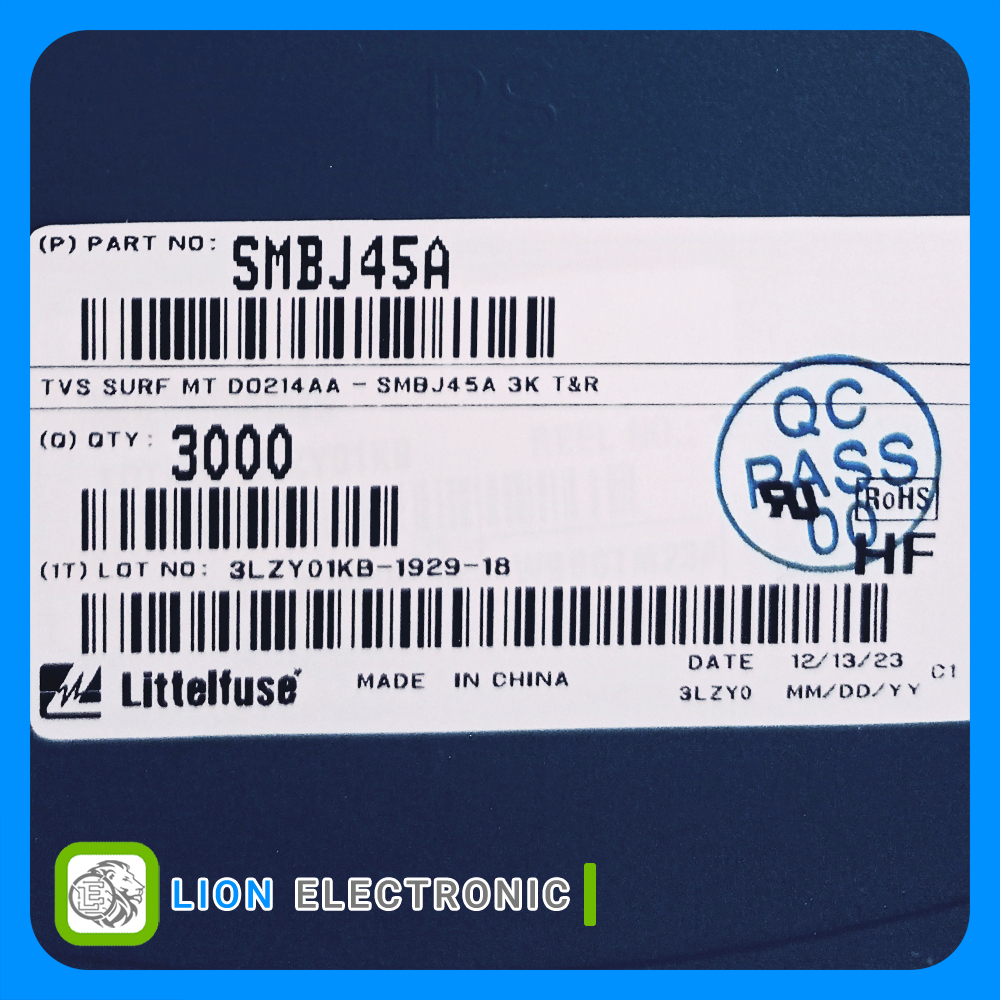

SMBJ45A
SMBJ45A
Part Number
3038
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکطرفه 45 ولت 600 وات با بیشینه پالس جریان 8.3 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 45V, 600W, Peak Pulse Current 8.3A with DO-214AA (SMB) Package
معرفی
دیود TVS یکطرفه 45 ولت 600 وات با بیشینه پالس جریان 8.3 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 45V, 600W, Peak Pulse Current 8.3A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 45V
- Breakdown Voltage: 50V
- Clamping Voltage: 72.7V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 8.3A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تی وی اس SMBJ45A

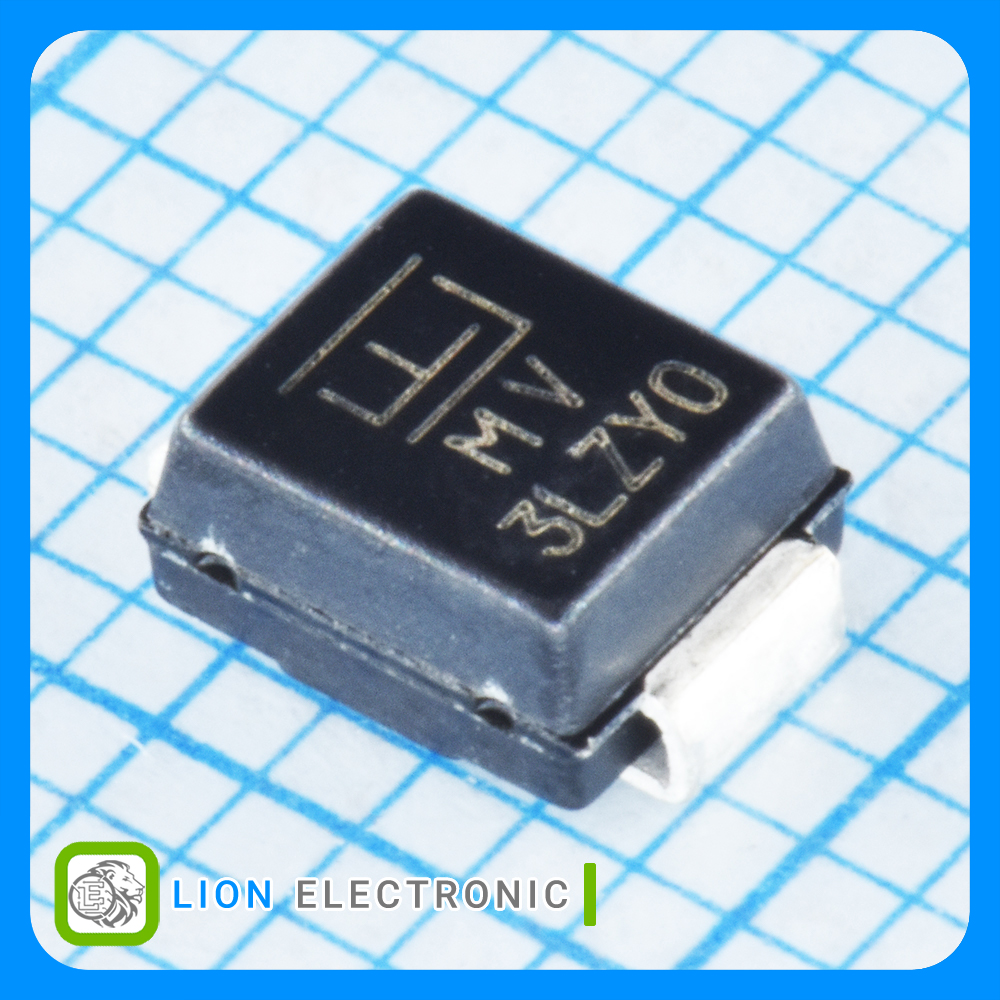

دیود تی وی اس SMBJ45A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
45V
Working Voltage
8.3A
Ipp - Peak Pulse Current
N/A
Cd - Diode Capacitance
72.7V
Clamping Voltage
50V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
