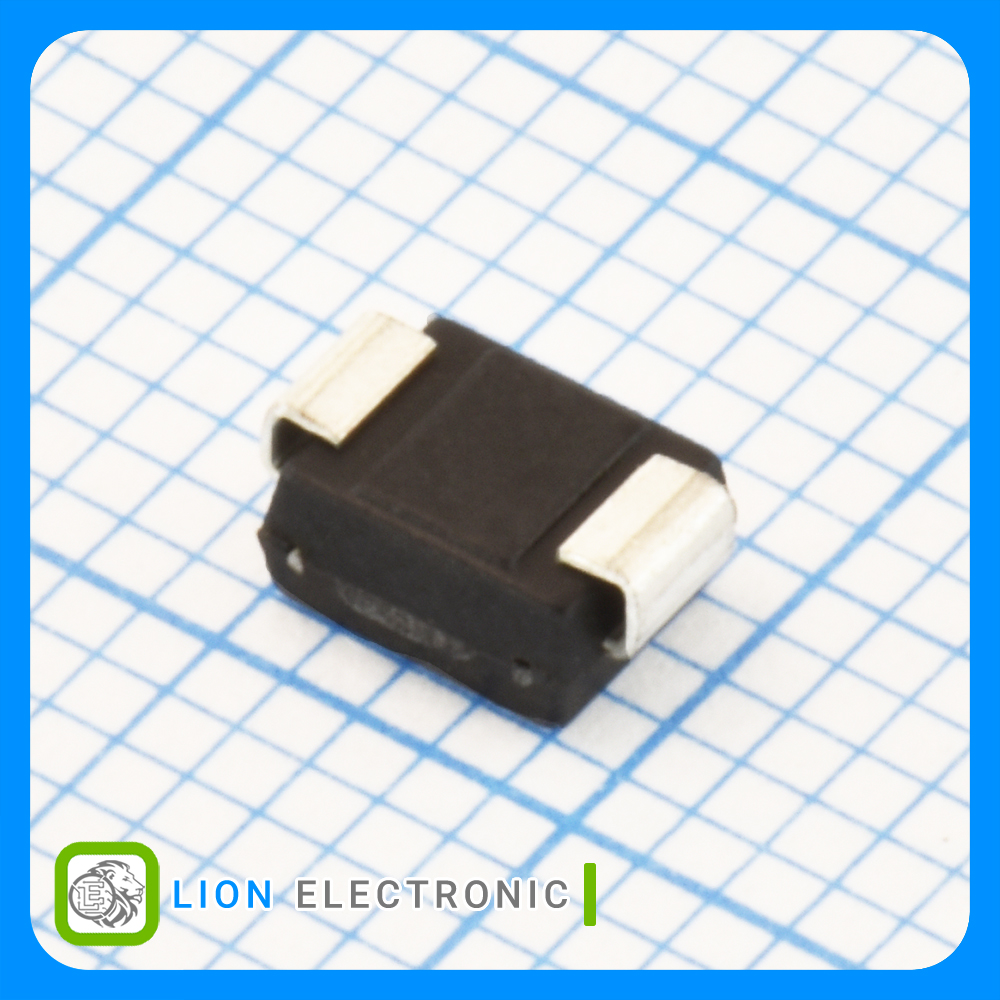

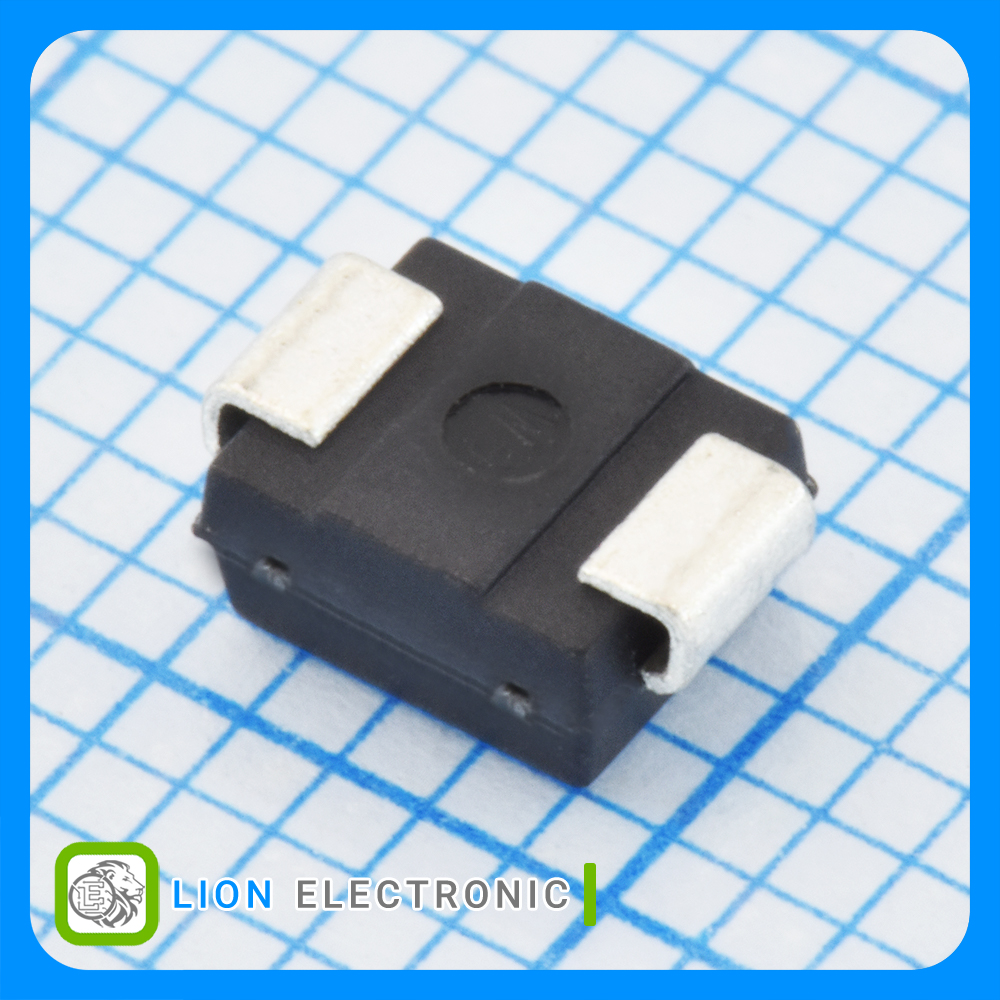

SMBJ120A
SMBJ120A
Part Number
3045
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکطرفه 120 ولت 600 وات با بیشینه پالس جریان 3.1 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 120V, 600W, Peak Pulse Current 3.1A with DO-214AA (SMB) Package
معرفی
دیود TVS یکطرفه 120 ولت 600 وات با بیشینه پالس جریان 3.1 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 120V, 600W, Peak Pulse Current 3.1A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 120V
- Breakdown Voltage: 133V
- Clamping Voltage: 193V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 3.1A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تی وی اس SMBJ120A

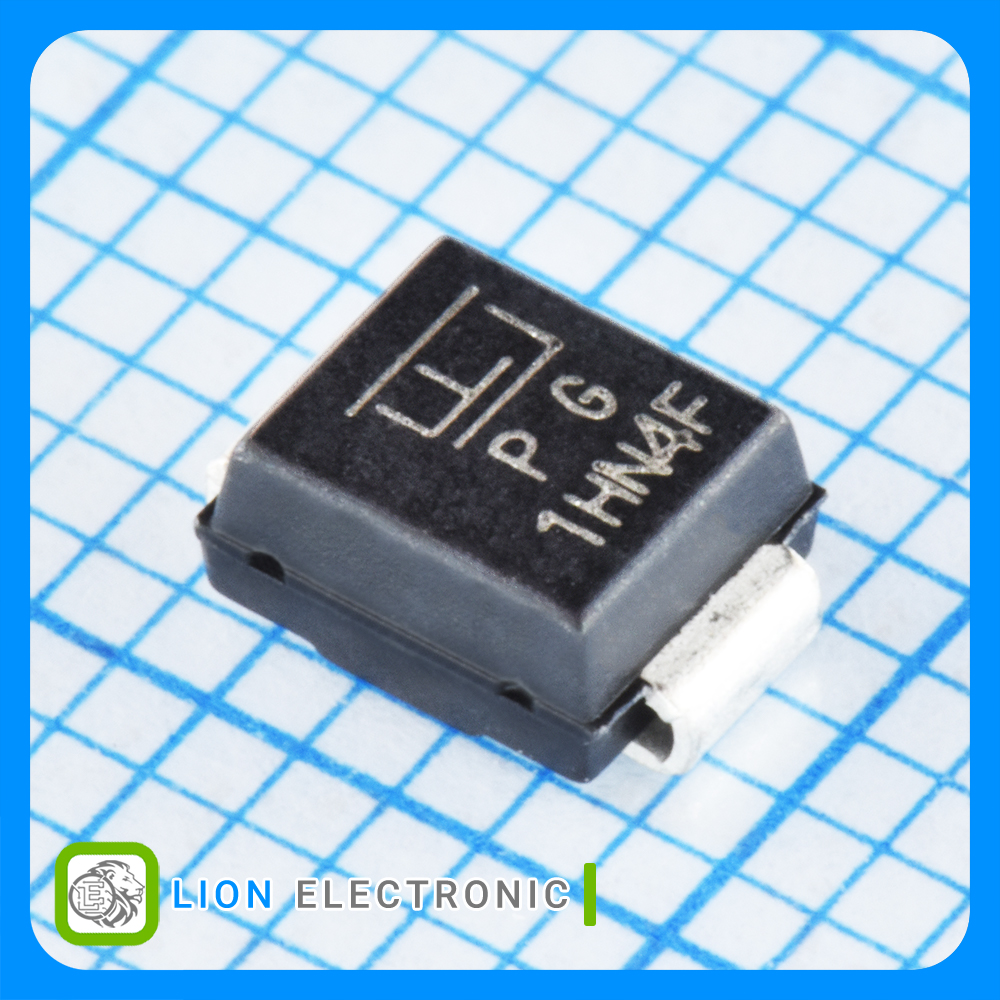

دیود تی وی اس SMBJ120A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
Unidirectional
Polarity
3.1A
Ipp - Peak Pulse Current
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
N/A
Cd - Diode Capacitance
120V
Working Voltage
193V
Clamping Voltage
133V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
