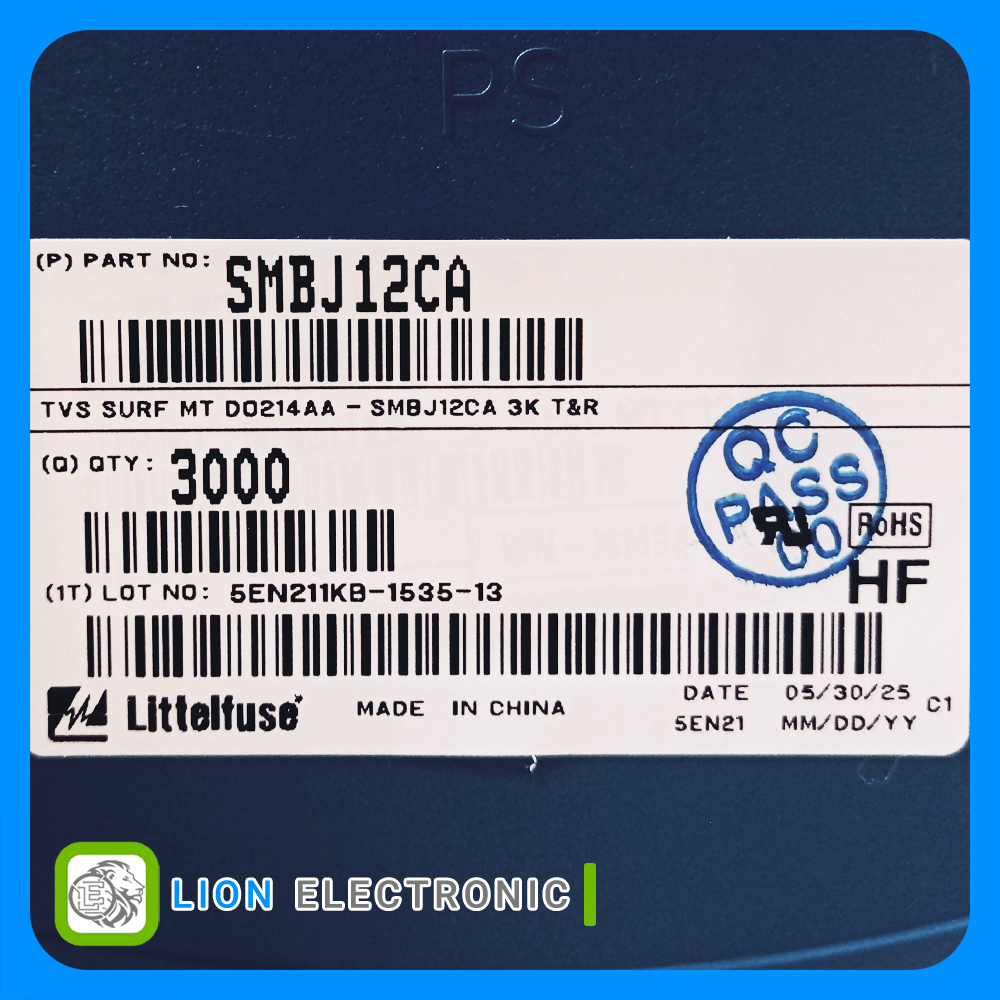

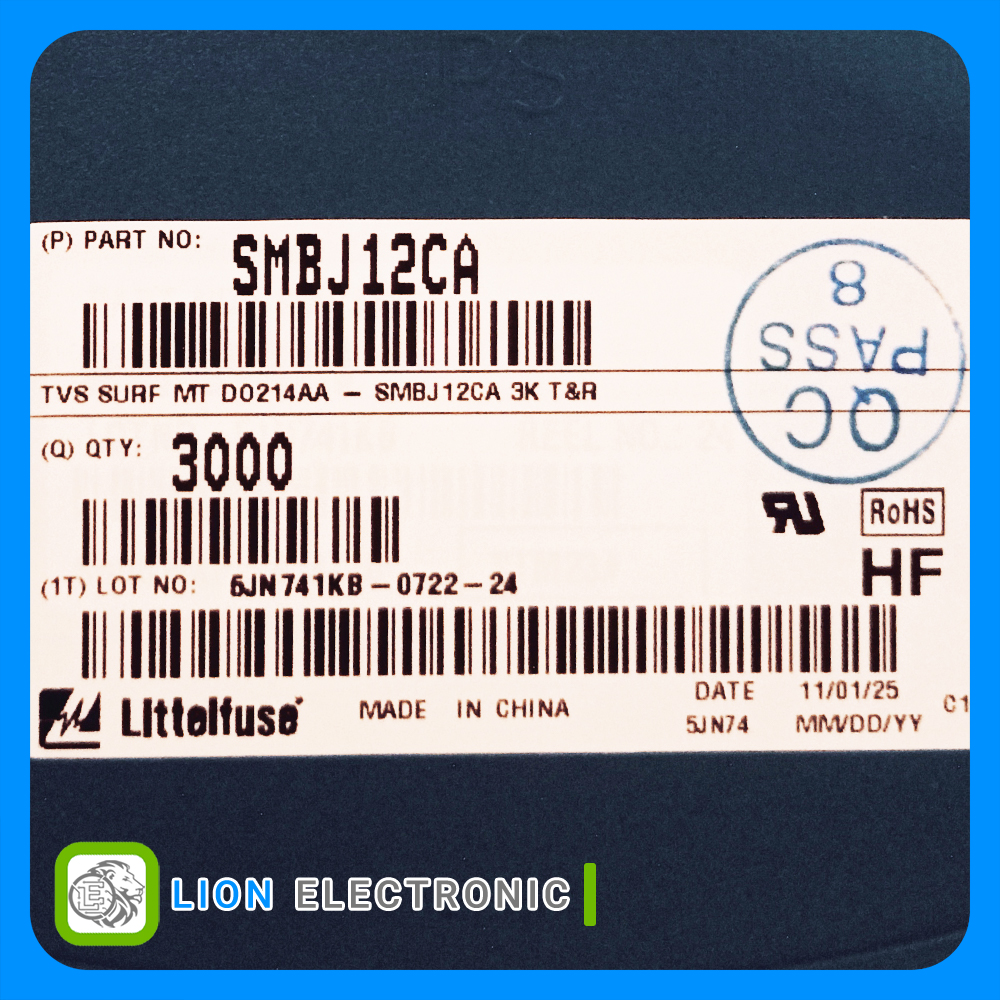

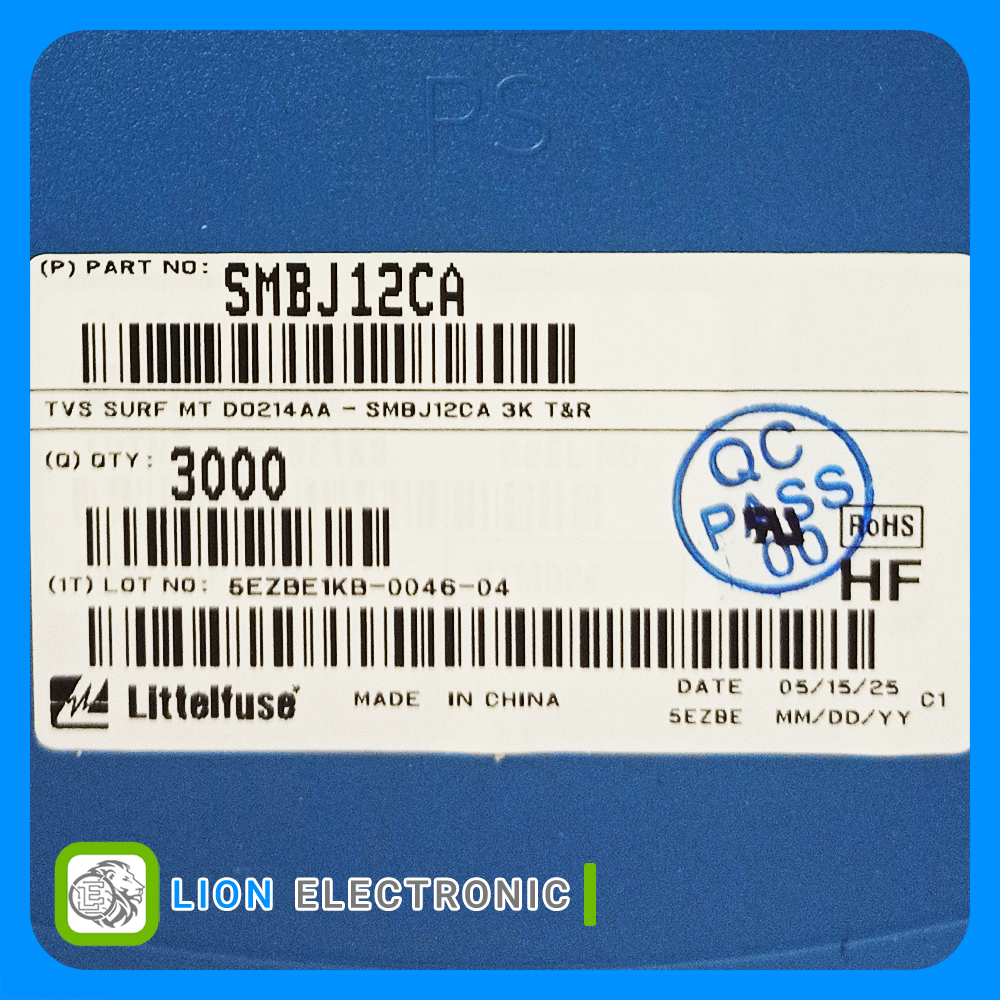

SMBJ12CA
SMBJ12CA
Part Number
3461
Lion Part
Datasheet
Littelfuse Manufacture

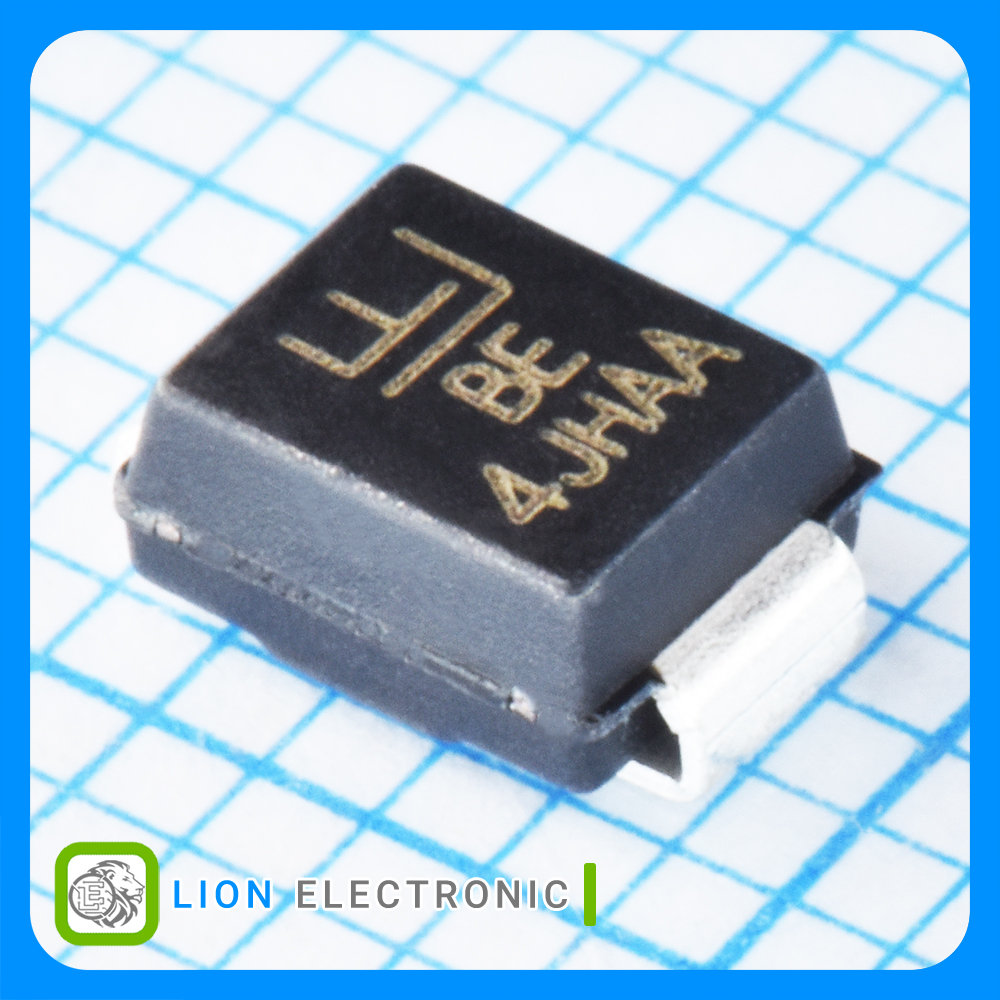

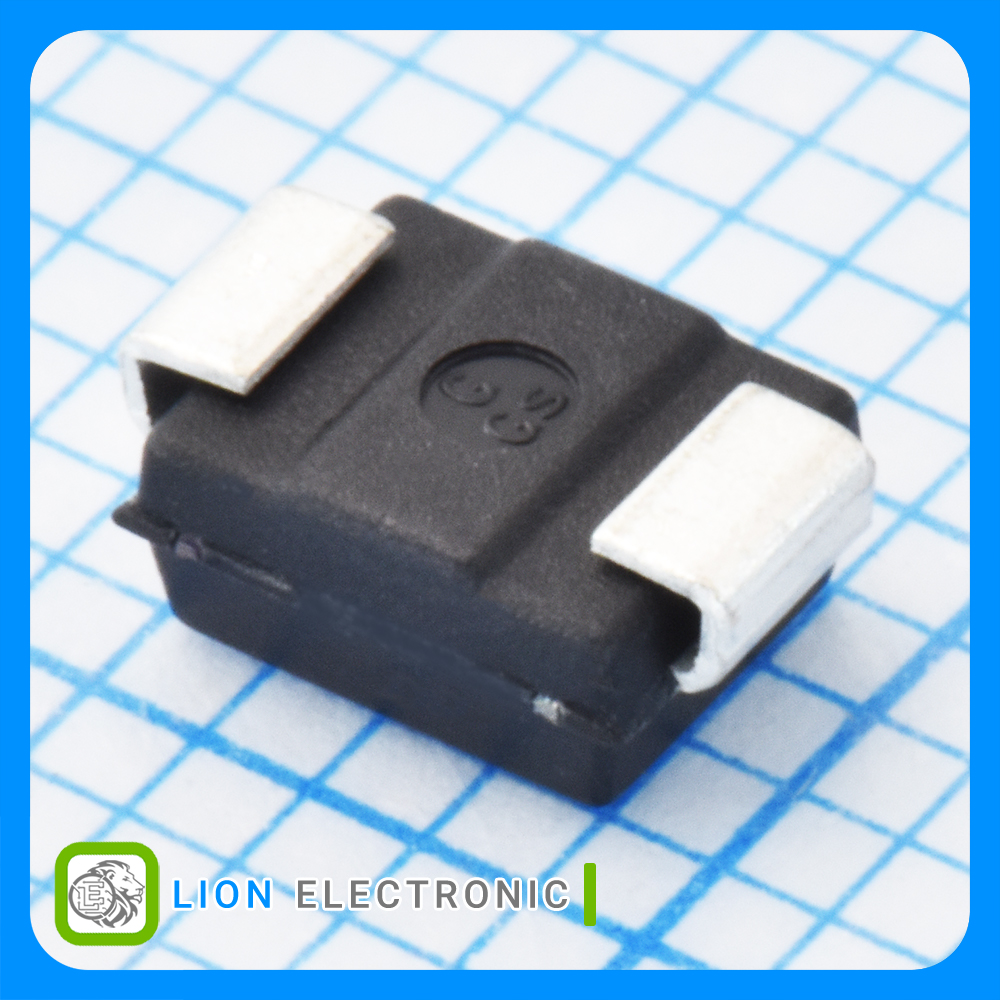

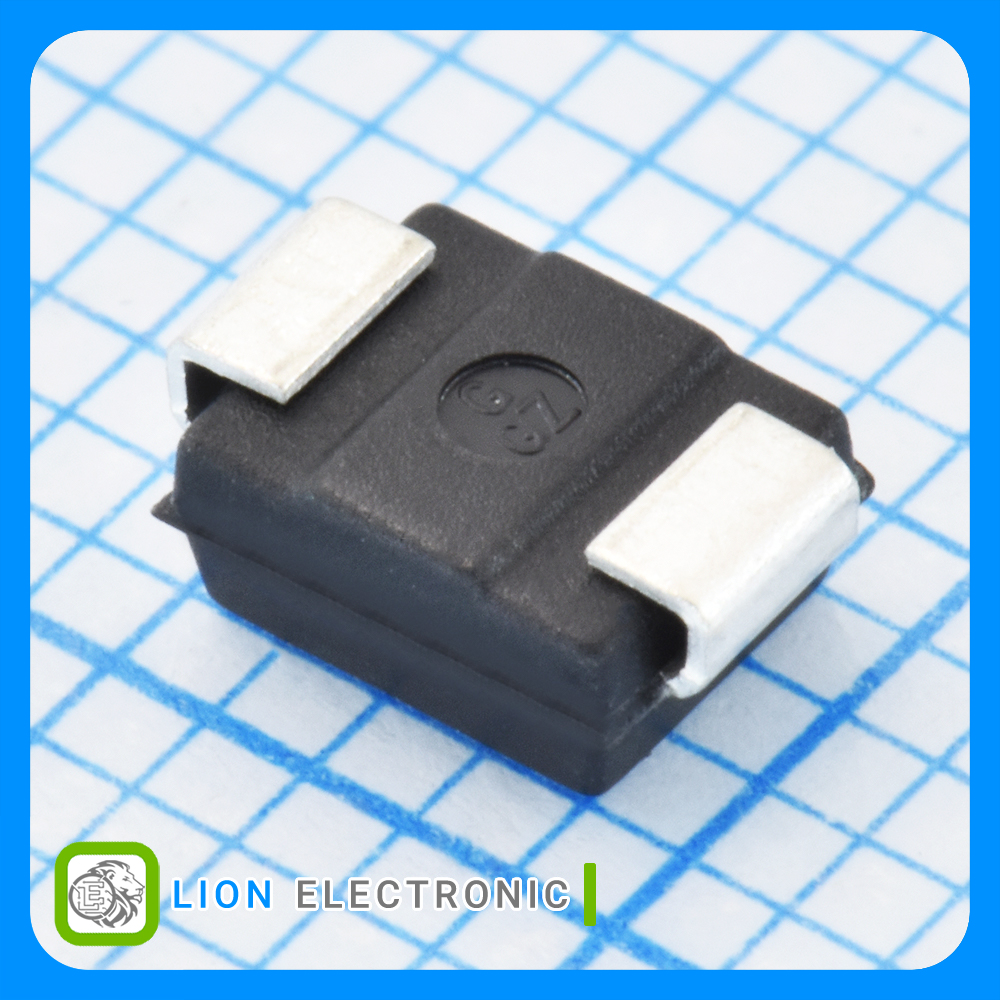

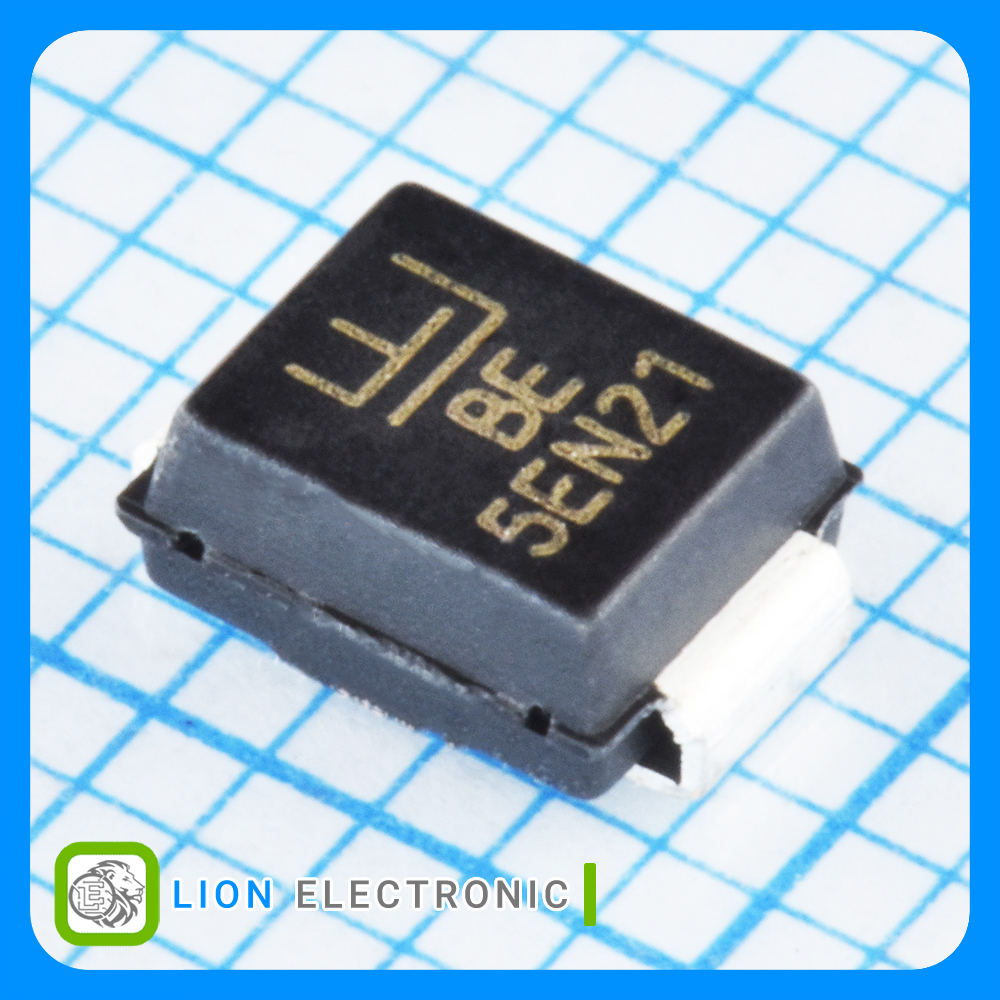

دیود TVS دوطرفه 12 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 12V, 600W with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 12 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 12V, 600W with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 12V
- Breakdown Voltage: 13.3V
- Clamping Voltage: 19.9V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 30.2A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel

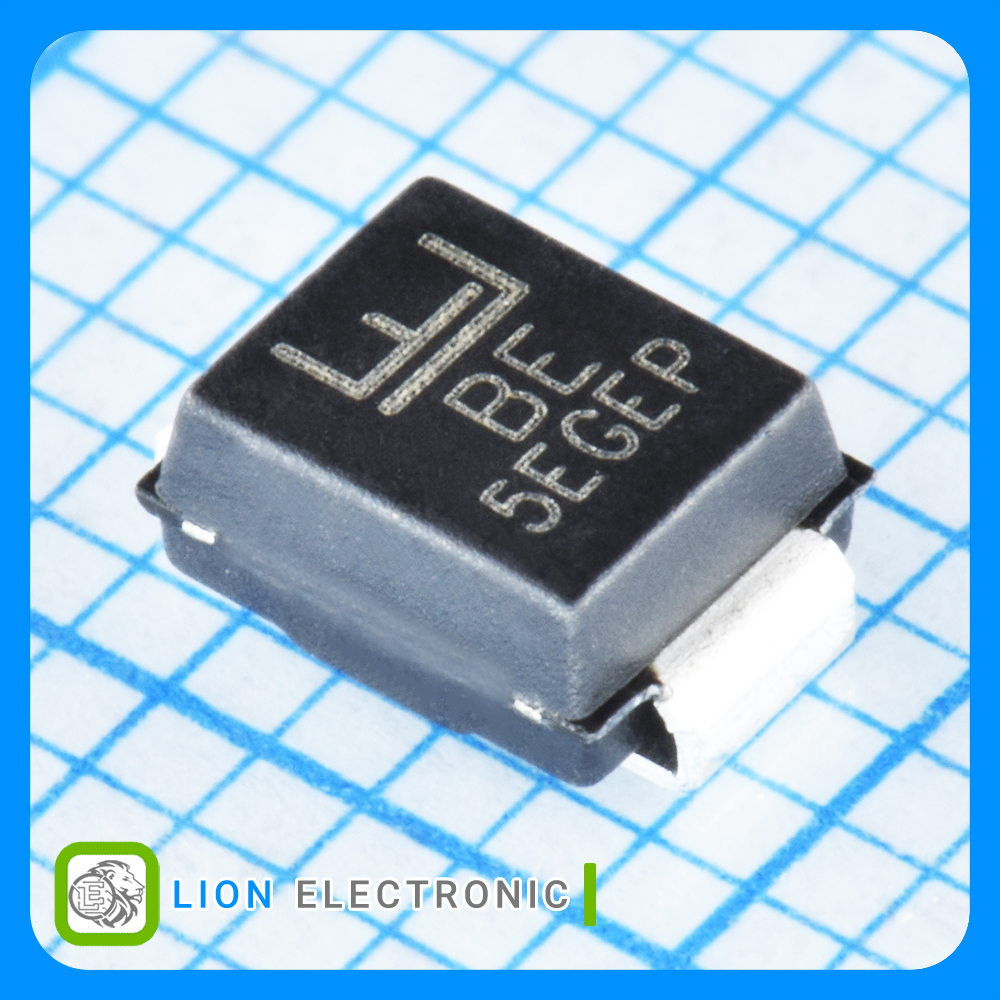

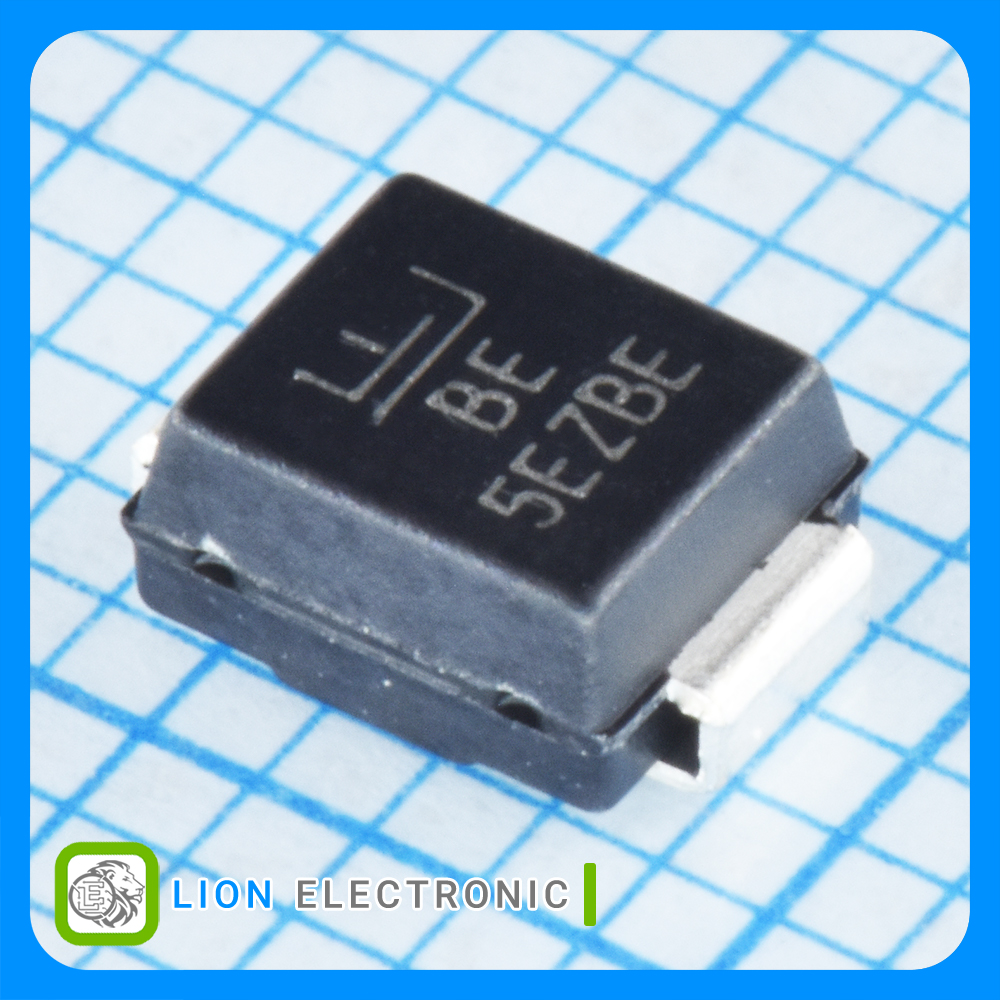

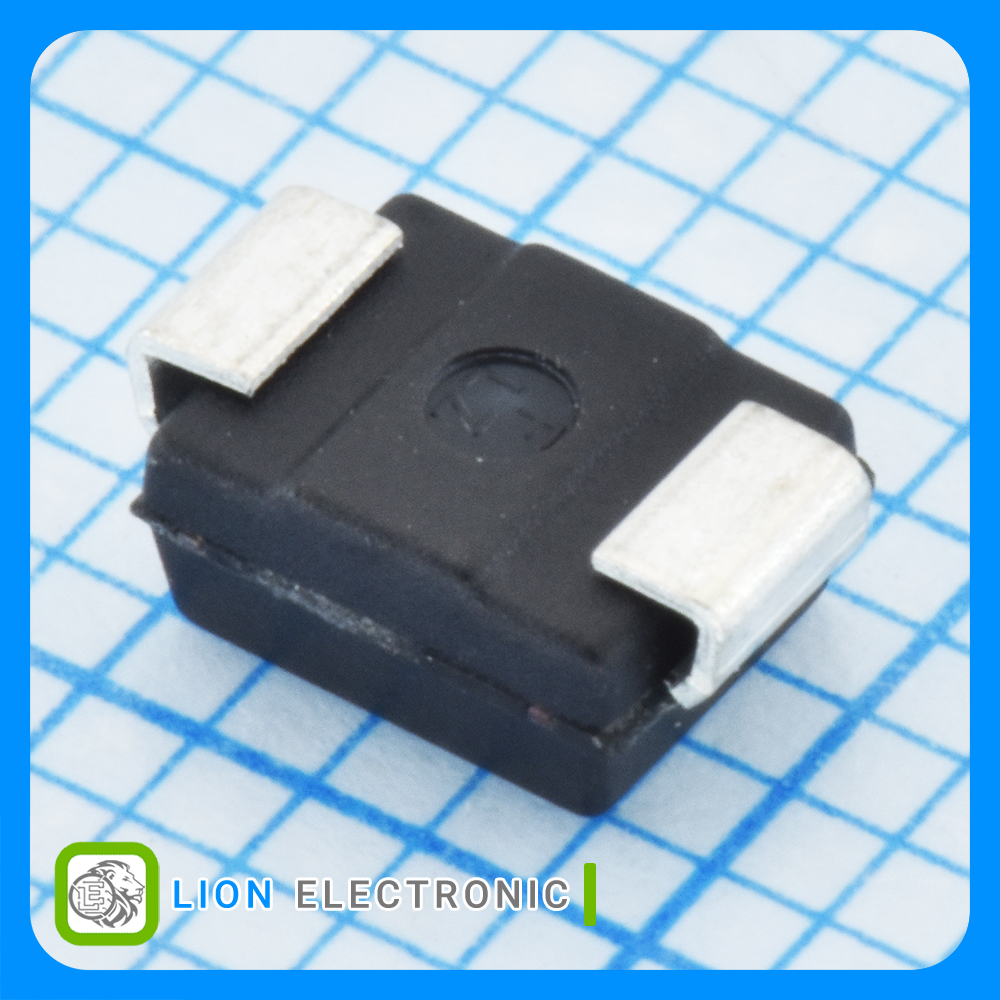

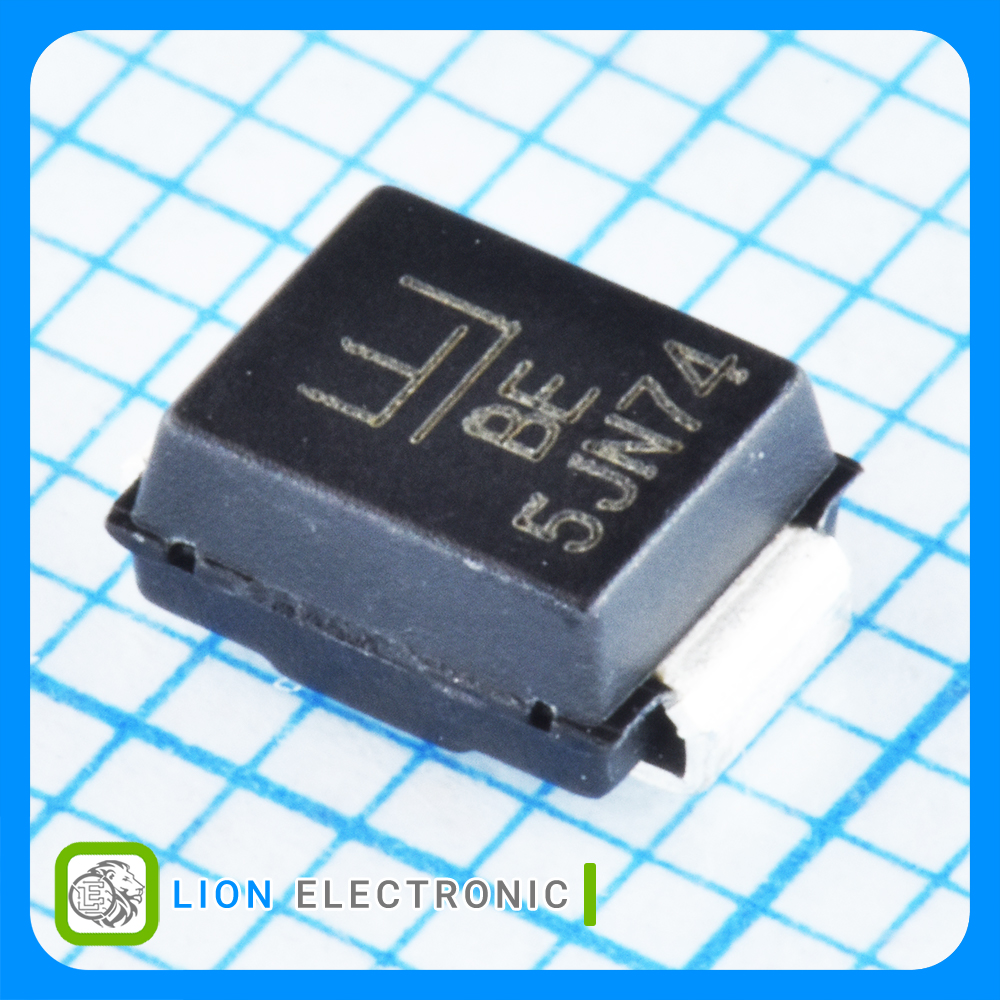

مشخصات دیود تیویاس دوجهته SMBJ12CA
دیود تیویاس دوجهته SMBJ12CA
Part Number
1
Number of Channels
Bidirectional
Polarity
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
30kV
Vesd - Voltage ESD Contact
Reel
Packaging
600W
Pppm - Peak Pulse Power Dissipation
12V
Working Voltage
+150C
Maximum Operating Temperature
19.9V
Clamping Voltage
13.3V
Breakdown Voltage
N/A
Cd - Diode Capacitance
30.2A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
