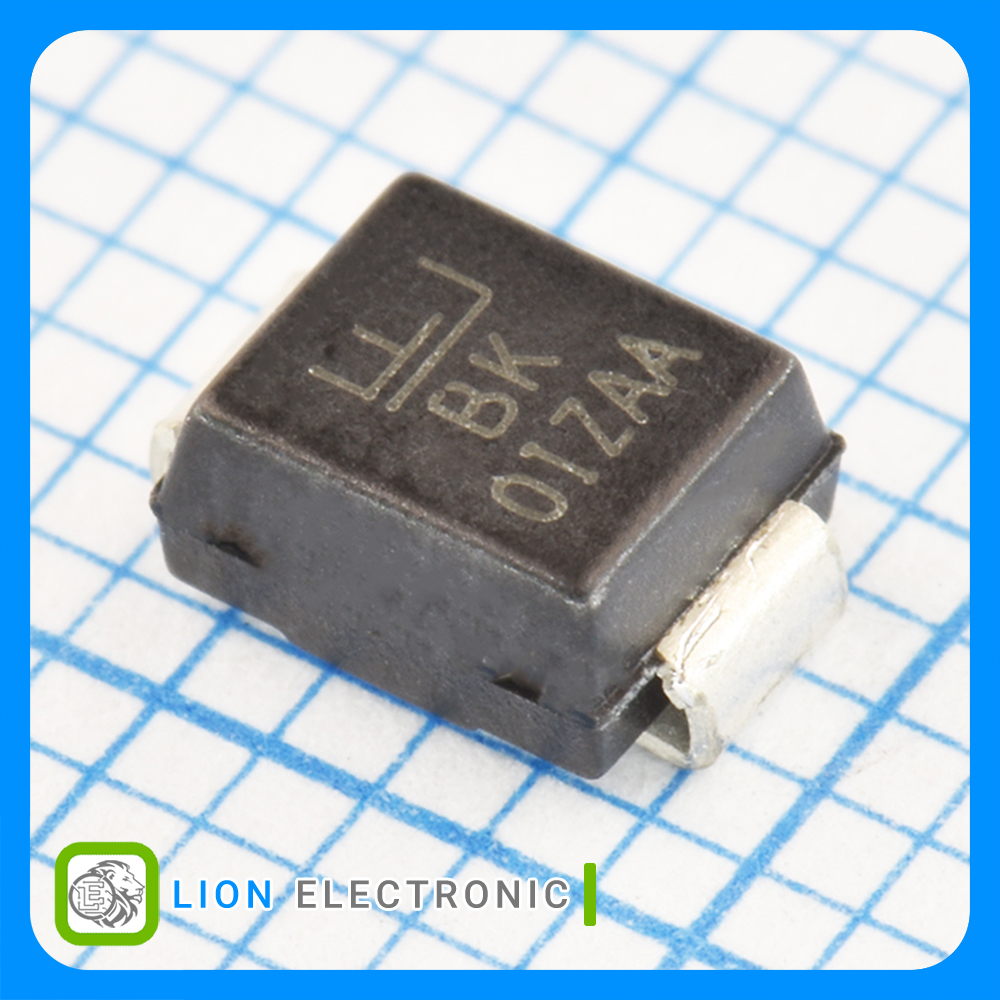

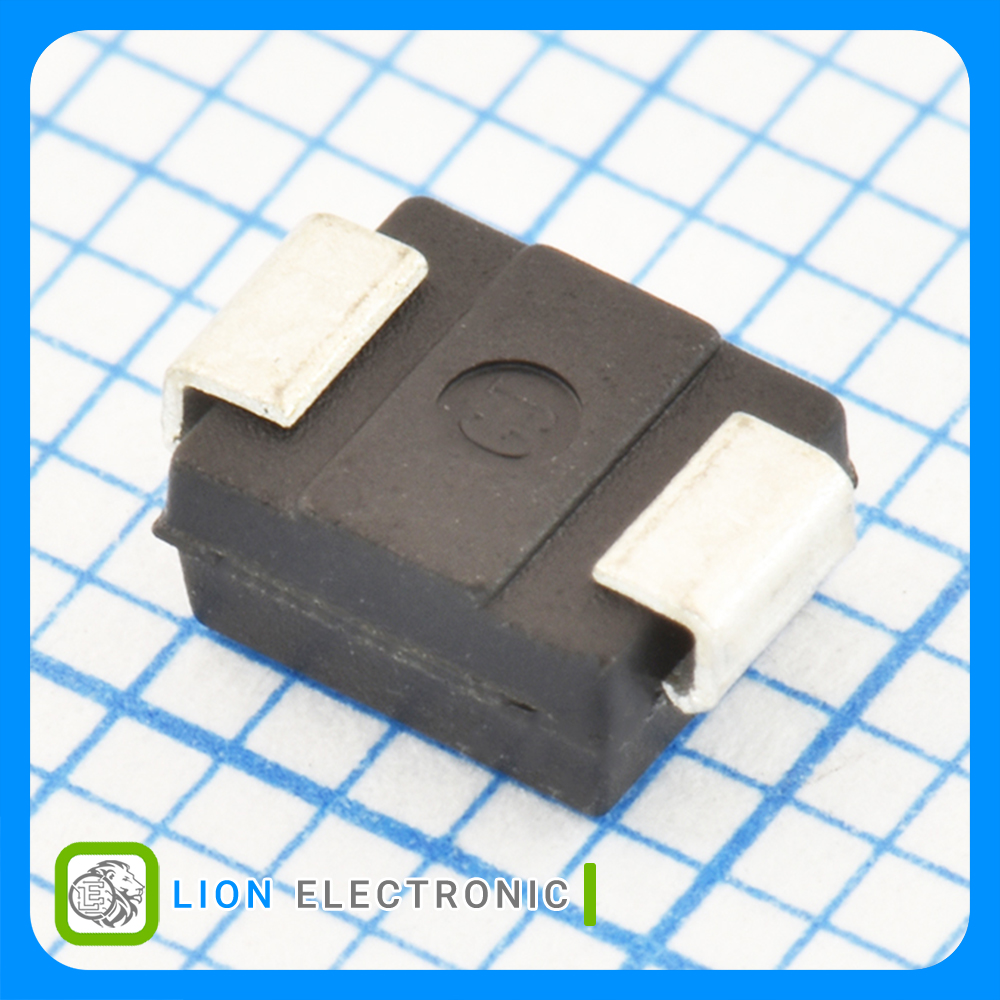

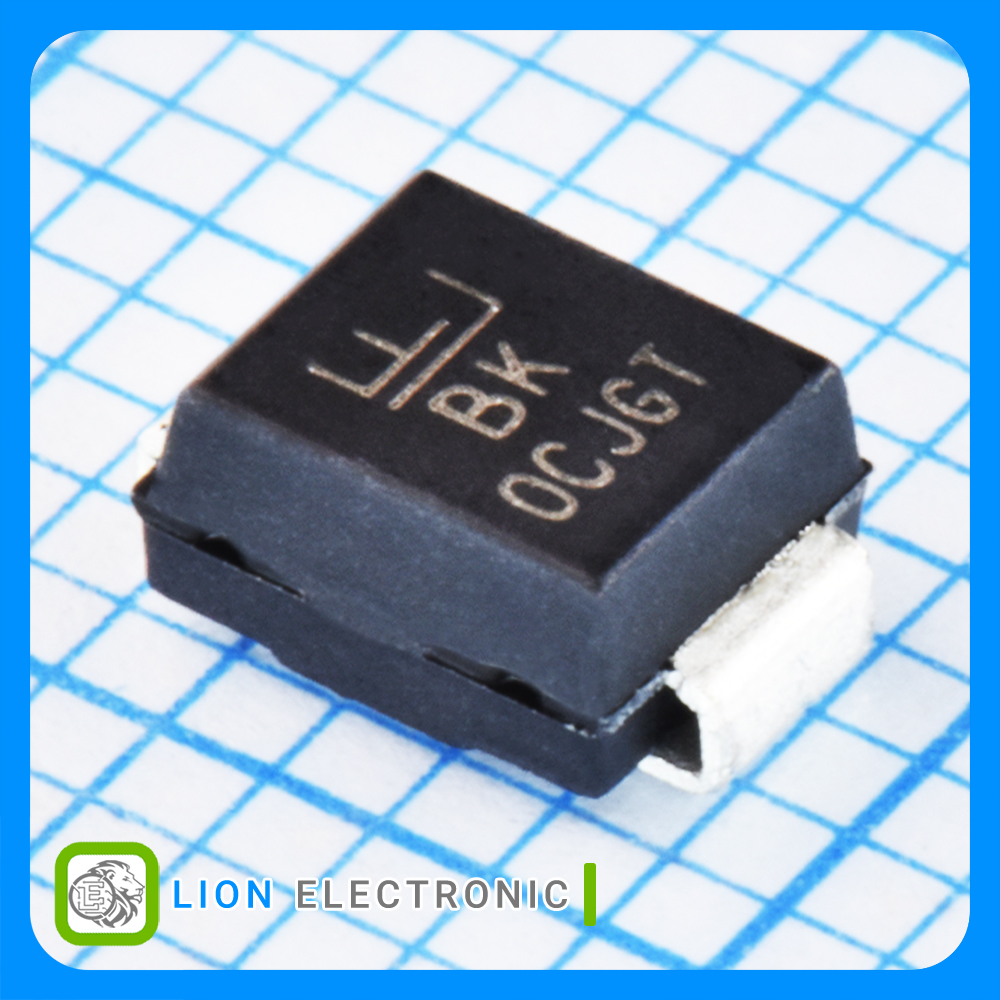

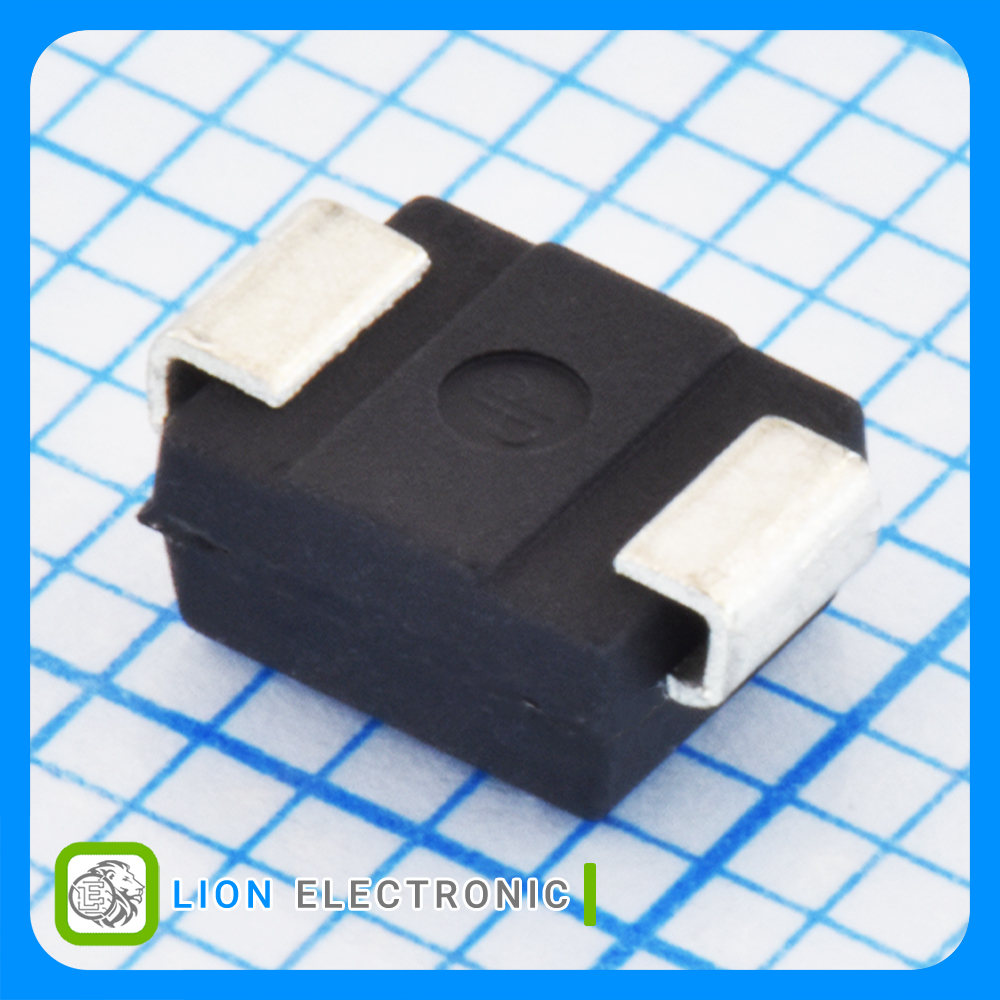

SMBJ14CA
SMBJ14CA
Part Number
3462
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دوطرفه 14 ولت 600 وات با بیشینه پالس جریان 25.9 آمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 14V, 600W, Peak Pulse Current 25.9A with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 14 ولت 600 وات با بیشینه پالس جریان 25.9 آمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 14V, 600W, Peak Pulse Current 25.9A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 14V
- Breakdown Voltage: 15.6V
- Clamping Voltage: 23.2V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 25.9A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس دوجهته SMBJ14CA
دیود تیویاس دوجهته SMBJ14CA
Part Number
Bidirectional
Polarity
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
600W
Pppm - Peak Pulse Power Dissipation
14V
Working Voltage
+150C
Maximum Operating Temperature
23.2V
Clamping Voltage
15.6V
Breakdown Voltage
N/A
Cd - Diode Capacitance
25.9A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
