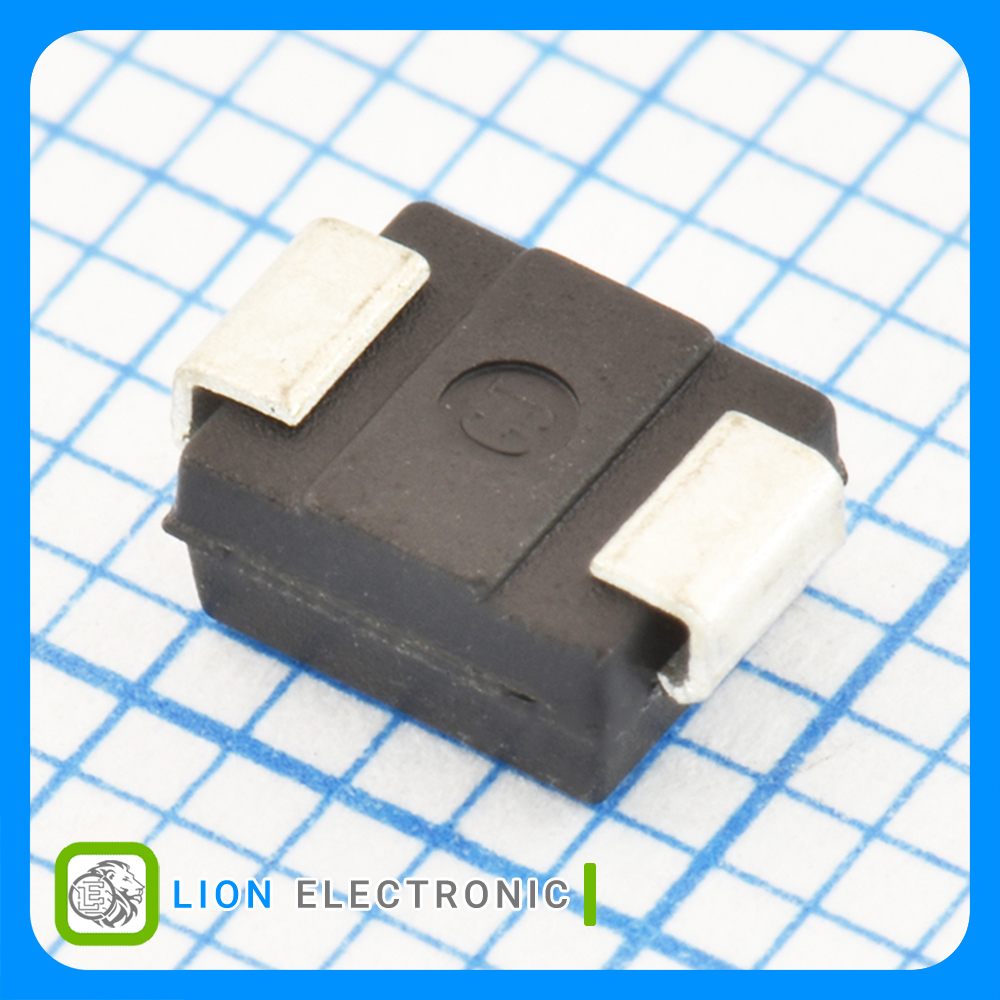

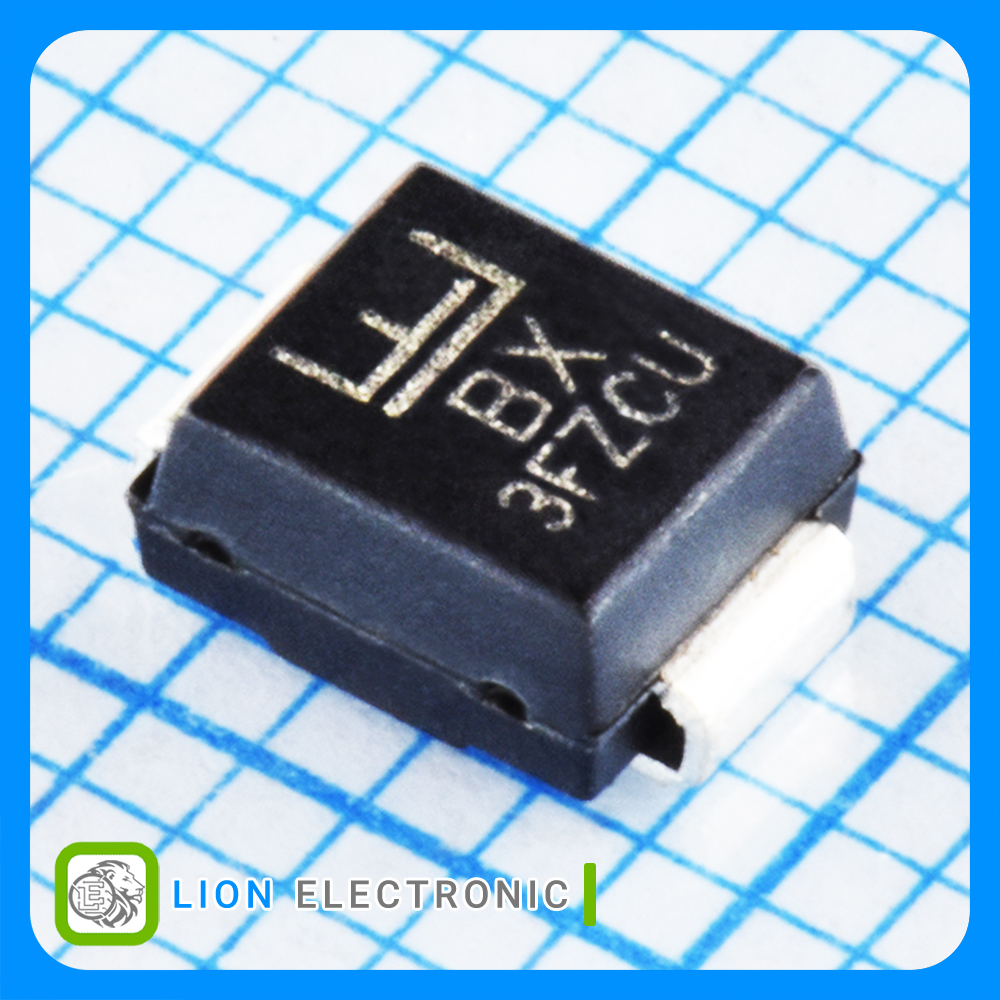

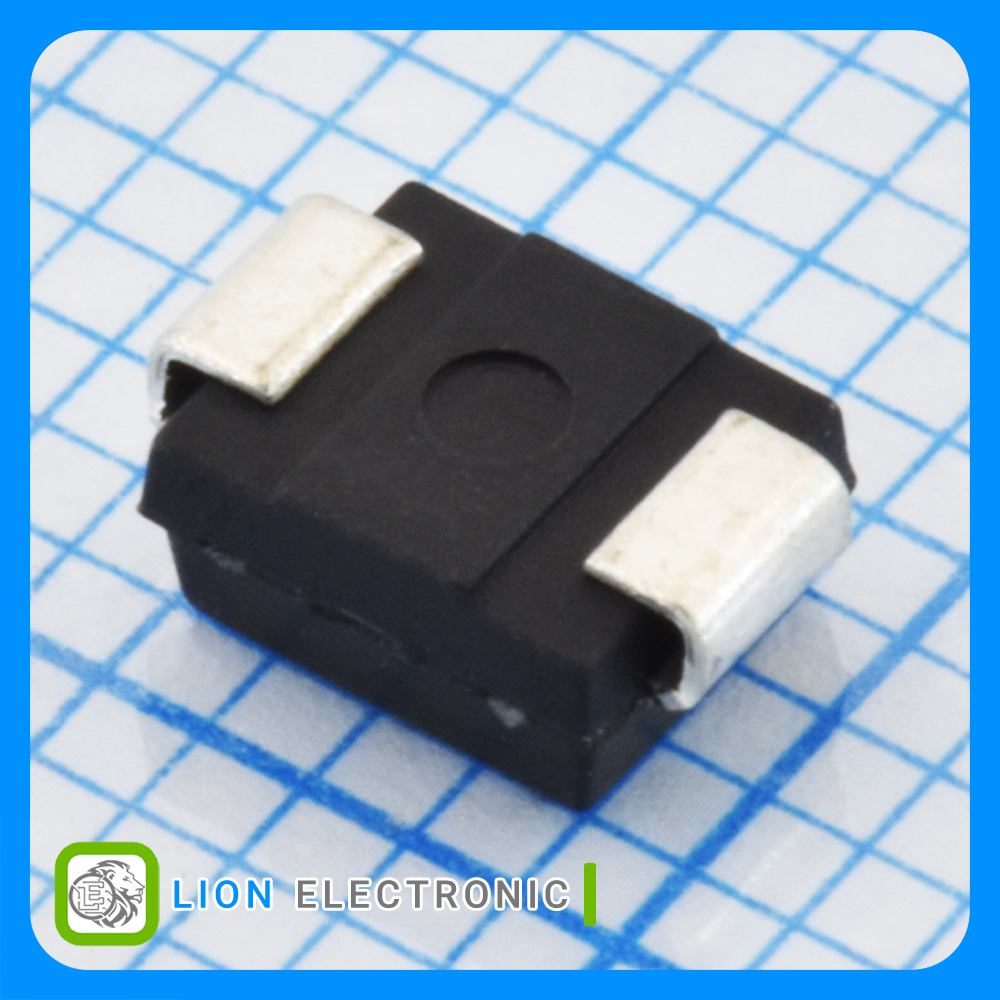

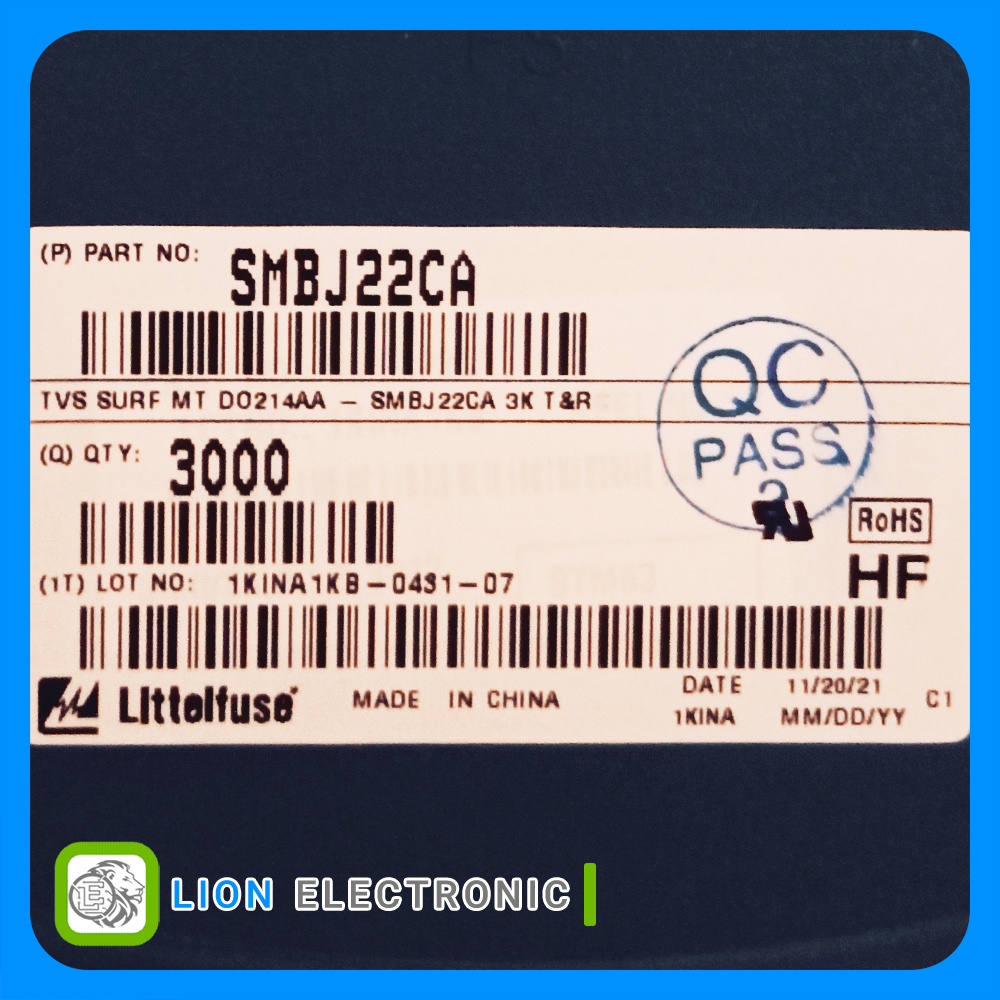

SMBJ22CA
SMBJ22CA
Part Number
3466
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دوطرفه 22 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 22V, 600W with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 22 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 22V, 600W with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 22V
- Breakdown Voltage: 24.4V
- Clamping Voltage: 35.5V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 16.9A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel

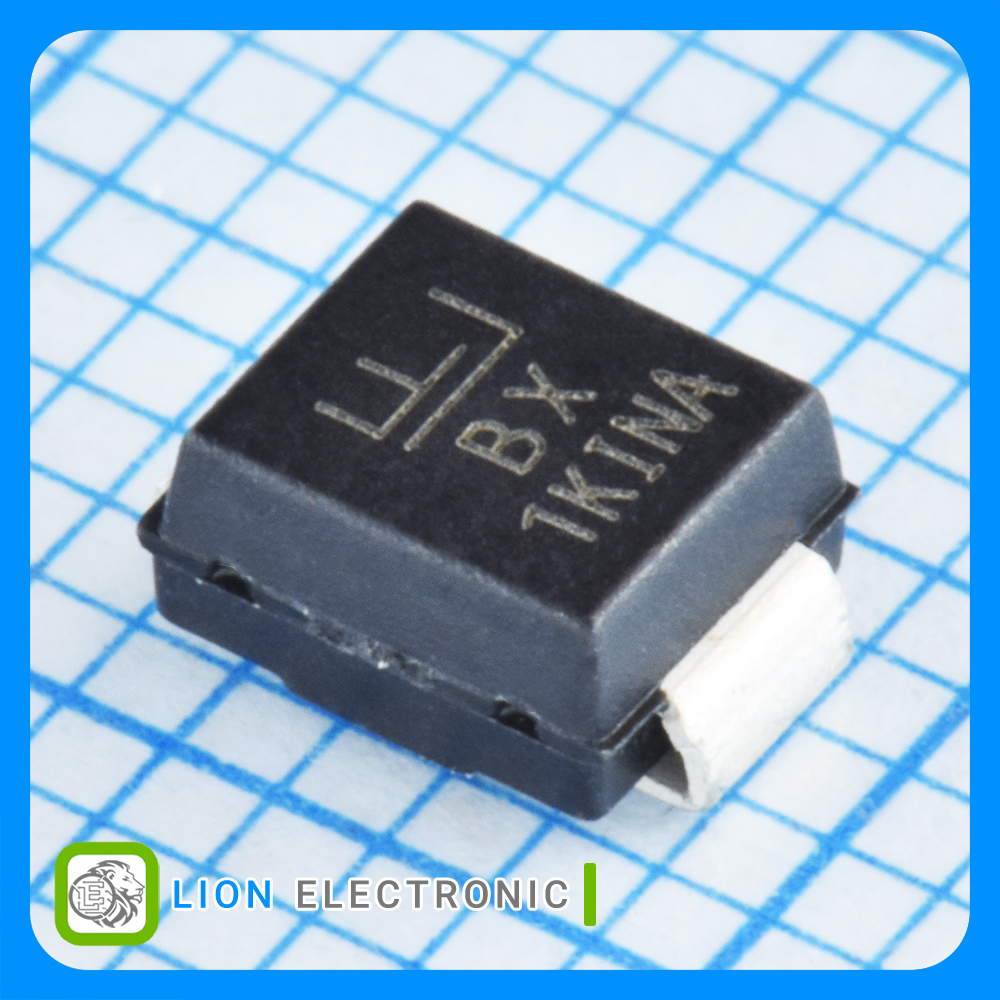

مشخصات دیود تیویاس دوجهته SMBJ22CA
دیود تیویاس دوجهته SMBJ22CA
Part Number
1
Number of Channels
Bidirectional
Polarity
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
22V
Working Voltage
N/A
Cd - Diode Capacitance
35.5V
Clamping Voltage
24.4V
Breakdown Voltage
16.9A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
