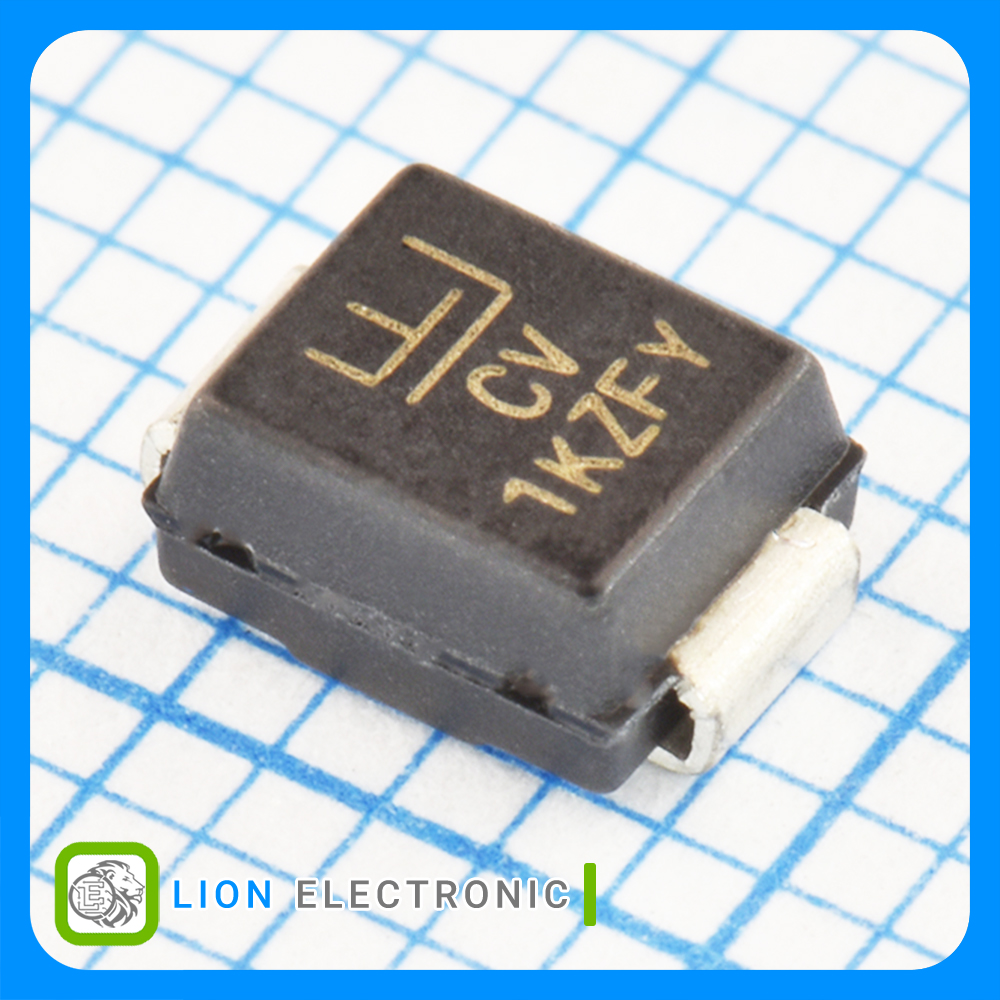

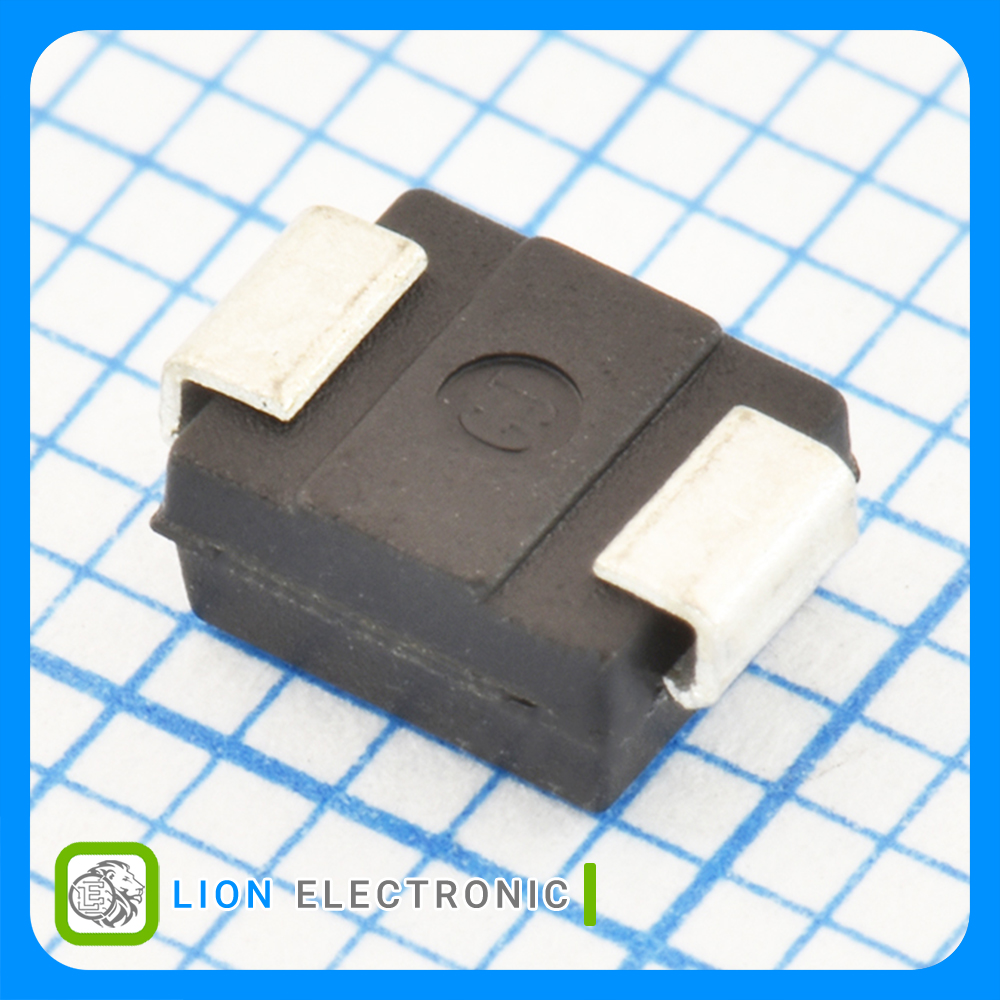

SMBJ45CA
SMBJ45CA
Part Number
3472
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دو جهته 45 ولت با بیشنه پالس جریان 8.3 آمپر با پکیج SMB
TVS Diode Bidirectional 45V SMB
مشخصات دیود تیویاس دوجهته SMBJ45CA
دیود تیویاس دوجهته SMBJ45CA
Part Number
1
Number of Channels
Bidirectional
Polarity
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
45V
Working Voltage
8.3A
Ipp - Peak Pulse Current
N/A
Cd - Diode Capacitance
72.7V
Clamping Voltage
50V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
