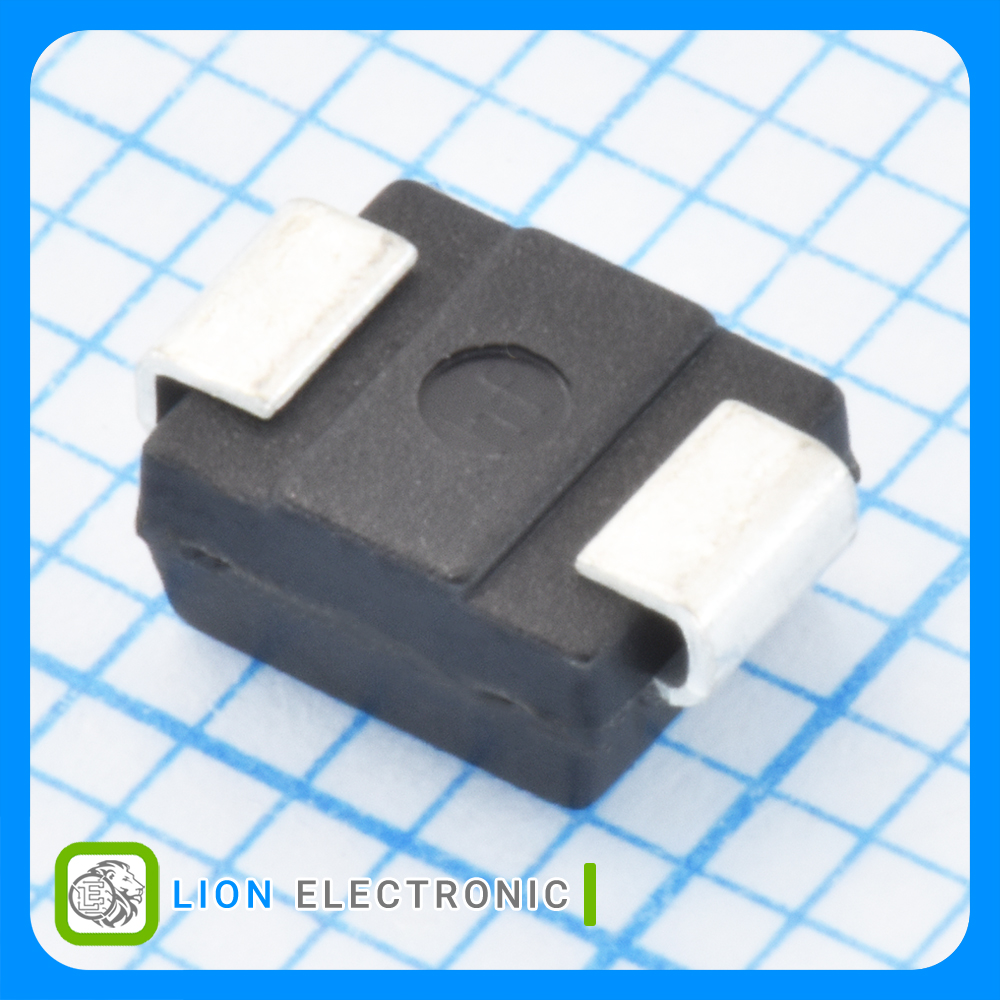

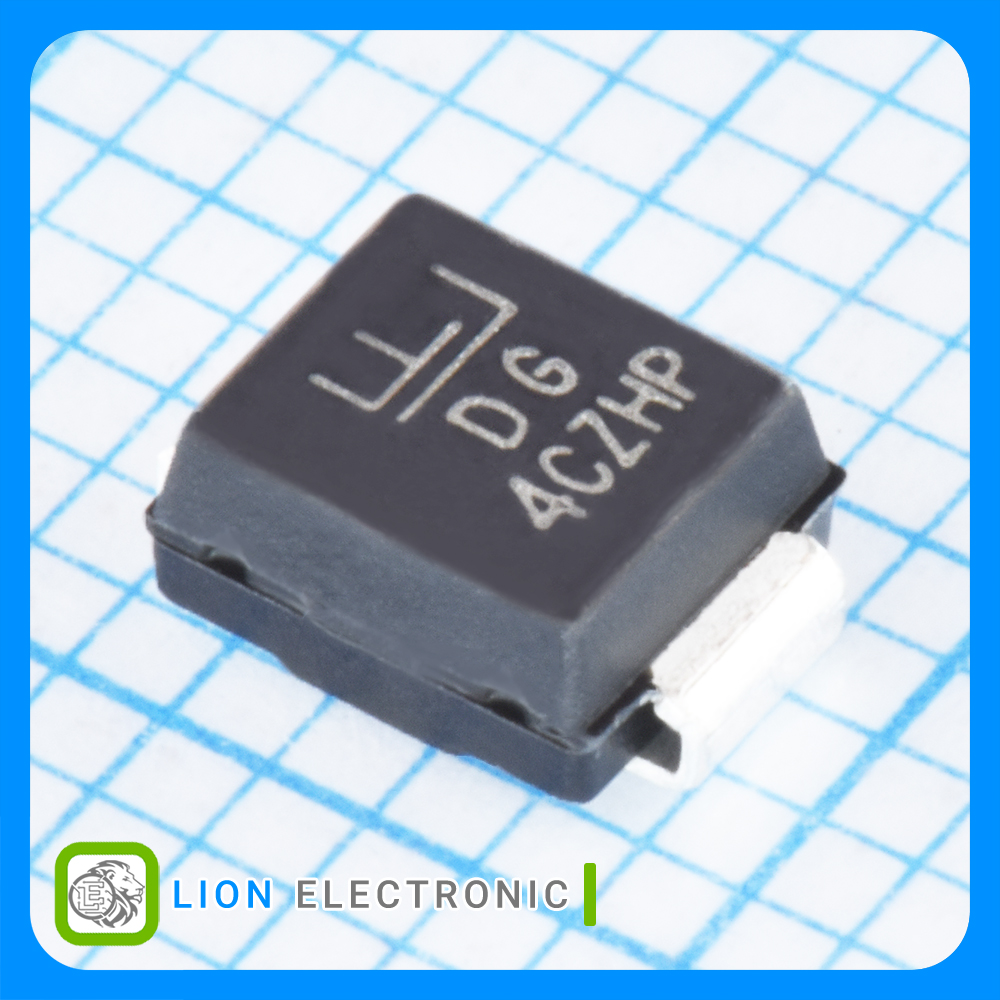

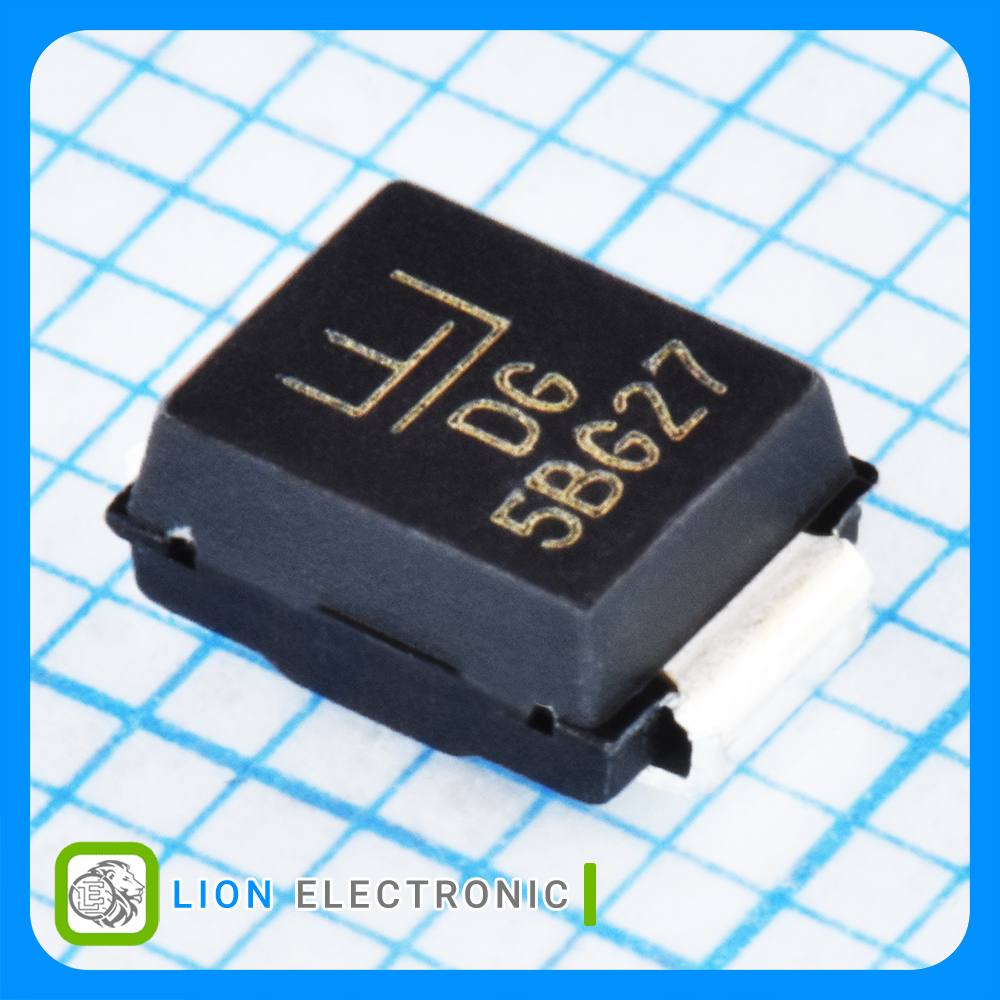

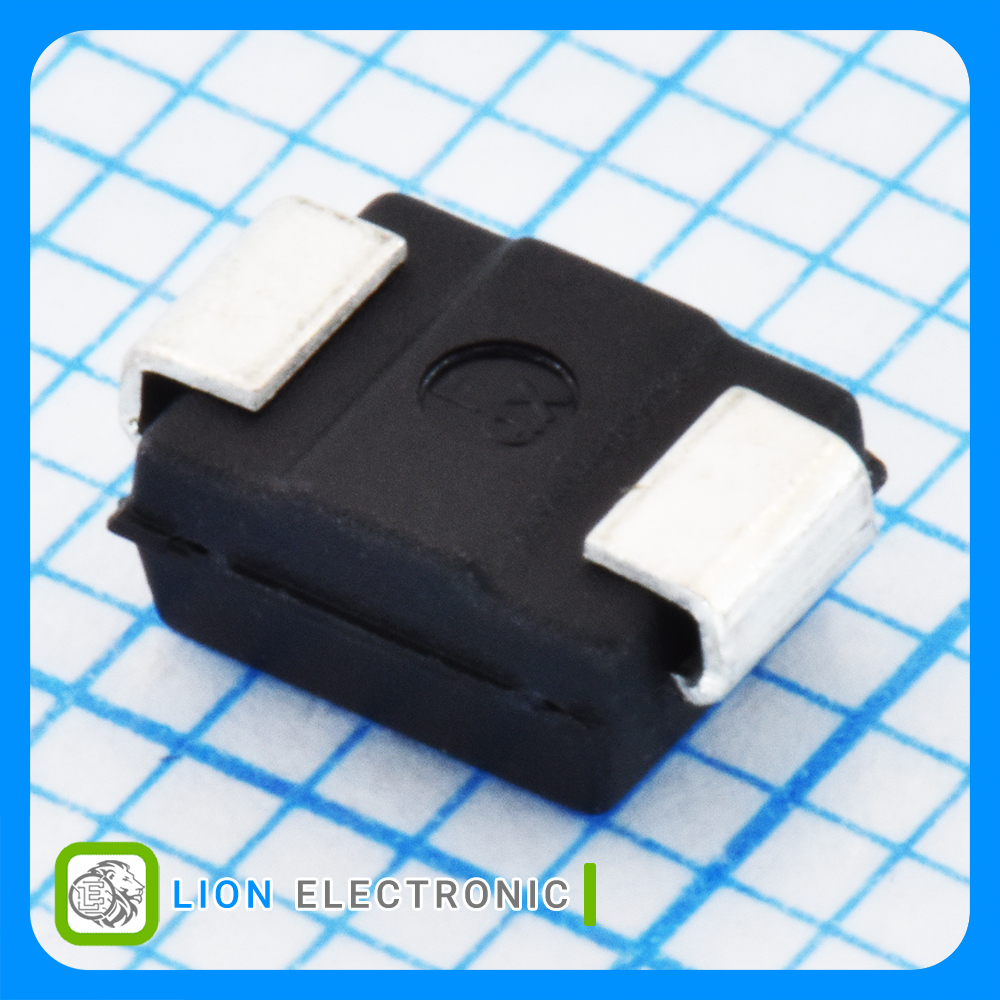

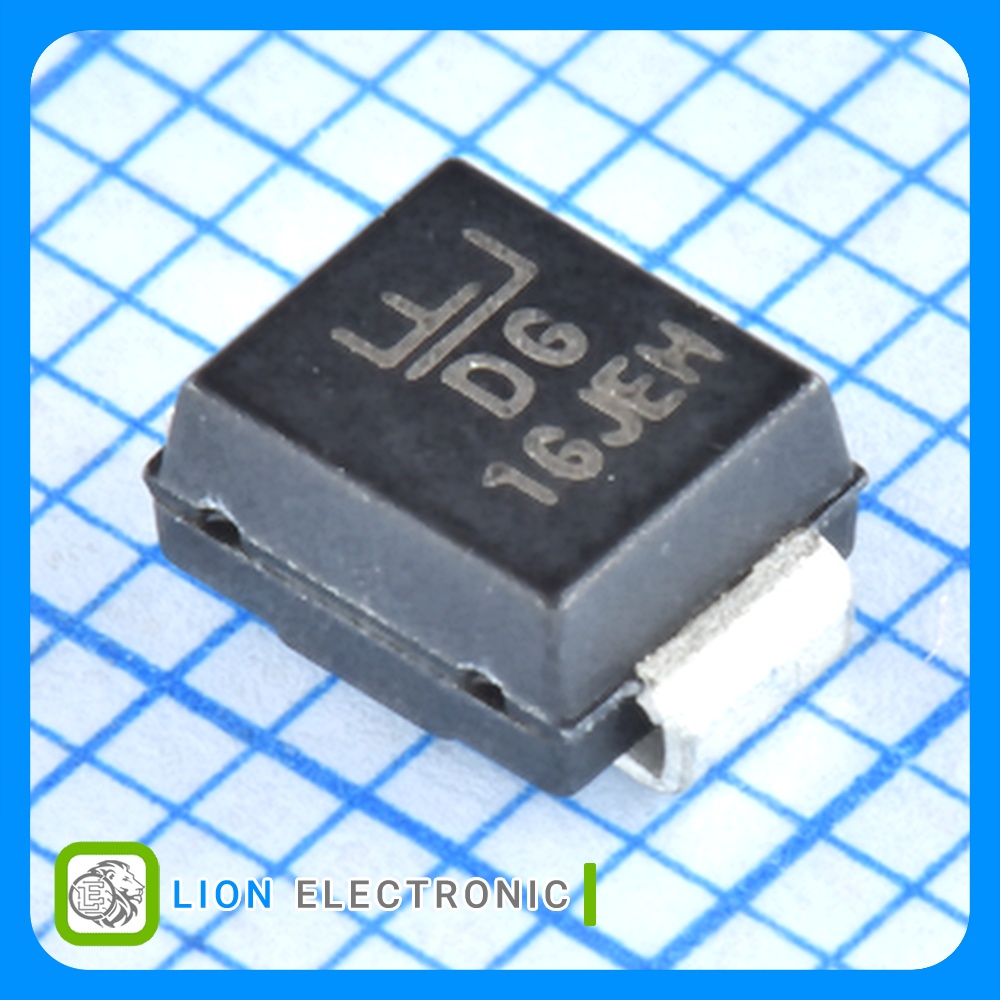

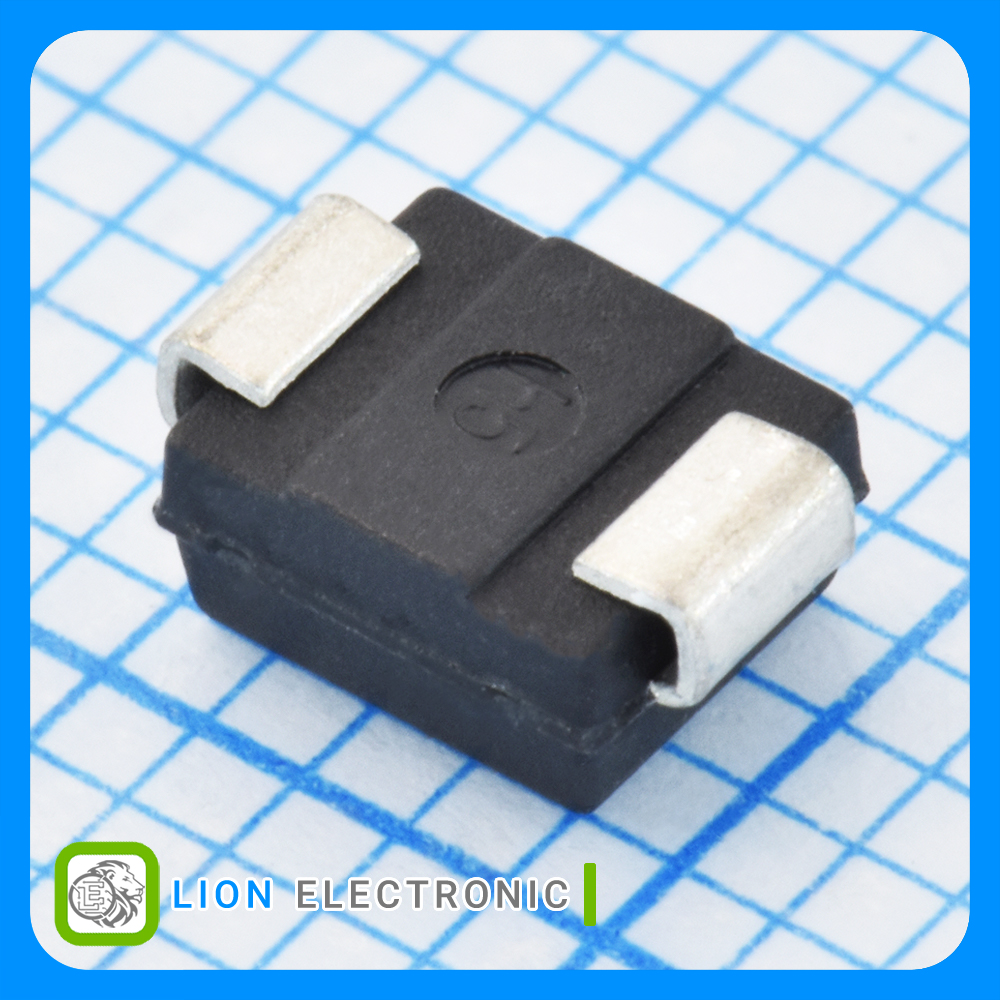

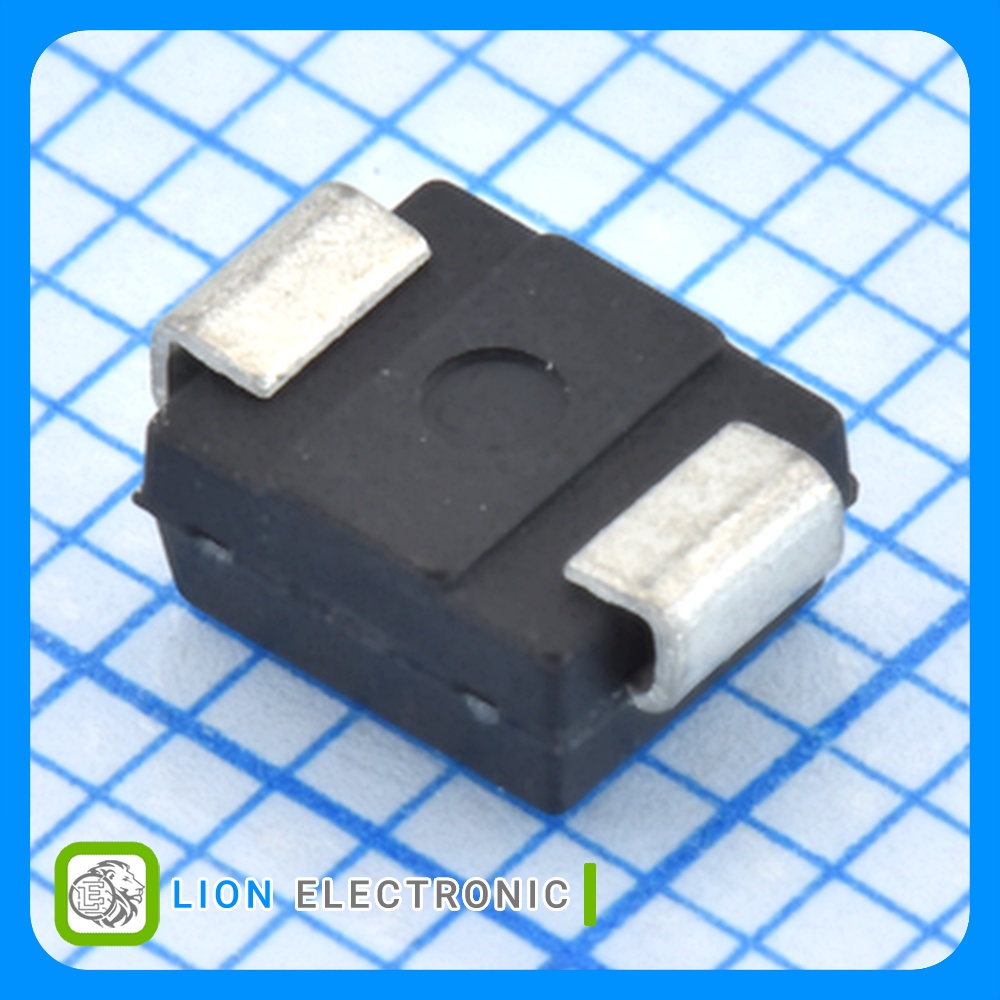

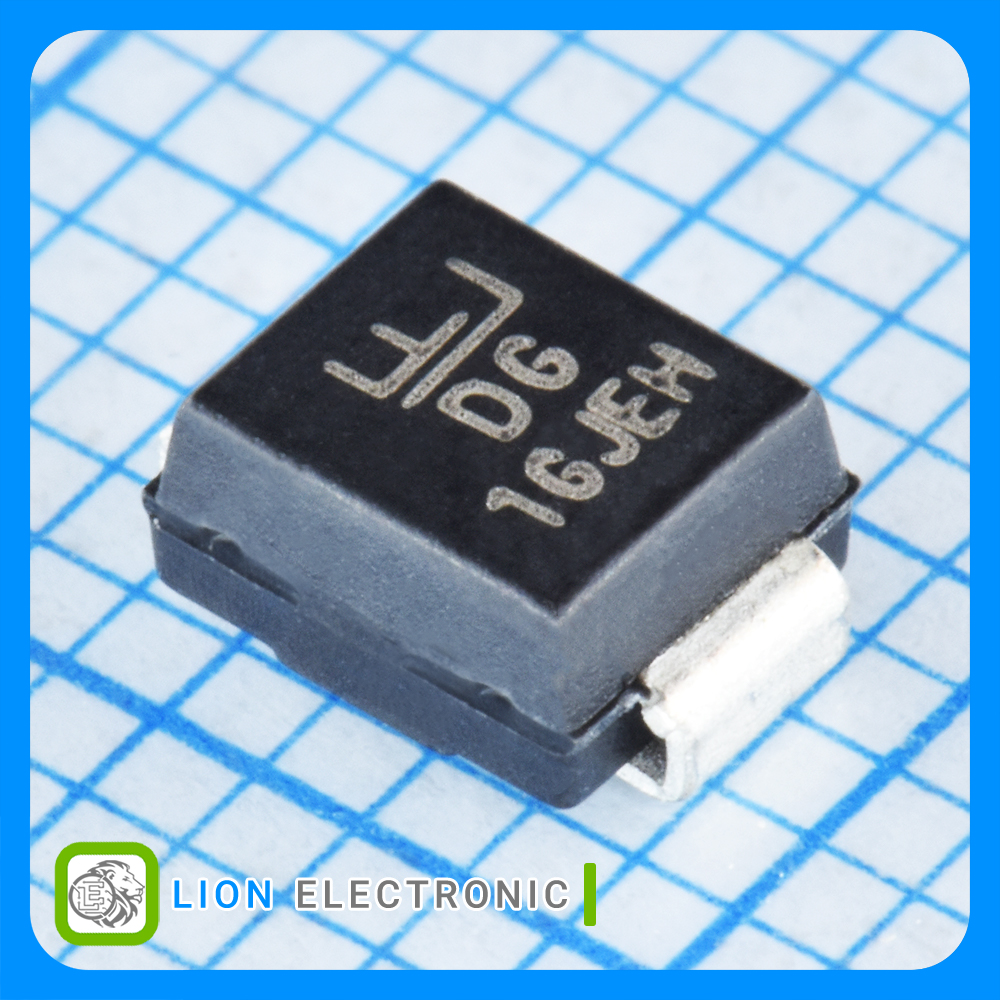

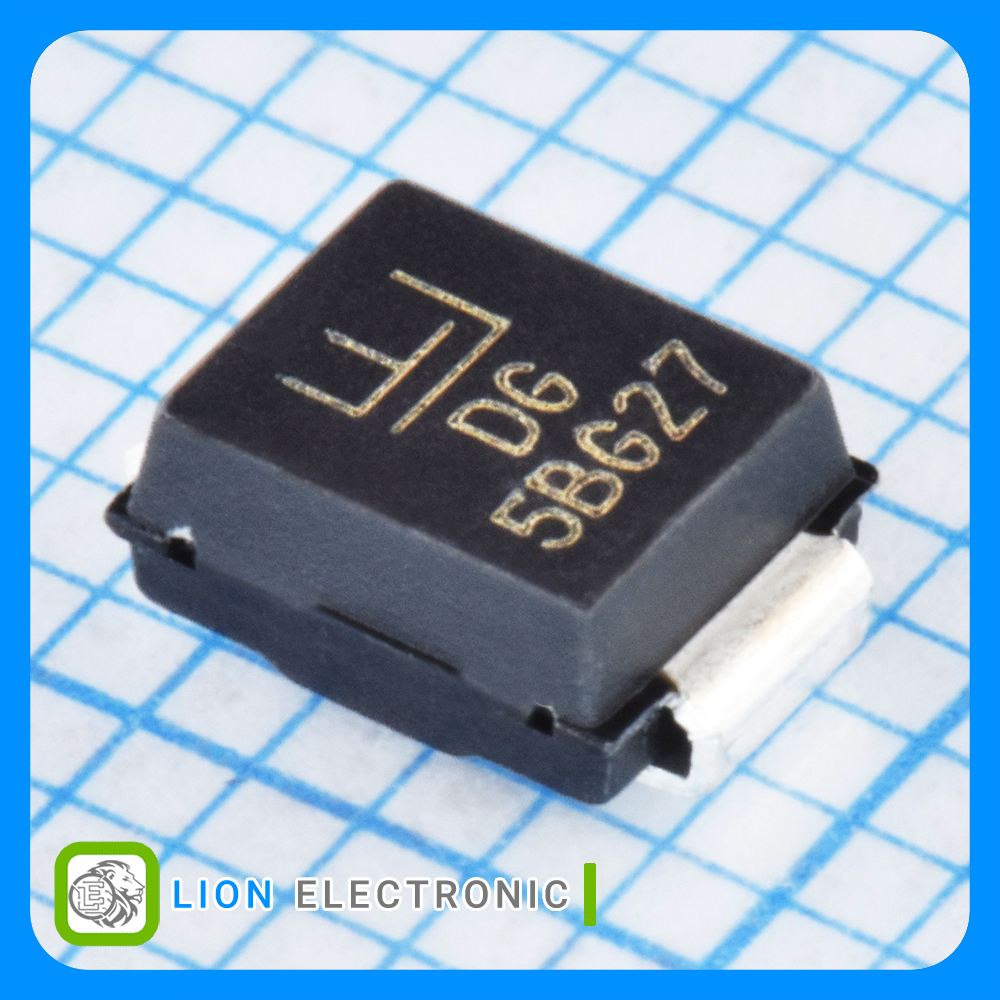

SMBJ58CA
SMBJ58CA
Part Number
3473
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دوطرفه 58 ولت 600 وات با بیشینه پالس جریان 6.5 آمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 58V, 600W, Peak Pulse Current 6.5A with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 58 ولت 600 وات با بیشینه پالس جریان 6.5 آمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 58V, 600W, Peak Pulse Current 6.5A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 58V
- Breakdown Voltage: 64.4V
- Clamping Voltage: 93.6V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 6.5A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس دوجهته SMBJ58CA
دیود تیویاس دوجهته SMBJ58CA
Part Number
1
Number of Channels
Bidirectional
Polarity
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
30kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
Reel
Packaging
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
6.5A
Ipp - Peak Pulse Current
58V
Working Voltage
N/A
Cd - Diode Capacitance
93.6V
Clamping Voltage
64.4V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
