SMBJ110CA
SMBJ110CA
Part Number
3478
Lion Part
Datasheet
Littelfuse Manufacture

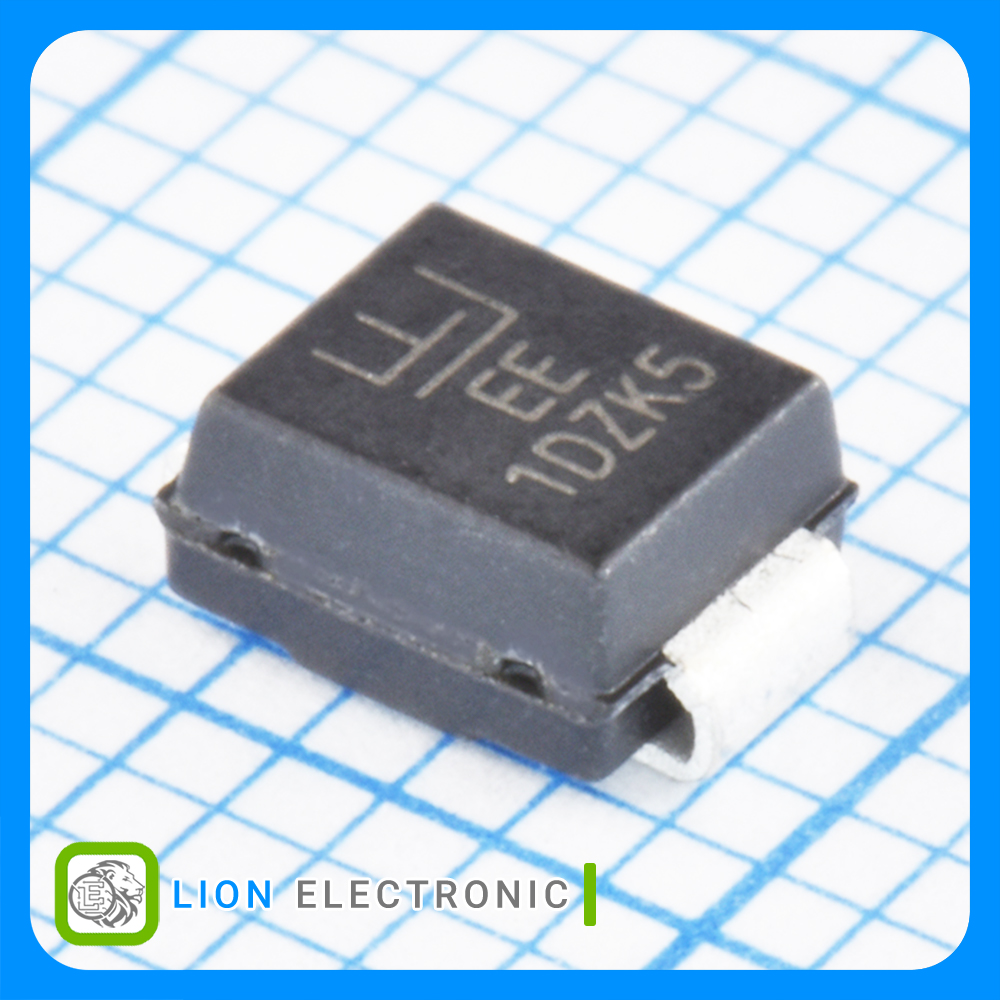

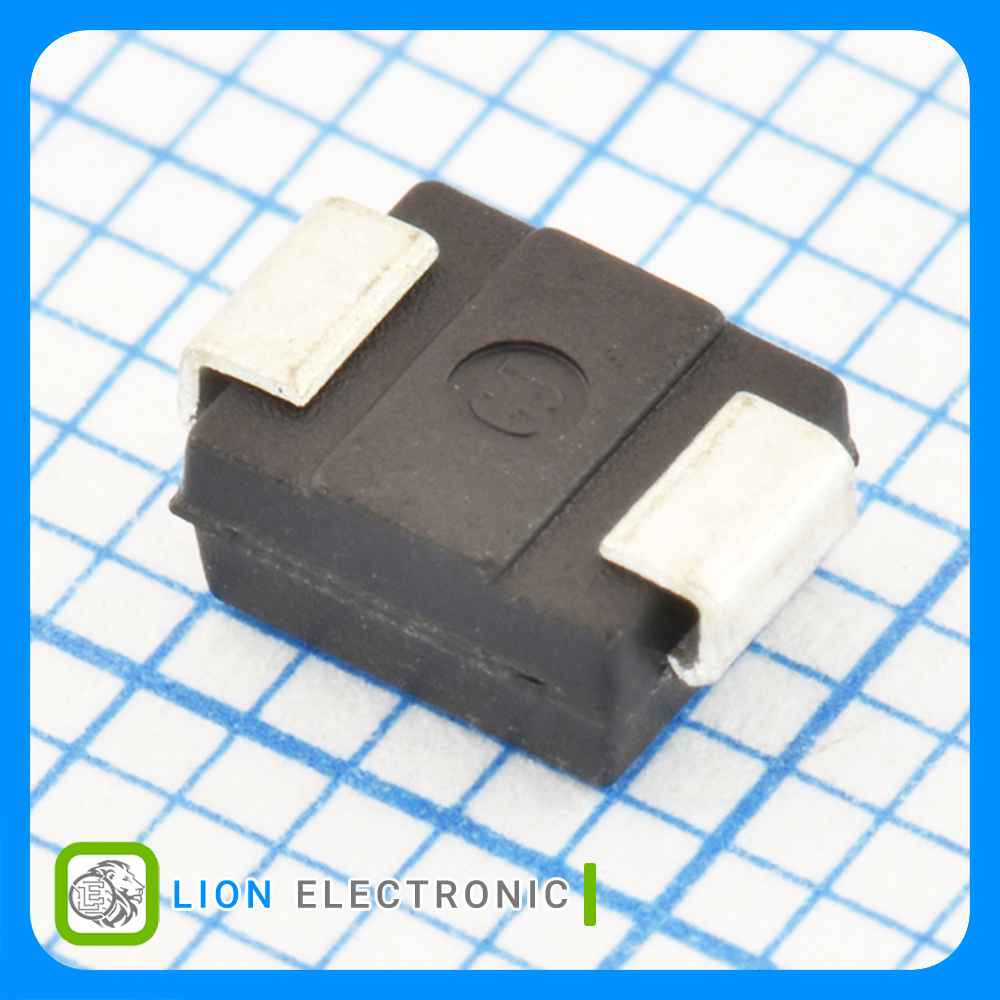

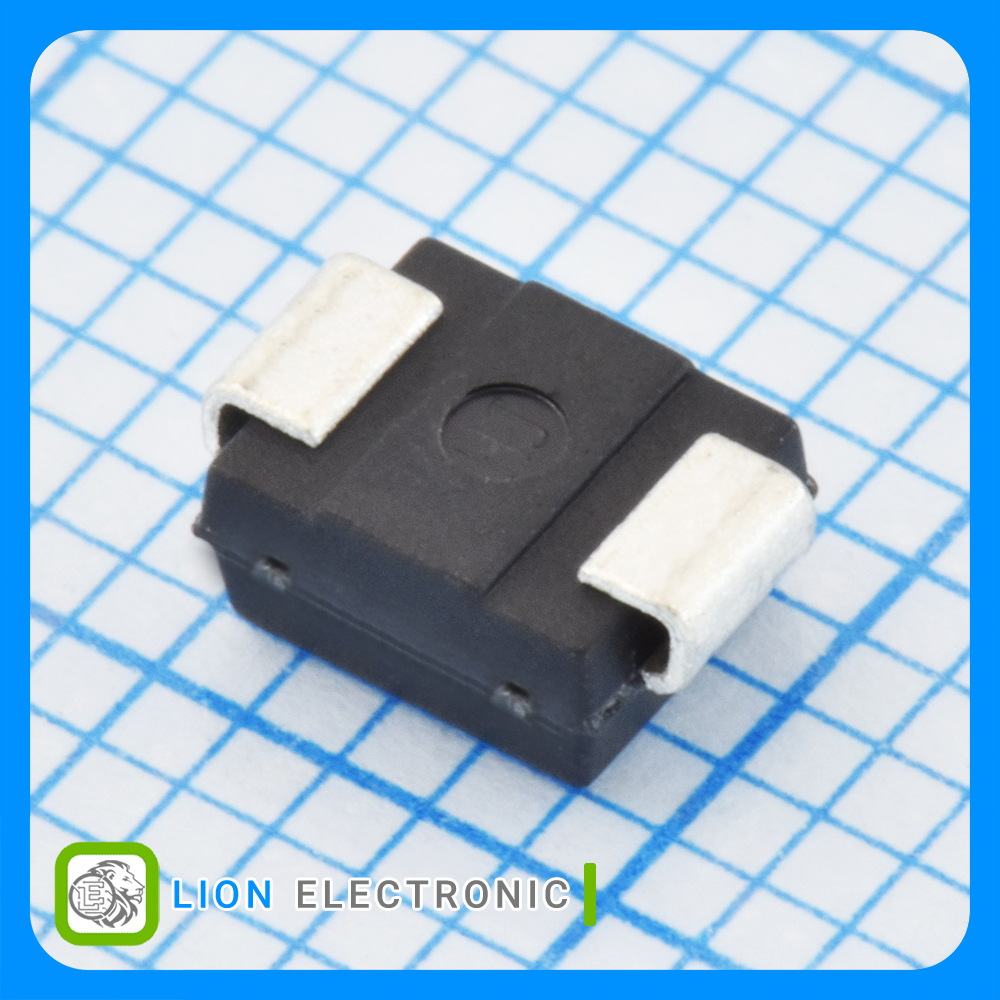

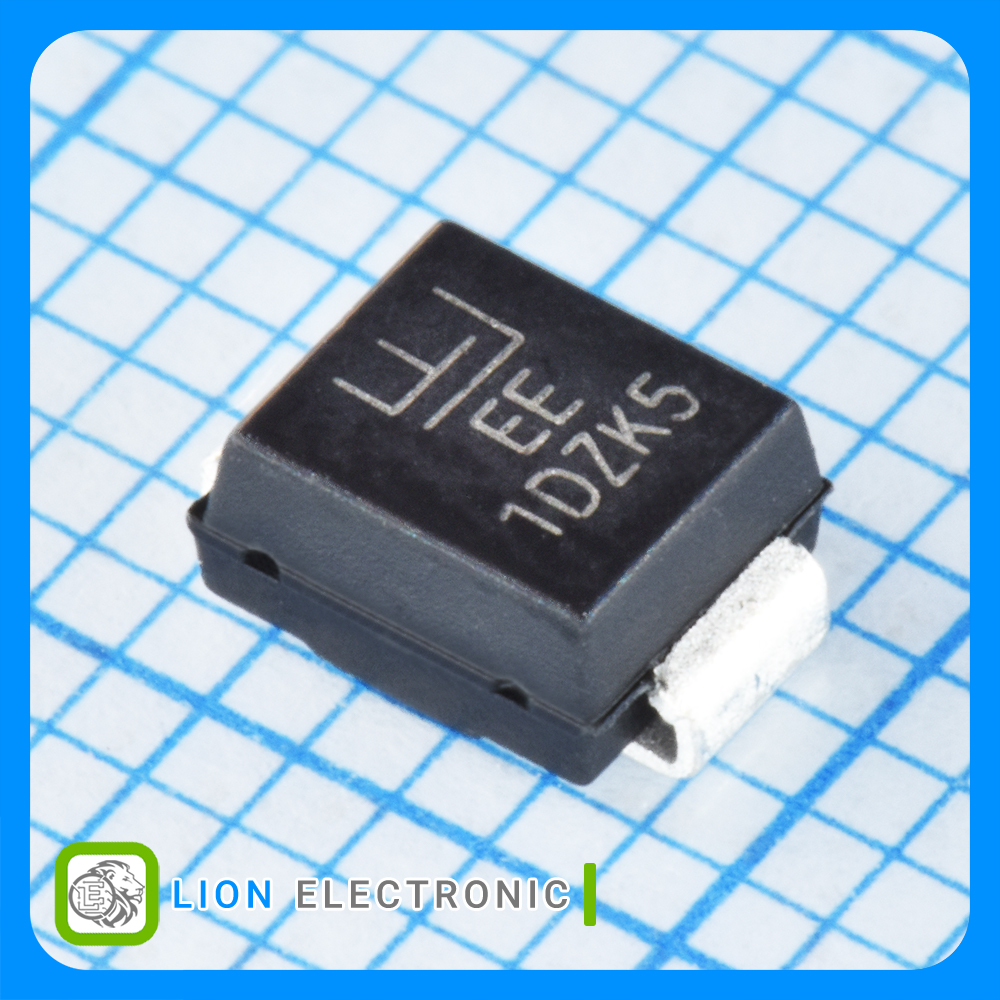

دیود TVS دوطرفه 110 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 110V, 600W with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 110 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 110V, 600W with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 110V
- Breakdown Voltage: 122V
- Clamping Voltage: 177V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 3.4A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس دوجهته SMBJ110CA
دیود تیویاس دوجهته SMBJ110CA
Part Number
Bidirectional
Polarity
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
3.4A
Ipp - Peak Pulse Current
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
N/A
Cd - Diode Capacitance
110V
Working Voltage
177V
Clamping Voltage
122V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
