SMBJ120CA-E3/52
SMBJ120CA-E3/52
Part Number
3481
Lion Part
Datasheet
Vishay Semiconductors Manufacture
دیود TVS دوطرفه 120 ولت 600 وات با بیشینه پالس جریان 3.1 آمپر با پکیج DO-214AA (SMB)

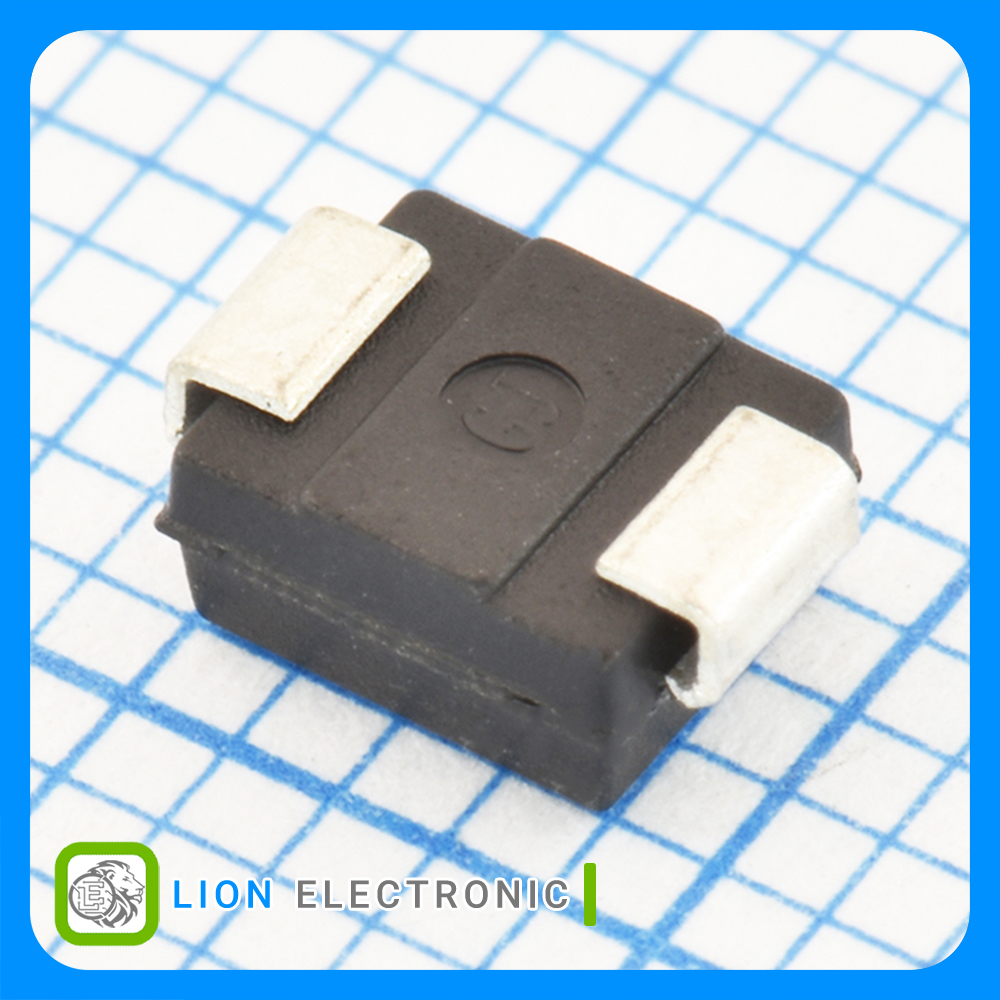

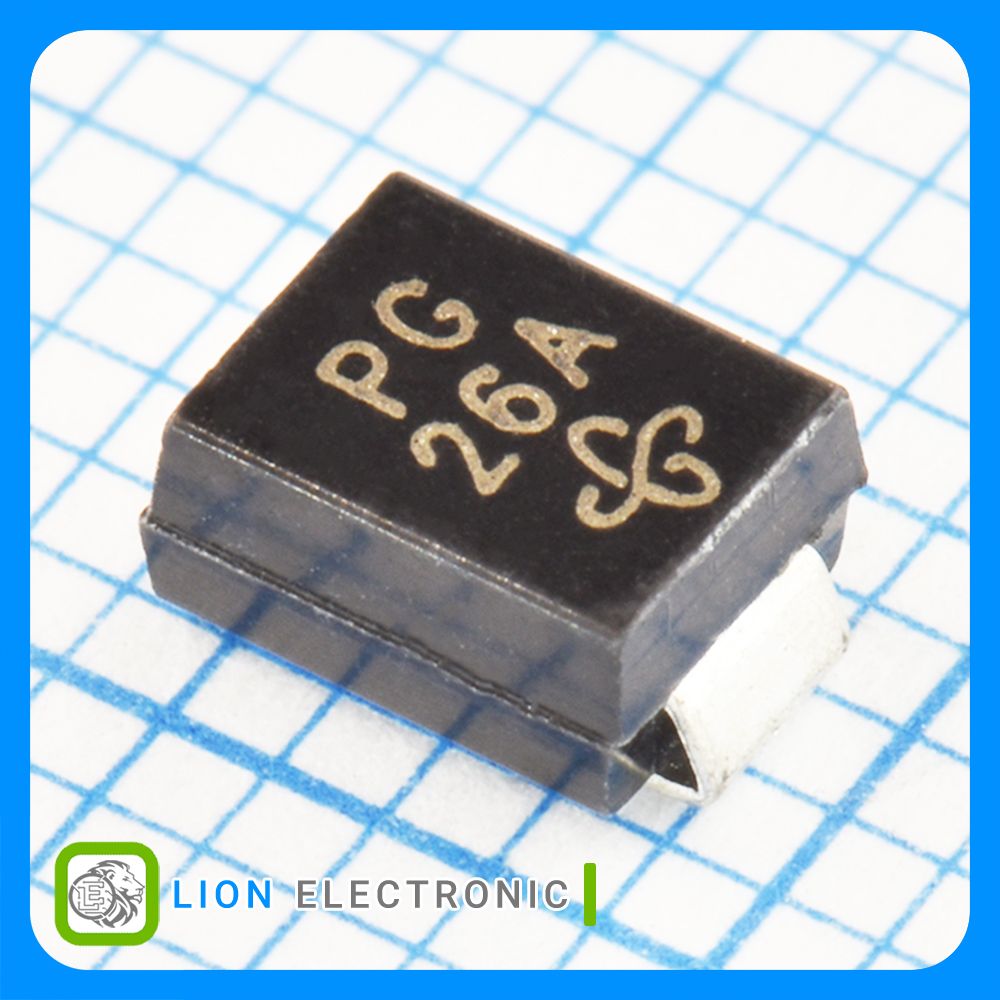

TVS Diode Bidirectional 120V, 600W, Peak Pulse Current 3.1A with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 120 ولت 600 وات با بیشینه پالس جریان 3.1 آمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 120V, 600W, Peak Pulse Current 3.1A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 120V
- Breakdown Voltage: 133V
- Clamping Voltage: 193V
- Pppm - Peak Pulse Power Dissipation: 600W
- Ipp - Peak Pulse Current: 3.1A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

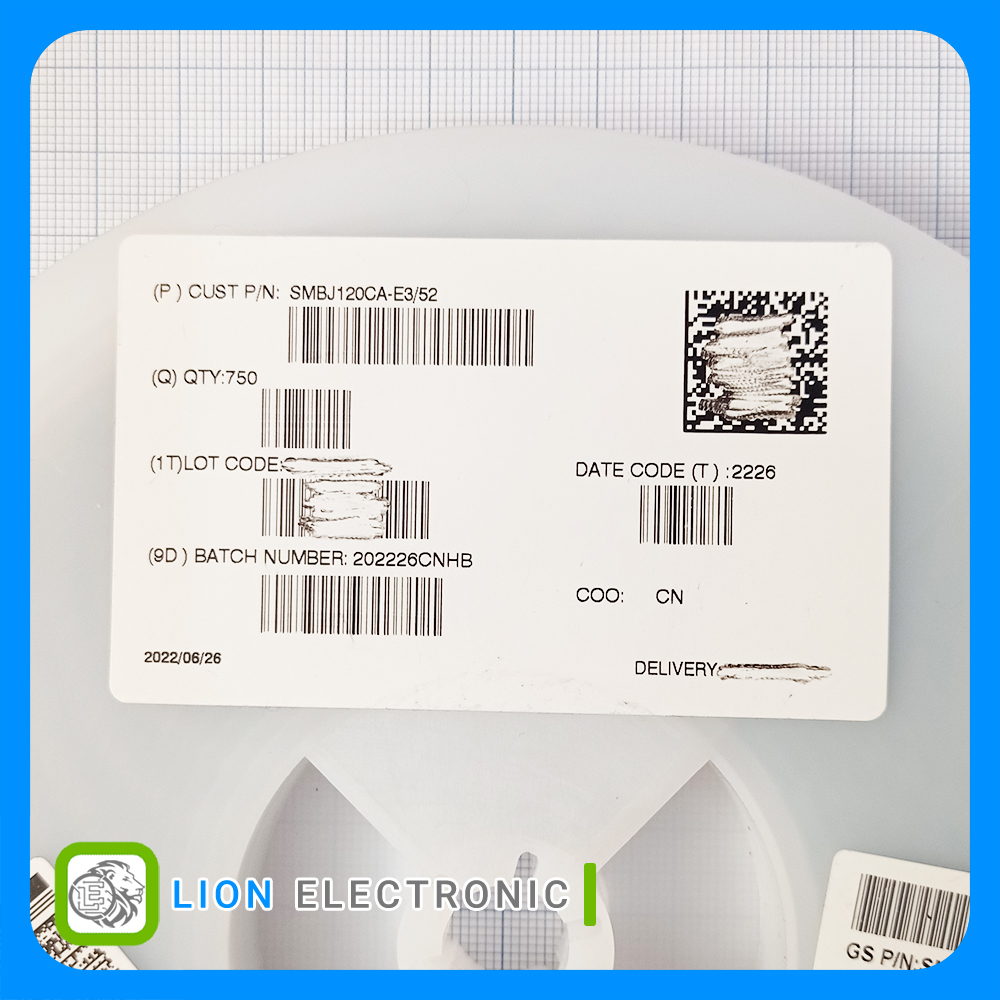

- Packaging: Reel
مشخصات دیود تیویاس دوجهته SMBJ120CA-E3/52
دیود تیویاس دوجهته SMBJ120CA-E3/52
Part Number
Bidirectional
Polarity
1
Number of Channels
-55C
Minimum Operating Temperature
N/A
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
N/A
Vesd - Voltage ESD Contact
3.1A
Ipp - Peak Pulse Current
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
N/A
Cd - Diode Capacitance
120V
Working Voltage
193V
Clamping Voltage
133V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
