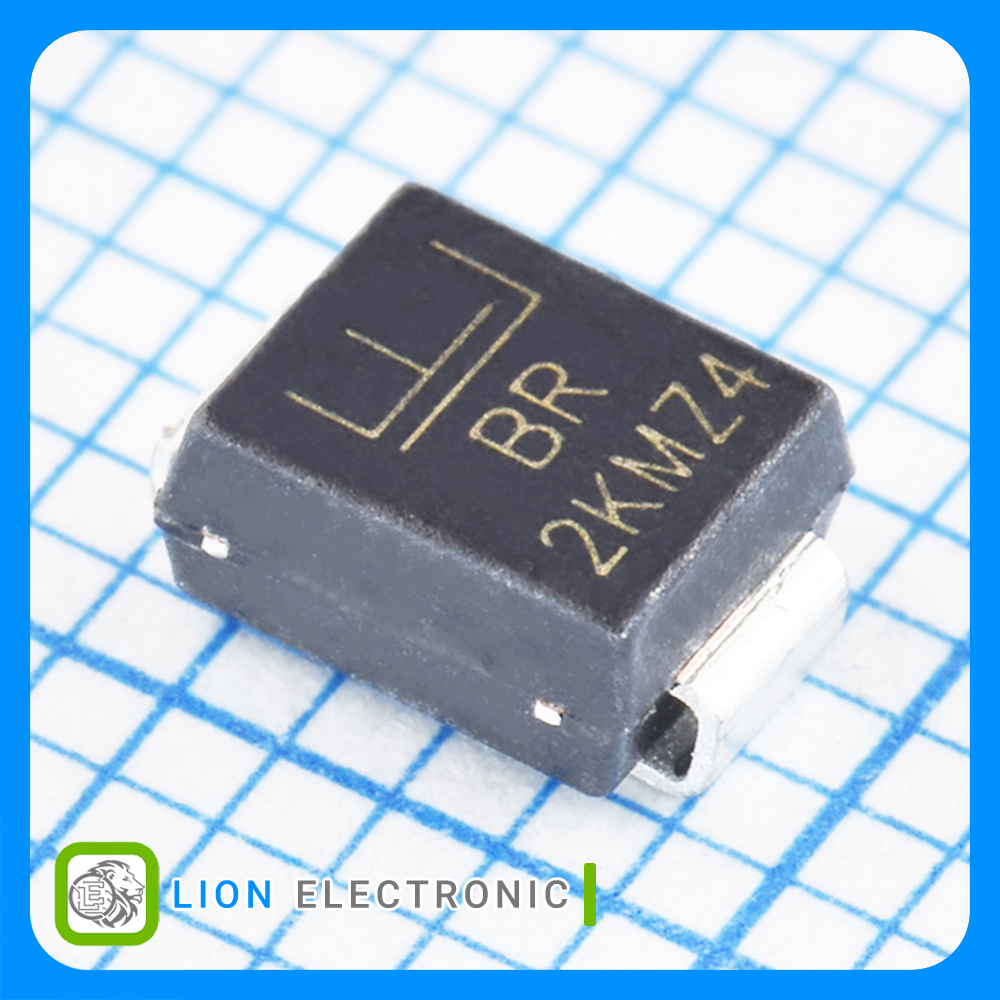

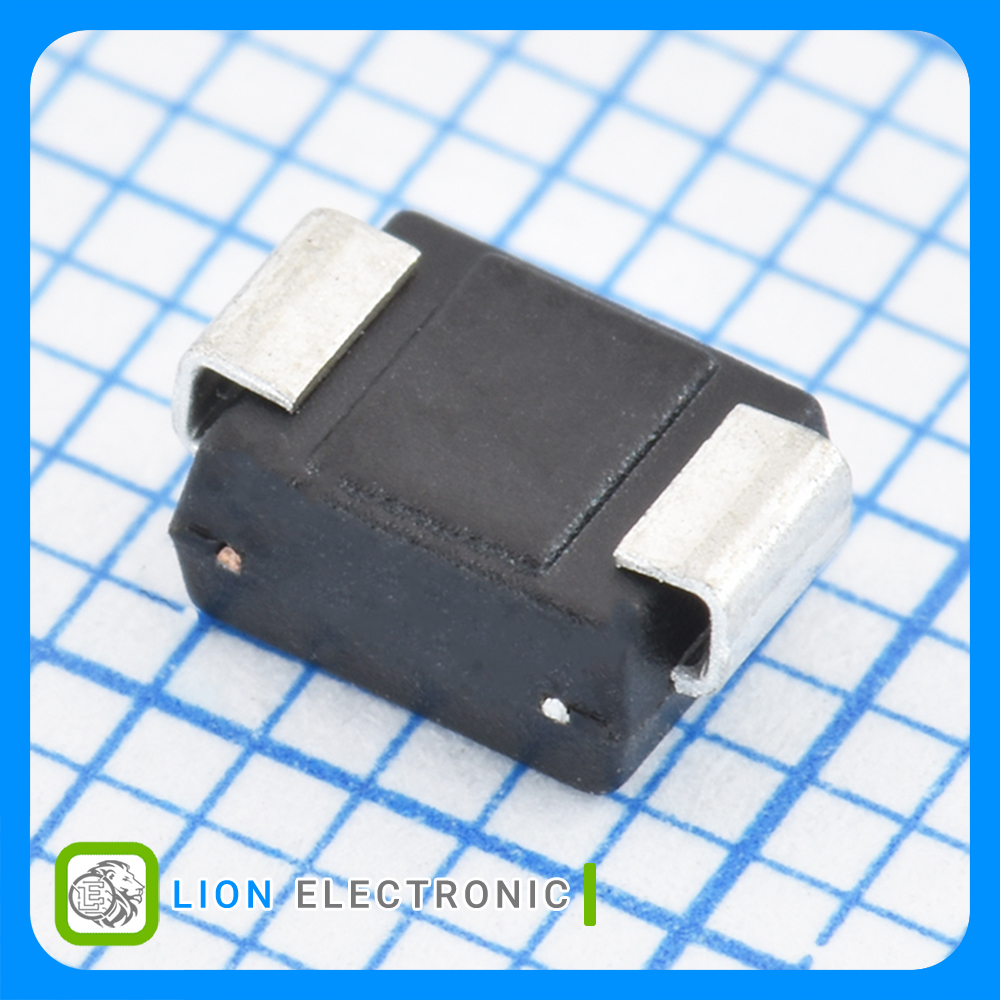

SMBJ17CA
SMBJ17CA
Part Number
3581
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دوطرفه 17 ولت 600 وات با بیشینه پالس جریان 21.8 آمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 17V, 600W, Peak Pulse Current 21.8A with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 17 ولت 600 وات با بیشینه پالس جریان 21.8 آمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 17V, 600W, Peak Pulse Current 21.8A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 17V
- Breakdown Voltage: 18.9V
- Clamping Voltage: 27.6V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 21.8A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C

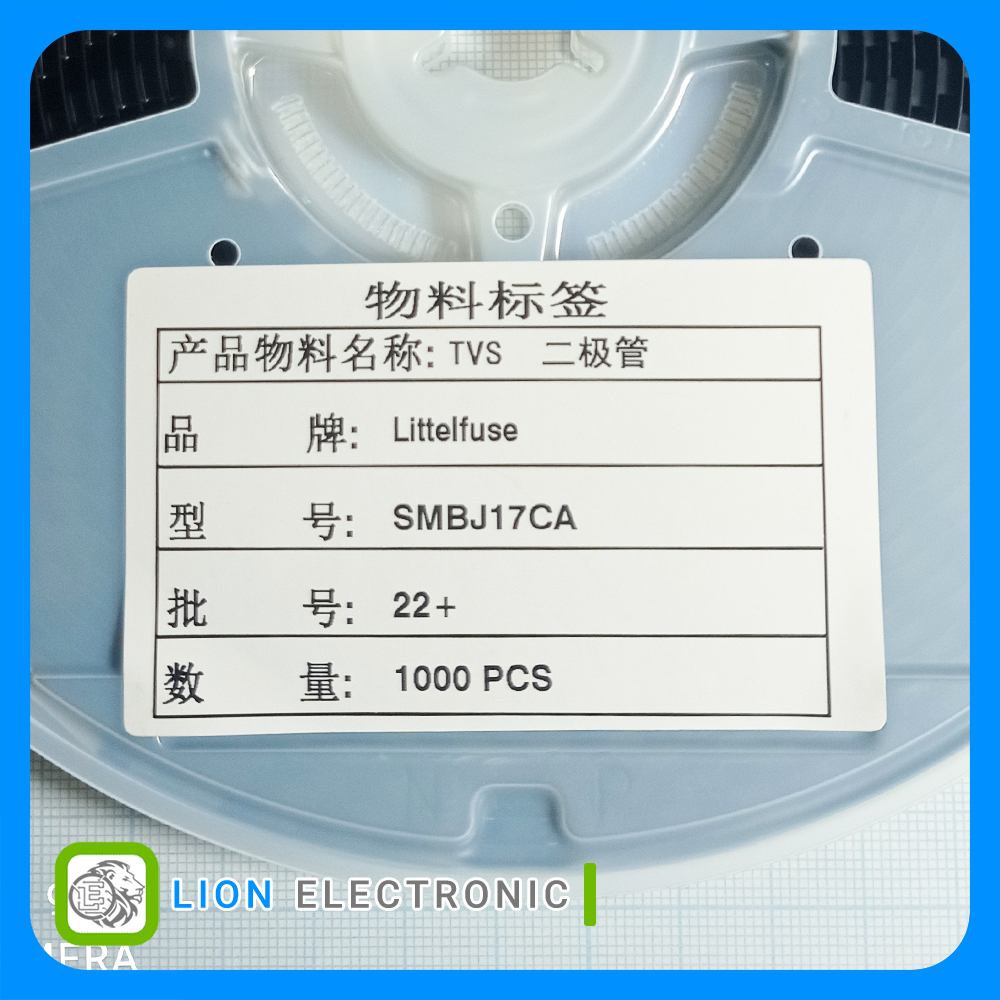

- Packaging: Reel
مشخصات دیود تیویاس دوجهته SMBJ17CA
دیود تیویاس دوجهته SMBJ17CA
Part Number
Bidirectional
Polarity
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
17V
Working Voltage
27.6V
Clamping Voltage
N/A
Cd - Diode Capacitance
18.9V
Breakdown Voltage
21.8A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
