SMAJ48A
SMAJ48A
Part Number
3596
Lion Part
Datasheet
Littelfuse Manufacture

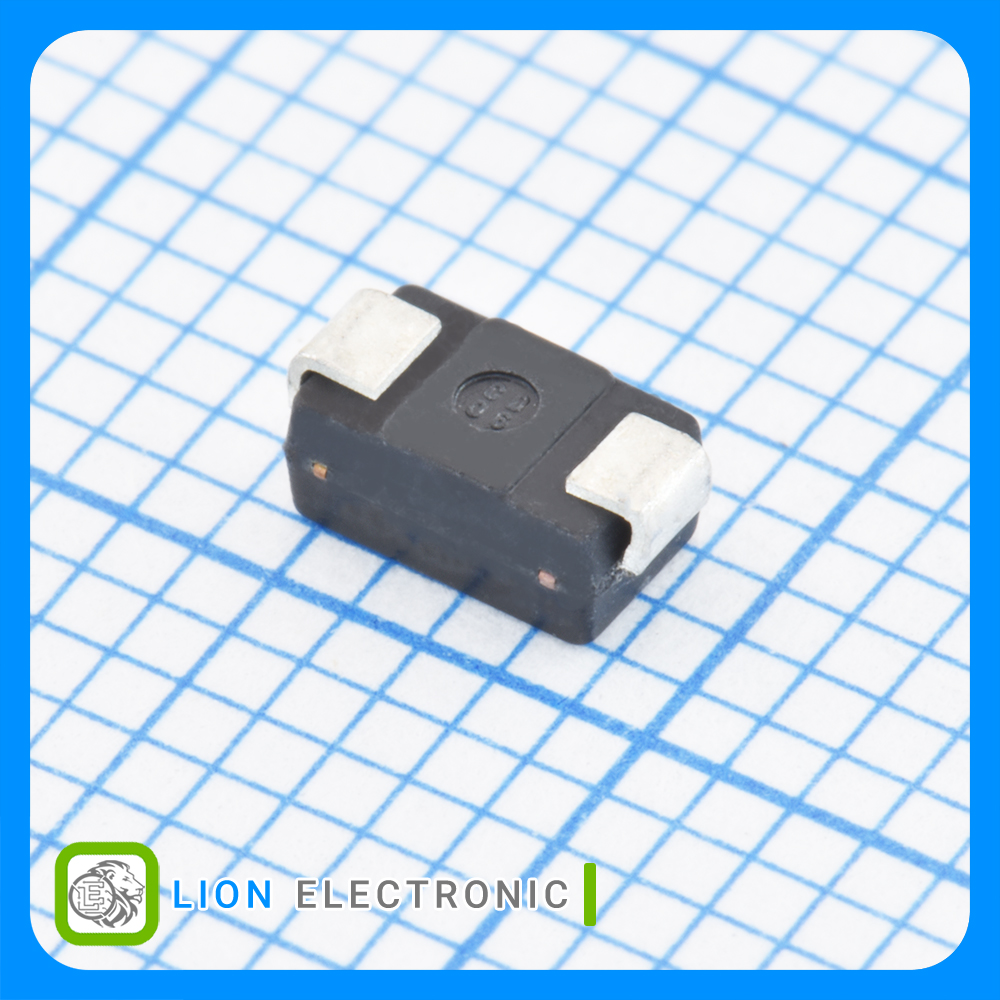

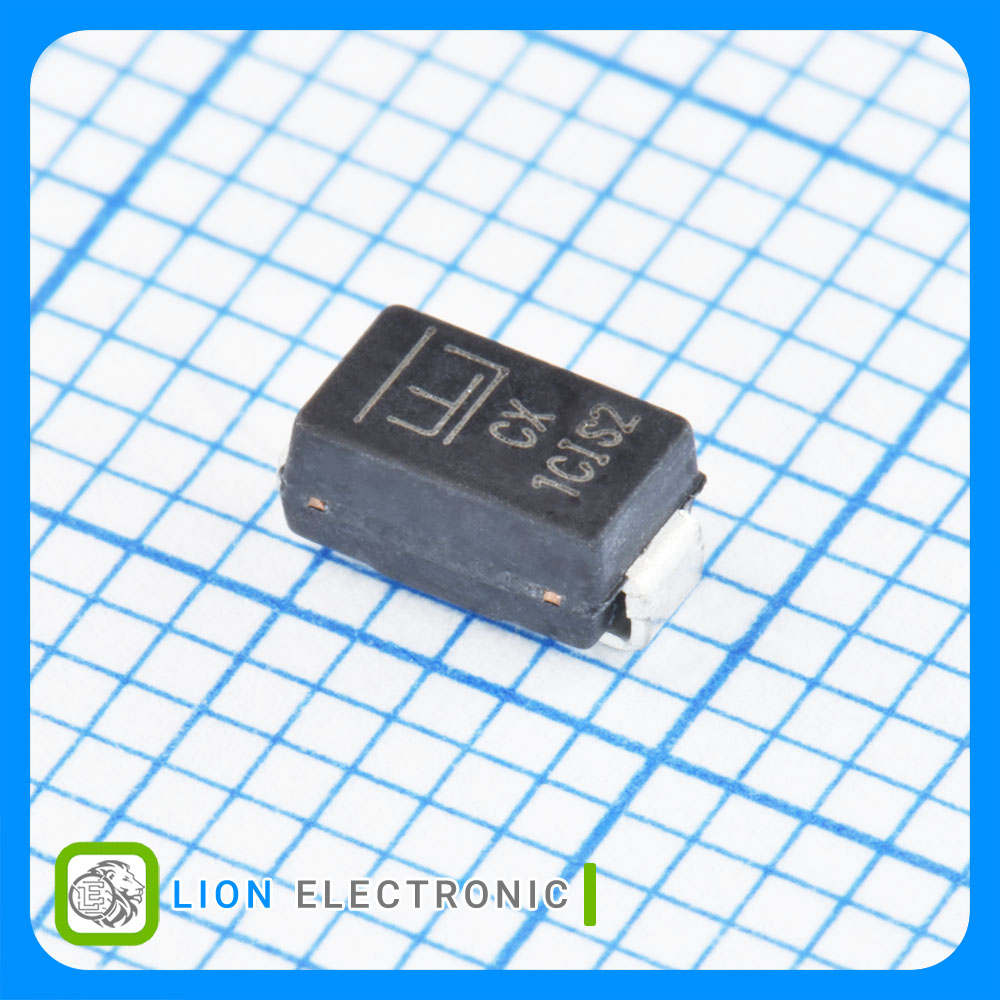

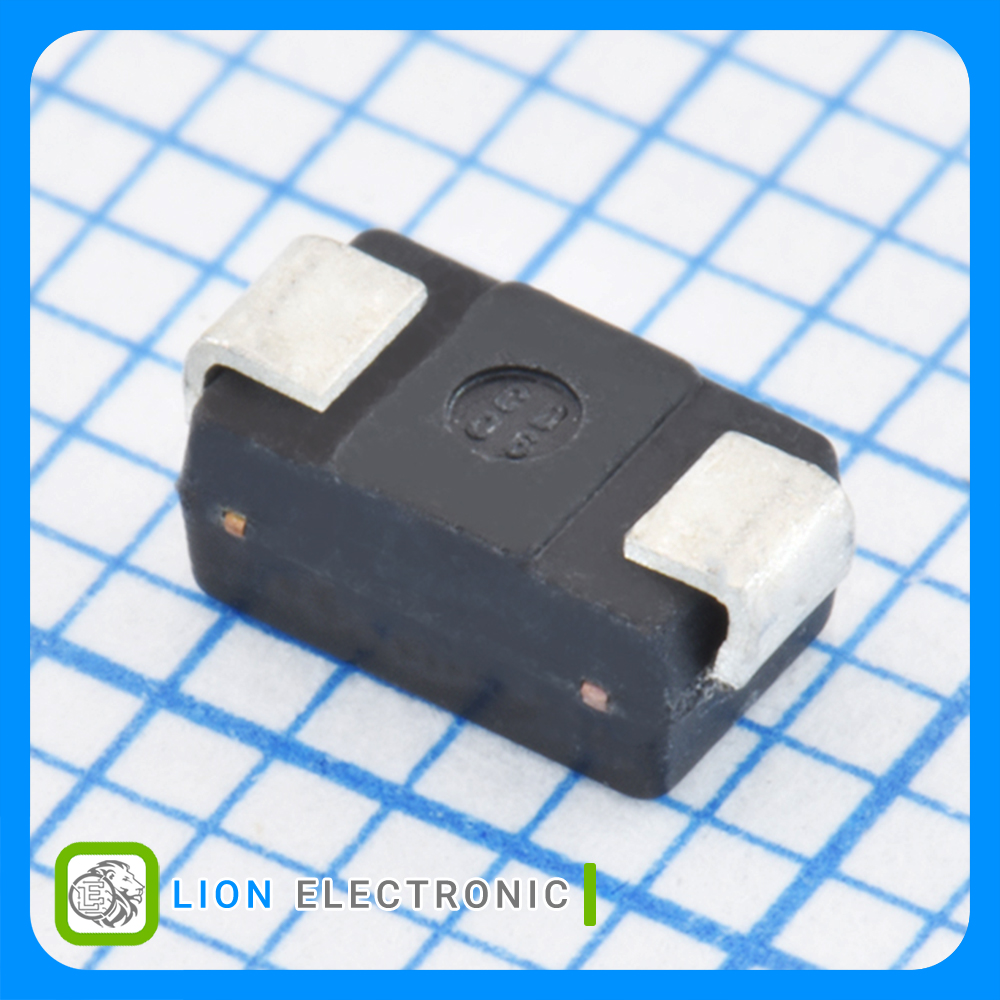

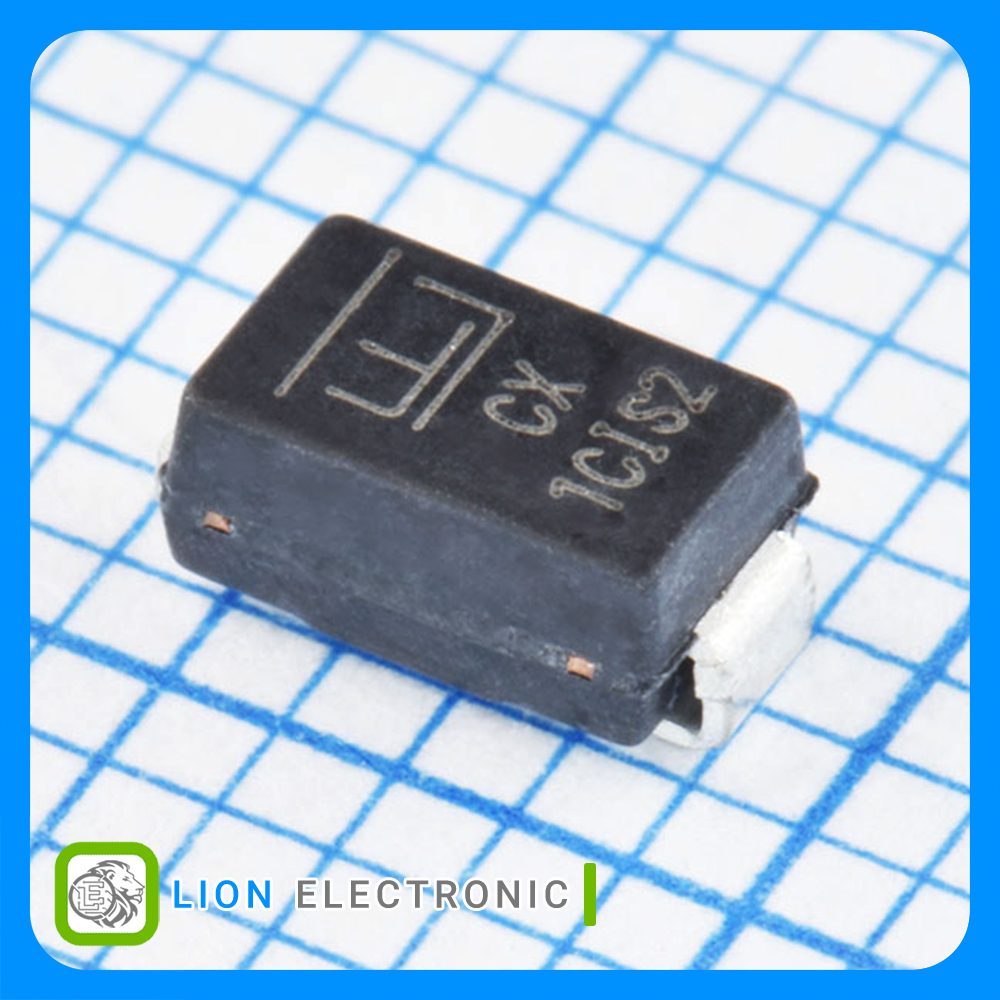

دیود TVS یکطرفه 48 ولت 400 وات با بیشینه پالس جریان 5.2 آمپر با پکیج DO-214AC (SMA)
TVS Diode Uni-directional 48V, 400W, Peak Pulse Current 5.2A with DO-214AC (SMA) Package
معرفی
دیود TVS یکطرفه 48 ولت 400 وات با بیشینه پالس جریان 5.2 آمپر با پکیج DO-214AC (SMA)
TVS Diode Uni-directional 48V, 400W, Peak Pulse Current 5.2A with DO-214AC (SMA) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 48V
- Breakdown Voltage: 53.3V
- Clamping Voltage: 77.4V
- Pppm - Peak Pulse Power Dissipation: 400W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 5.2A
- Termination style: SMD/SMT
- Package/Case: DO-214AC (SMA)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس SMAJ48A
دیود تیویاس SMAJ48A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
30kV
Vesd - Voltage ESD Contact
Reel
Packaging
Unidirectional
Polarity
400W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
5.2A
Ipp - Peak Pulse Current
48V
Working Voltage
N/A
Cd - Diode Capacitance
77.4V
Clamping Voltage
53.3V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AC (SMA)
Package-Case
