SMAJ12CA
SMAJ12CA
Part Number
3599
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دو جهته 12 ولت با بیشنه پالس جریان 20.1 آمپر با پکیج SMA

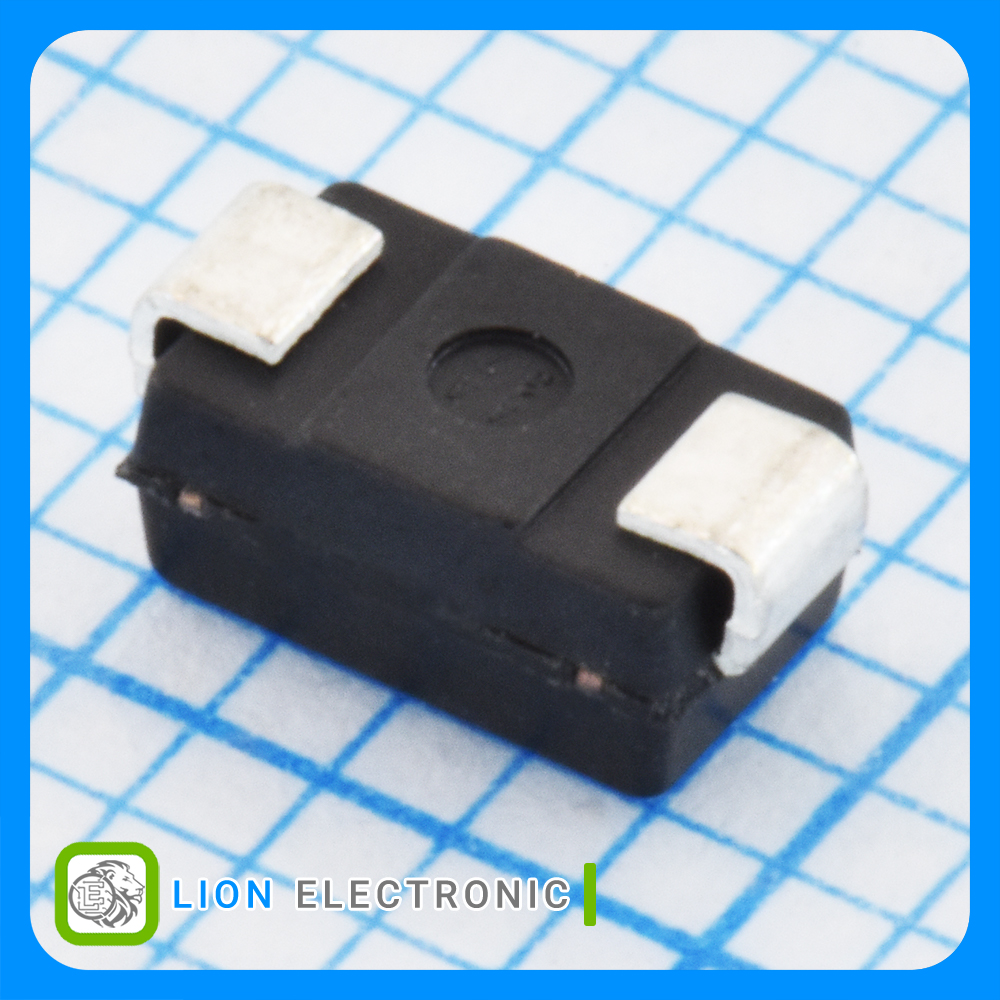

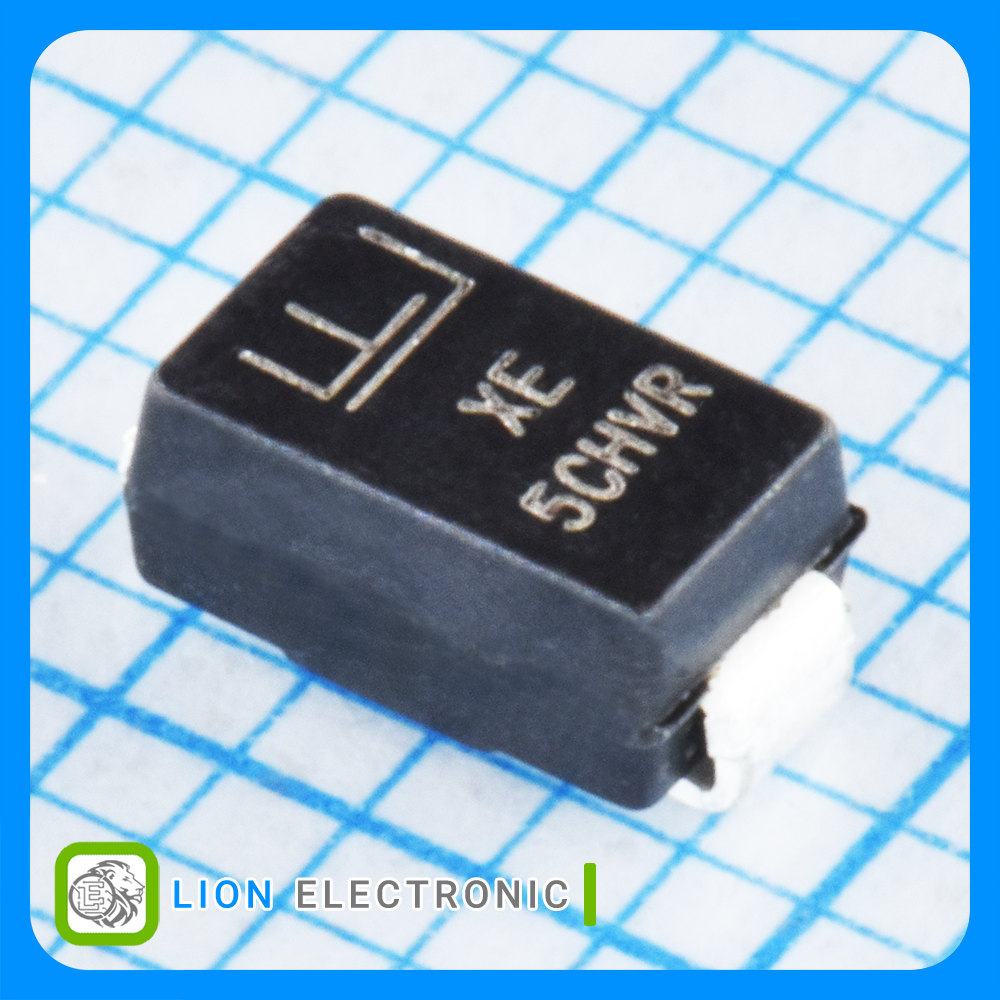

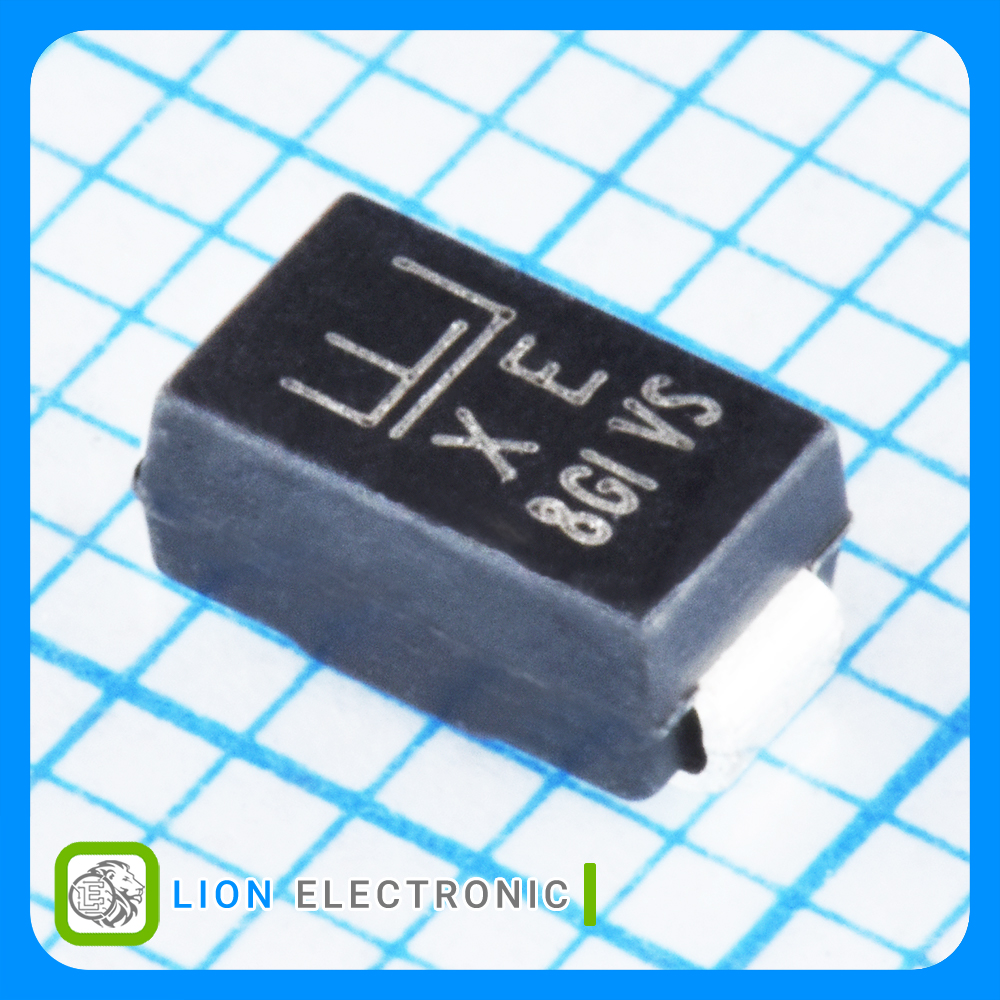

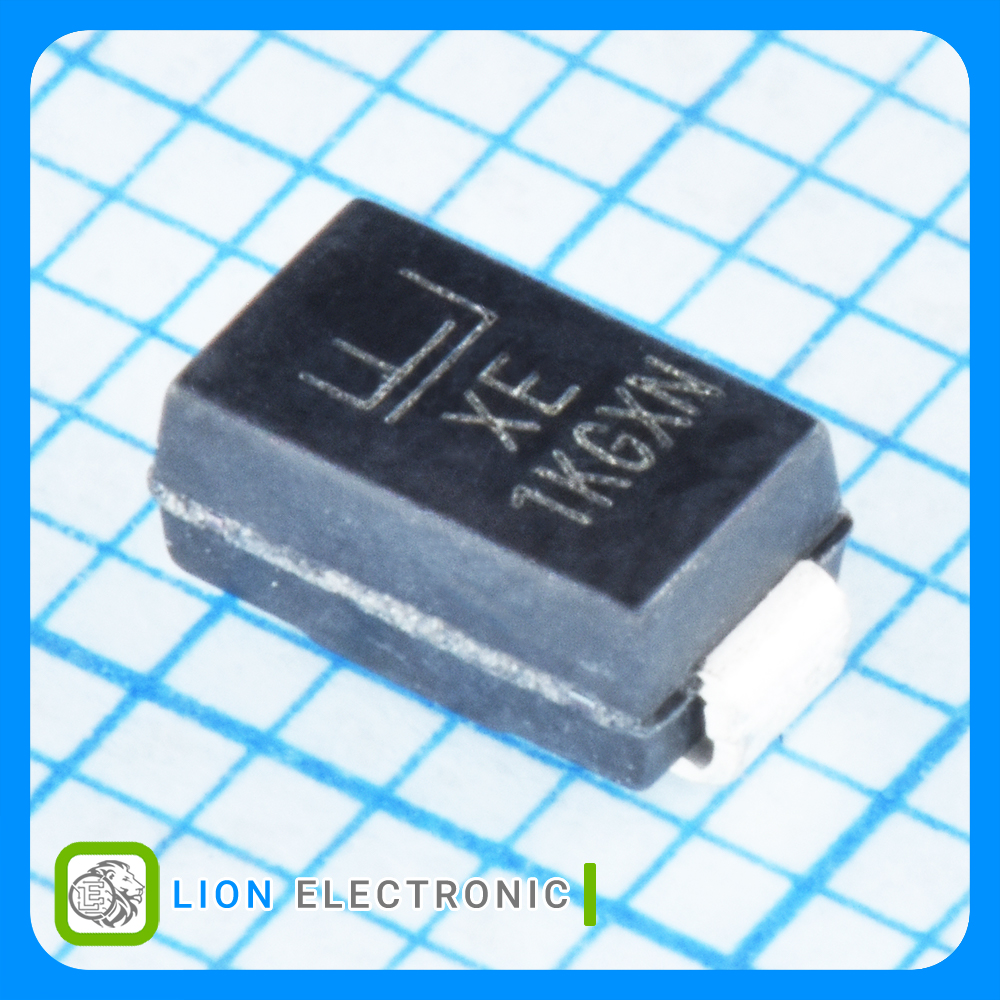

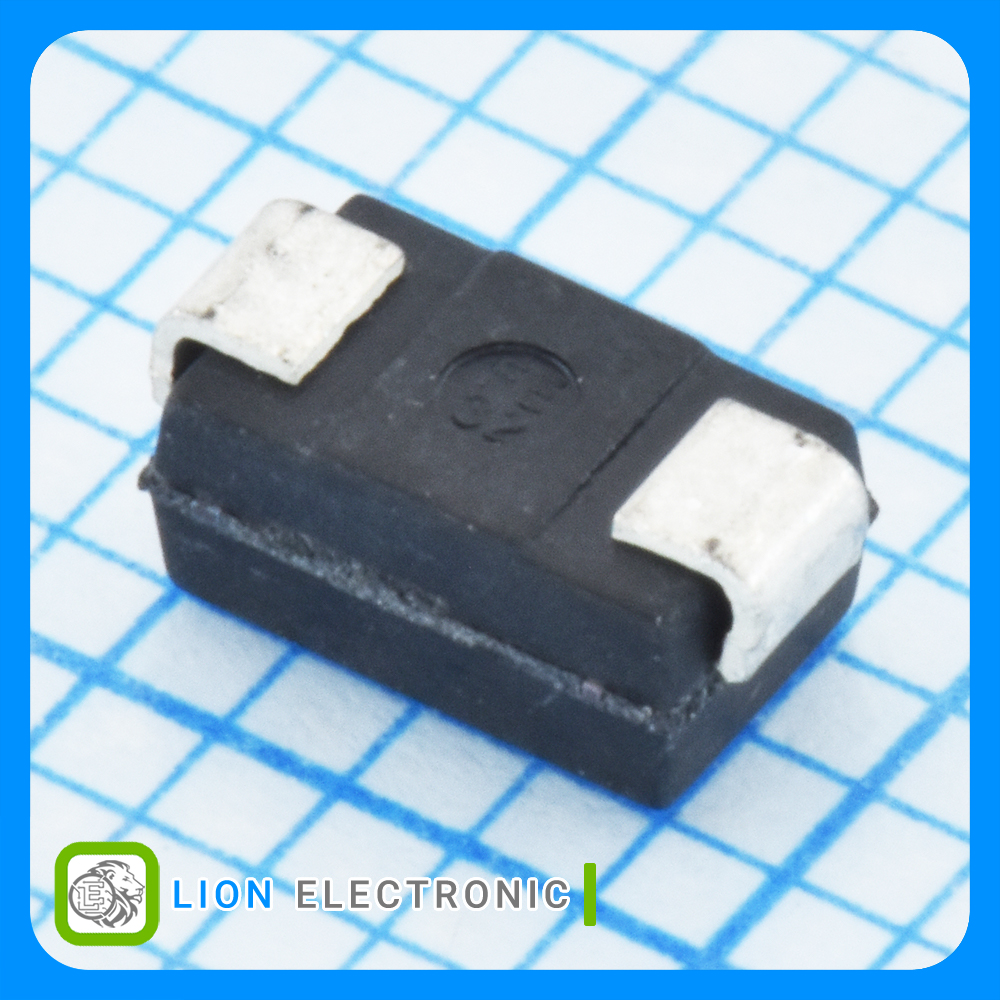

TVS Diode Bidirectional 12V SMA
مشخصات دیود تیویاس دوجهته SMAJ12CA
دیود تیویاس دوجهته SMAJ12CA
Part Number
1
Number of Channels
Bidirectional
Polarity
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
400W
Pppm - Peak Pulse Power Dissipation
12V
Working Voltage
+150C
Maximum Operating Temperature
19.9V
Clamping Voltage
13.3V
Breakdown Voltage
N/A
Cd - Diode Capacitance
20.1A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AC (SMA)
Package-Case
