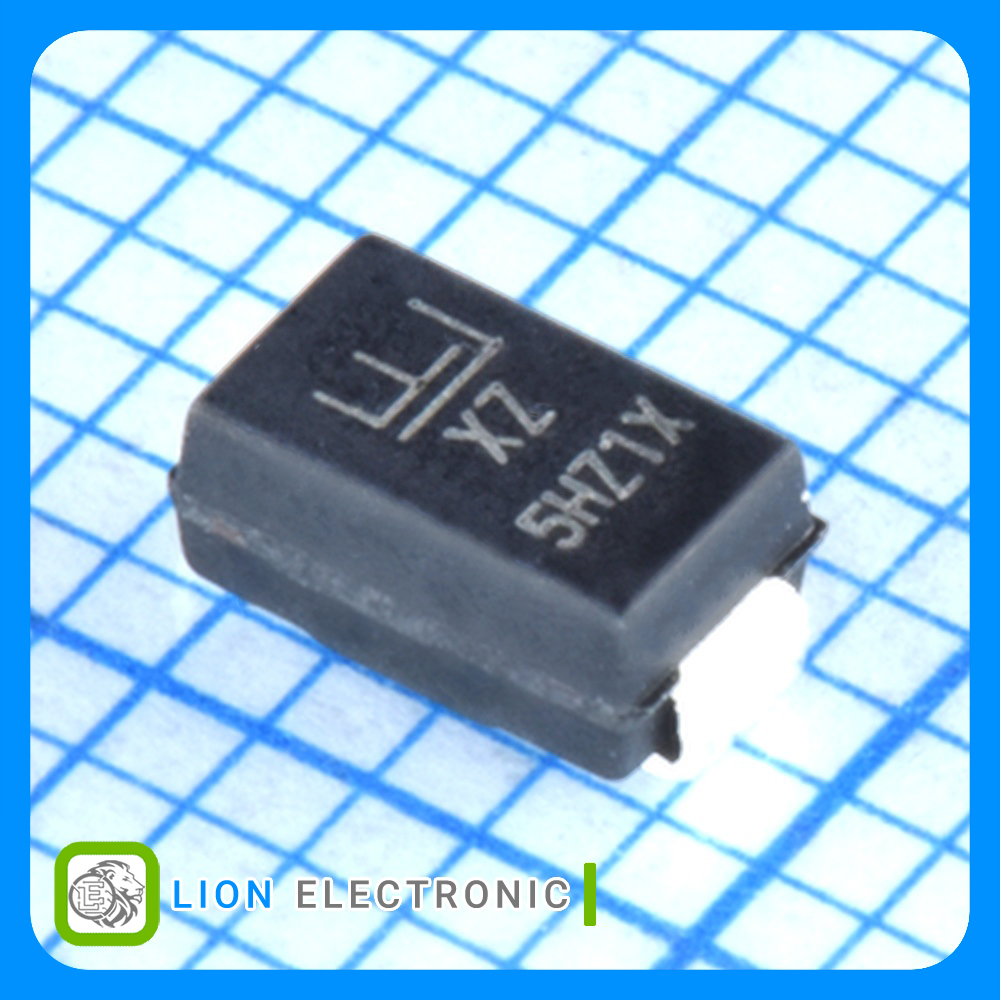

SMAJ24CA
SMAJ24CA
Part Number
3601
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دوطرفه 24 ولت 400 وات با پکیج DO-214AC (SMA)
TVS Diode Bidirectional 24V, 400W with DO-214AC (SMA) Package
معرفی
دیود TVS دوطرفه 24 ولت 400 وات با پکیج DO-214AC (SMA)
TVS Diode Bidirectional 24V, 400W with DO-214AC (SMA) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 24V
- Breakdown Voltage: 26.7V
- Clamping Voltage: 38.9V
- Pppm - Peak Pulse Power Dissipation: 400W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 10.3A
- Termination style: SMD/SMT
- Package/Case: DO-214AC (SMA)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس دوجهته SMAJ24CA
دیود تیویاس دوجهته SMAJ24CA
Part Number
1
Number of Channels
Bidirectional
Polarity
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
400W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
24V
Working Voltage
N/A
Cd - Diode Capacitance
10.3A
Ipp - Peak Pulse Current
38.9V
Clamping Voltage
26.7V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AC (SMA)
Package-Case
