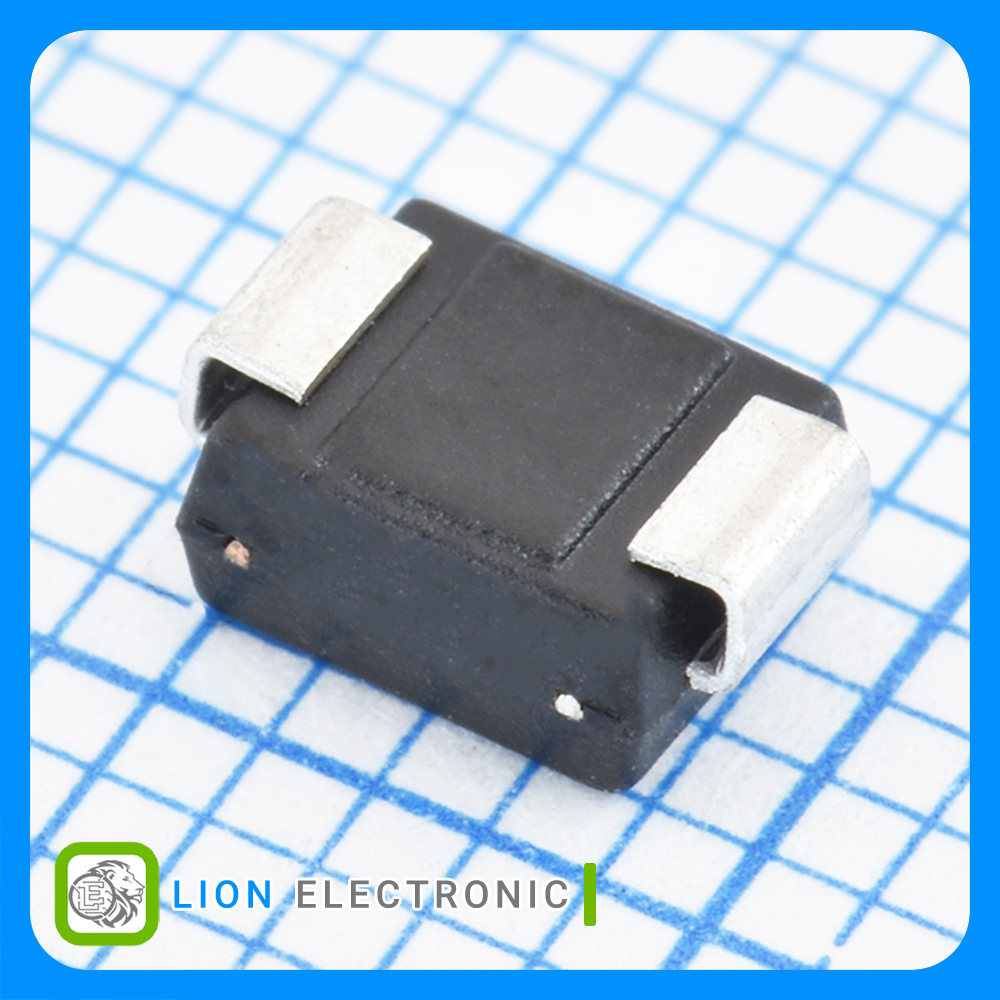

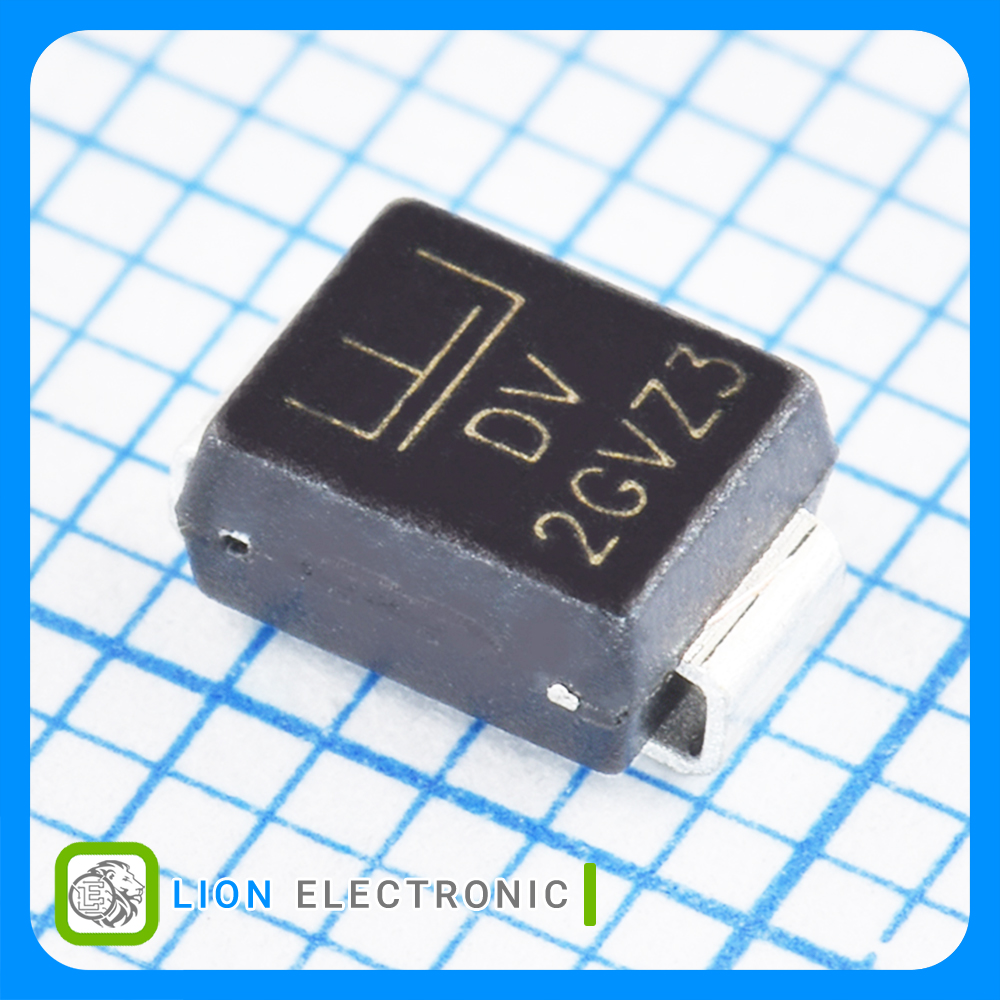

SMBJ85CA
SMBJ85CA
Part Number
3614
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دوطرفه 85 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 85V, 600W with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 85 ولت 600 وات با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 85V, 600W with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 85V
- Breakdown Voltage: 94.4V
- Clamping Voltage: 137V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 4.4A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C

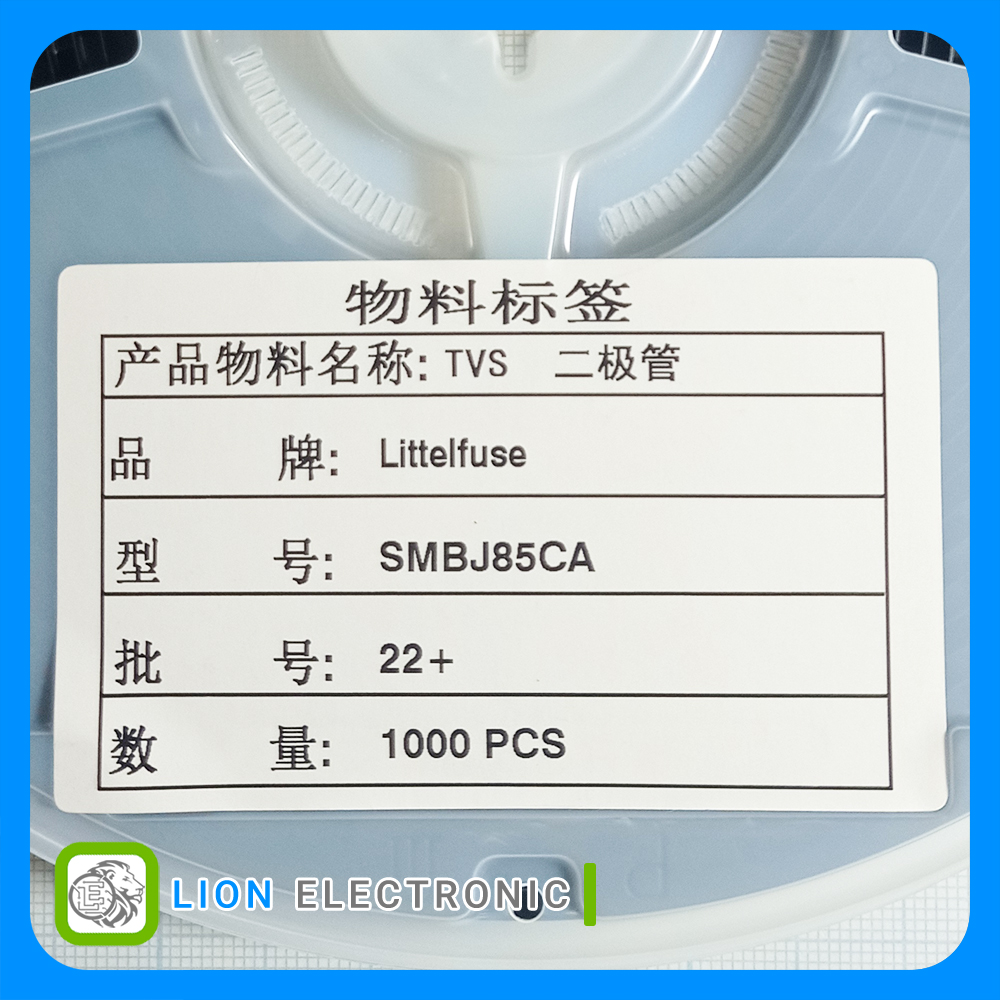

- Packaging: Reel
مشخصات دیود تیویاس دوجهته SMBJ85CA
دیود تیویاس دوجهته SMBJ85CA
Part Number
1
Number of Channels
Bidirectional
Polarity
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
600W
Pppm - Peak Pulse Power Dissipation
4.4A
Ipp - Peak Pulse Current
+150C
Maximum Operating Temperature
N/A
Cd - Diode Capacitance
85V
Working Voltage
137V
Clamping Voltage
94.4V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
