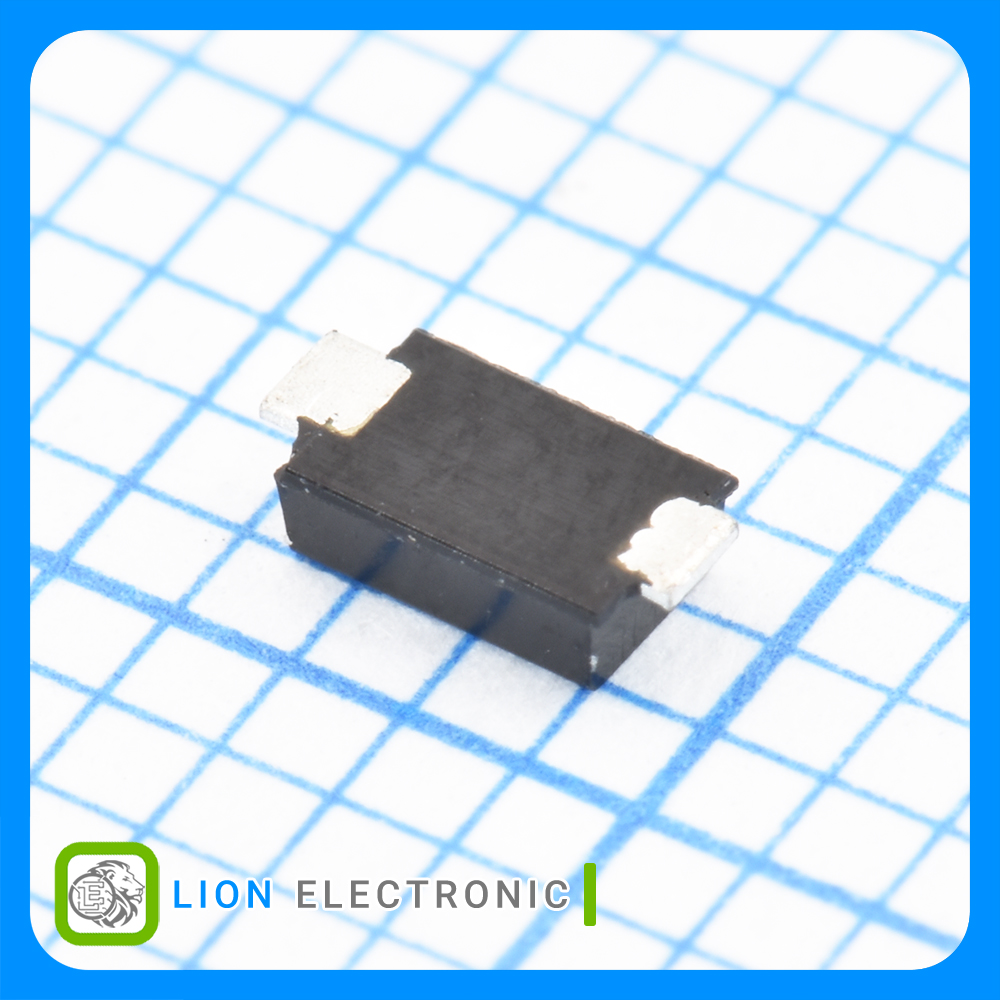

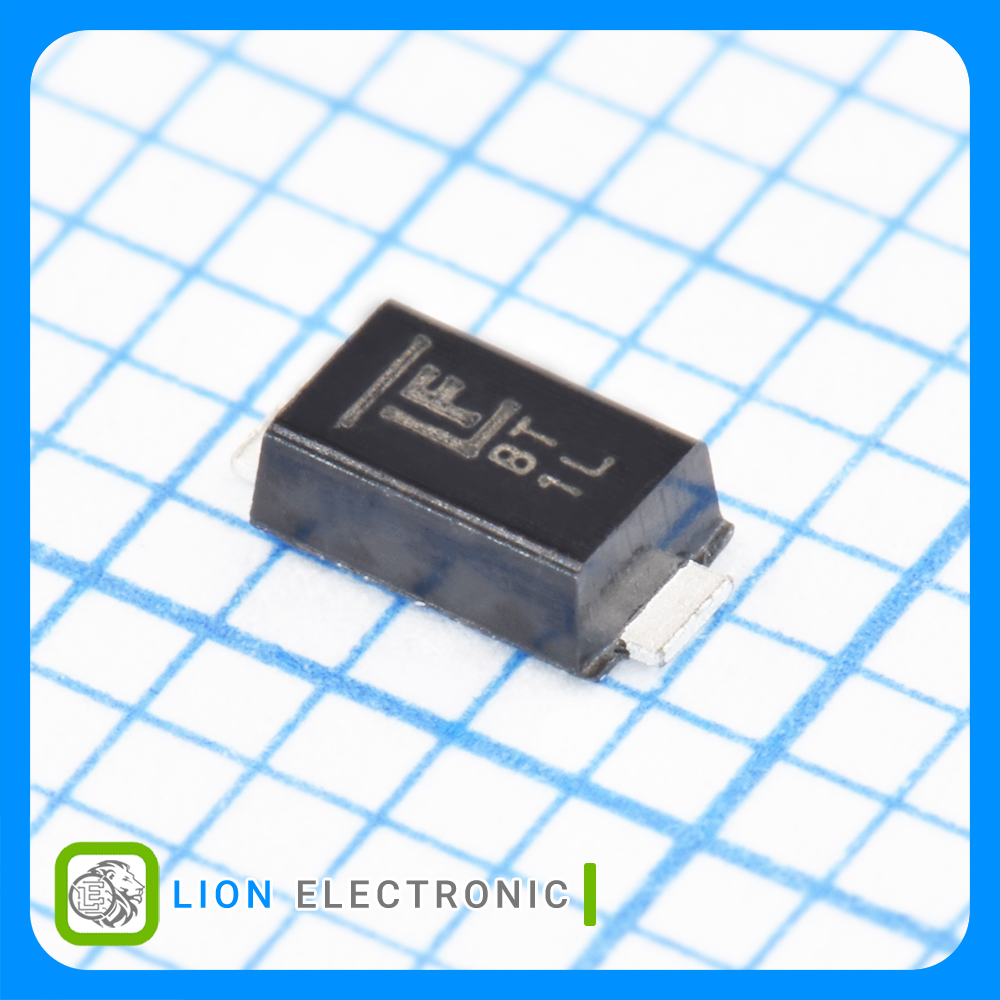

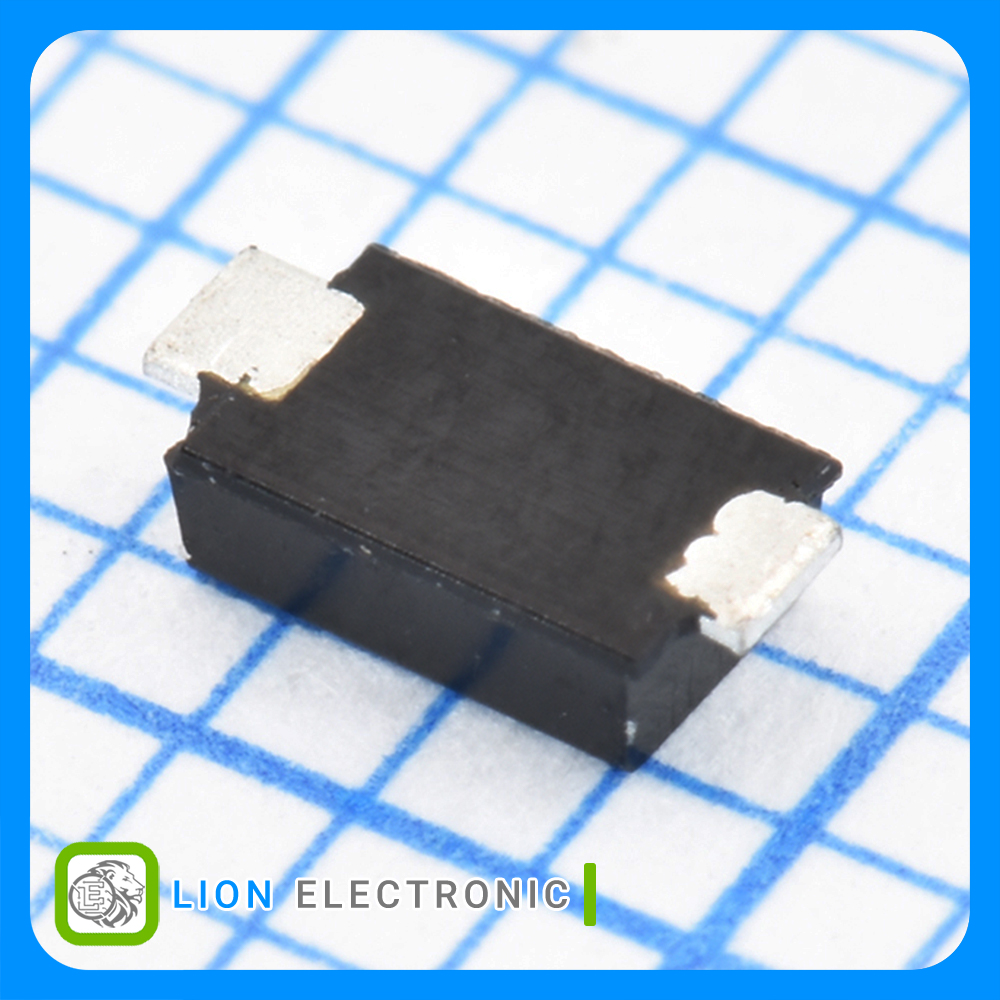

SMF18A
SMF18A
Part Number
3685
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکطرفه ولتاژ کاری 18 ولت، ولتاژ شکست 20 ولت، 200 وات، بیشینه پالس جریان 6.8 آمپر با پکیج SOD-123
TVS Diode Uni-directional 18V Working, 20V Breakdown, 200W, 6.8A Peak Pulse Current with SOD-123 Package
معرفی
دیود TVS یکطرفه ولتاژ کاری 18 ولت، ولتاژ شکست 20 ولت، 200 وات، بیشینه پالس جریان 6.8 آمپر با پکیج SOD-123
TVS Diode Uni-directional 18V Working, 20V Breakdown, 200W, 6.8A Peak Pulse Current with SOD-123 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 18V
- Breakdown Voltage: 20V
- Clamping Voltage: 29.2V
- Pppm - Peak Pulse Power Dissipation: 200W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 6.8A
- Termination style: SMD/SMT
- Package/Case: SOD-123
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس SMF18A

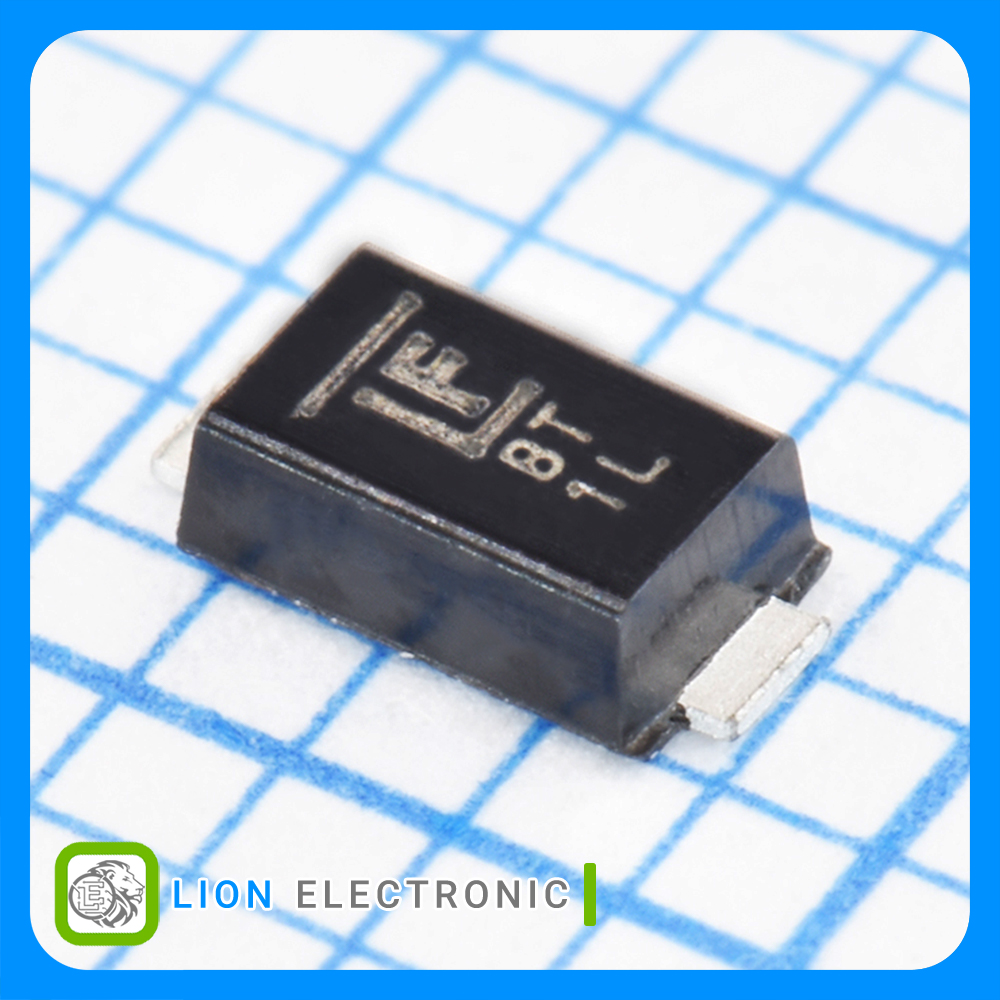

دیود تیویاس SMF18A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
30kV
Vesd - Voltage ESD Contact
Reel
Packaging
Unidirectional
Polarity
200W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
18V
Working Voltage
6.8A
Ipp - Peak Pulse Current
29.2V
Clamping Voltage
N/A
Cd - Diode Capacitance
20V
Breakdown Voltage
TVS Diodes
Product Type
SOD-123
Package-Case
