SMF10A
SMF10A
Part Number
3764
Lion Part
Datasheet
Vishay Semiconductors Manufacture
دیود TVS یکطرفه 10 ولت 200 وات با بیشینه پالس جریان 11.8 آمپر با پکیج DO-219AB-2

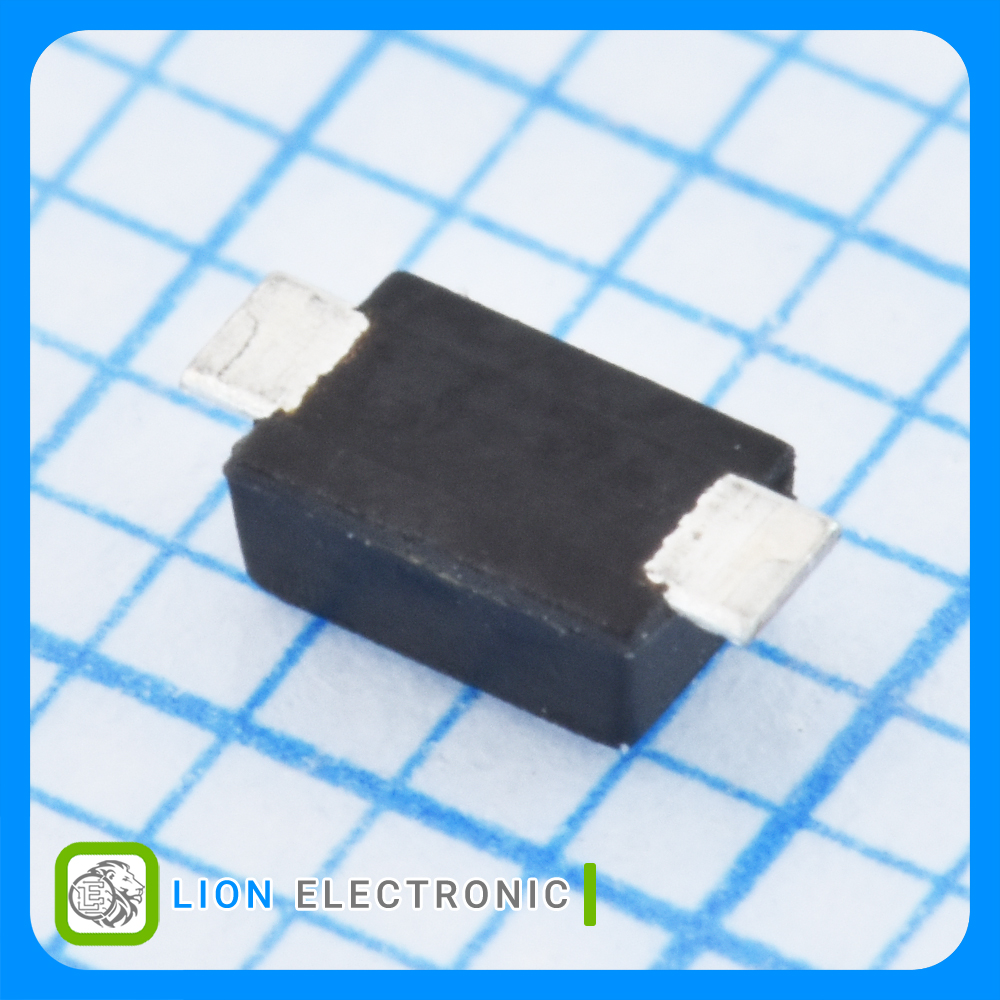

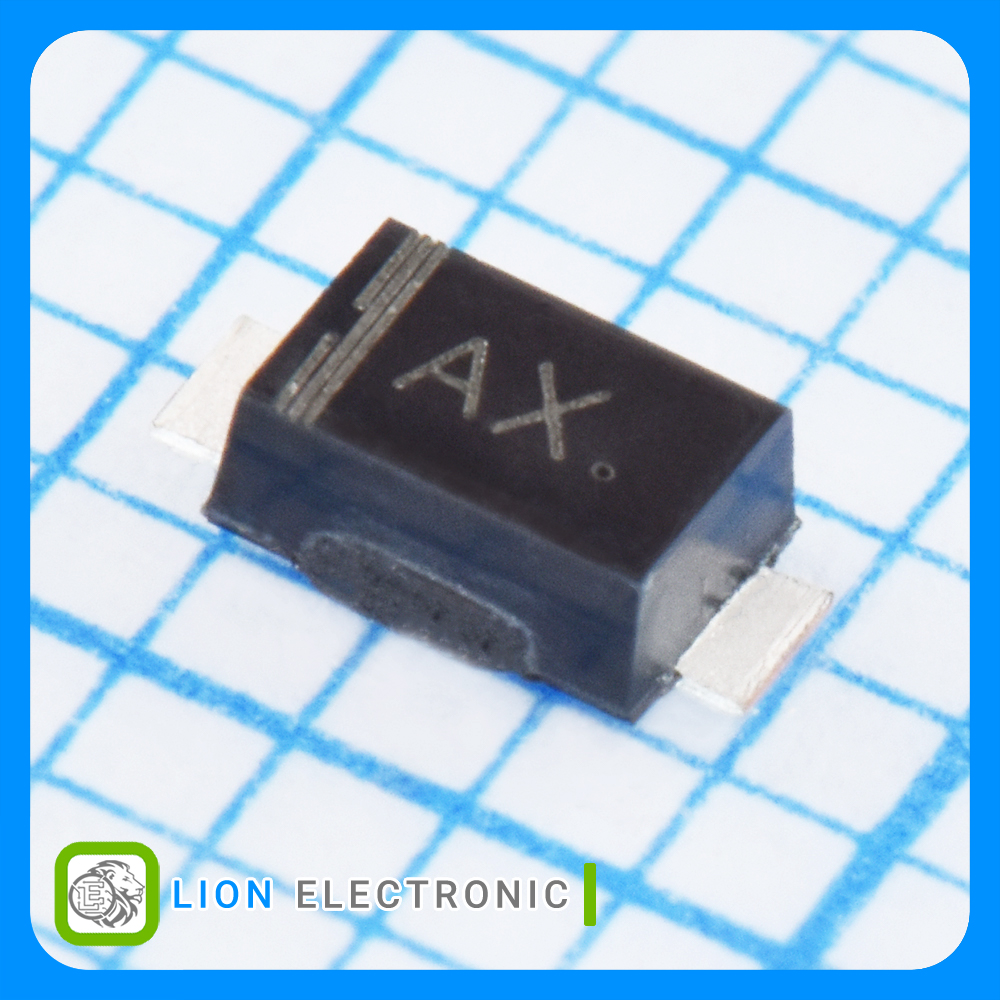

TVS Diode Uni-directional 10V, 200W, Peak Pulse Current 11.8A with DO-219AB-2 Package
معرفی
دیود TVS یکطرفه 10 ولت 200 وات با بیشینه پالس جریان 11.8 آمپر با پکیج DO-219AB-2
TVS Diode Uni-directional 10V, 200W, Peak Pulse Current 11.8A with DO-219AB-2 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 10V
- Breakdown Voltage: 11.1V
- Clamping Voltage: 17V
- Pppm - Peak Pulse Power Dissipation: 200W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 570pF
- Ipp - Peak Pulse Current: 11.8A
- Termination style: SMD/SMT
- Package/Case: DO-219AB-2
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس SMF10A
دیود تیویاس SMF10A
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
200W
Pppm - Peak Pulse Power Dissipation
10V
Working Voltage
+150C
Maximum Operating Temperature
17V
Clamping Voltage
ESD Suppressors
Product Type
11.1V
Breakdown Voltage
570pF
Cd - Diode Capacitance
11.8A
Ipp - Peak Pulse Current
DO-219AB-2
Package-Case
