SMF14A
SMF14A
Part Number
3765
Lion Part
Datasheet
Vishay Semiconductors Manufacture
دیود TVS یکطرفه 14 ولت 200 وات با بیشینه پالس جریان 8.6 آمپر با پکیج DO-219AB-2

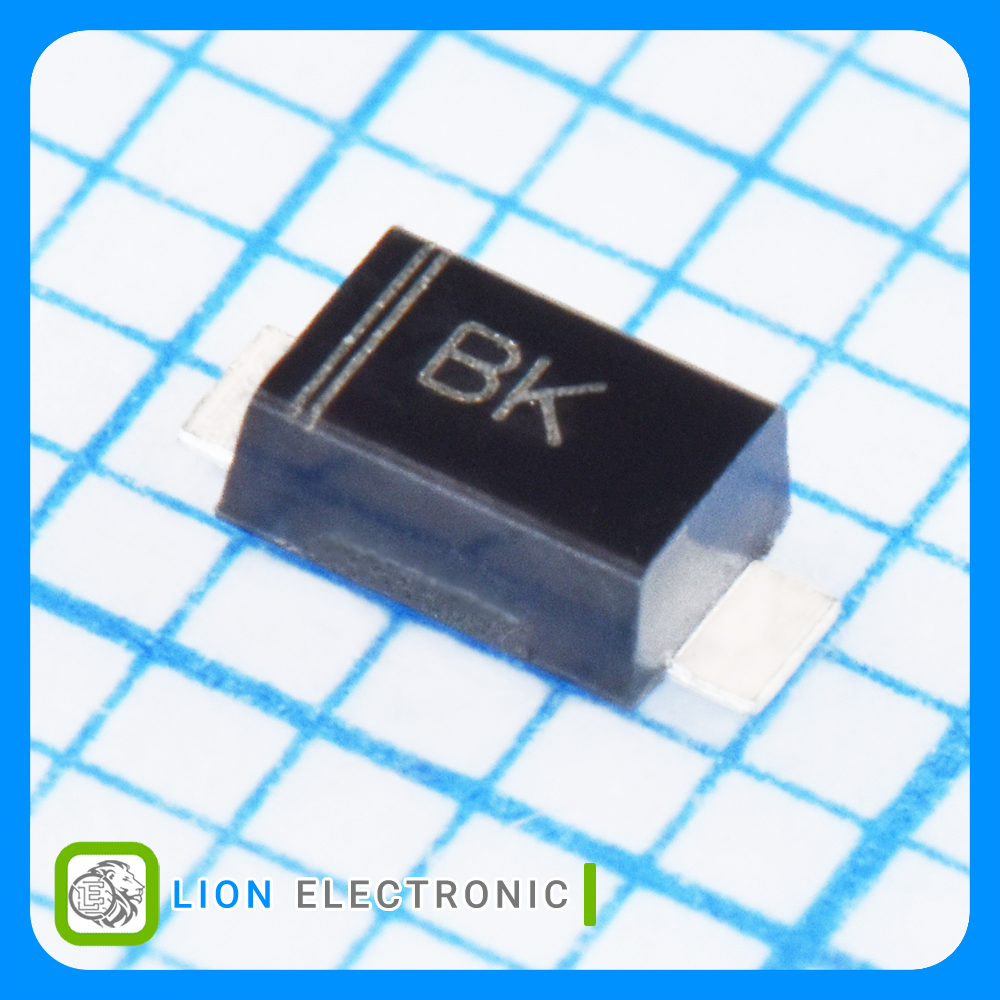

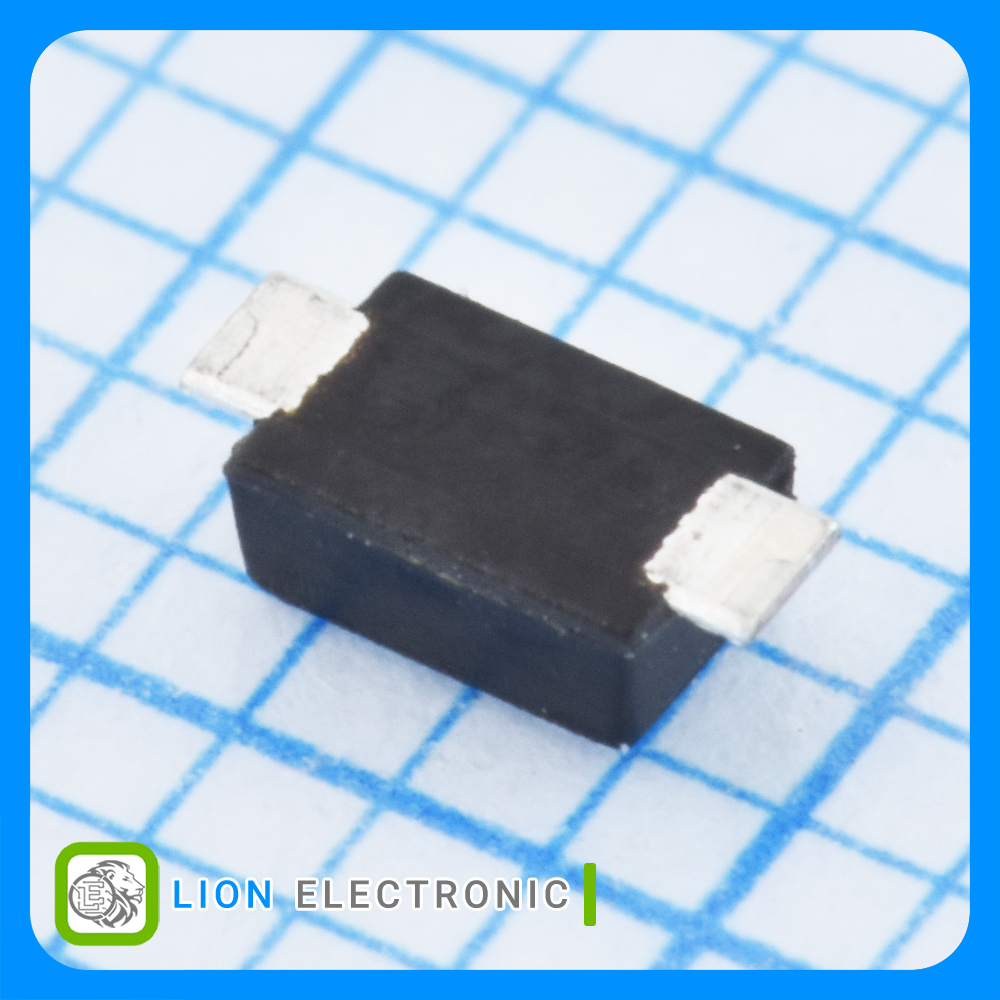

TVS Diode Uni-directional 14V, 200W, Peak Pulse Current 8.6A with DO-219AB-2 Package
معرفی
دیود TVS یکطرفه 14 ولت 200 وات با بیشینه پالس جریان 8.6 آمپر با پکیج DO-219AB-2
TVS Diode Uni-directional 14V, 200W, Peak Pulse Current 8.6A with DO-219AB-2 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 14V
- Breakdown Voltage: 15.6V
- Clamping Voltage: 23.2V
- Pppm - Peak Pulse Power Dissipation: 200W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 392pF
- Ipp - Peak Pulse Current: 8.6A
- Termination style: SMD/SMT
- Package/Case: DO-219AB-2
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات دیود تی وی اس SMF14A
دیود تی وی اس SMF14A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
30kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
Reel
Packaging
Unidirectional
Polarity
200W
Pppm - Peak Pulse Power Dissipation
14V
Working Voltage
ESD Suppressors
Product Type
+175C
Maximum Operating Temperature
23.2V
Clamping Voltage
392pF
Cd - Diode Capacitance
8.6A
Ipp - Peak Pulse Current
15.6V
Breakdown Voltage
DO-219AB-2
Package-Case
