SMF20A_R1_00001
SMF20A_R1_00001
Part Number
3768
Lion Part
Datasheet
PANJIT International Manufacture
دیود TVS یکطرفه 20 ولت 200 وات با بیشینه پالس جریان 6.2 آمپر با پکیج SOD-123-2

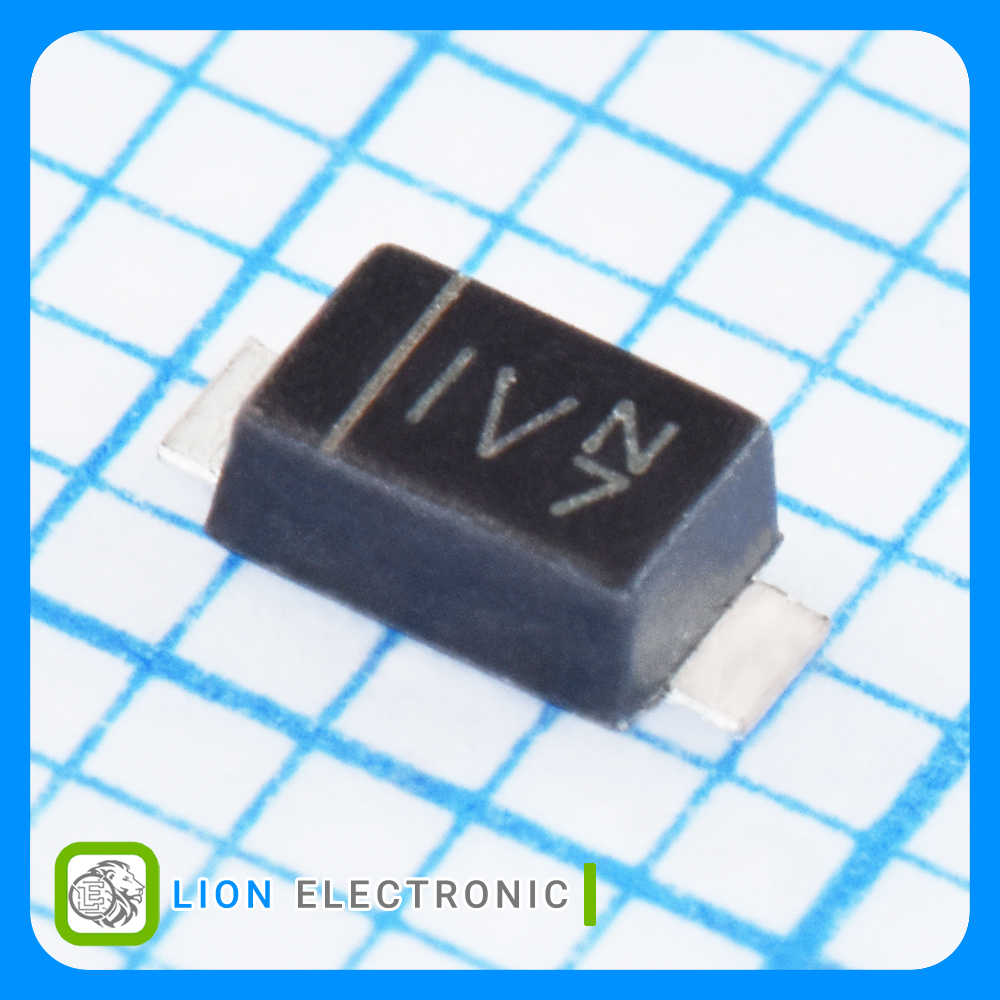

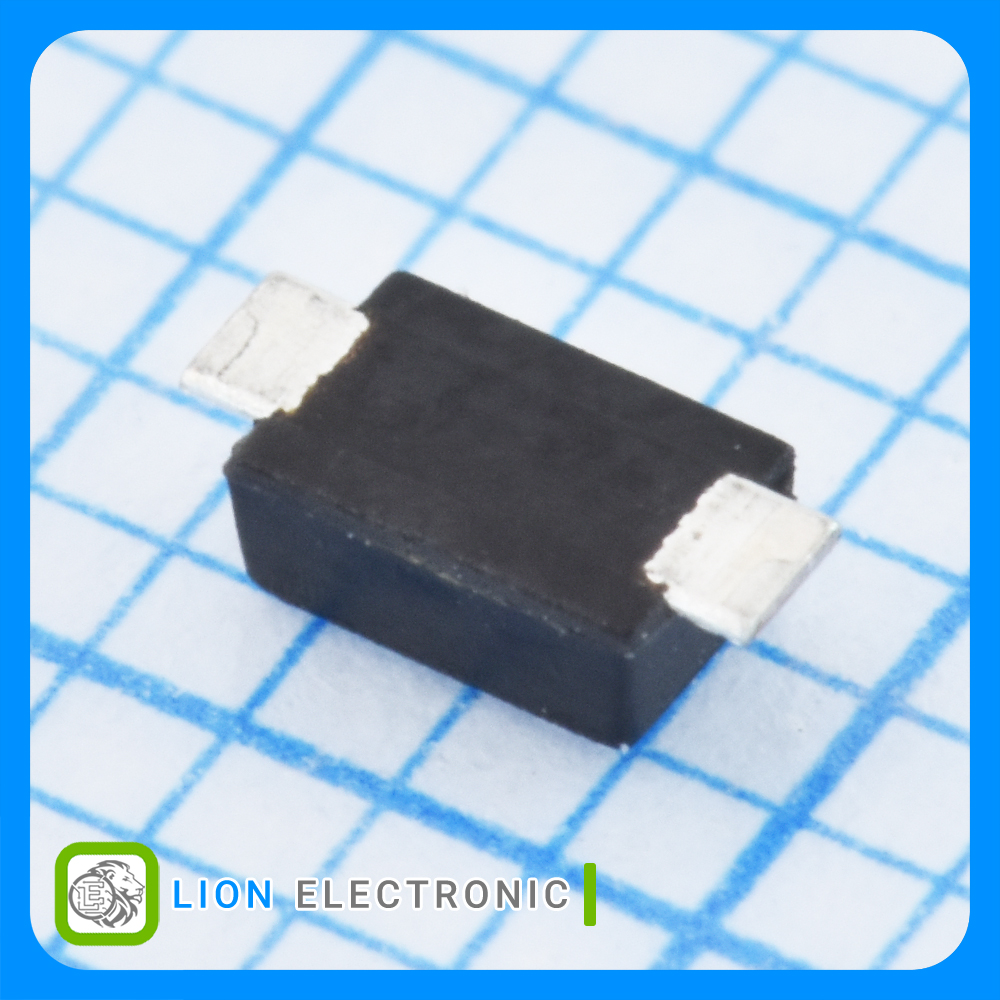

TVS Diode Uni-directional 20V, 200W, Peak Pulse Current 6.2A with SOD-123-2 Package
معرفی
دیود TVS یکطرفه 20 ولت 200 وات با بیشینه پالس جریان 6.2 آمپر با پکیج SOD-123-2
TVS Diode Uni-directional 20V, 200W, Peak Pulse Current 6.2A with SOD-123-2 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 20V
- Breakdown Voltage: 22.2V
- Clamping Voltage: 32.4V
- Pppm - Peak Pulse Power Dissipation: 200W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 6.2A
- Termination style: SMD/SMT
- Package/Case: SOD-123-2
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس SMF20A_R1_00001
دیود تیویاس SMF20A_R1_00001
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
Unidirectional
Polarity
200W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
20V
Working Voltage
6.2A
Ipp - Peak Pulse Current
32.4V
Clamping Voltage
N/A
Cd - Diode Capacitance
22.2V
Breakdown Voltage
TVS Diodes
Product Type
SOD-123
Package-Case
