SMF22A
SMF22A
Part Number
3769
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکطرفه 22 ولت 200 وات با بیشینه پالس جریان 5.6 آمپر با پکیج SOD-123-2

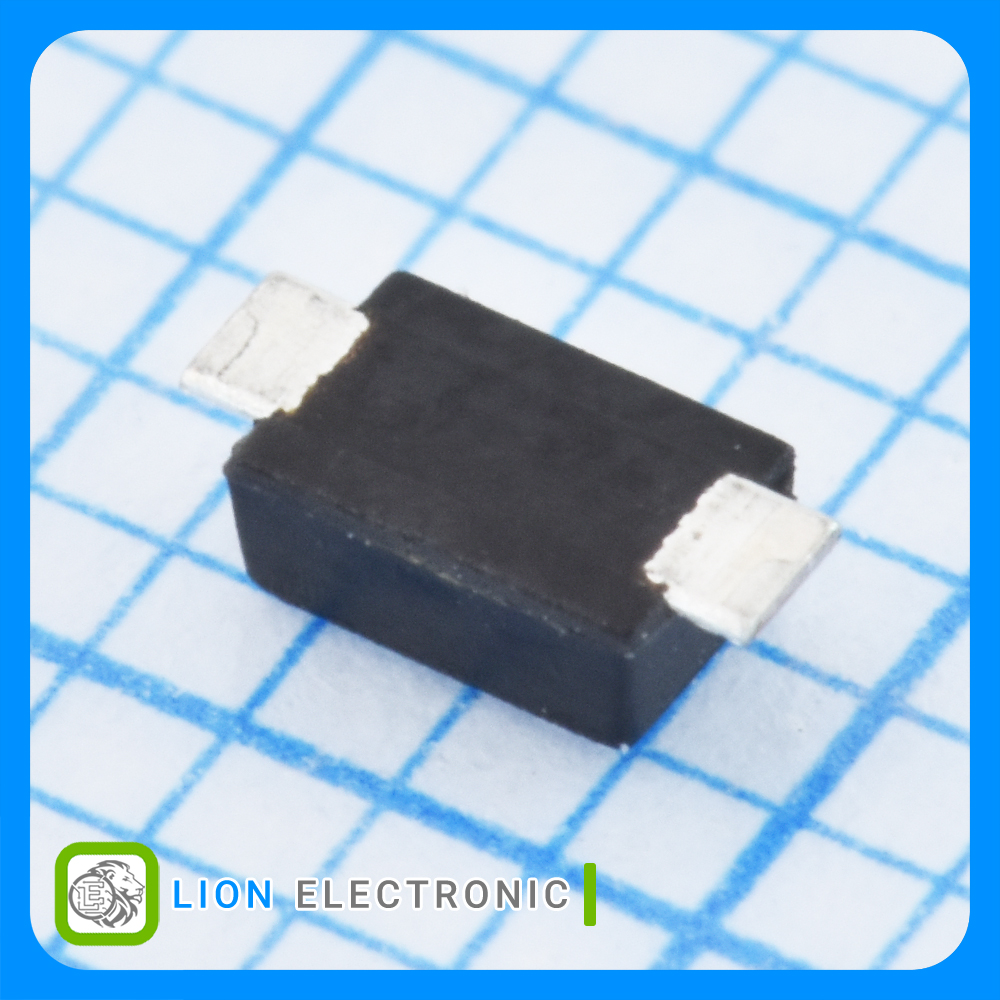

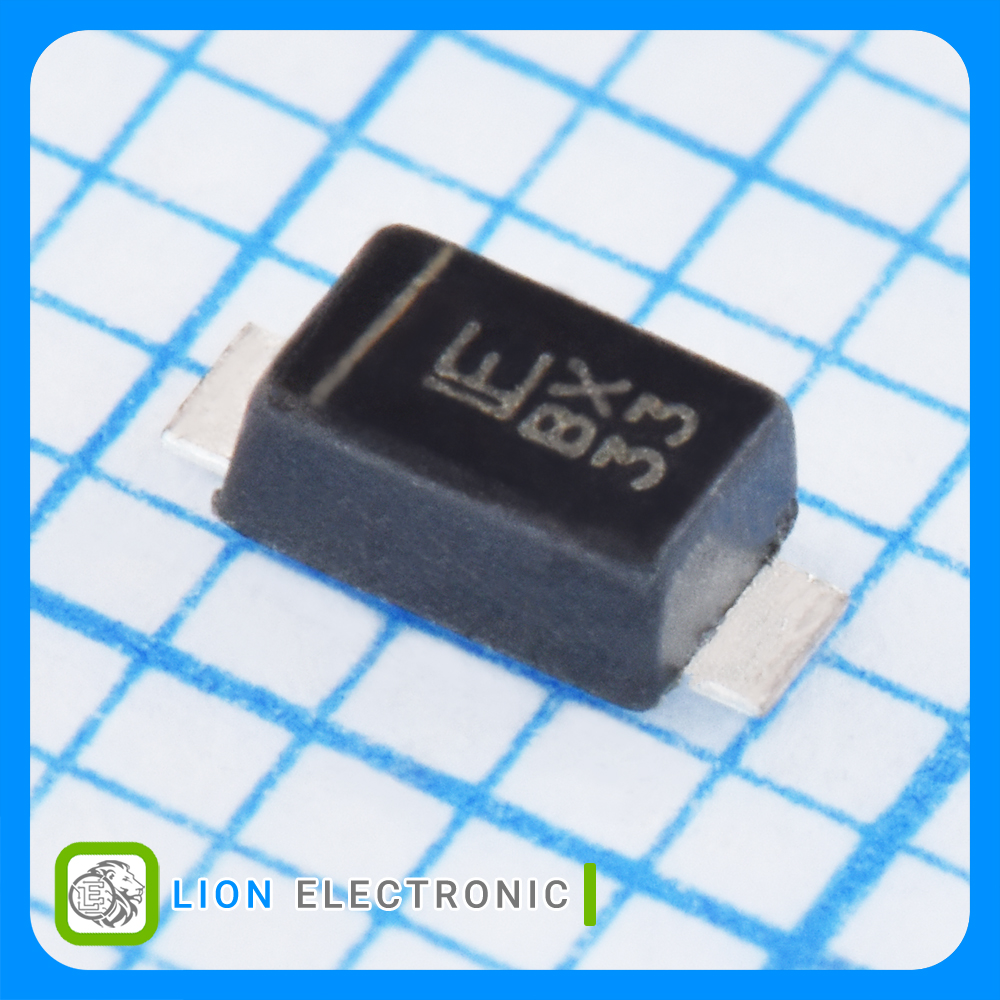

TVS Diode Uni-directional 22V, 200W, Peak Pulse Current 5.6A with SOD-123-2 Package
معرفی
دیود TVS یکطرفه 22 ولت 200 وات با بیشینه پالس جریان 5.6 آمپر با پکیج SOD-123-2
TVS Diode Uni-directional 22V, 200W, Peak Pulse Current 5.6A with SOD-123-2 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 22V
- Breakdown Voltage: 24.4V
- Clamping Voltage: 35.5V
- Pppm - Peak Pulse Power Dissipation: 200W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 5.6A
- Termination style: SMD/SMT
- Package/Case: SOD-123-2
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس SMF22A
دیود تیویاس SMF22A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
200W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
22V
Working Voltage
5.6A
Ipp - Peak Pulse Current
35.5V
Clamping Voltage
N/A
Cd - Diode Capacitance
24.4V
Breakdown Voltage
TVS Diodes
Product Type
SOD-123
Package-Case
