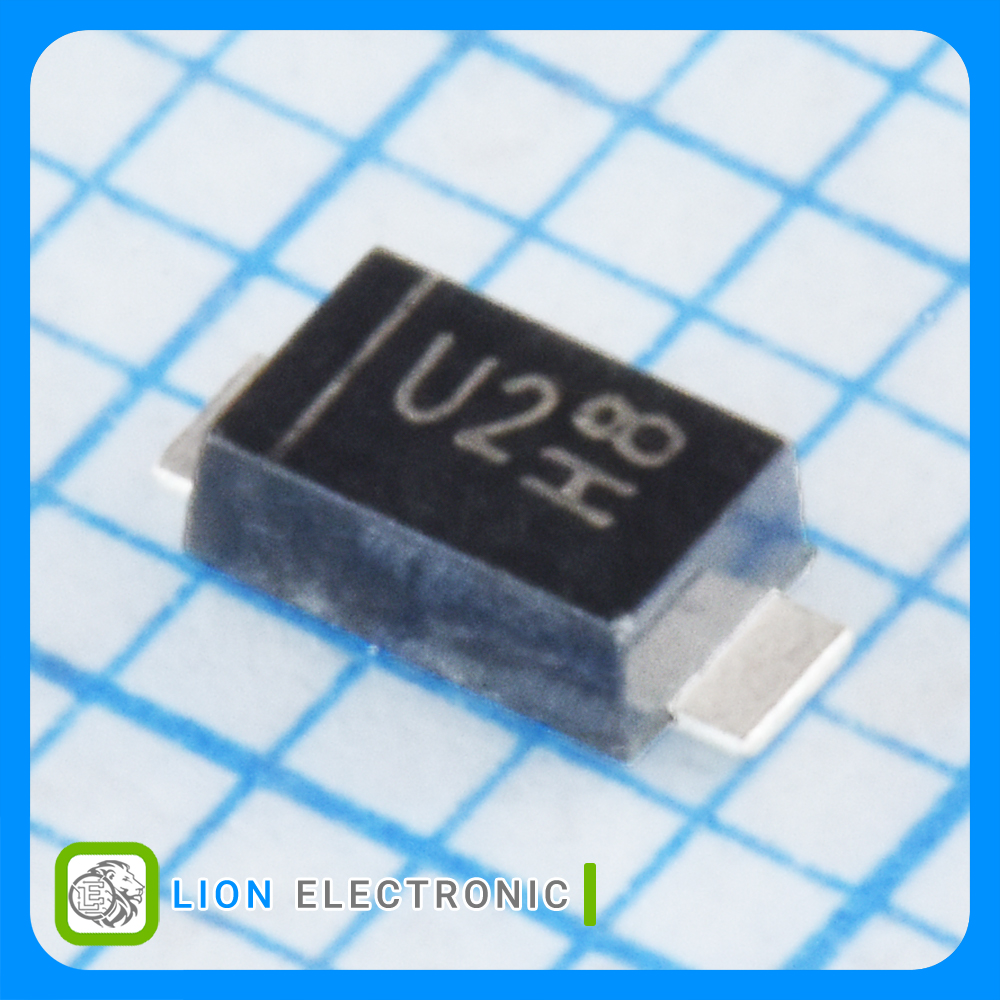

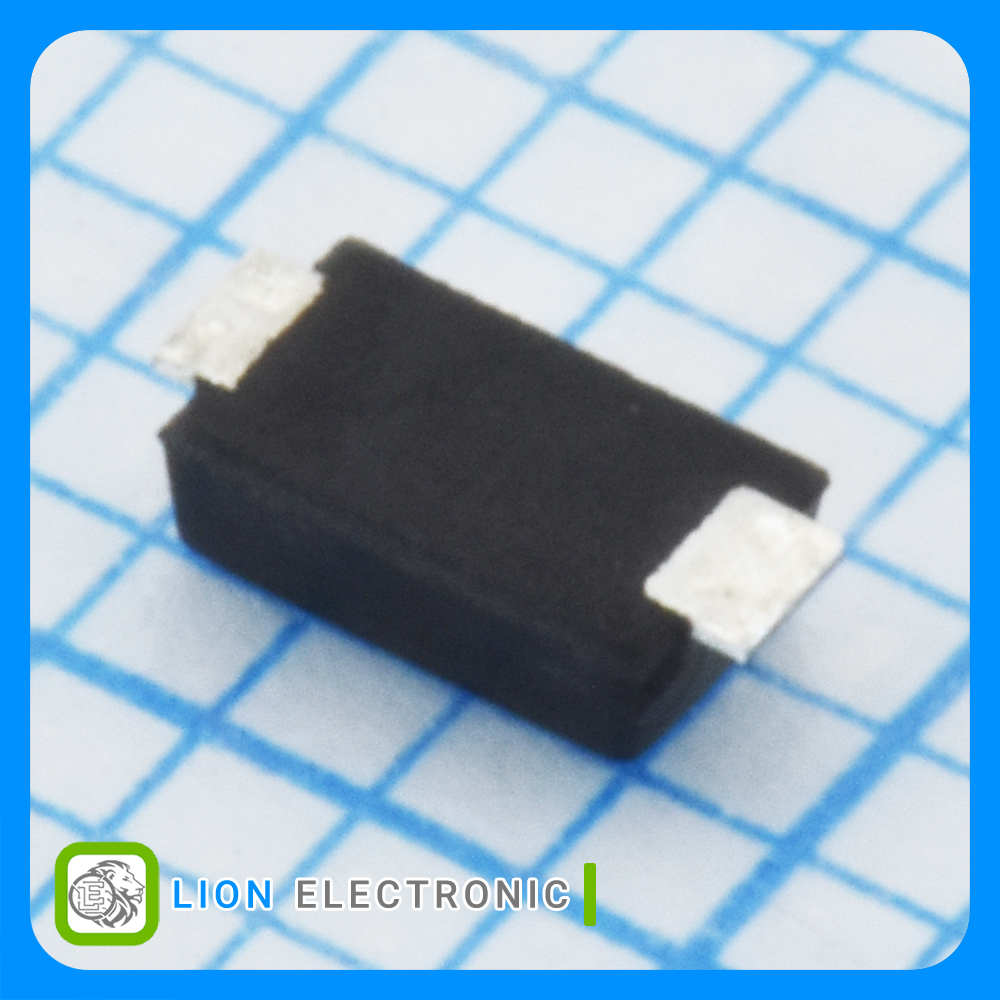

TPSMF4L26A
TPSMF4L26A
Part Number
3770
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکطرفه 26 ولت 400 وات با جریان پالس بیشینه 9.5 آمپر با پکیج SOD-123FL
TVS Diode Uni-directional 26V, 400W, Peak Pulse Current (Ipp) 9.5A with SOD-123FL Package
معرفی
دیود TVS یکطرفه 26 ولت 400 وات با جریان پالس بیشینه 9.5 آمپر با پکیج SOD-123FL
TVS Diode Uni-directional 26V, 400W, Peak Pulse Current (Ipp) 9.5A with SOD-123FL Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 26V
- Breakdown Voltage: 28.9V
- Clamping Voltage: 42.1V
- Pppm - Peak Pulse Power Dissipation: 400W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 9.5A
- Termination style: SMD/SMT
- Package/Case: SOD-123FL
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس TPSMF4L26A
دیود تیویاس TPSMF4L26A
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
400W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
26V
Working Voltage
N/A
Cd - Diode Capacitance
42.1V
Clamping Voltage
28.9V
Breakdown Voltage
9.5A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
SOD-123F
Package-Case
