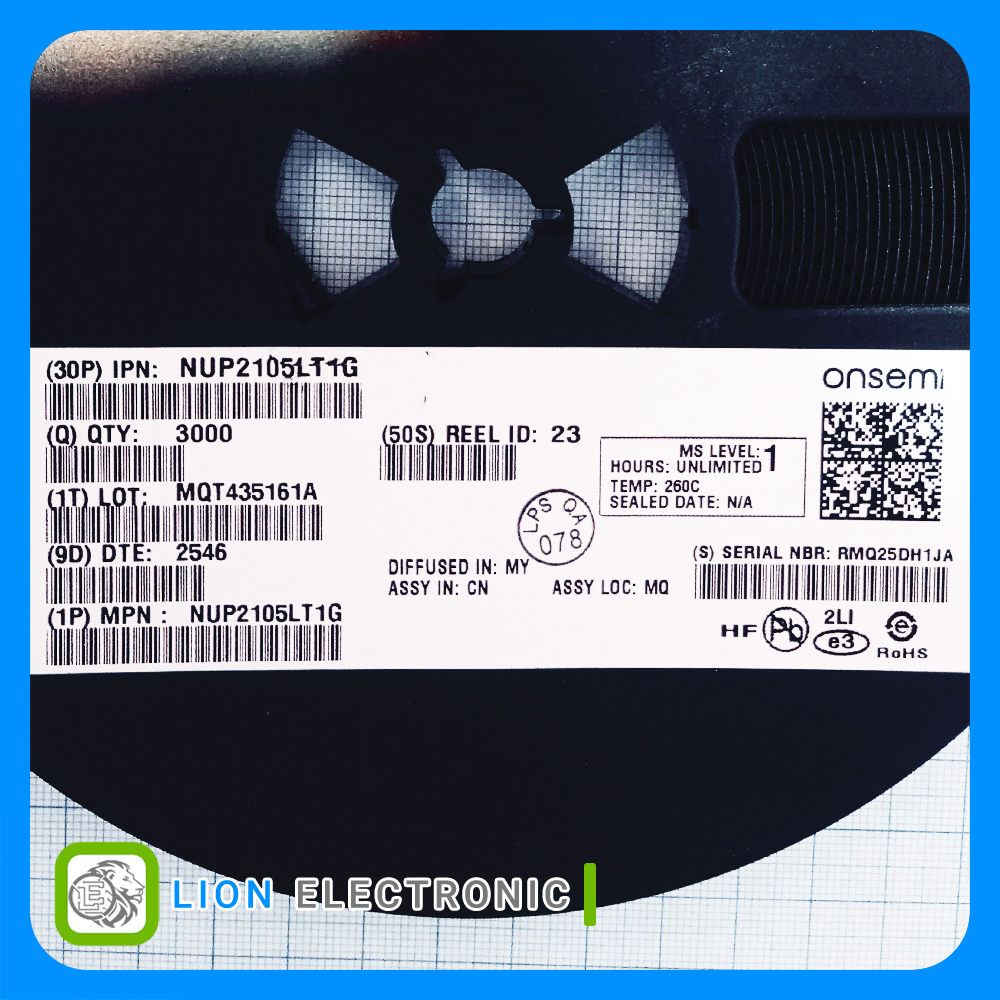

NUP2105LT1G
NUP2105LT1G
Part Number
3775
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
دیود TVS دوطرفه دولاین، ولتاژ کاری 24 ولت، ولتاژ شکست 27 ولت، 350 وات، مناسب برای محافظت در CAN Bus با پکیج SOT-23-3

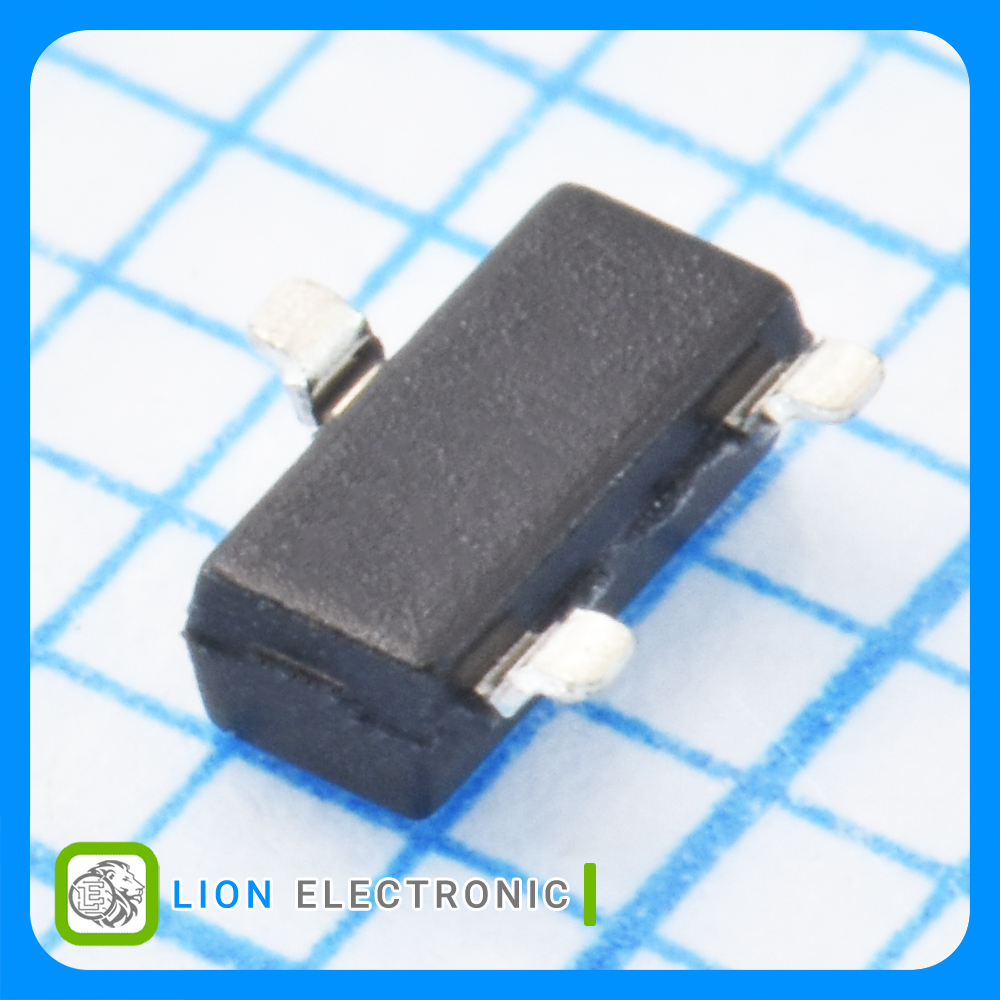

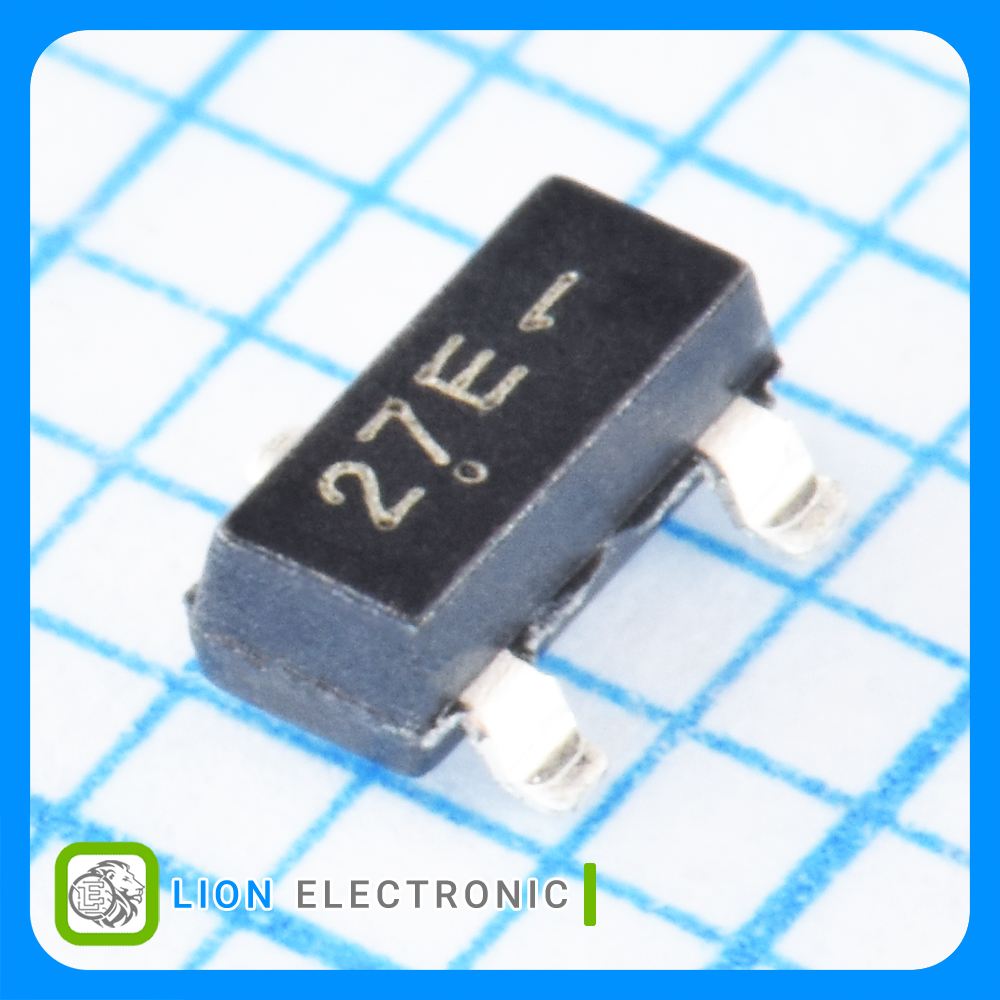

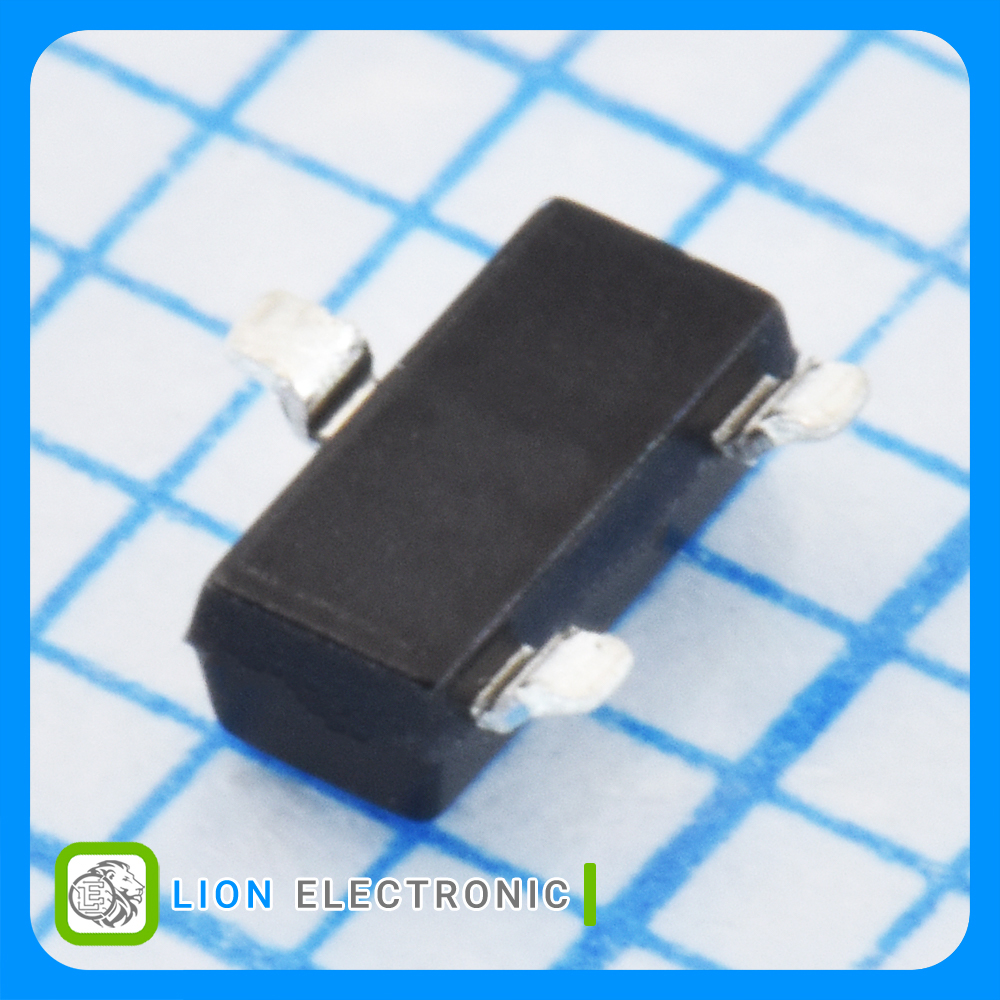

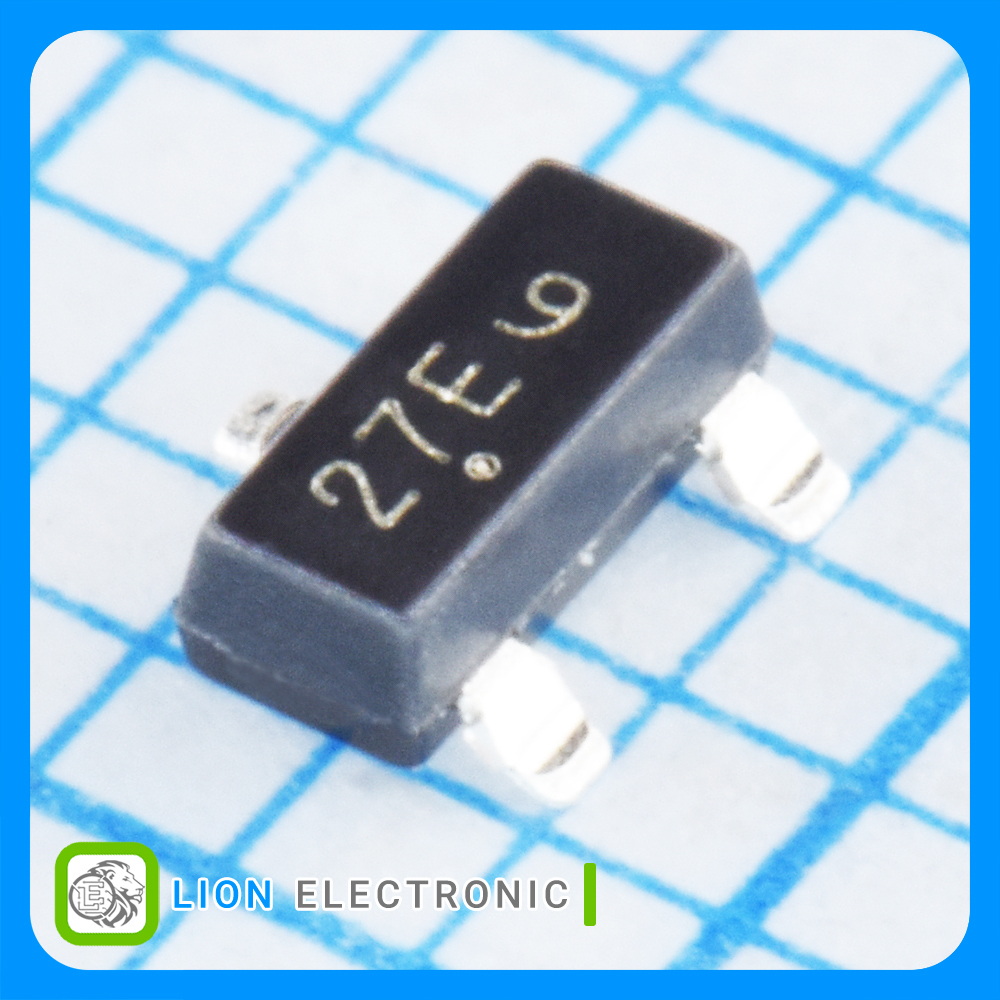

TVS Diode Bidirectional Dual Line, Working Voltage 24V, Breakdown Voltage 27V, 350W, CAN Bus Protector with SOT-23-3 Package
معرفی
دیود TVS دوطرفه دولاین، ولتاژ کاری 24 ولت، ولتاژ شکست 27 ولت، 350 وات، مناسب برای محافظت در CAN Bus با پکیج SOT-23-3
TVS Diode Bidirectional Dual Line, Working Voltage 24V, Breakdown Voltage 27V, 350W, CAN Bus Protector with SOT-23-3 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Bidirectional
- Number of Channels: 2
- Working Voltage: 24V
- Breakdown Voltage: 26.2V
- Clamping Voltage: 44V
- Pppm - Peak Pulse Power Dissipation: 350W
- Vesd - Voltage ESD Contact: 30kV
- Cd - Diode Capacitance: 30pF
- Ipp - Peak Pulse Current: 8A
- Termination style: SMD/SMT
- Package/Case: SOT-23-3
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

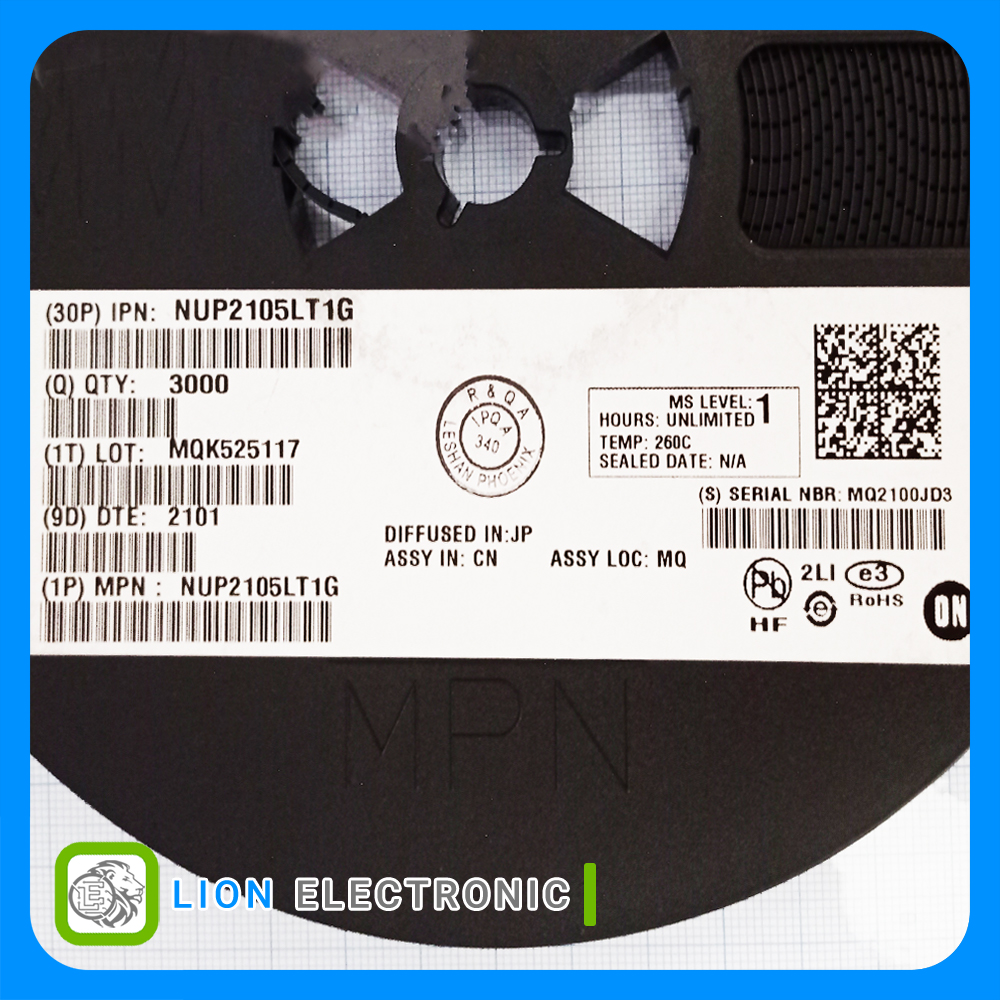

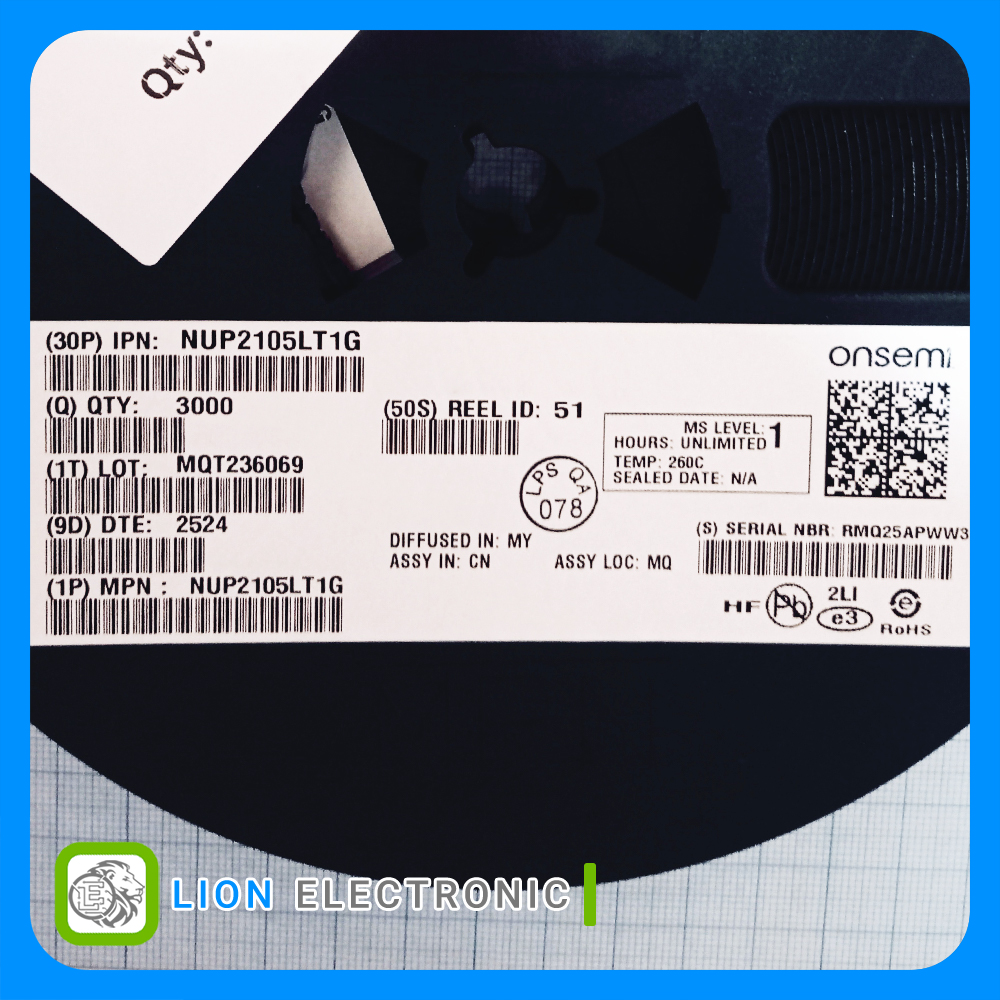

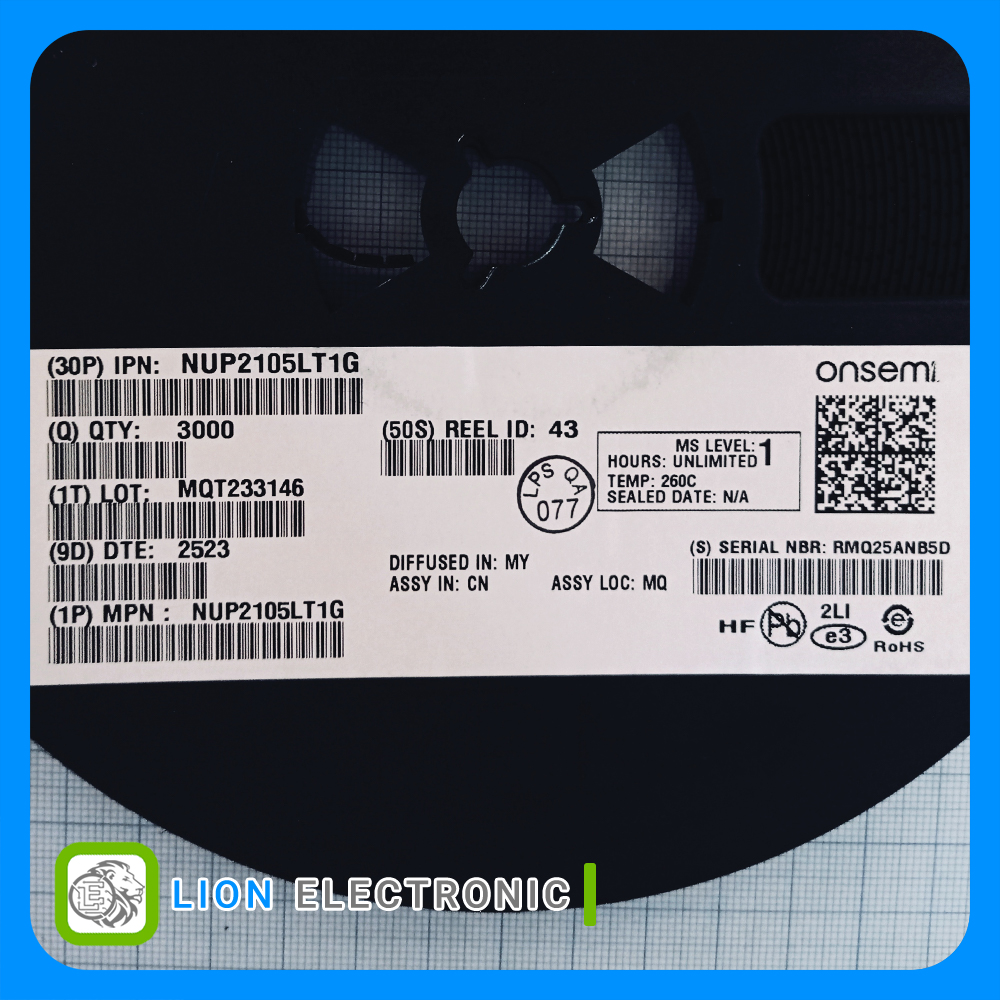

- Packaging: Reel
مشخصات دیود تی وی اس NUP2105LT1G

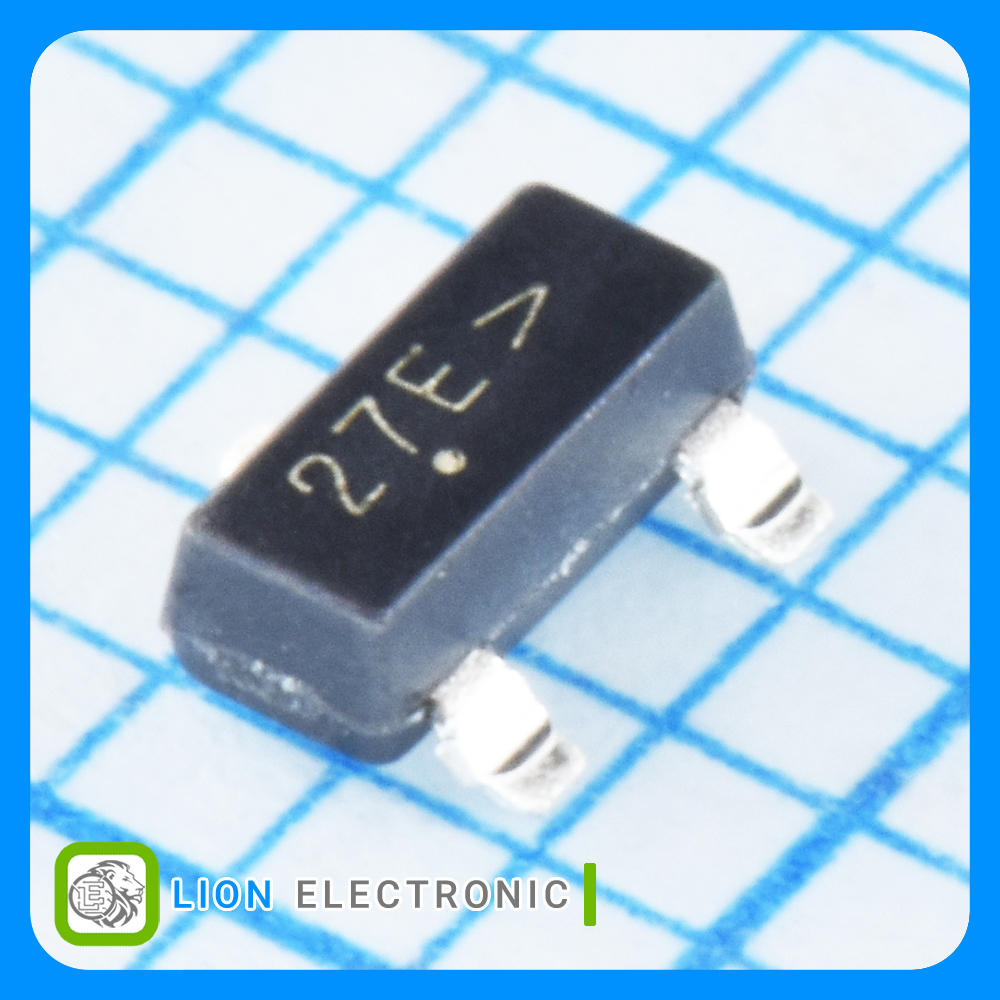

دیود تی وی اس NUP2105LT1G
Part Number
Bidirectional
Polarity
2
Number of Channels
-55C
Minimum Operating Temperature
SMD/SMT
Termination style
N/A
Vesd - Voltage ESD Air Gap
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
350W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
30pF
Cd - Diode Capacitance
ESD Suppressors
Product Type
24V
Working Voltage
8A
Ipp - Peak Pulse Current
44V
Clamping Voltage
26.2V
Breakdown Voltage
SOT-23-3
Package-Case
