WILLSEMI
معرفی

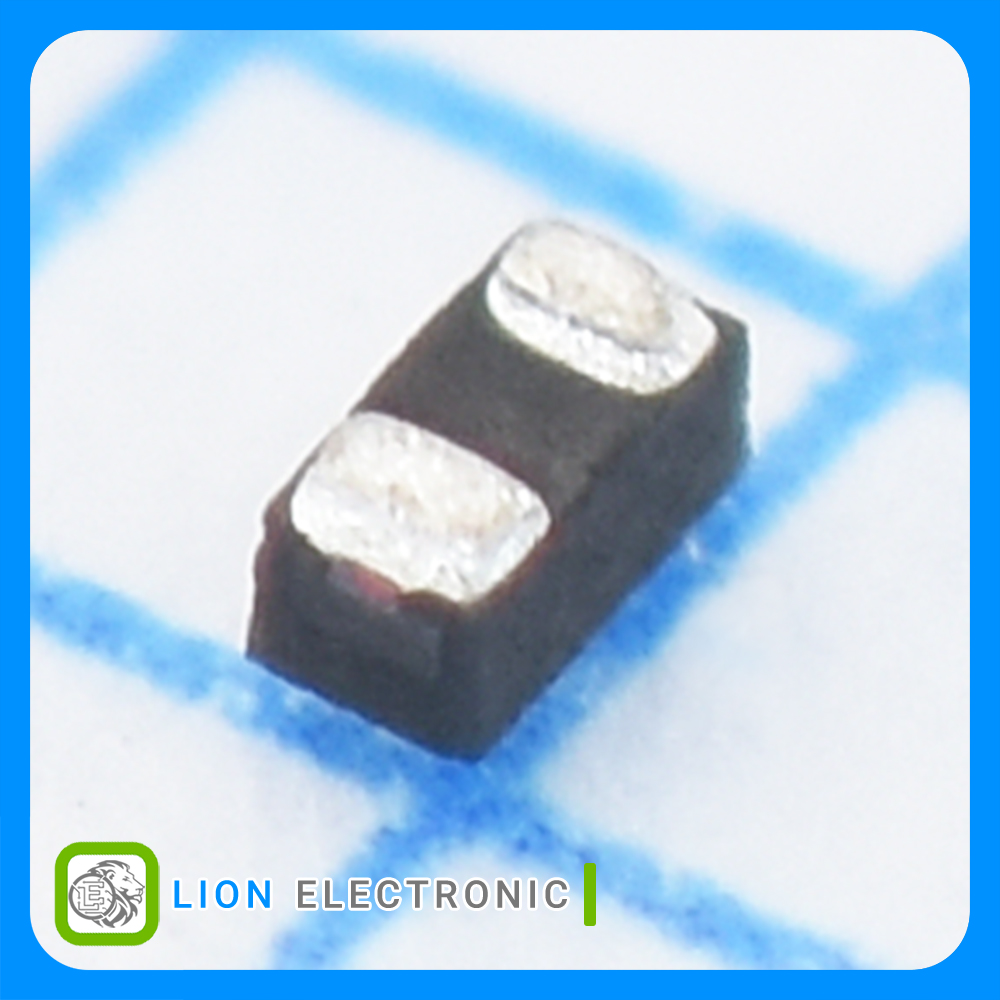

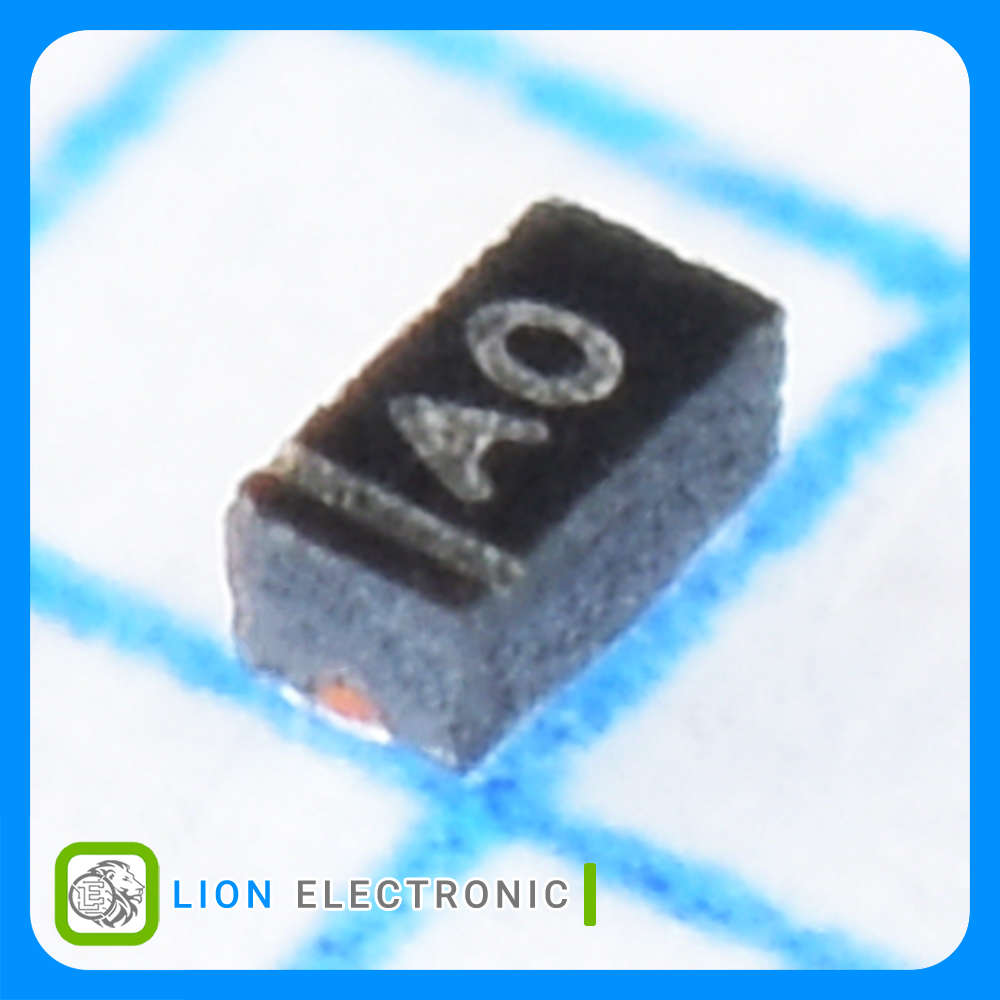

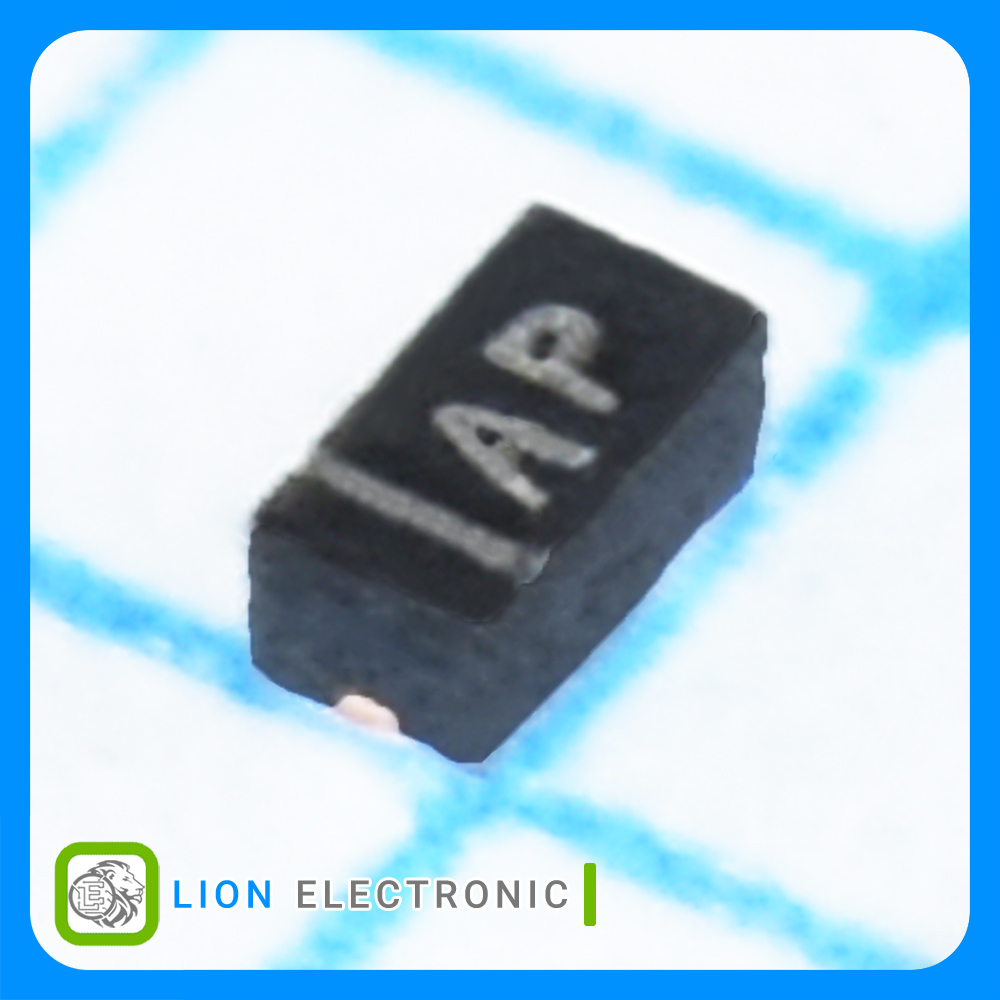

دیود TVS دو جهته 5 ولت 80 وات بیشینه پالس جریان 8 آمپر با پکیج 0201 (FBP0603-2L)
Bi-directional TVS Diode 5V, 80W, 8A Peak Pulse Current, FBP0603-2L (0201) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 5V
- Breakdown Voltage: 5.1V
- Clamping Voltage: 10V
- Pppm - Peak Pulse Power Dissipation: 80W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 17.5pF
- Ipp - Peak Pulse Current: 8A
- Termination style: SMD/SMT
- Package/Case: 0201
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات دیود(TVS) ESD5451XZ-2/TR
دیود(TVS) ESD5451XZ-2/TR
Part Number
Bidirectional
Polarity
1
Number of Channels
5V
Working Voltage
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
5.1V
Breakdown Voltage
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
80W
Pppm - Peak Pulse Power Dissipation
-40C
Minimum Operating Temperature
10V
Clamping Voltage
+85C
Maximum Operating Temperature
17.5pF
Cd - Diode Capacitance
8A
Ipp - Peak Pulse Current
0201
Package-Case
TVS Diodes
Product Type
