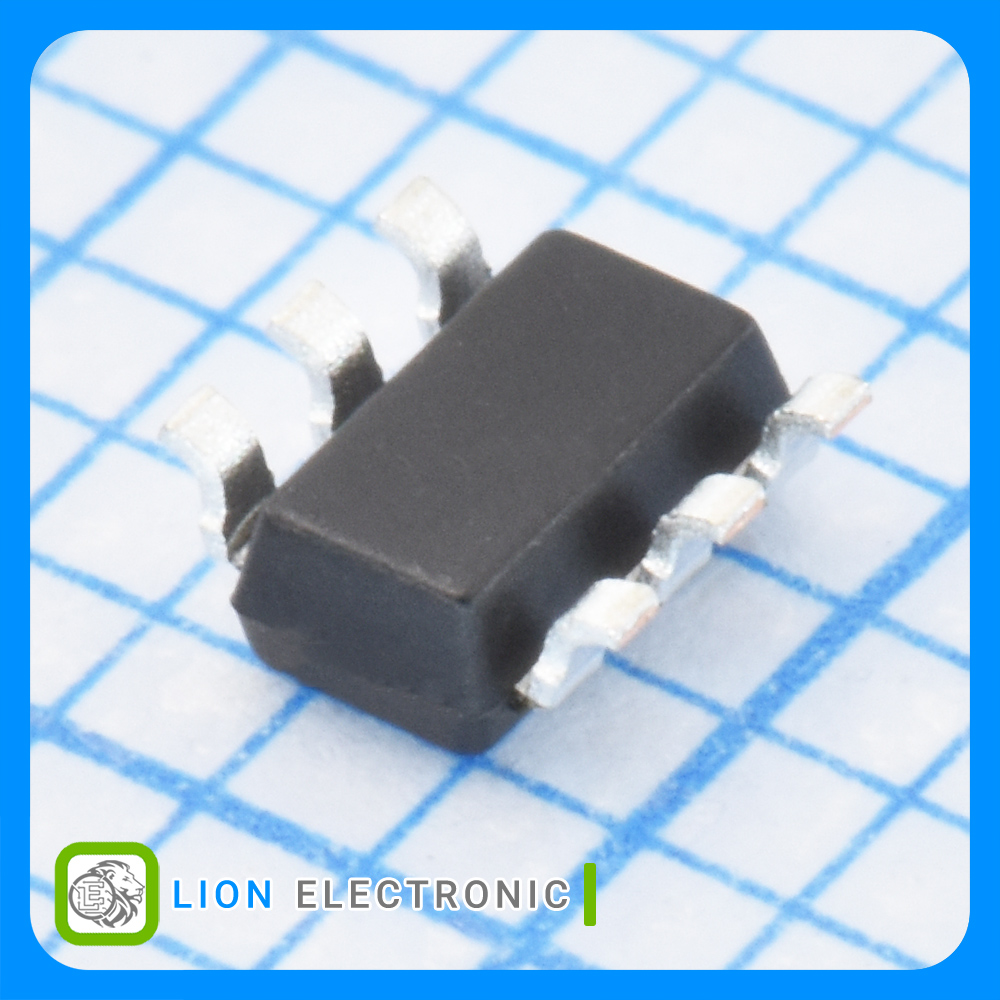

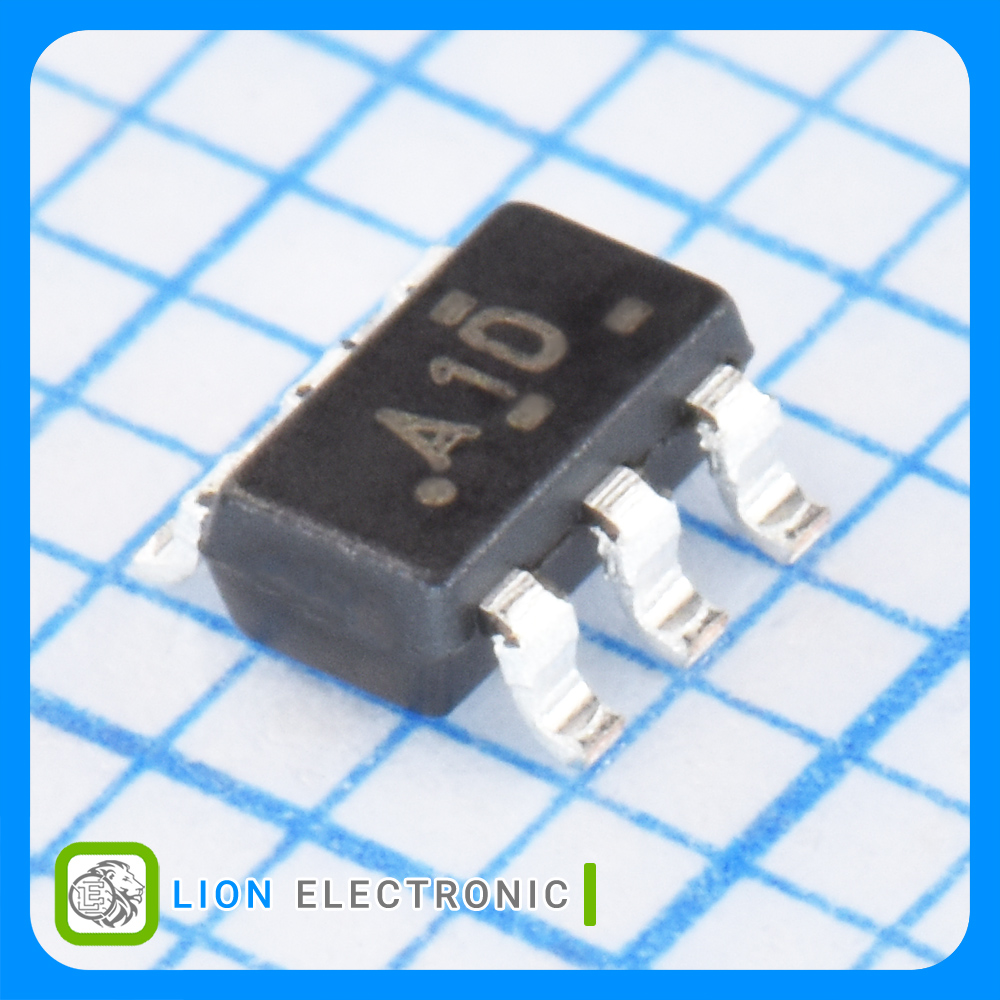

TMAG5328A1DQDBVR
TMAG5328A1DQDBVR
Part Number
4396
Lion Part
Datasheet
Texas Instruments Manufacture
سنسور مغناطیسی اثر هال دقتبالا کممصرف با مقاومت و ولتاژ قابل تنظیم، تغذیه 1.65 تا 5.5 ولت با پکیج SOT-23-6
Hall-Effect Magnetic Sensor High-Precision, Low-Power, Resistor and Voltage Adjustable, 1.65 - 5.5V with SOT-23-6 Package
معرفی
سنسور مغناطیسی اثر هال دقتبالا کممصرف با مقاومت و ولتاژ قابل تنظیم، تغذیه 1.65 تا 5.5 ولت با پکیج SOT-23-6
Hall-Effect Magnetic Sensor High-Precision, Low-Power, Resistor and Voltage Adjustable, 1.65 - 5.5V with SOT-23-6 Package
Specifications
- Type: High-Precision, Low-Power
- Operating Point Min/Max: +/-2mT to +/-15mT
- Release Point Min/Max (Brp): +/-1mT to +/-14mT
- Operating Supply Voltage: 1.65 - 5.5V
- Operating Supply Current: 1.4uA
- Maximum Output Current: 5mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات مگنت سنسور TMAG5328A1DQDBVR
مگنت سنسور TMAG5328A1DQDBVR
Part Number
+/-1mT to +/-14mT
Release Point Min-Max (Brp)
Reel
Packaging
5mA
Maximum Output Current
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
1.4uA
Operating Supply Current
+/-2mT to +/-15mT
Operating Point Min-Max
+125C
Maximum Operating Temperature
1.65 - 5.5V
Operating Supply Voltage
High-Precision, Low-Power
Type
SOT-23-6
Package-Case
