ESDA6V1BC6
ESDA6V1BC6
Part Number
4508
Lion Part
Datasheet
STMicroelectronics Manufacture
دیود TVS آرایهای دوطرفه 5 ولت 80 وات با پکیج SOT-23-6

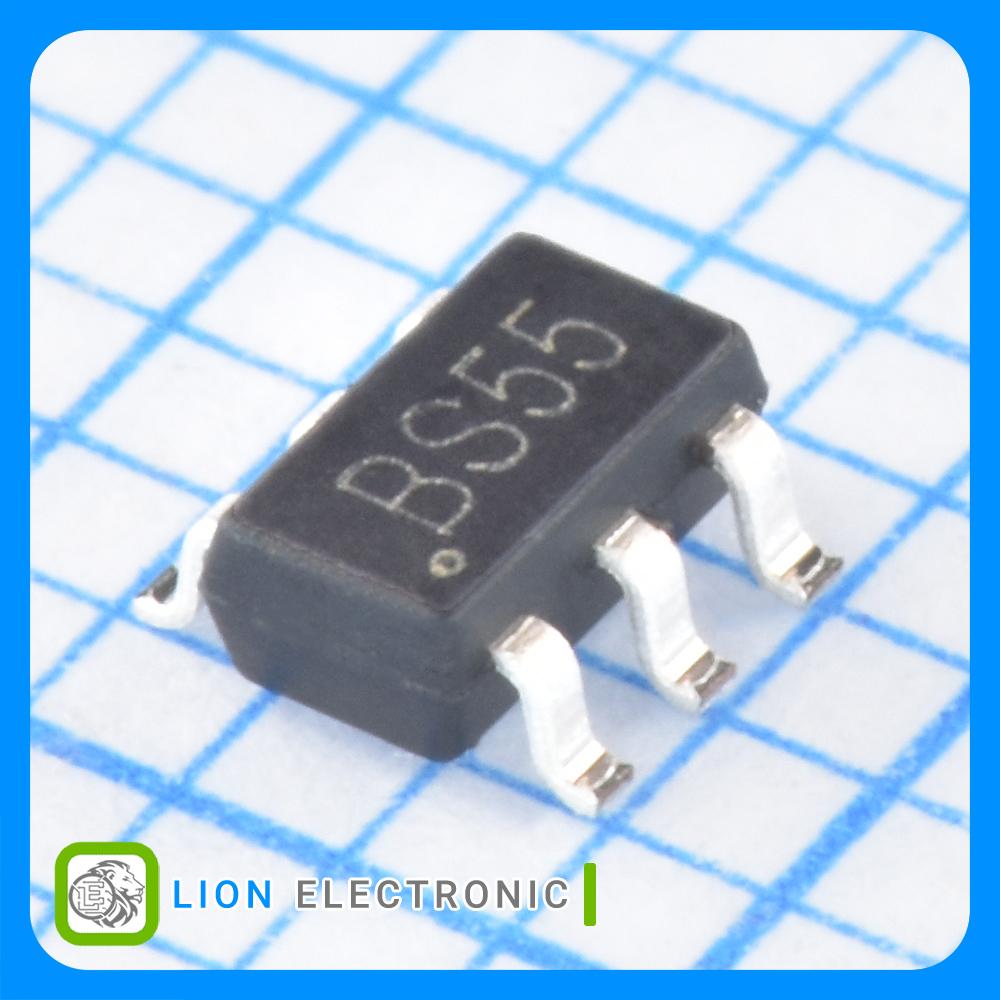

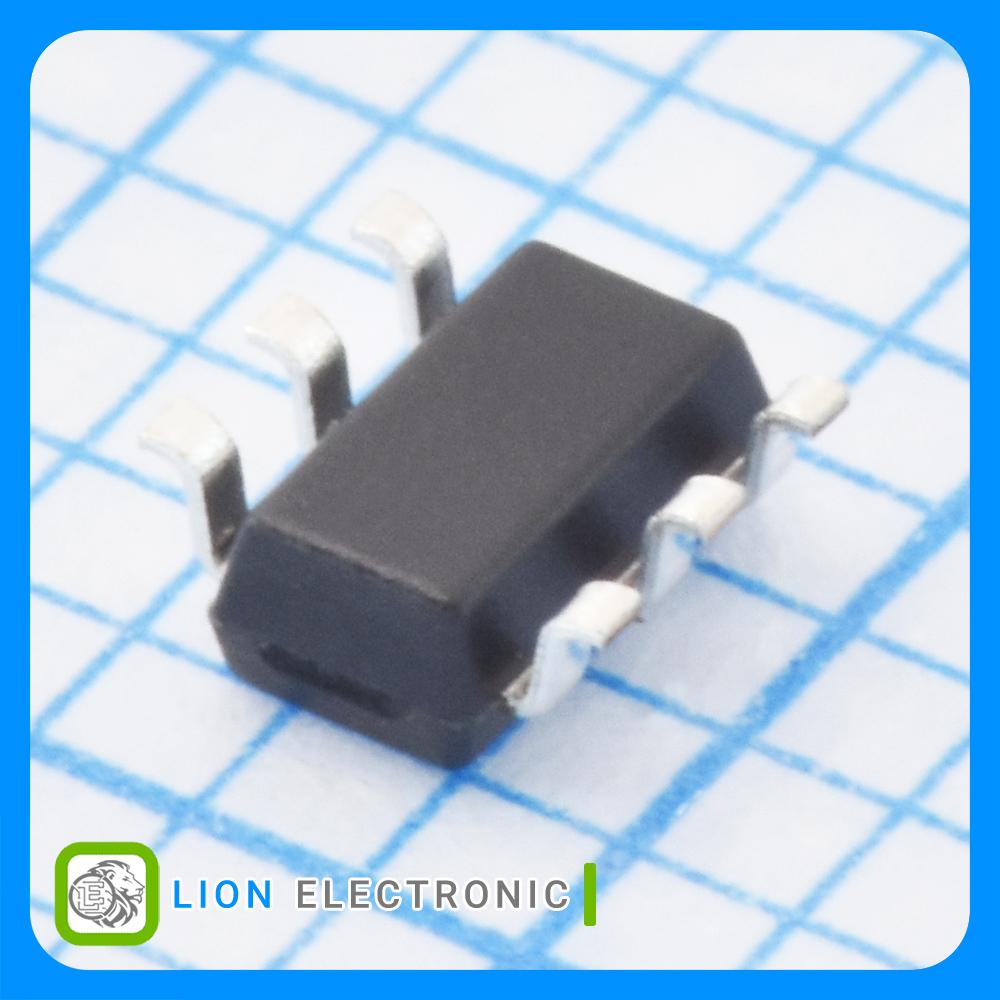

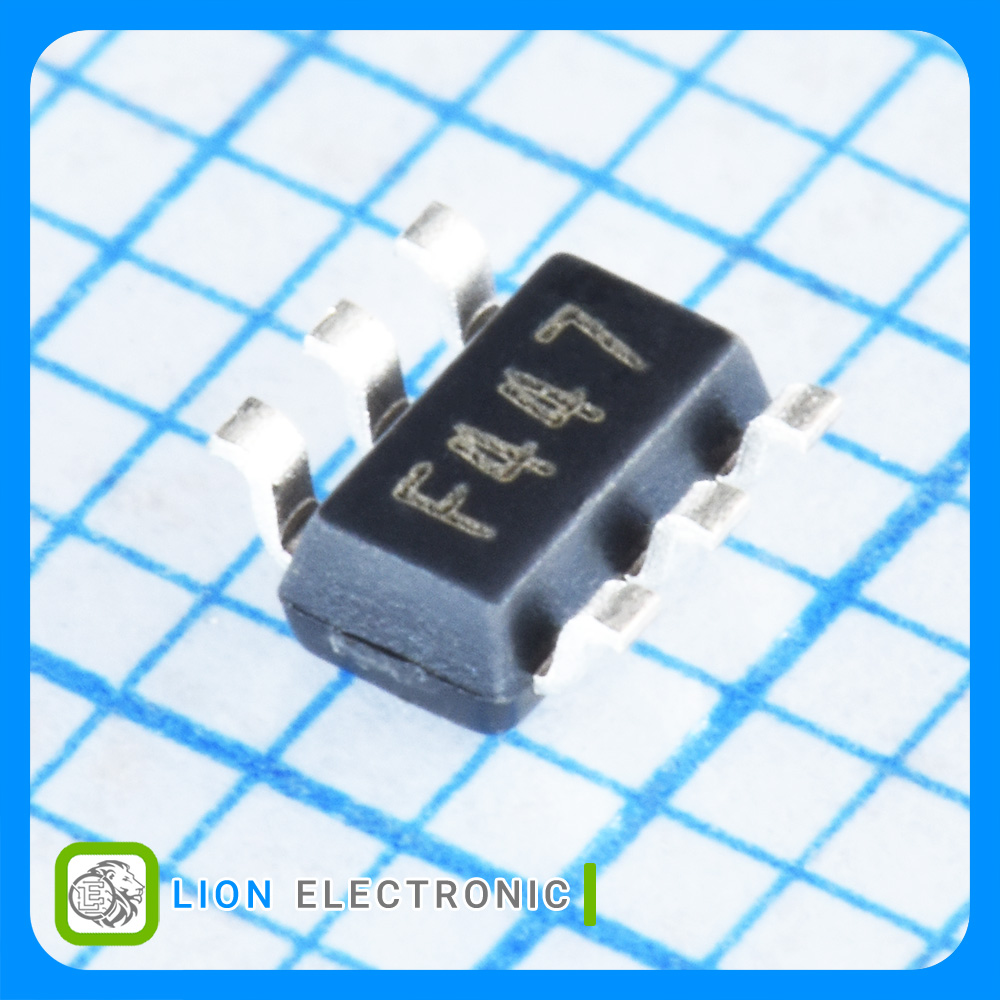

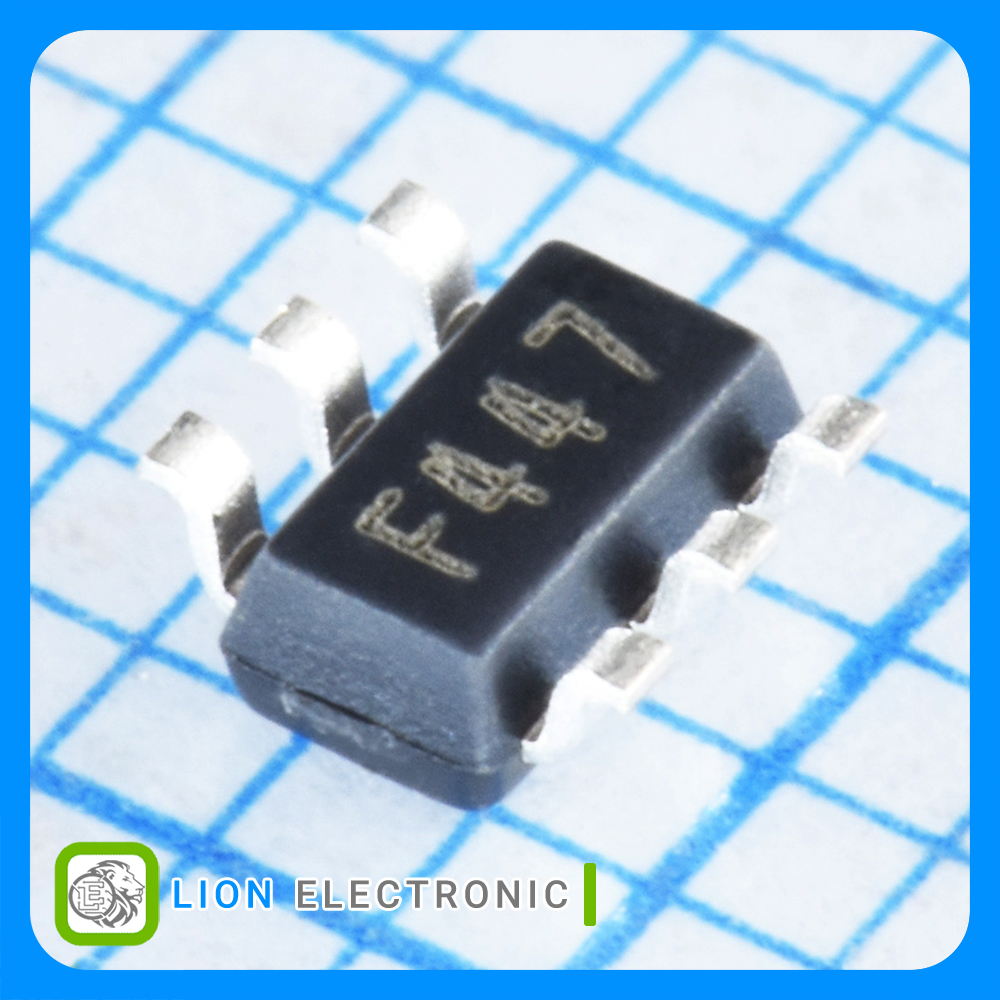

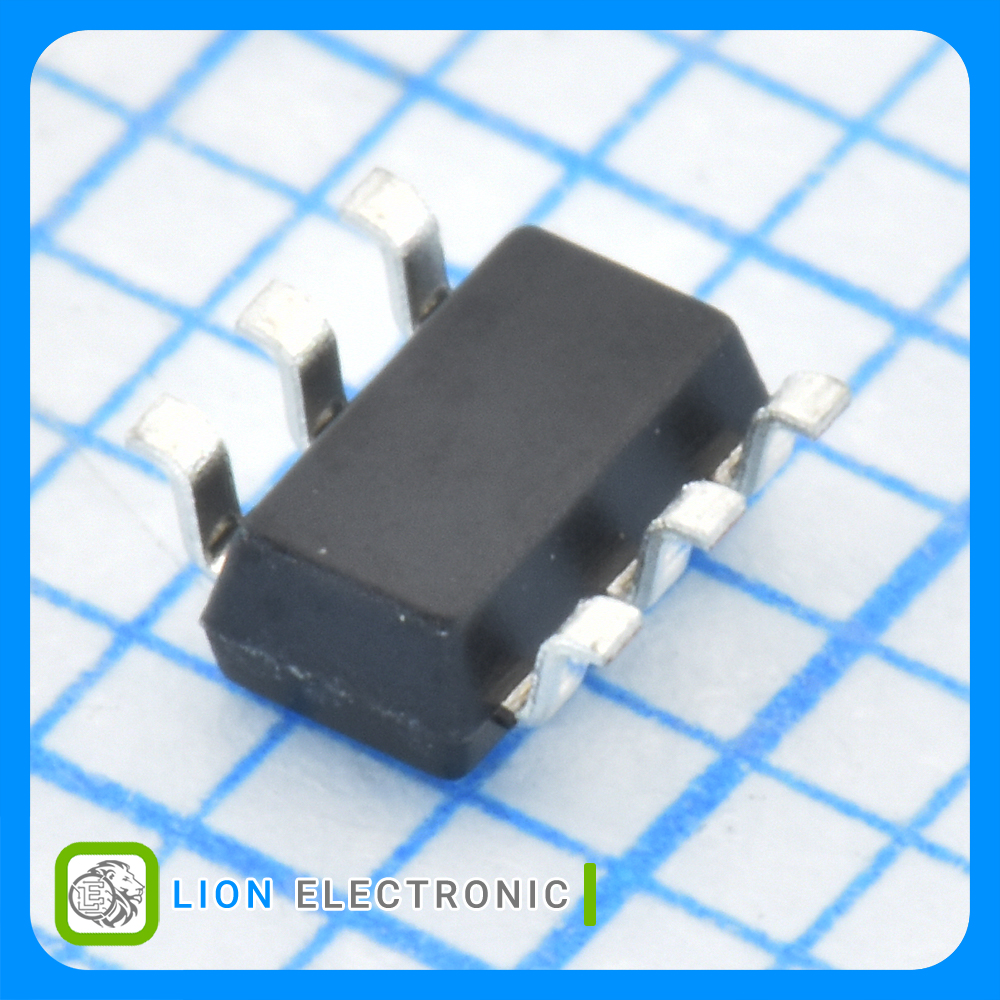

Quad Bidirectional TVS Diode Suppressor for ESD Protection 5V, 80W with SOT-23-6 Package
معرفی
دیود TVS آرایهای دوطرفه 5 ولت 80 وات با پکیج SOT-23-6
Quad Bidirectional TVS Diode Suppressor for ESD Protection 5V, 80W with SOT-23-6 Package
Specifications
- Product Type: ESD Suppressors / TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 4
- Working Voltage: 5V
- Breakdown Voltage: 6.1V
- Pppm - Peak Pulse Power Dissipation: 80W
- Vesd - Voltage ESD Contact: 8kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 20pF
- Ipp - Peak Pulse Current: 3A
- Termination style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات دیود TVS چهار کانال دو جهته ESDA6V1BC6

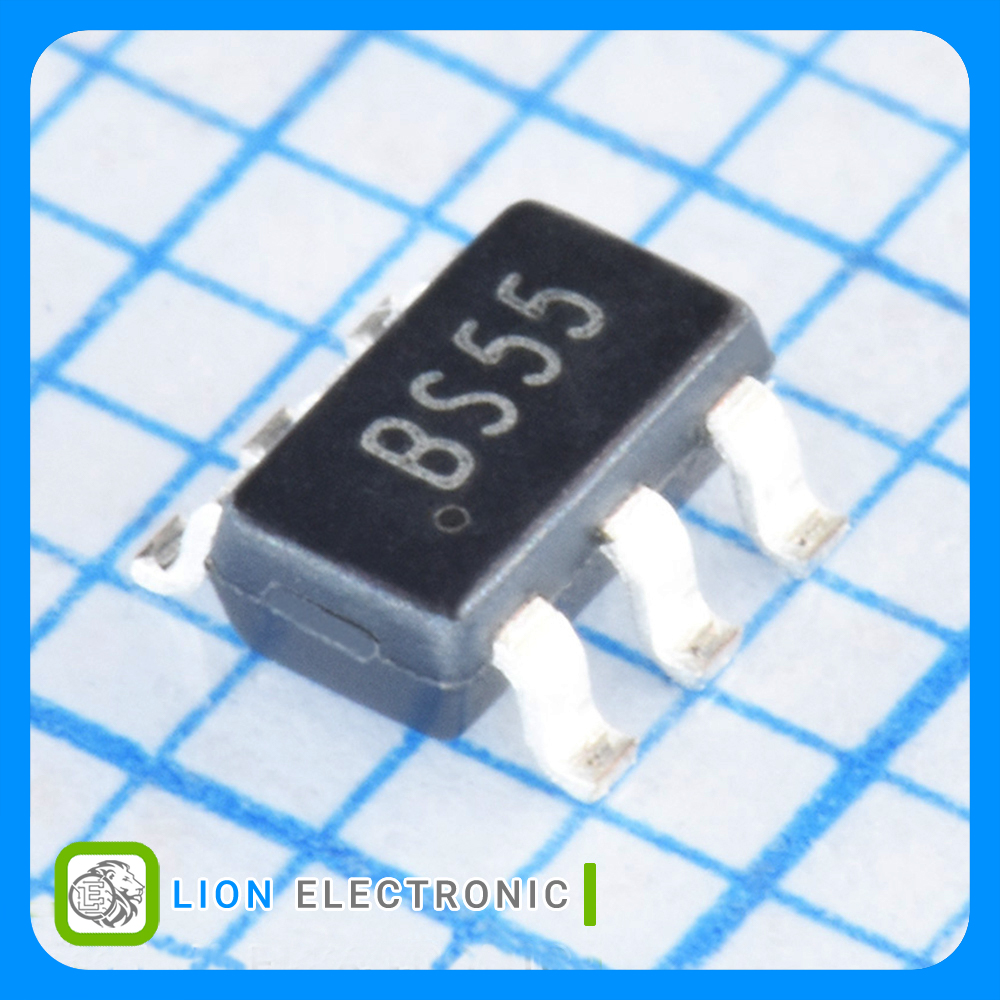

دیود TVS چهار کانال دو جهته ESDA6V1BC6
Part Number
Bidirectional
Polarity
8kV
Vesd - Voltage ESD Contact
15kV
Vesd - Voltage ESD Air Gap
5V
Working Voltage
SMD/SMT
Termination style
Reel
Packaging
4
Number of Channels
80W
Pppm - Peak Pulse Power Dissipation
-40C
Minimum Operating Temperature
3A
Ipp - Peak Pulse Current
6.1V
Breakdown Voltage
+125C
Maximum Operating Temperature
20pF
Cd - Diode Capacitance
ESD Suppressors / TVS Diodes
Product Type
N/A
Clamping Voltage
SOT-23-6
Package-Case
