ESDA6V1-5W6
ESDA6V1-5W6
Part Number
4514
Lion Part
Datasheet
STMicroelectronics Manufacture
دیود TVS پنج کاناله یکطرفه 3 ولت 100 وات با بیشینه پالس جریان 15 آمپر با پکیج SOT-323-6L

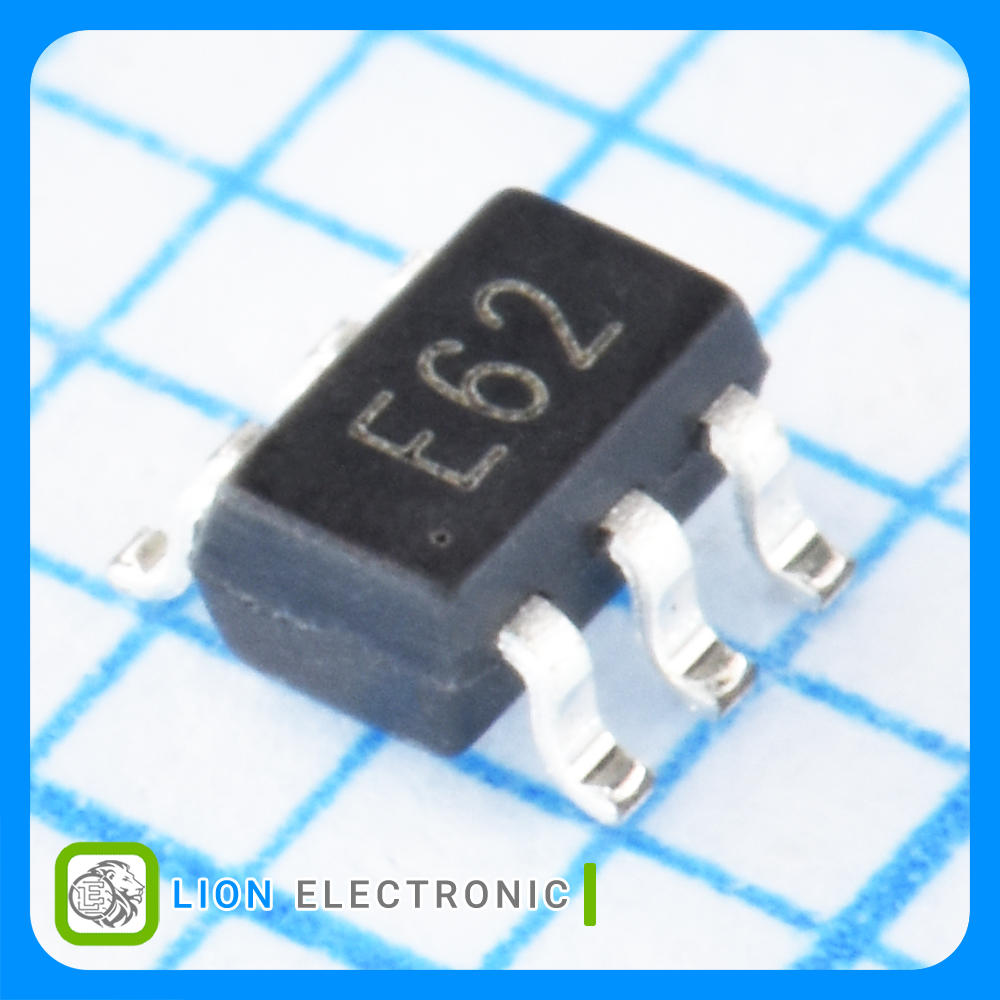

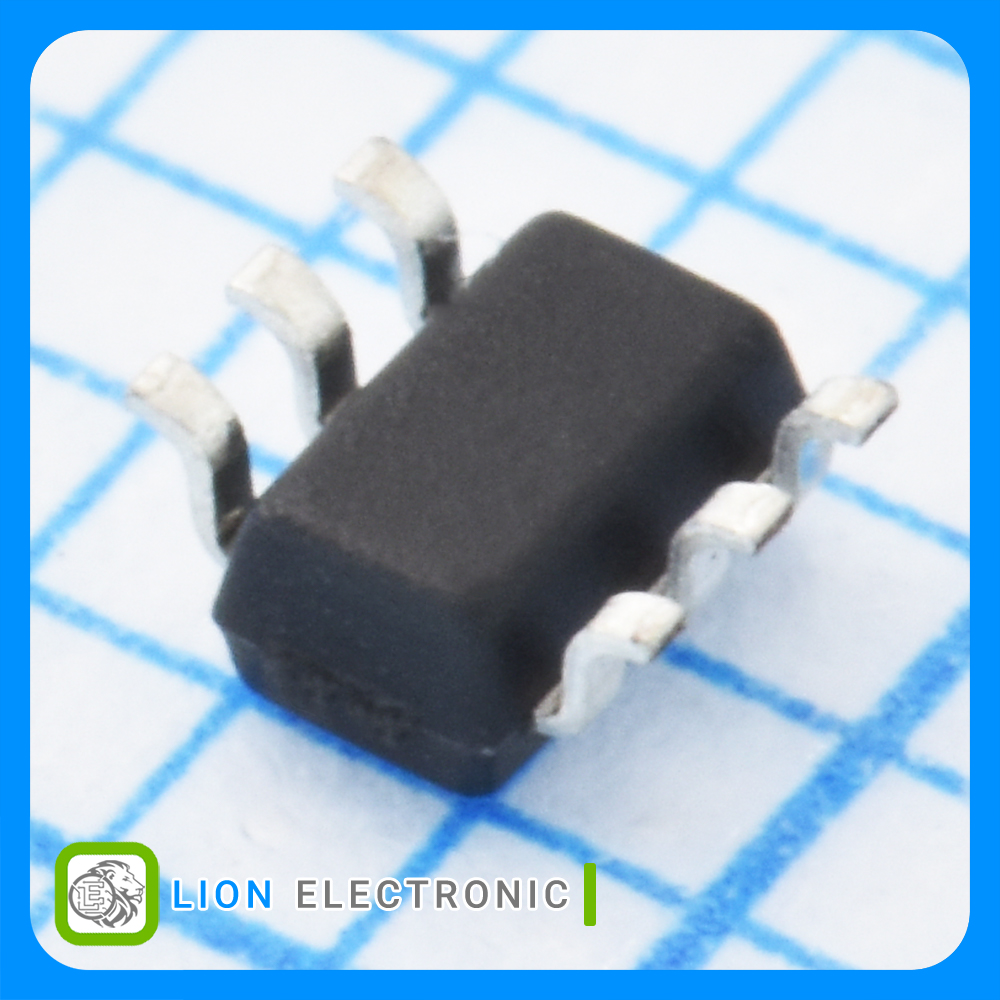

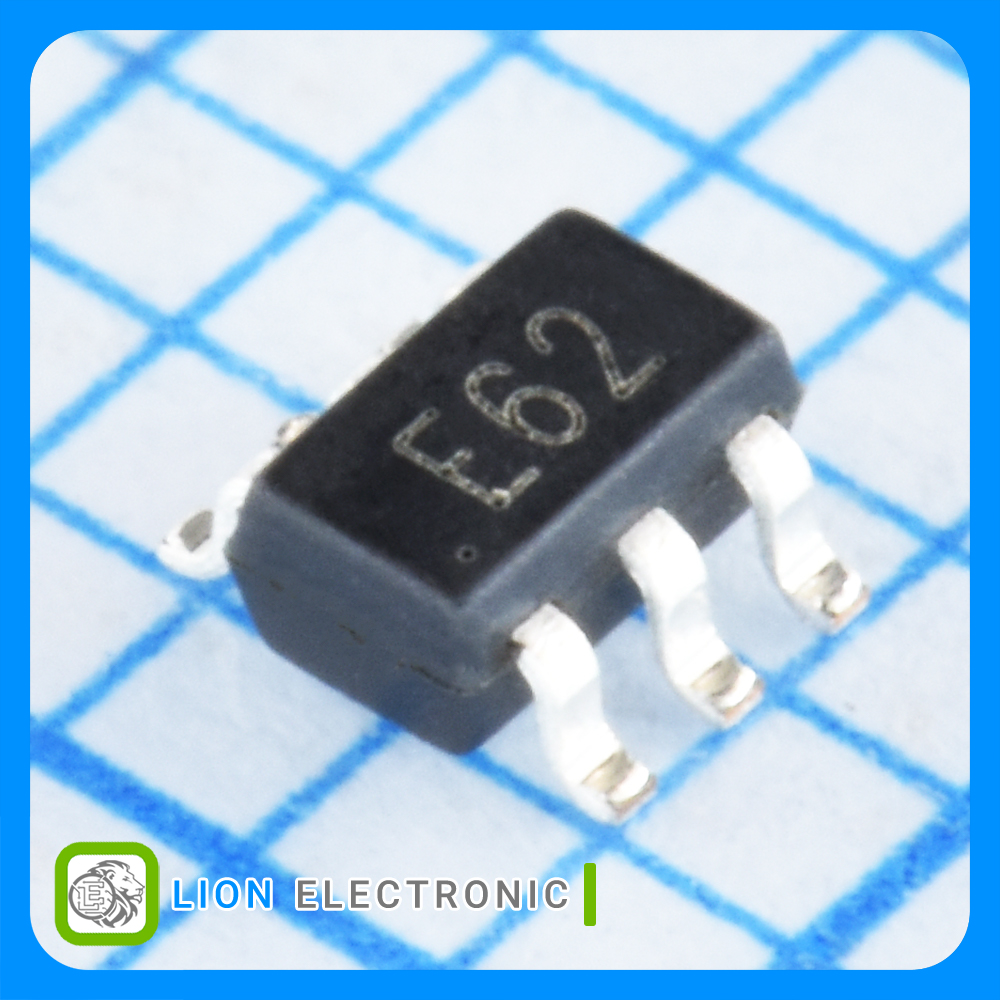

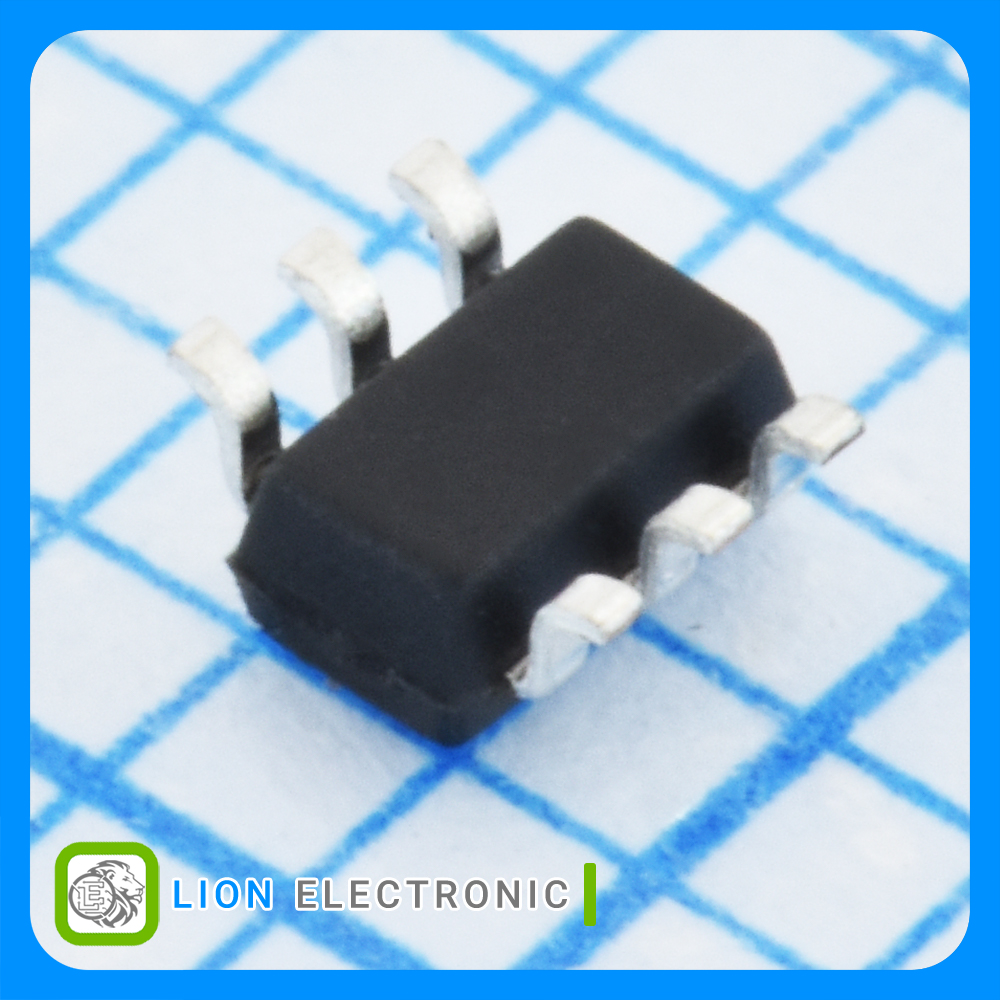

TVS Diode 5 Channel Uni-directional 3V, 100W with 15A Peak Pulse Current, SOT-323-6L Package
معرفی
دیود TVS پنج کاناله یکطرفه 3 ولت 100 وات با بیشینه پالس جریان 15 آمپر با پکیج SOT-323-6L
TVS Diode 5 Channel Uni-directional 3V, 100W with 15A Peak Pulse Current, SOT-323-6L Package
Specifications
- Product Type: ESD Suppressors / TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 5
- Working Voltage: 3V
- Breakdown Voltage: 6.1V
- Pppm - Peak Pulse Power Dissipation: 100W
- Vesd - Voltage ESD Contact: 8kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 50pF
- Ipp - Peak Pulse Current: 15A
- Termination style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات دیود TVS پنج کانال یک جهته ESDA6V1-5W6
دیود TVS پنج کانال یک جهته ESDA6V1-5W6
Part Number
8kV
Vesd - Voltage ESD Contact
3V
Working Voltage
15kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
Unidirectional
Polarity
100W
Pppm - Peak Pulse Power Dissipation
5
Number of Channels
6.1V
Breakdown Voltage
+125C
Maximum Operating Temperature
ESD Suppressors / TVS Diodes
Product Type
50pF
Cd - Diode Capacitance
15A
Ipp - Peak Pulse Current
N/A
Clamping Voltage
SOT-23-6
Package-Case
