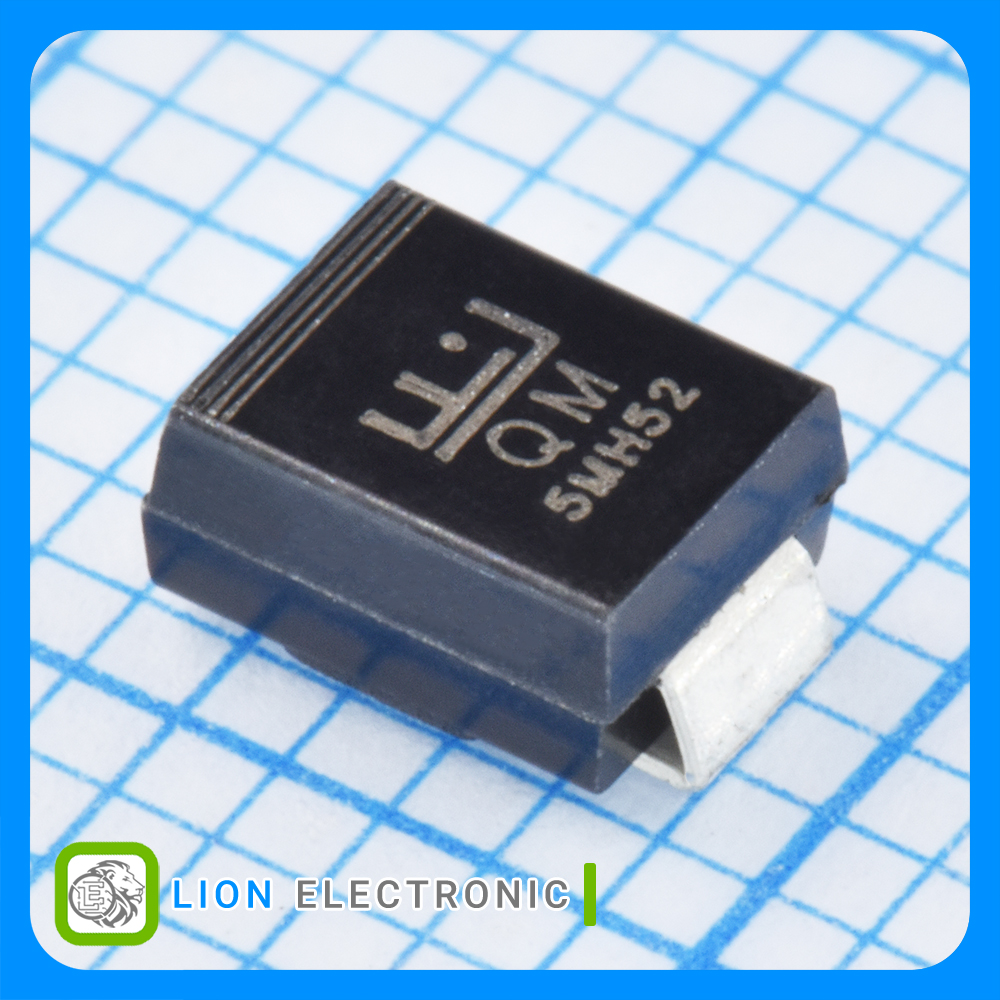

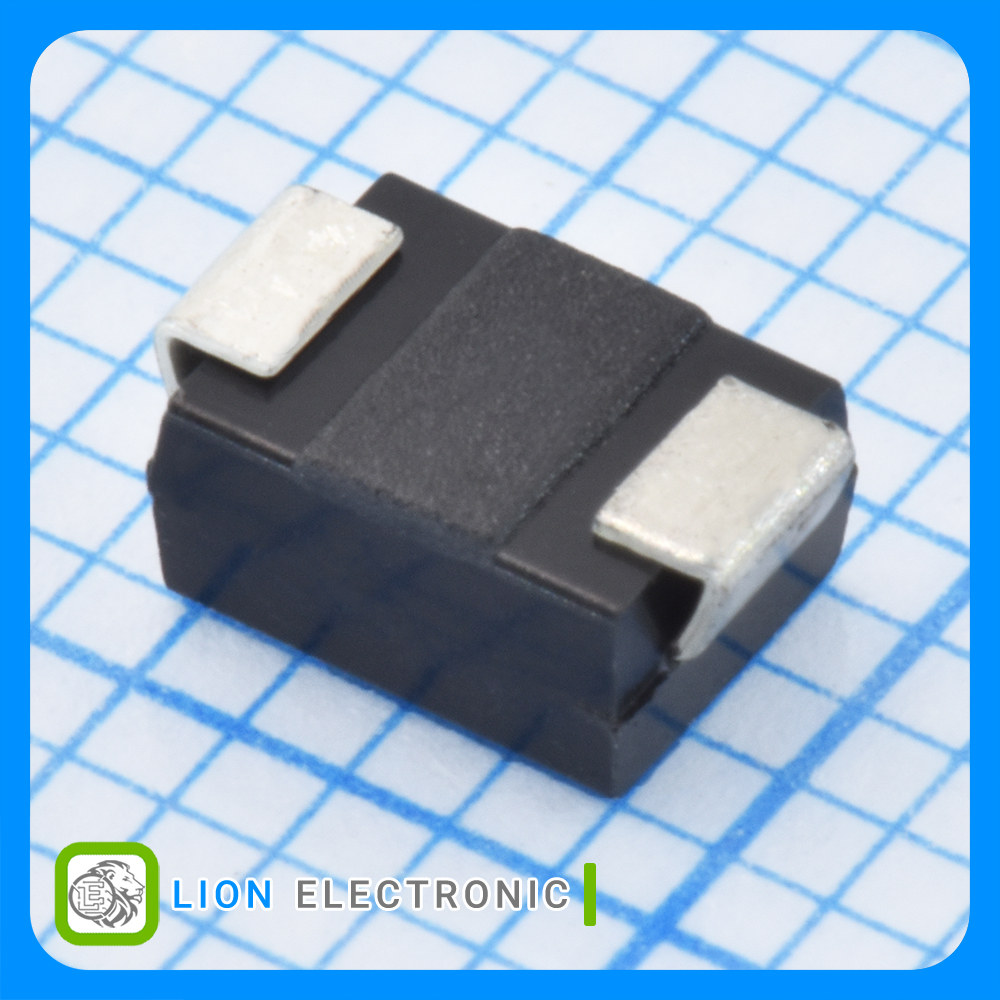

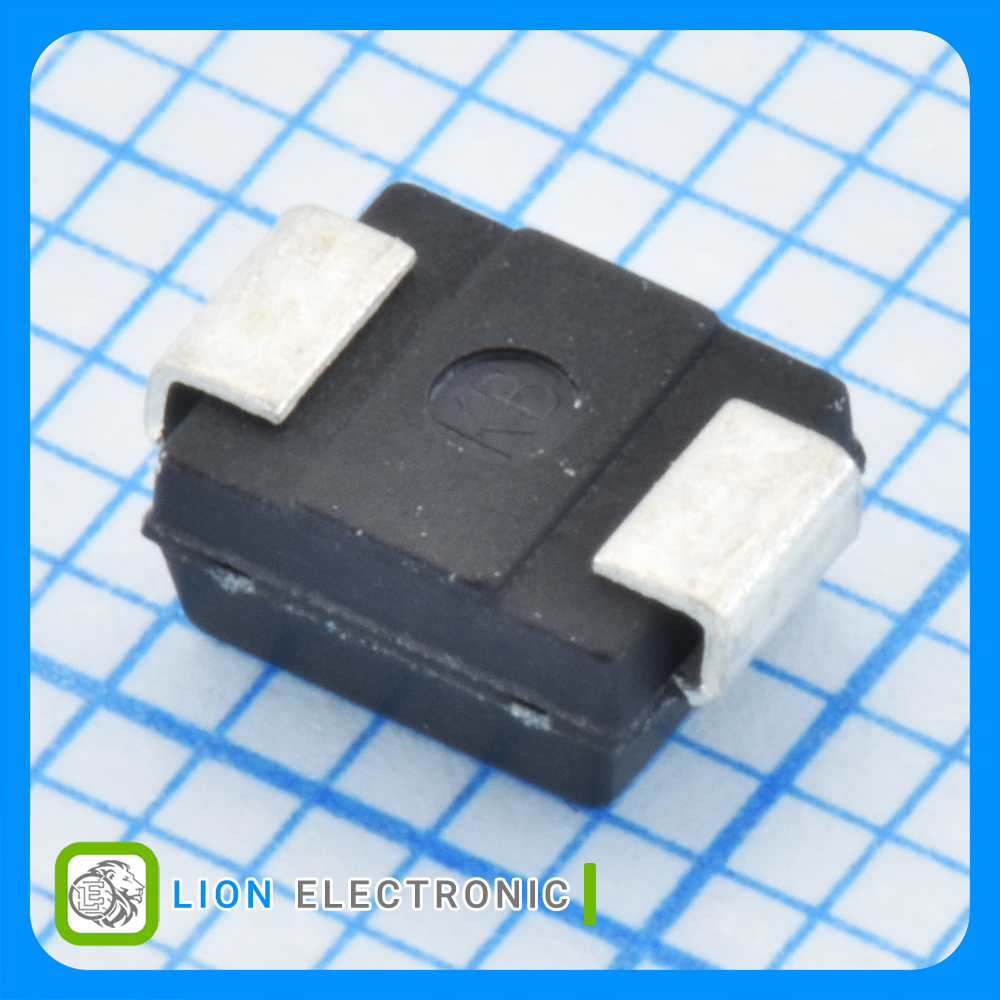

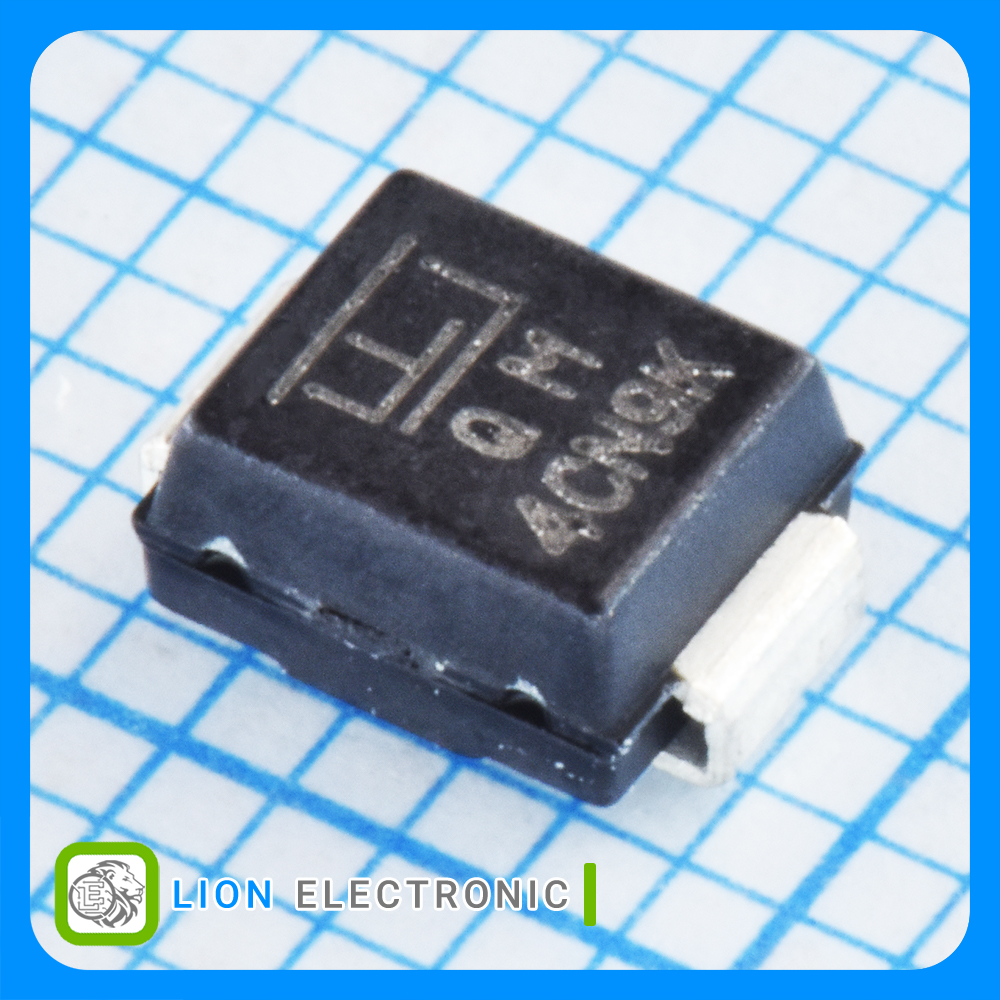

SMBJ440A
SMBJ440A
Part Number
4518
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکجهته 440 ولت 800 وات با بیشینه پالس جریان 1.1 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 440V, 800W, Peak Pulse Current 1.1A with DO-214AA (SMB) Package
معرفی
دیود TVS یکجهته 440 ولت 800 وات با بیشینه پالس جریان 1.1 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 440V, 800W, Peak Pulse Current 1.1A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 440V
- Breakdown Voltage: 492V
- Clamping Voltage: 713V
- Pppm - Peak Pulse Power Dissipation: 800W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 1.1A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تی وی اس SMBJ440A
دیود تی وی اس SMBJ440A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
1.1A
Ipp - Peak Pulse Current
30kV
Vesd - Voltage ESD Air Gap
30kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
Reel
Packaging
Unidirectional
Polarity
800W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
N/A
Cd - Diode Capacitance
440V
Working Voltage
713V
Clamping Voltage
492V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
