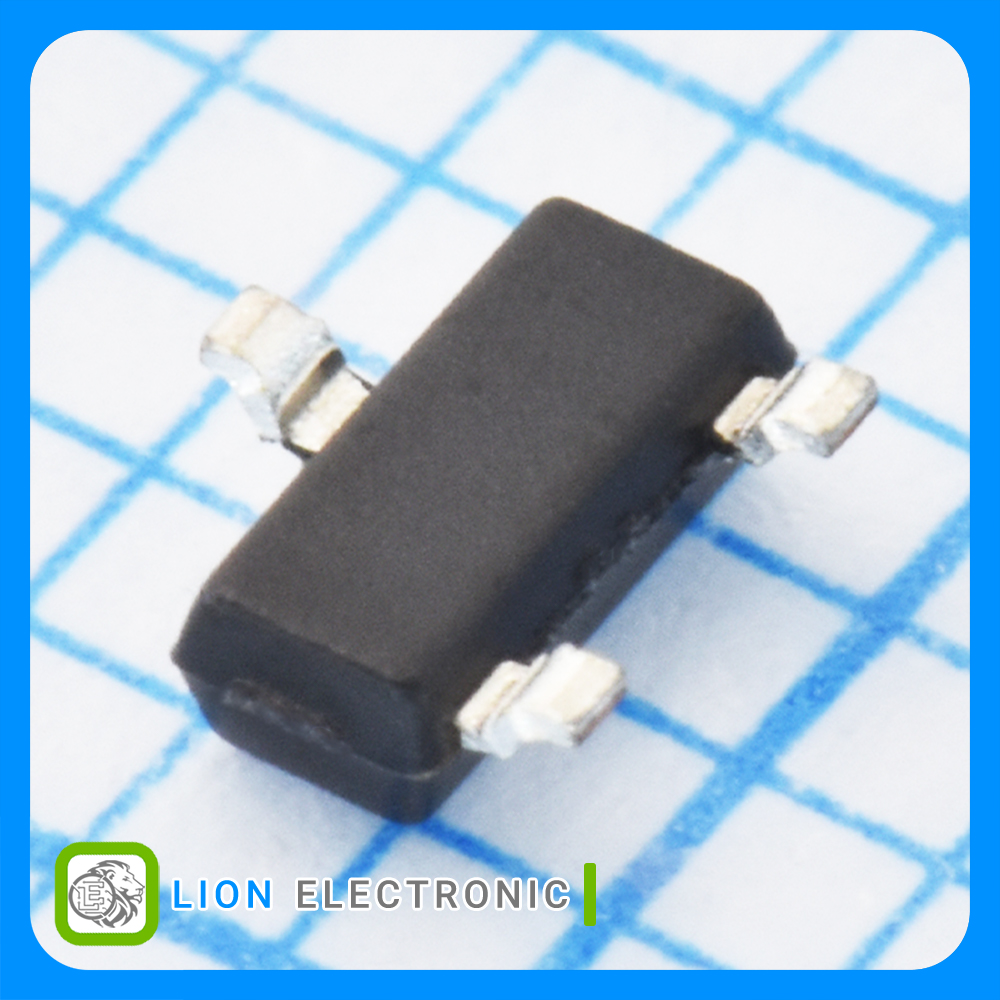

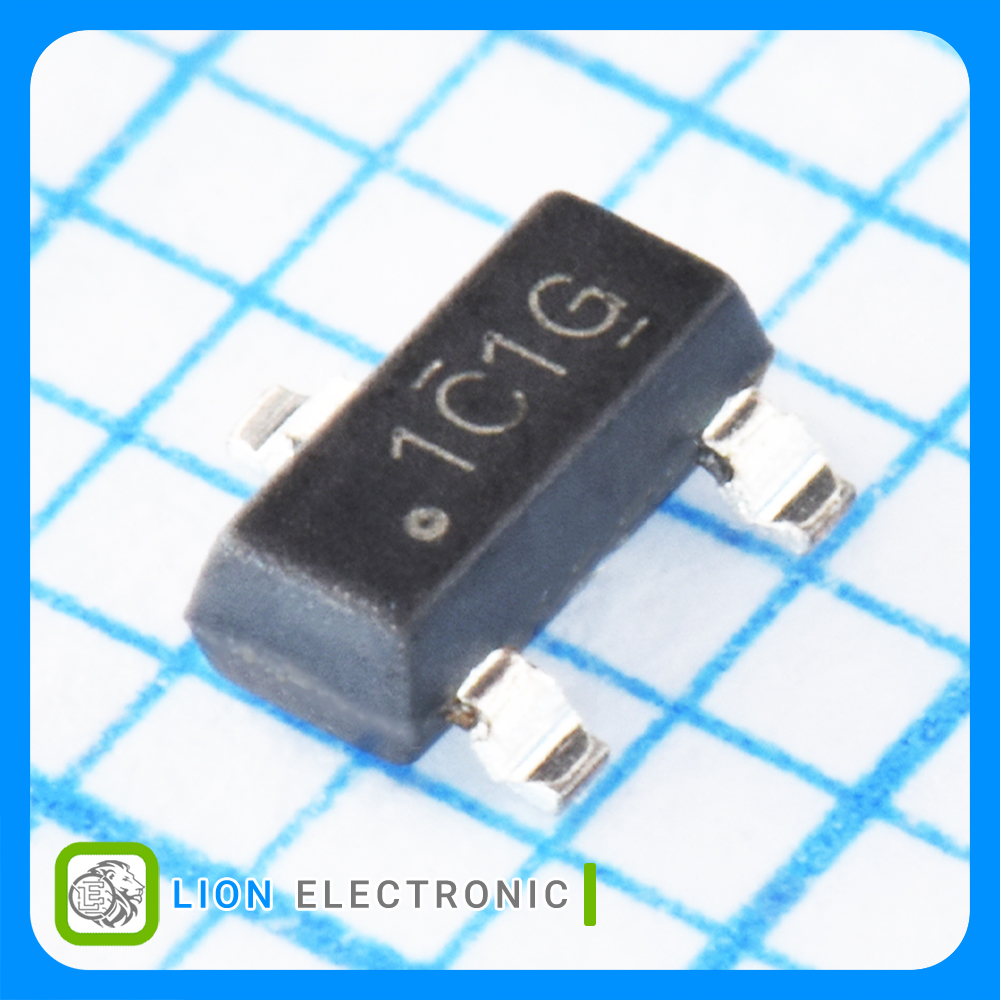

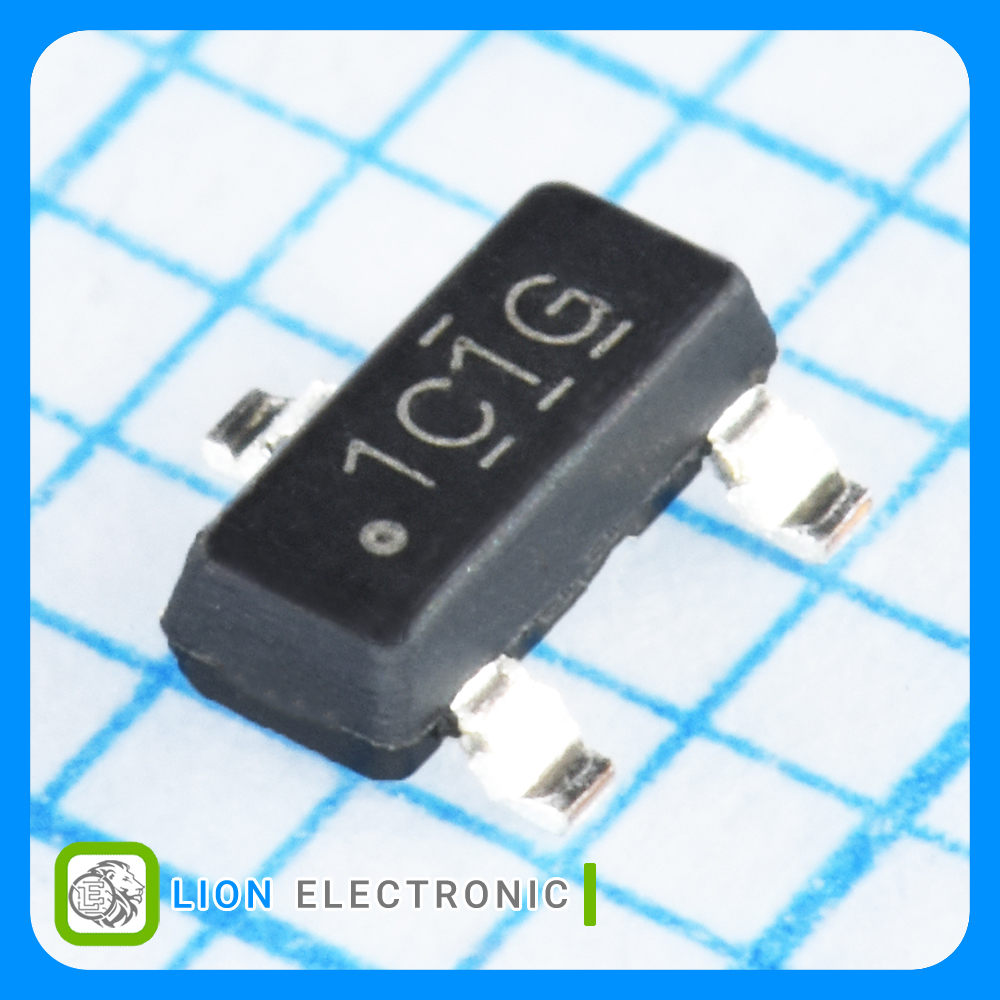

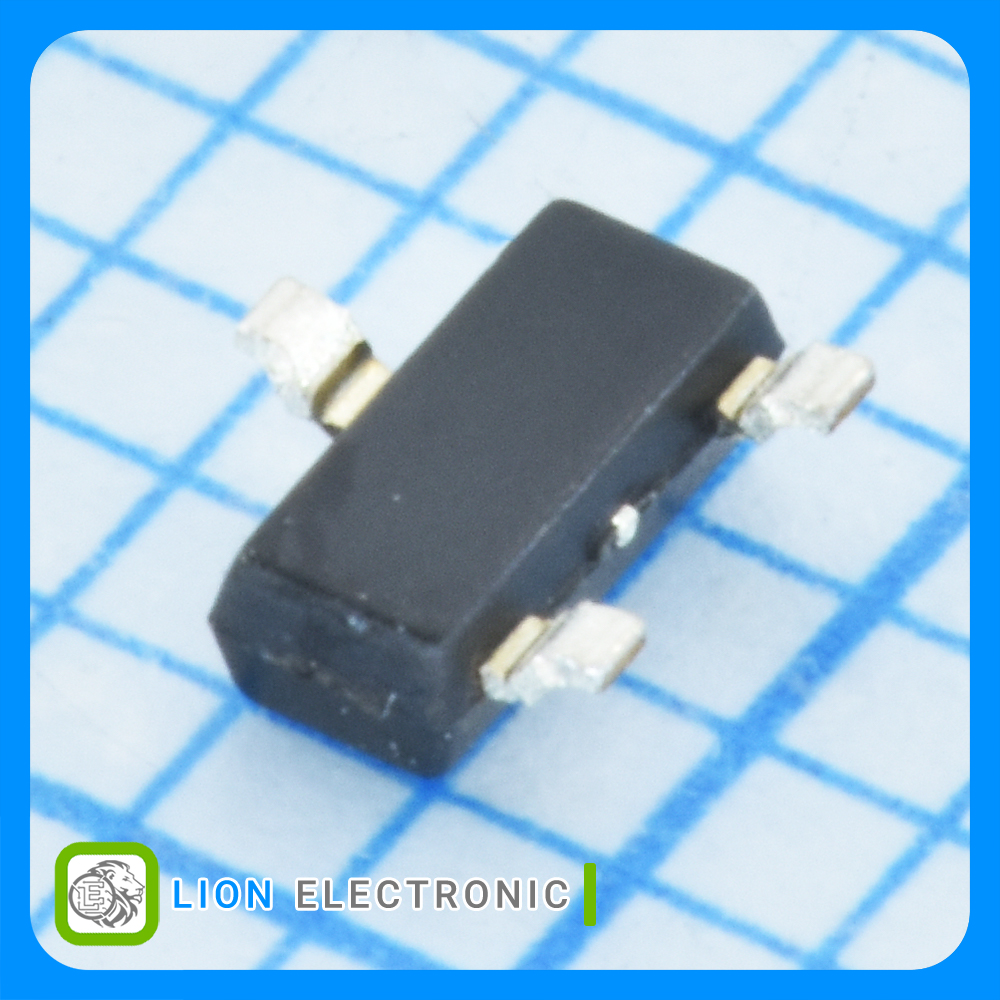

TMAG5231C1GQDBZR
TMAG5231C1GQDBZR
Part Number
4610
Lion Part
Datasheet
Texas Instruments Manufacture
سنسور اثر هال کممصرف 1.65 تا 5.5 ولت با جریان مصرفی 16 میکروآمپر، پکیج SOT-23-3
Low-Power Hall-Effect Switch, 1.65-5.5V, 16µA Supply Current, SOT-23-3 Package
معرفی
سنسور اثر هال کممصرف 1.65 تا 5.5 ولت با جریان مصرفی 16 میکروآمپر، پکیج SOT-23-3
Low-Power Hall-Effect Switch, 1.65-5.5V, 16µA Supply Current, SOT-23-3 Package
Specifications
- Type: Hall-Effect Switch
- Operating Point Min/Max: +/-2mT to +/-4mT
- Release Point Min/Max (Brp): +/-1.2mT to +/-3.2mT
- Operating Supply Voltage: 1.65 - 5.5V
- Operating Supply Current: 16uA
- Maximum Output Current: 5mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات مگنت سوئیچ TMAG5231C1GQDBZR

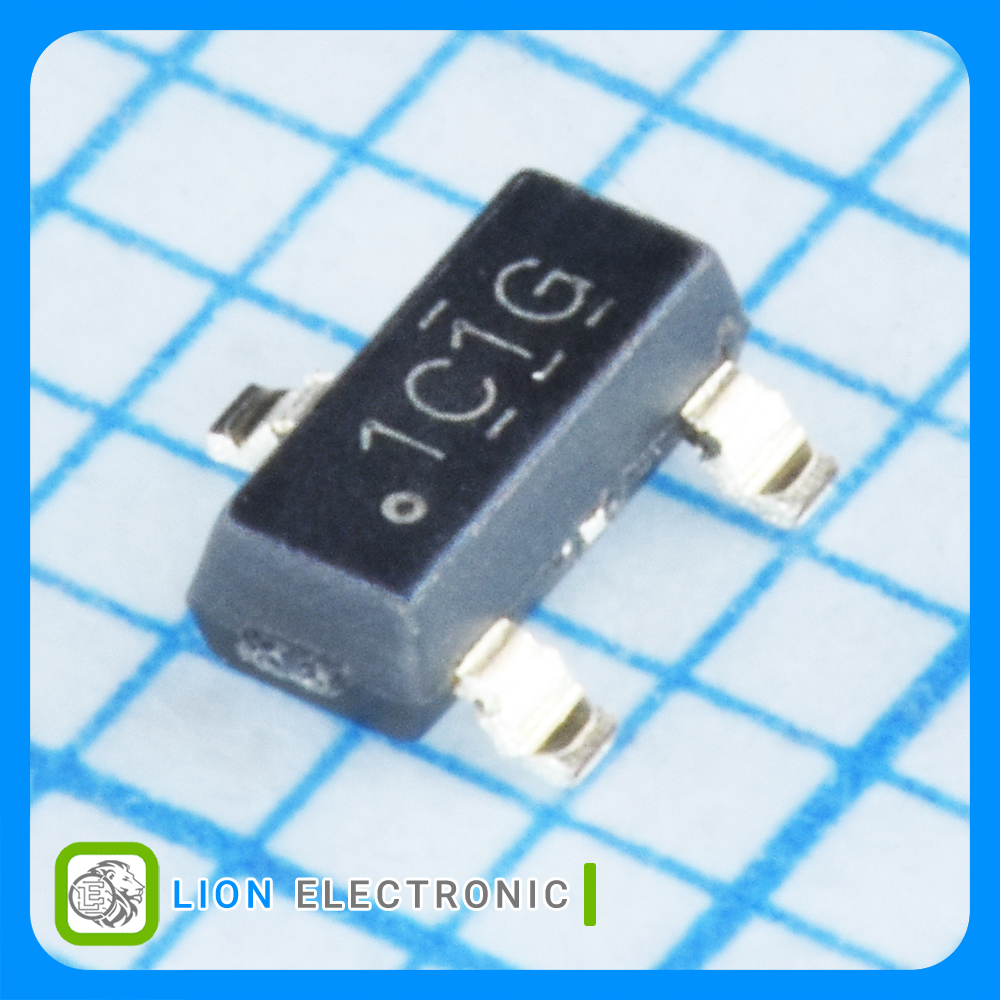

مگنت سوئیچ TMAG5231C1GQDBZR
Part Number
+/-1.2mT to +/-3.2mT
Release Point Min-Max (Brp)
Reel
Packaging
-40C
Minimum Operating Temperature
5mA
Maximum Output Current
SMD/SMT
Mounting Style
+/-2mT to +/-4mT
Operating Point Min-Max
+125C
Maximum Operating Temperature
16uA
Operating Supply Current
1.65 - 5.5V
Operating Supply Voltage
Hall-Effect Switch
Type
SOT-23-3
Package-Case
