MSKSEMI
معرفی

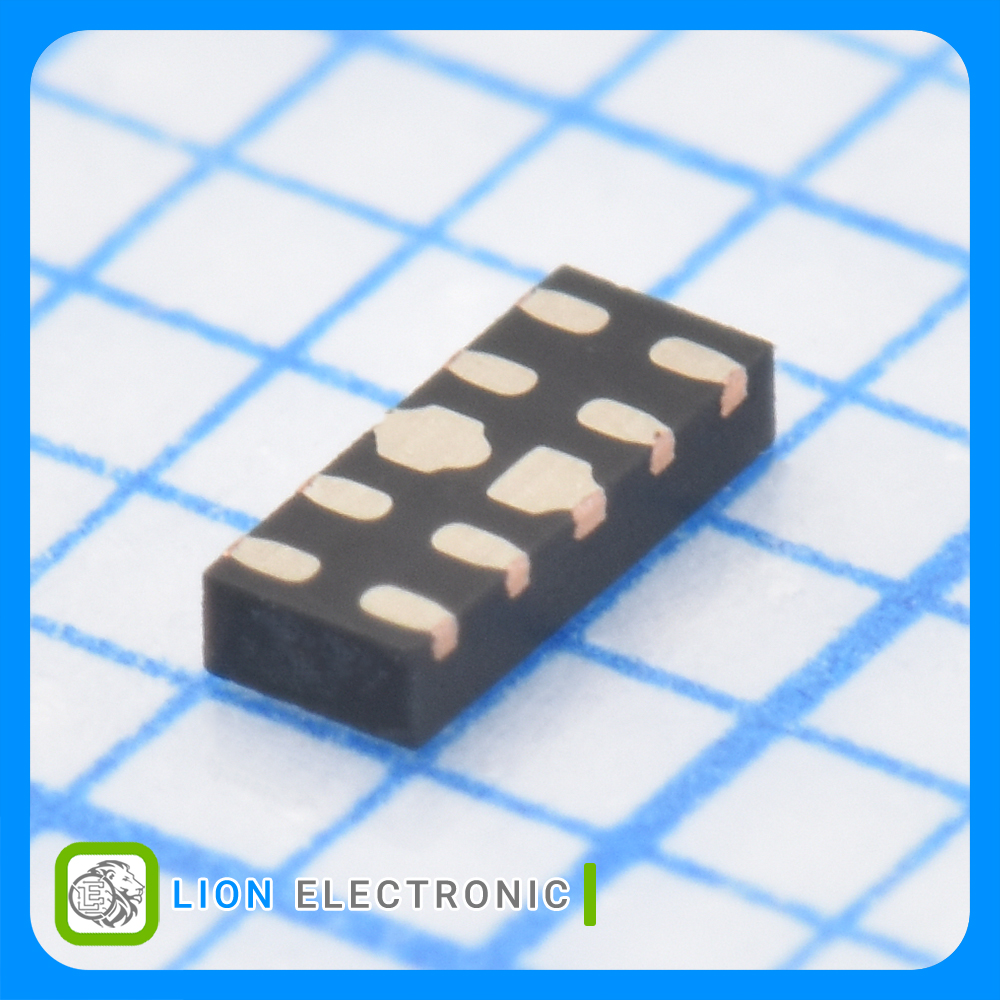

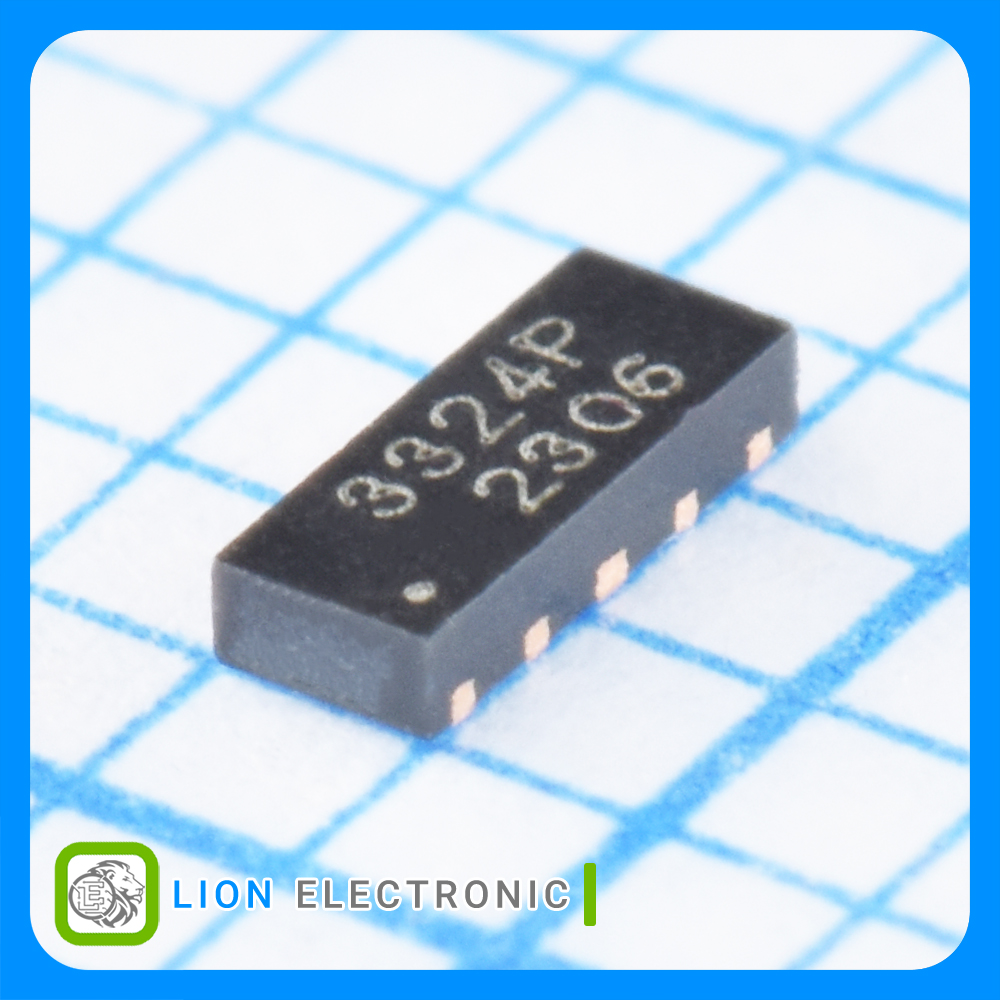

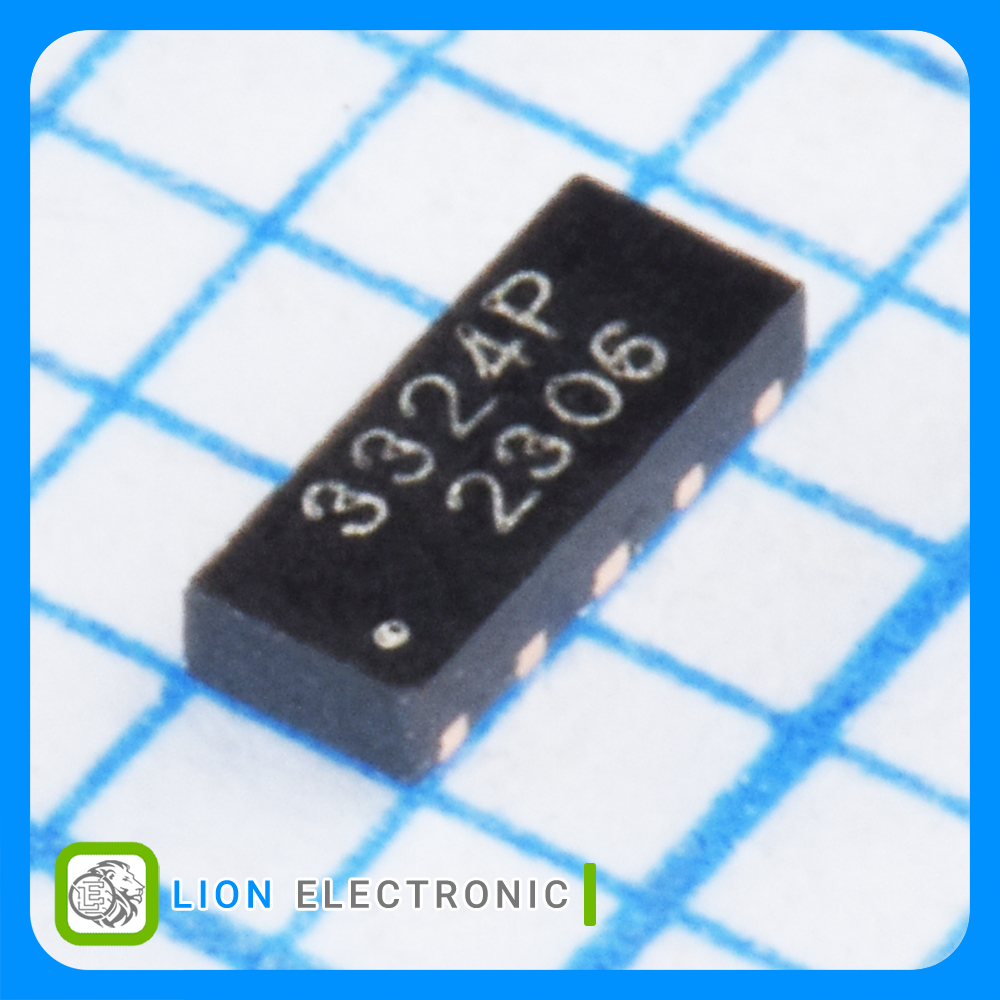

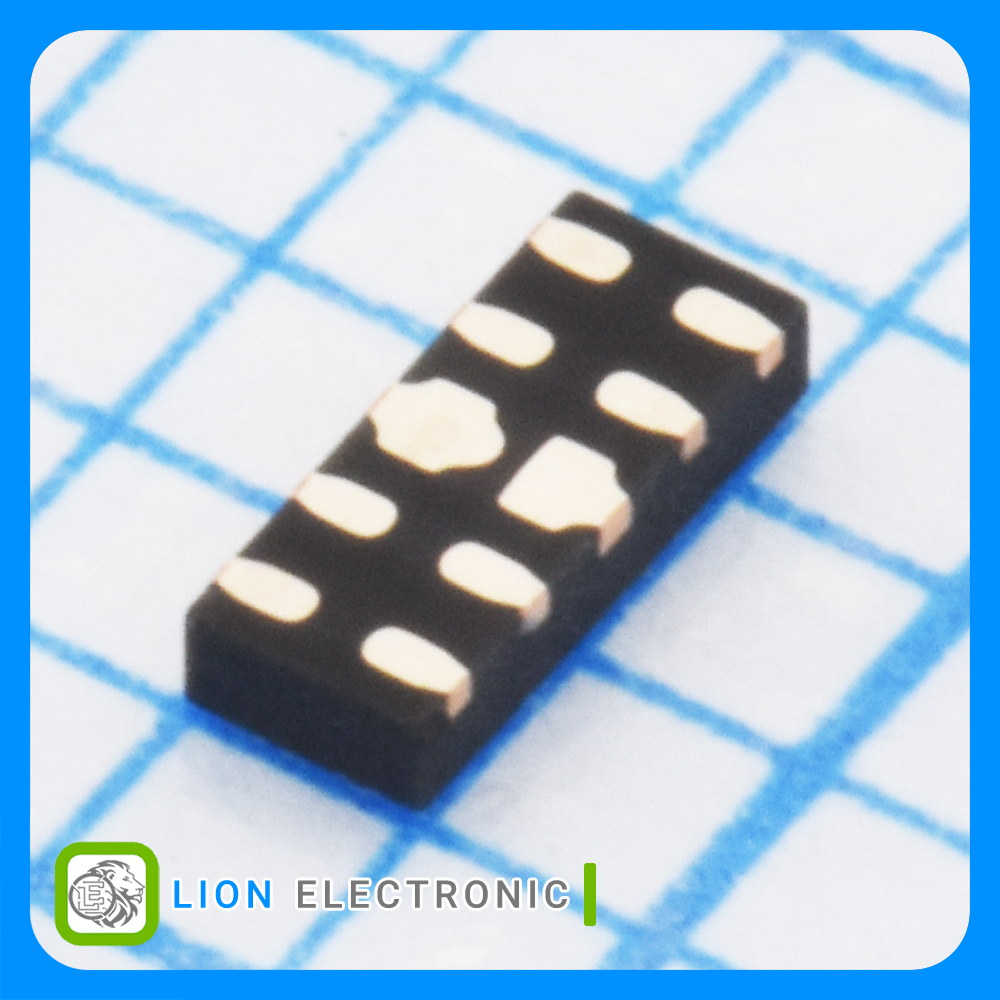

دیود TVS دو جهته چهار کاناله 3.3 ولت سرعت بالا با پکیج DFN-10
4-Line Bidirectional TVS Diode ESD Protection for High Speed Interfaces, 3.3V, 60W with DFN-10 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Bidirectional
- Number of Channels: 4
- Working Voltage: 3.3V
- Breakdown Voltage: 4.2V
- Clamping Voltage: 15V
- Pppm - Peak Pulse Power Dissipation: 60W
- Vesd - Voltage ESD Contact: 20kV
- Vesd - Voltage ESD Air Gap: 20kV
- Cd - Diode Capacitance: 0.25pF
- Ipp - Peak Pulse Current: 4.5A
- Termination style: SMD/SMT
- Package/Case: DFN-10
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات RCLAMP3324P
RCLAMP3324P
Part Number
Bidirectional
Polarity
3.3V
Working Voltage
20kV
Vesd - Voltage ESD Air Gap
4.2V
Breakdown Voltage
0.25pF
Cd - Diode Capacitance
-55C
Minimum Operating Temperature
20kV
Vesd - Voltage ESD Contact
Reel
Packaging
4
Number of Channels
60W
Pppm - Peak Pulse Power Dissipation
SMD/SMT
Termination style
+125C
Maximum Operating Temperature
4.5A
Ipp - Peak Pulse Current
15V
Clamping Voltage
ESD Suppressors
Product Type
DFN-10
Package-Case
