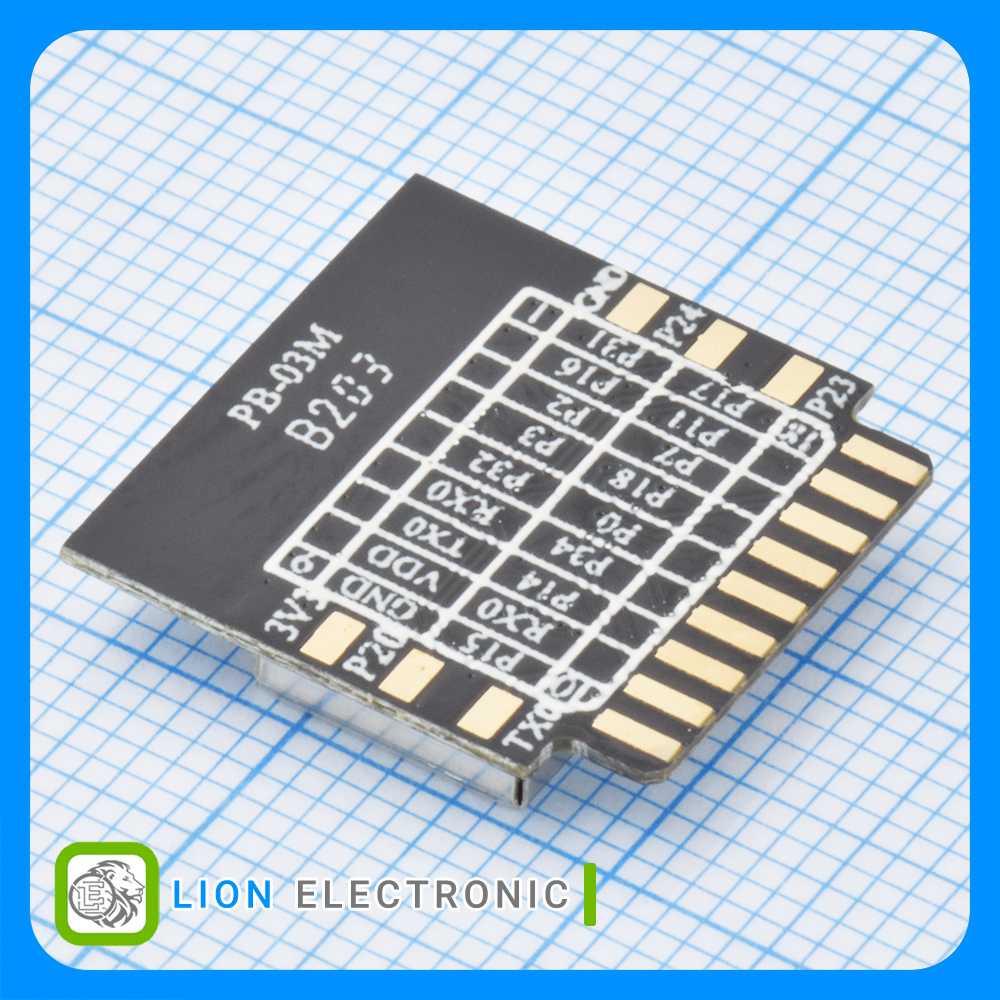

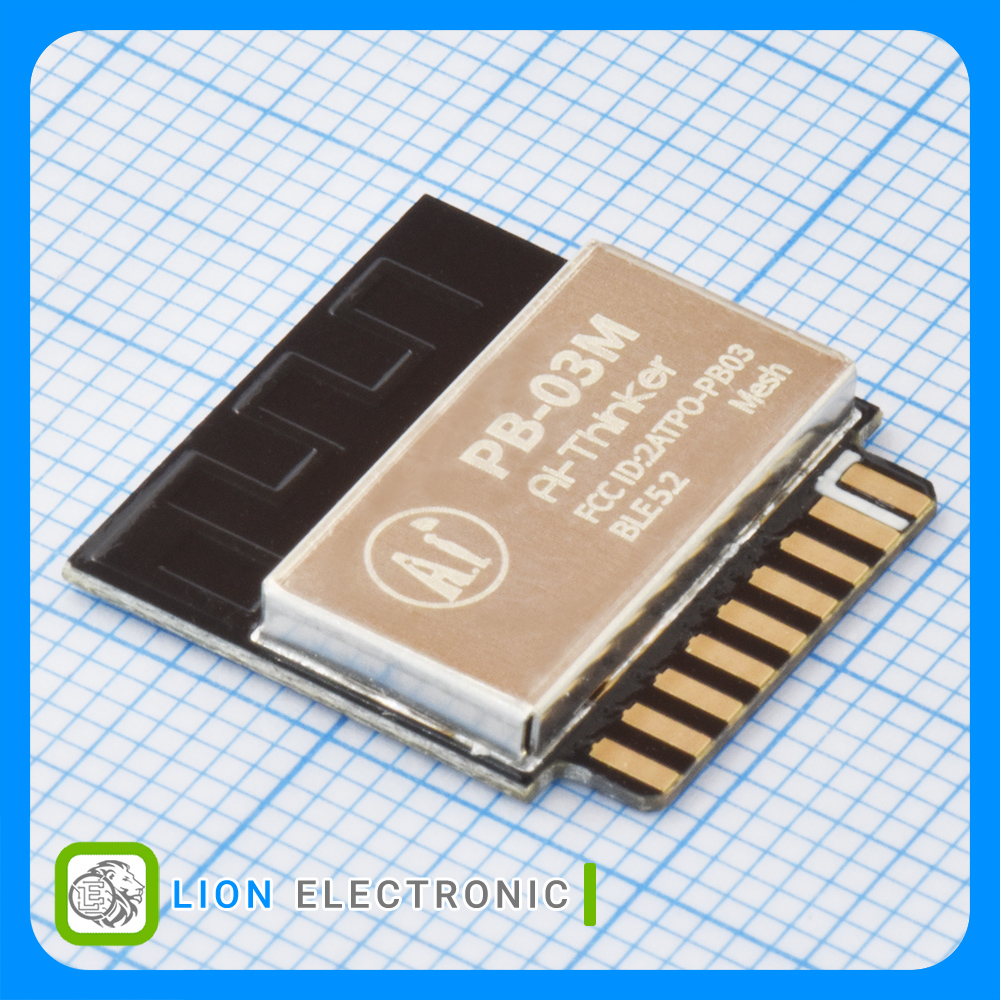

ماژول(BLE) PB-03M
PB-03M
Part Number
4678
Lion Part
Datasheet
Ai-Thinker Manufacture
125Kbps,500Kbps,1Mbps,2Mbps Rate BLE5.2 Module Based on PHY6252 DIP-18 Gold Finger Plugin
معرفی
Characteristic:
• Support BLE5.2,rate support:125Kbps,500Kbps,1Mbps,2Mbps
• Own 64 KB SRAM，256KB flash,96 KB ROM，256bit efuse
• Support UART/GPIO/ADC/PWM/I2C/SPI/PDM/DMA interface
• Adopt DIP-18 Gold finger plugin package
• Support multiple sleep modes,deep sleep current is less than 1uA
• Support for serial local upgrade and remote Firmware upgrade(FOTA)
• Universal AT instructions can be used easy and quickly
• Support for secondary development,with an integrated Windows development environment
مشخصات ماژول(BLE) PB-03M
ماژول(BLE) PB-03M
Part Number
8mA, 9mA, 11.5mA
Supply Current Transmitting
Reel
Packaging
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
9.4mA
Supply Current Receiving
+85C
Maximum Operating Temperature
15
Number of I-Os
BLE Modules
Product
ADC, DMA, GPIO, I2C, I2S, PDM, PWM, SPI, UART
Interface Type
18mm x 18mm x 2.8mm
Dimensions
10dBm
Output Power
N/A
Frequency
2.7 - 3.6V
Operating Supply Voltage
