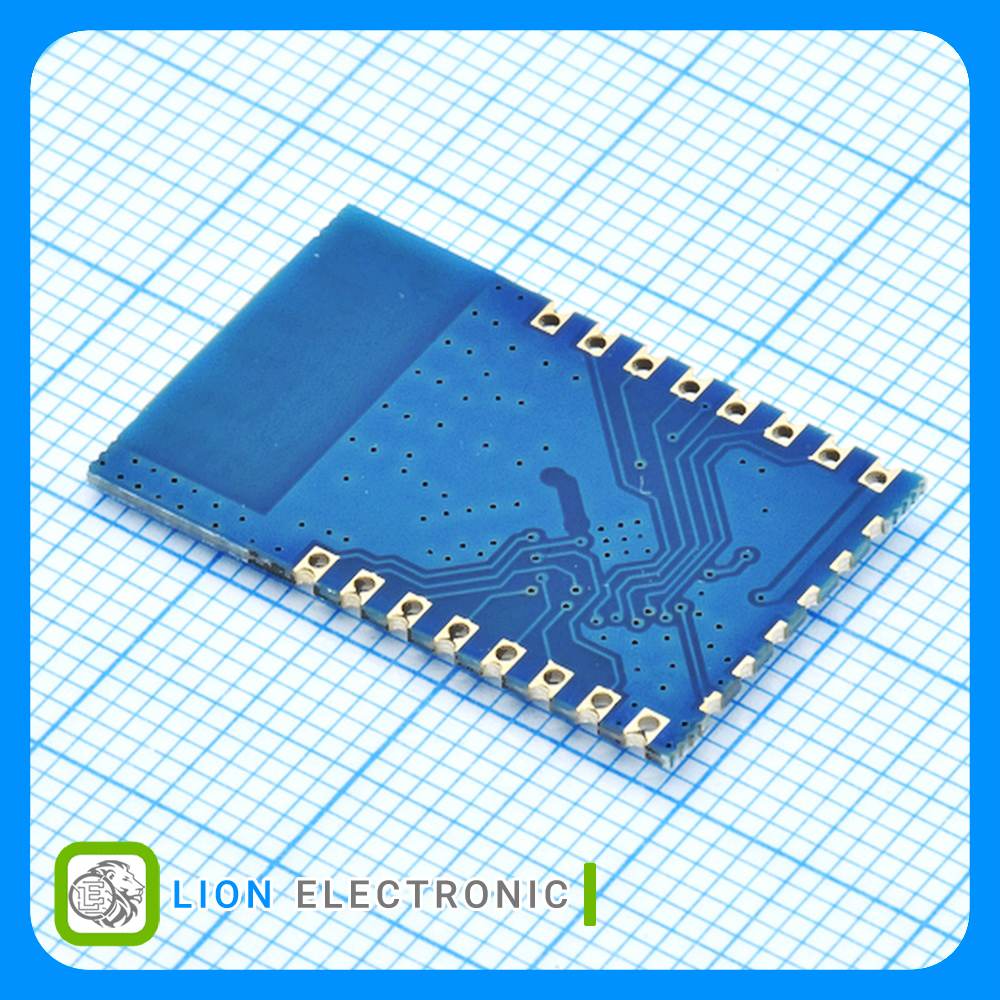

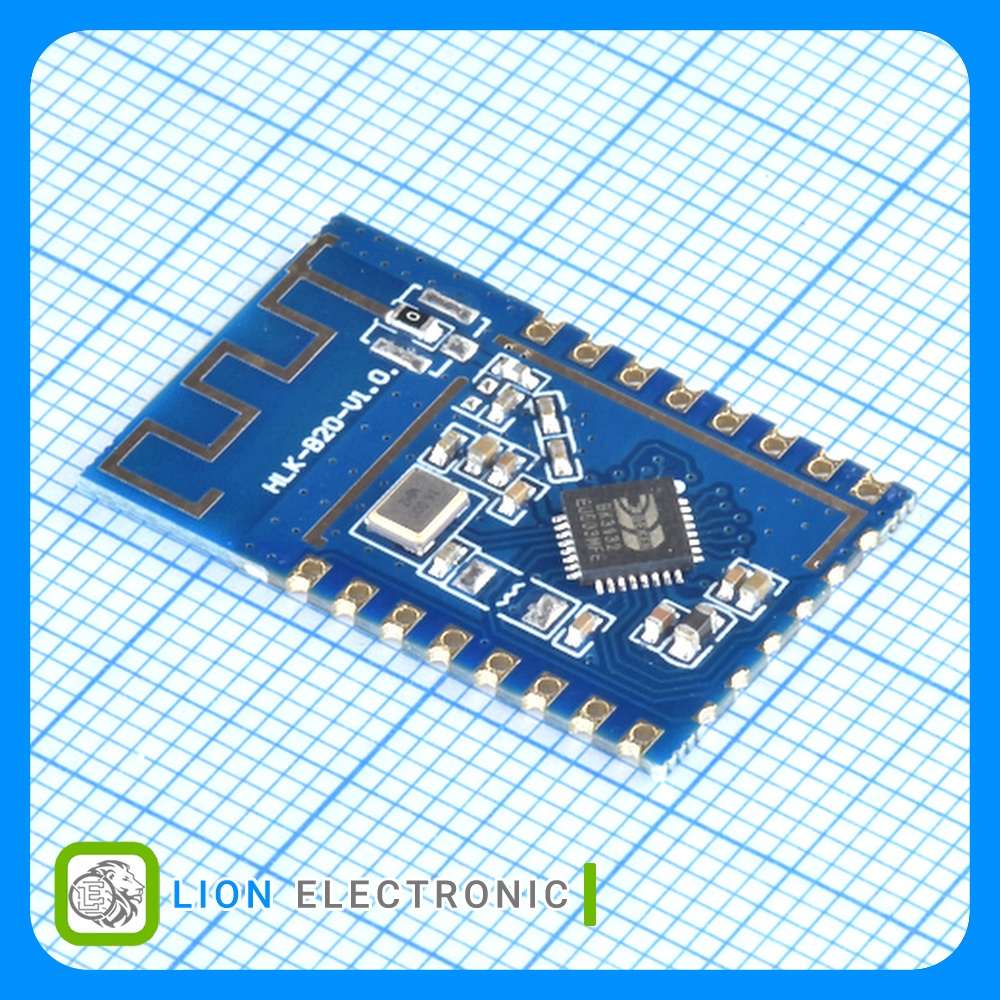

HLK-B20-I
HLK-B20-I
Part Number
6503
Lion Part
Datasheet
HI-LINK Manufacture
ماژول بلوتوث BLE 4.2 کممصرف HLK-B20 با رابط ADC, GPIO, I2C, PWM, SPI, UART، آنتن PCB / IPEX، توان خروجی 4dBm و تغذیه 0.9 تا 3.6 ولت
HLK-B20 Low-Consumption Bluetooth BLE 4.2 Control Module with ADC, GPIO, I2C, PWM, SPI, UART Interface, PCB / IPEX Antenna, 4dBm Output Power and 0.9 - 3.6V Supply
معرفی
ماژول بلوتوث BLE 4.2 کممصرف HLK-B20 با رابط ADC, GPIO, I2C, PWM, SPI, UART، آنتن PCB / IPEX، توان خروجی 4dBm و تغذیه 0.9 تا 3.6 ولت
HLK-B20 Low-Consumption Bluetooth BLE 4.2 Control Module with ADC, GPIO, I2C, PWM, SPI, UART Interface, PCB / IPEX Antenna, 4dBm Output Power and 0.9 - 3.6V Supply
Specifications
- Product: Bluetooth Modules
- Interface Type: ADC, GPIO, I2C, PWM, SPI, UART
- Antenna Connector Type: PCB / IPEX
- Frequency: 2.4GHz to 2.48GHz
- Number of I/Os: 18
- Output Power: 4dBm
- Operating Supply Voltage: 0.9 - 3.6V
- Supply Current Transmitting: 4.5mA
- Supply Current Receiving: 5.1mA
- Dimensions: 16mm x 25mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات HLK-B20-I
HLK-B20-I
Part Number
4.5mA
Supply Current Transmitting
5.1mA
Supply Current Receiving
-40C
Minimum Operating Temperature
0.9 - 3.6V
Operating Supply Voltage
PCB / IPEX
Antenna Connector Type
-
Packaging
18
Number of I-Os
Bluetooth Modules
Product
+125C
Maximum Operating Temperature
ADC, GPIO, I2C, PWM, SPI, UART
Interface Type
16mm x 25mm
Dimensions
2.4GHz to 2.48GHz
Frequency
4dBm
Output Power
