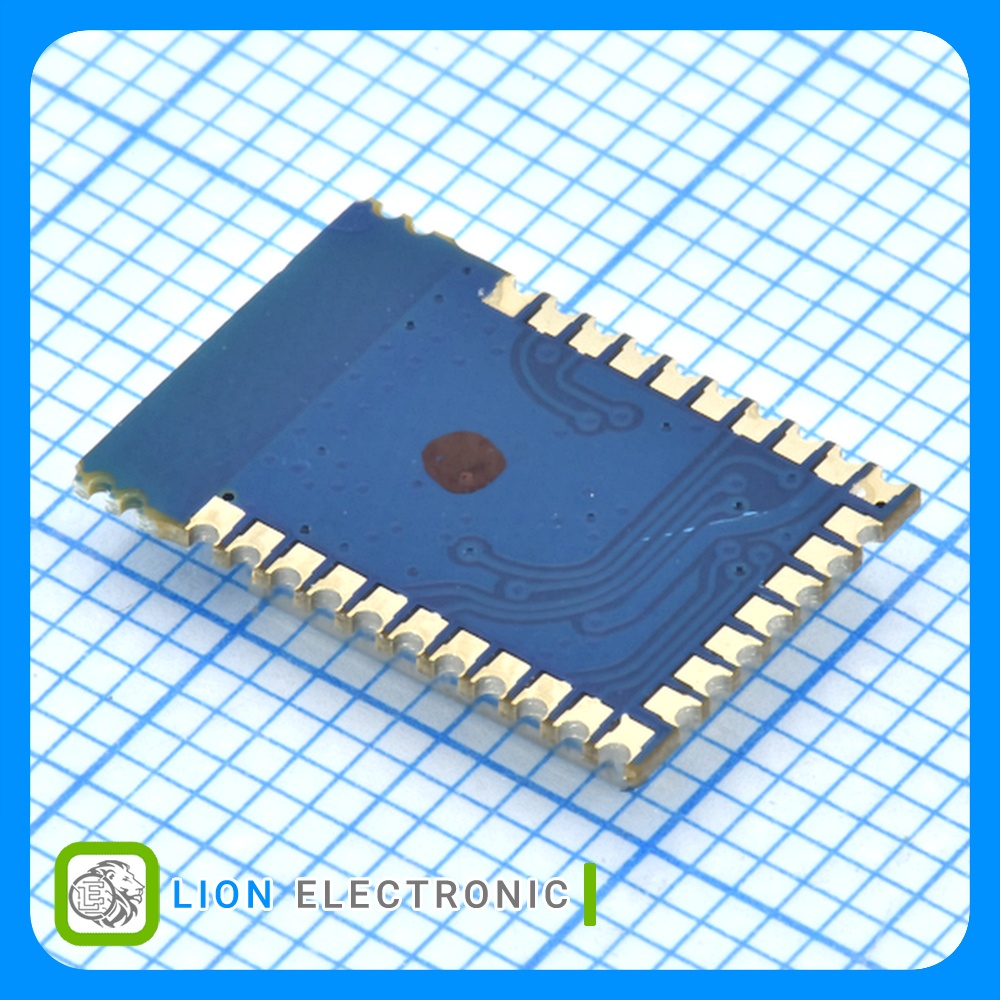

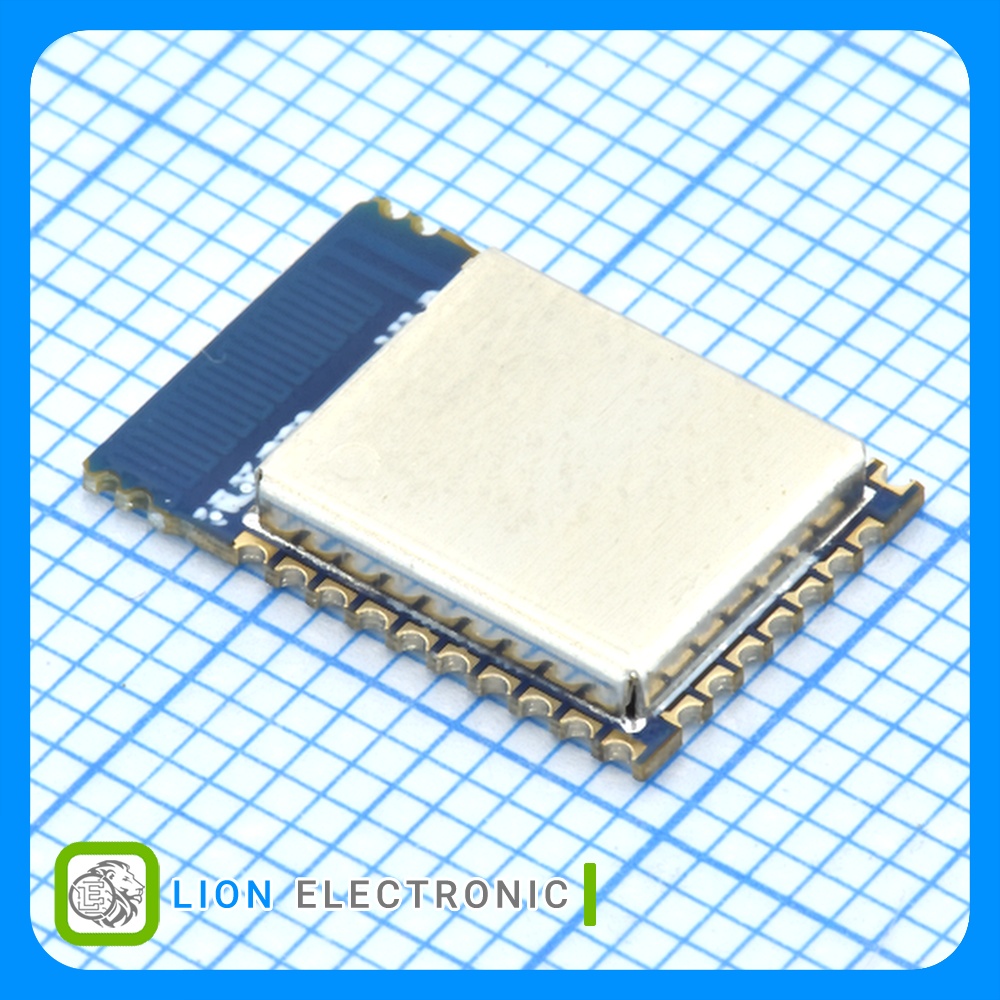

HLK-B26
HLK-B26
Part Number
6505
Lion Part
Datasheet
HI-LINK Manufacture
ماژول بلوتوث HLK-B26 نسخه BLE5.3 مستر-اسلیو با انتقال شفاف بلوتوث-سریال، رابط UART، آنتن PCB، توان خروجی 8dBm و تغذیه 1.8 تا 4.2 ولت
HLK-B26 BLE5.3 Master-Slave Bluetooth-Serial Transparent Transmission Module with UART Interface, PCB Antenna, 8dBm Output Power and 1.8- 4.2V Supply
معرفی
ماژول بلوتوث HLK-B26 نسخه BLE5.3 مستر-اسلیو با انتقال شفاف بلوتوث-سریال، رابط UART، آنتن PCB، توان خروجی 8dBm و تغذیه 1.8 تا 4.2 ولت
HLK-B26 BLE5.3 Master-Slave Bluetooth-Serial Transparent Transmission Module with UART Interface, PCB Antenna, 8dBm Output Power and 1.8- 4.2V Supply
Specifications
- Product: Bluetooth Modules
- Interface Type: UART
- Antenna Connector Type: PCB
- Frequency: 2.402GHz to 2.480GHz
- Number of I/Os: 12
- Output Power: 8dBm
- Operating Supply Voltage: 1.8- 4.2V
- Supply Current Transmitting: 5.7mA
- Supply Current Receiving: 5.5mA
- Dimensions: 14mm x 9.5mm x 2mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات HLK-B26
HLK-B26
Part Number
5.7mA
Supply Current Transmitting
-40C
Minimum Operating Temperature
5.5mA
Supply Current Receiving
PCB
Antenna Connector Type
Tray
Packaging
12
Number of I-Os
+85C
Maximum Operating Temperature
Bluetooth Modules
Product
14mm x 9.5mm x 2mm
Dimensions
1.8- 4.2V
Operating Supply Voltage
2.402GHz to 2.480GHz
Frequency
8dBm
Output Power
UART
Interface Type
