TL8188FQA3-IR
TL8188FQA3-IR
Part Number
4894
Lion Part
Datasheet
TROLINK Manufacture
ماژول WiFi مبتنی بر تراشه RTL8188FTV-VQ1 با استاندارد 802.11b/g/n و رابط USB2.0، کانکتور آنتن IPEX

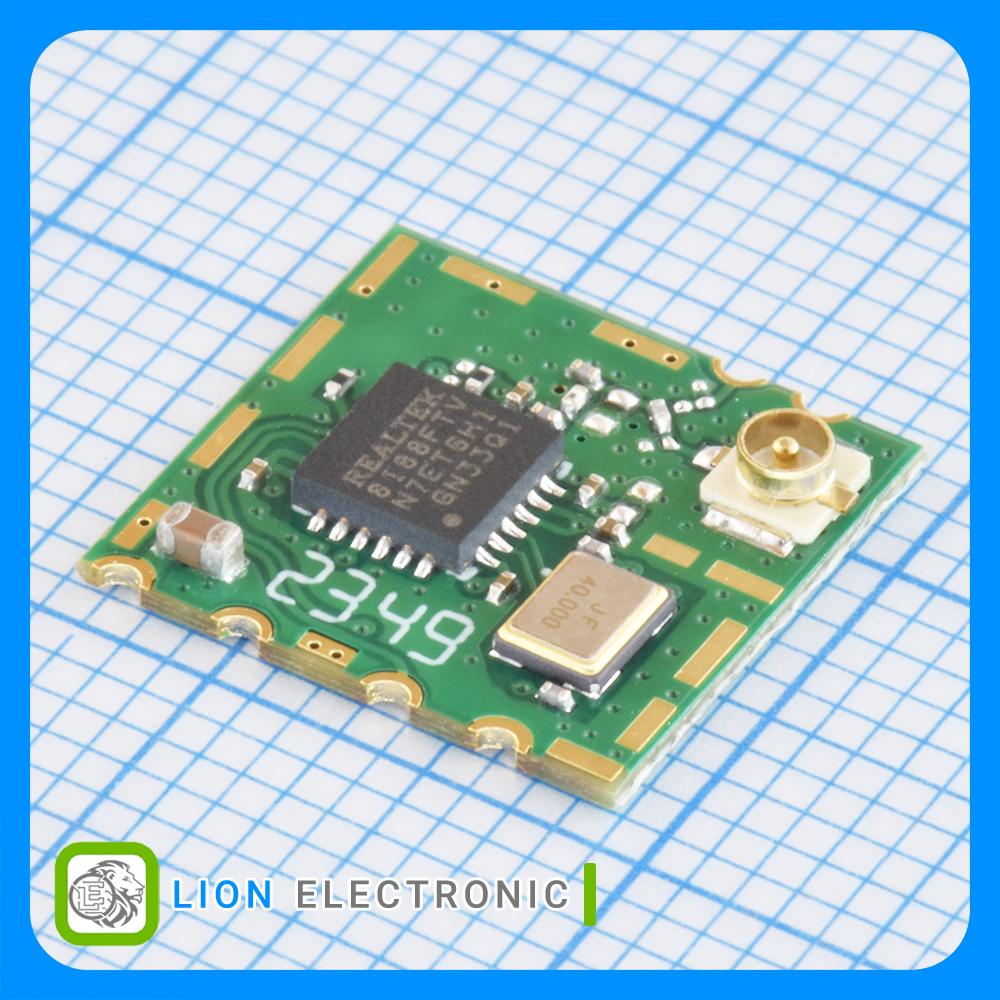

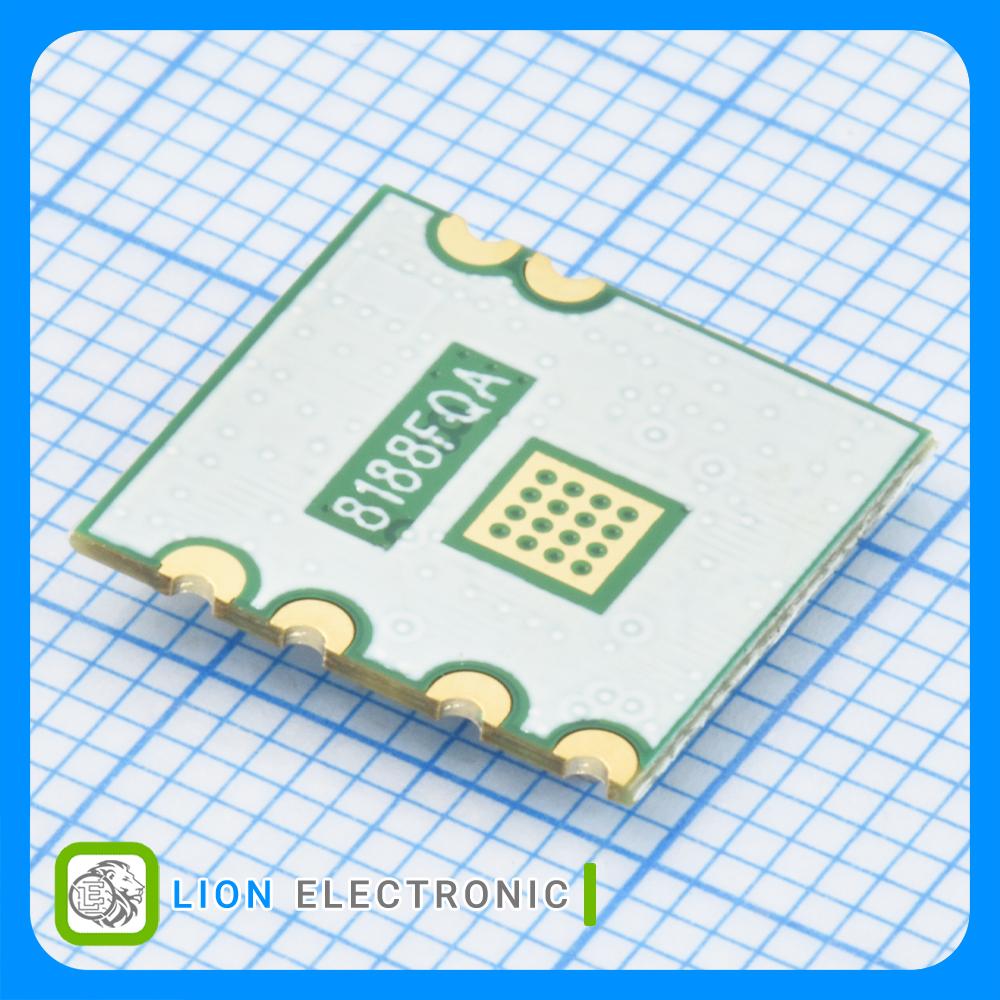

TL8188FQA3 WiFi Module based on Realtek RTL8188FTV-VQ1 chip, 802.11b/g/n WLAN with USB2.0 interface and IPEX antenna connector
معرفی
ماژول WiFi مبتنی بر تراشه RTL8188FTV-VQ1 با استاندارد 802.11b/g/n و رابط USB2.0، کانکتور آنتن IPEX
TL8188FQA3 WiFi Module based on Realtek RTL8188FTV-VQ1 chip, 802.11b/g/n WLAN with USB2.0 interface and IPEX antenna connector
Specifications
- Product: WiFi Module
- Interface Type: USB
- Antenna Connector Type: IPEX
- Operating Supply Voltage: 3.3V
- Supply Current Transmitting: 336mA, 318mA, 276mA
- Supply Current Receiving: 155mA, 148mA, 146mA
- Dimensions: 12.7mm x 12.3mm x 2.8mm
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Reel
مشخصات TL8188FQA3-IR
TL8188FQA3-IR
Part Number
IPEX
Antenna Connector Type
+70C
Maximum Operating Temperature
Reel
Packaging
0C
Minimum Operating Temperature
12.7mm x 12.3mm x 2.8mm
Dimensions
336mA, 318mA, 276mA
Supply Current Transmitting
155mA, 148mA, 146mA
Supply Current Receiving
N/A
Frequency
N/A
Number of I-Os
-
Output Power
3.3V
Operating Supply Voltage
WiFi Module
Product
USB
Interface Type
