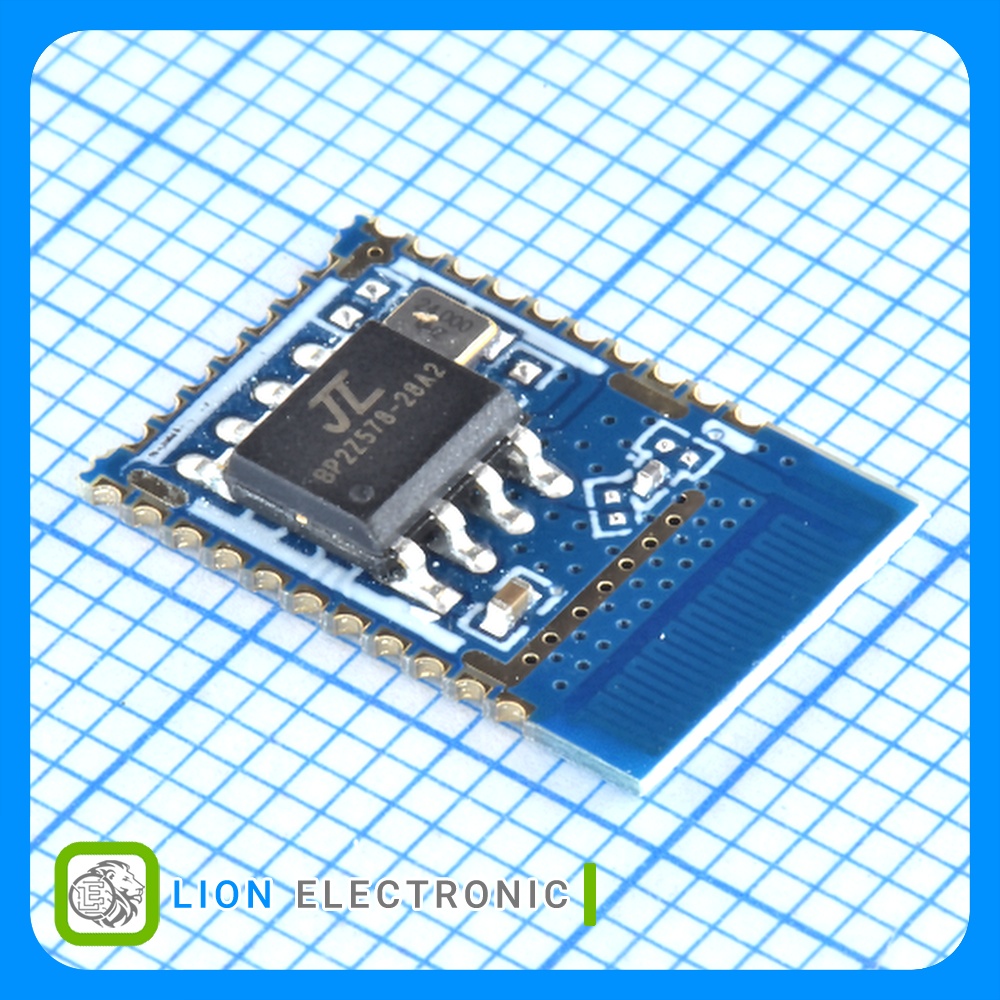

HLK-B25
HLK-B25
Part Number
6504
Lion Part
Datasheet
HI-LINK Manufacture
ماژول بلوتوث BLE 5.3 مستر-اسلیو سری به بلوتوث HLK-B25 با رابط UART، آنتن PCB، توان خروجی 8dBm و تغذیه 1.8 تا 3.4 ولت
HLK-B25 BLE 5.3 Master-Slave Integrated Bluetooth-Serial Passthrough Module with UART Interface, PCB Antenna, 8dBm Output Power and 1.8 - 3.4V Supply
معرفی
ماژول بلوتوث BLE 5.3 مستر-اسلیو سری به بلوتوث HLK-B25 با رابط UART، آنتن PCB، توان خروجی 8dBm و تغذیه 1.8 تا 3.4 ولت
HLK-B25 BLE 5.3 Master-Slave Integrated Bluetooth-Serial Passthrough Module with UART Interface, PCB Antenna, 8dBm Output Power and 1.8 - 3.4V Supply
Specifications
- Product: Bluetooth Modules
- Interface Type: UART
- Antenna Connector Type: PCB
- Frequency: 2.402GHz to 2.480GHz
- Number of I/Os: 3
- Output Power: 8dBm
- Operating Supply Voltage: 1.8 - 3.4V
- Supply Current Transmitting: 8mA
- Supply Current Receiving: 9.7mA
- Dimensions: 14mm x 9.5mm x 2mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات HLK-B25
HLK-B25
Part Number
3
Number of I-Os
8mA
Supply Current Transmitting
-40C
Minimum Operating Temperature
Tray
Packaging
PCB
Antenna Connector Type
+85C
Maximum Operating Temperature
9.7mA
Supply Current Receiving
Bluetooth Modules
Product
14mm x 9.5mm x 2mm
Dimensions
1.8 - 3.4V
Operating Supply Voltage
2.402GHz to 2.480GHz
Frequency
8dBm
Output Power
UART
Interface Type
