TL8723DSSC-Z
TL8723DSSC-Z
Part Number
4896
Lion Part
Datasheet
TROLINK Manufacture
ماژول WiFi و Bluetooth تکتراشه با چیپ RTL8723DS 802.11b/g/n 1T1R WLAN و Bluetooth 2.1/4.2 با رابط SDIO و HS-UART، تغذیه 3.3 ولت، ابعاد 12x12x1.6mm

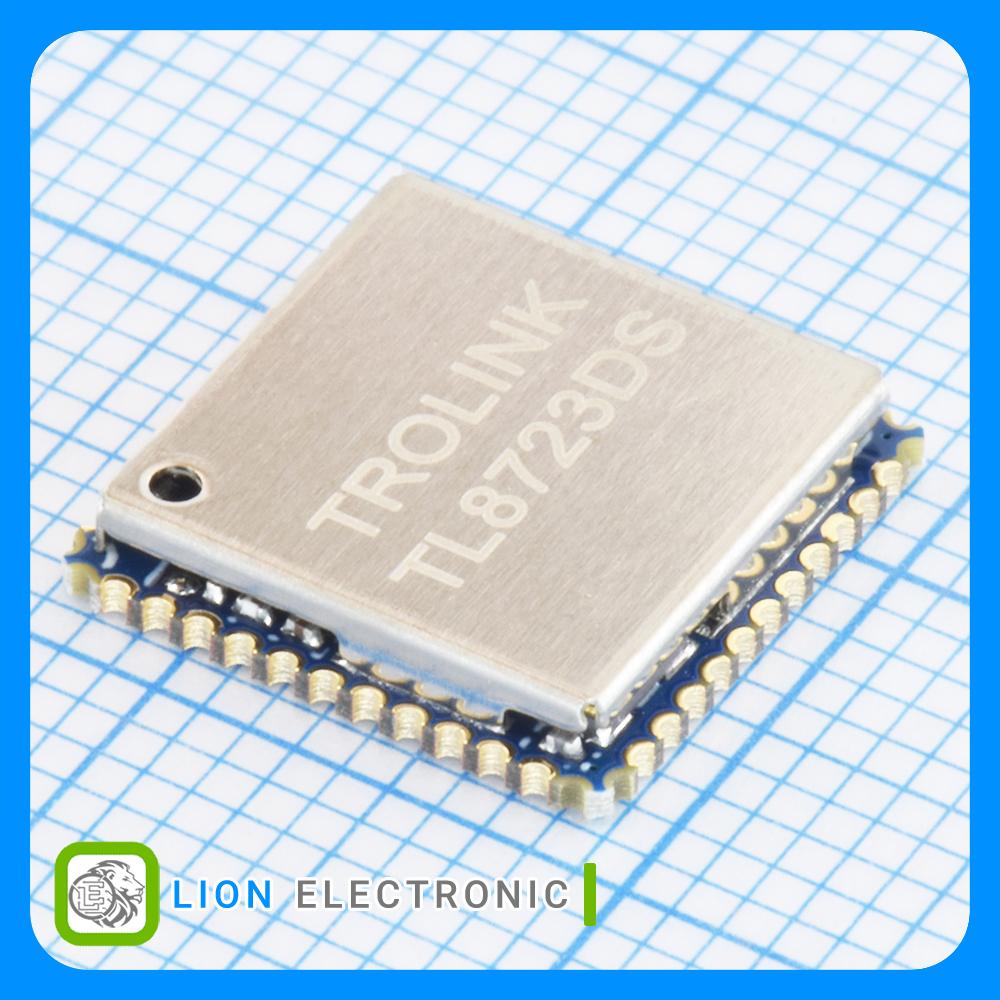

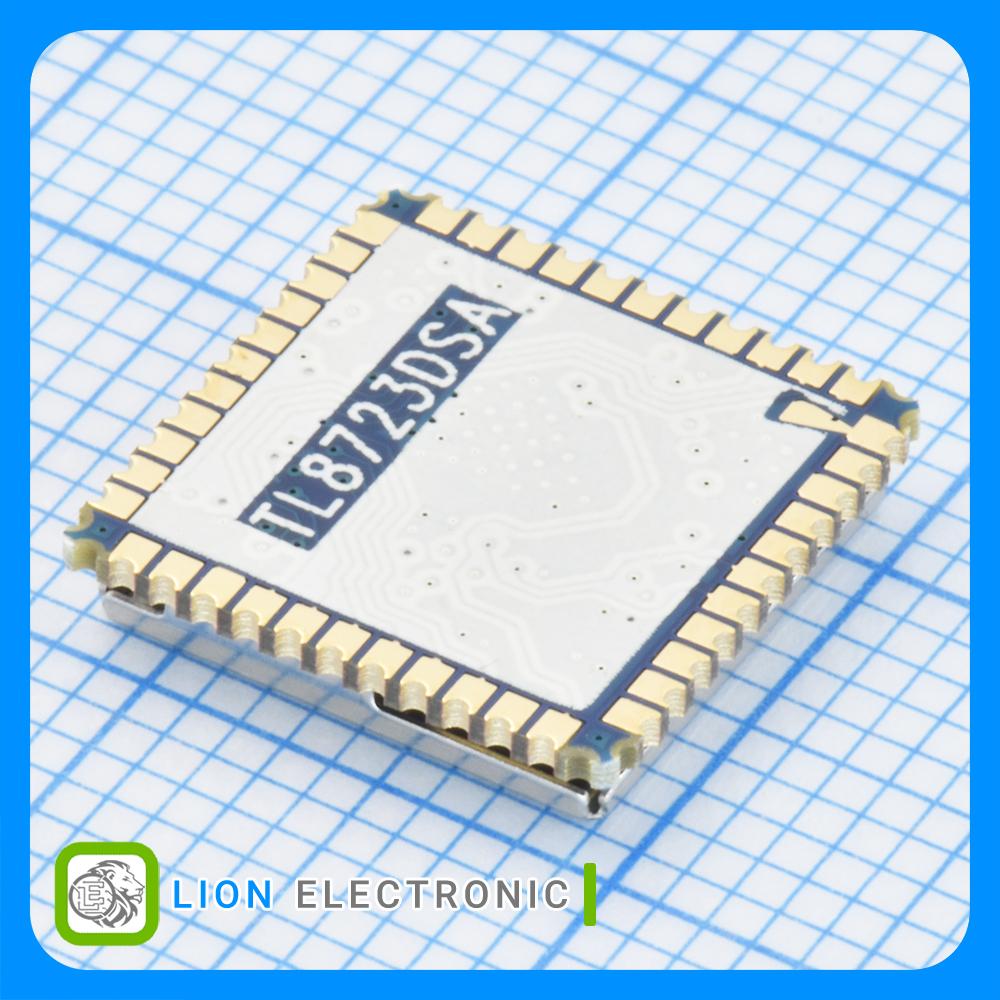

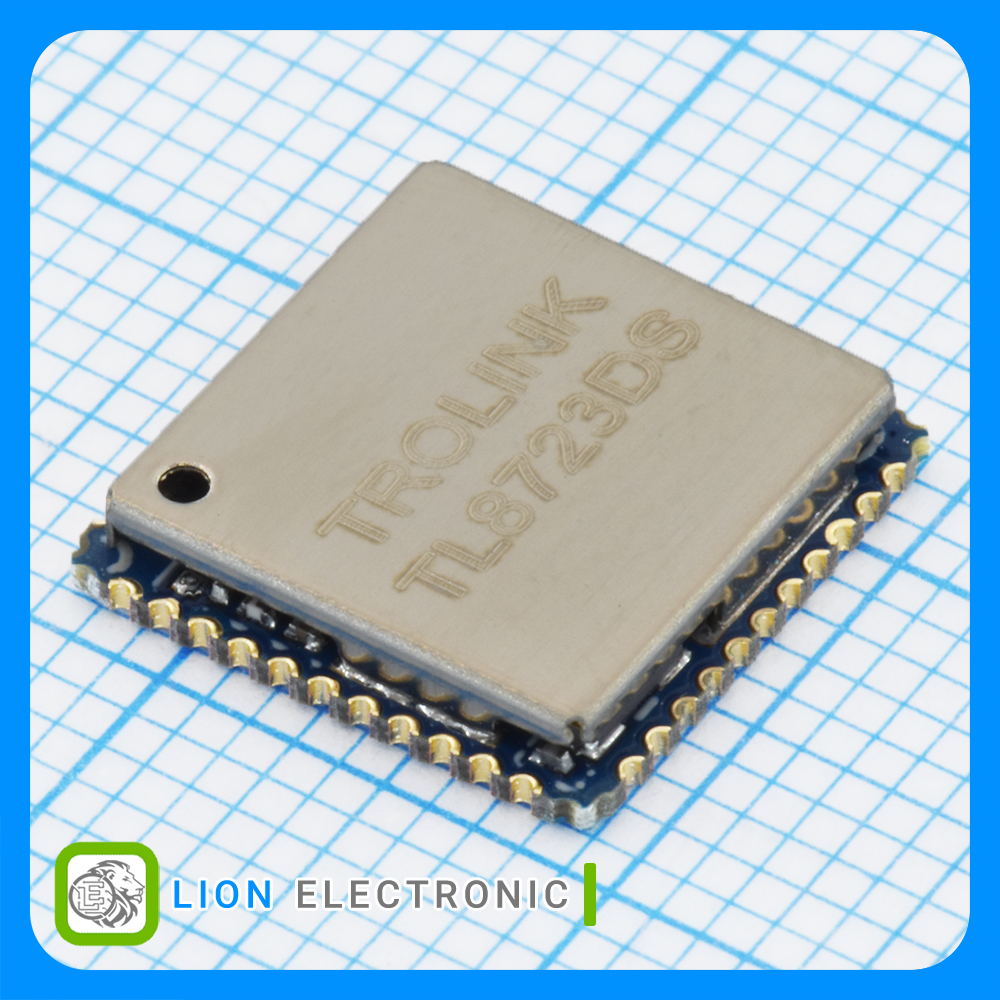

Single-Chip 802.11b/g/n 1T1R WLAN and Bluetooth 2.1/4.2 WiFi & Bluetooth Module Based on RTL8723DS, with SDIO and HS-UART Mixed Interface, 3.3V, 12 x 12 x 1.6mm
معرفی
ماژول WiFi و Bluetooth تکتراشه با چیپ RTL8723DS 802.11b/g/n 1T1R WLAN و Bluetooth 2.1/4.2 با رابط SDIO و HS-UART، تغذیه 3.3 ولت، ابعاد 12x12x1.6mm
Single-Chip 802.11b/g/n 1T1R WLAN and Bluetooth 2.1/4.2 WiFi & Bluetooth Module Based on RTL8723DS, with SDIO and HS-UART Mixed Interface, 3.3V, 12 x 12 x 1.6mm
Specifications
- Product: WiFi & Bluetooth Module
- Interface Type: SDIO, UART
- Antenna Connector Type: External
- Operating Supply Voltage: 3.3V
- Supply Current Transmitting: 208mA, 211mA, 217mA, 227mA
- Supply Current Receiving: 384mA, 411mA, 425mA, 428mA
- Dimensions: 12mm x 12mm x 1.6mm
- Minimum Operating Temperature: 0C
- Maximum Operating Temperature: +70C
- Packaging: Reel
مشخصات TL8723DSSC-Z
TL8723DSSC-Z
Part Number
---
Number of I-Os
External
Antenna Connector Type
+70C
Maximum Operating Temperature
Reel
Packaging
12mm x 12mm x 1.6mm
Dimensions
0C
Minimum Operating Temperature
208mA, 211mA, 217mA, 227mA
Supply Current Transmitting
384mA, 411mA, 425mA, 428mA
Supply Current Receiving
N/A
Frequency
-
Output Power
3.3V
Operating Supply Voltage
WiFi & Bluetooth Module
Product
SDIO, UART
Interface Type
