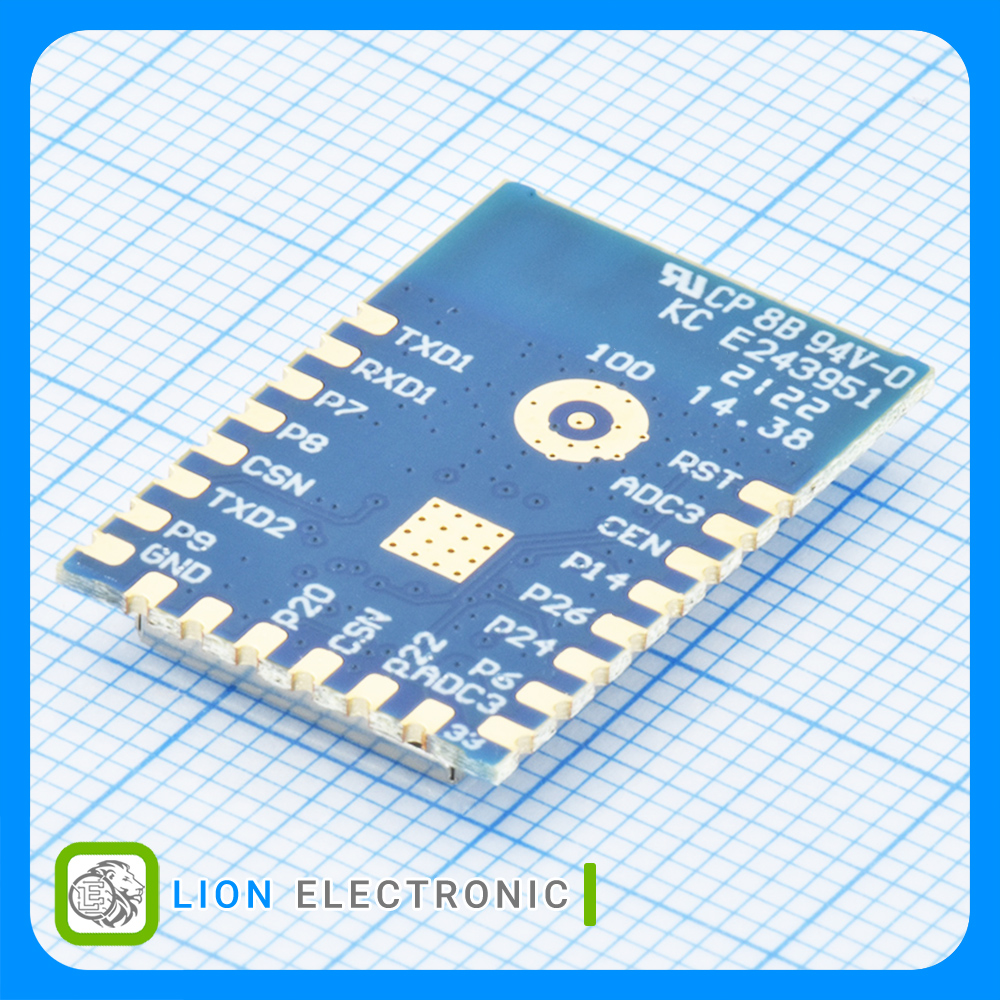

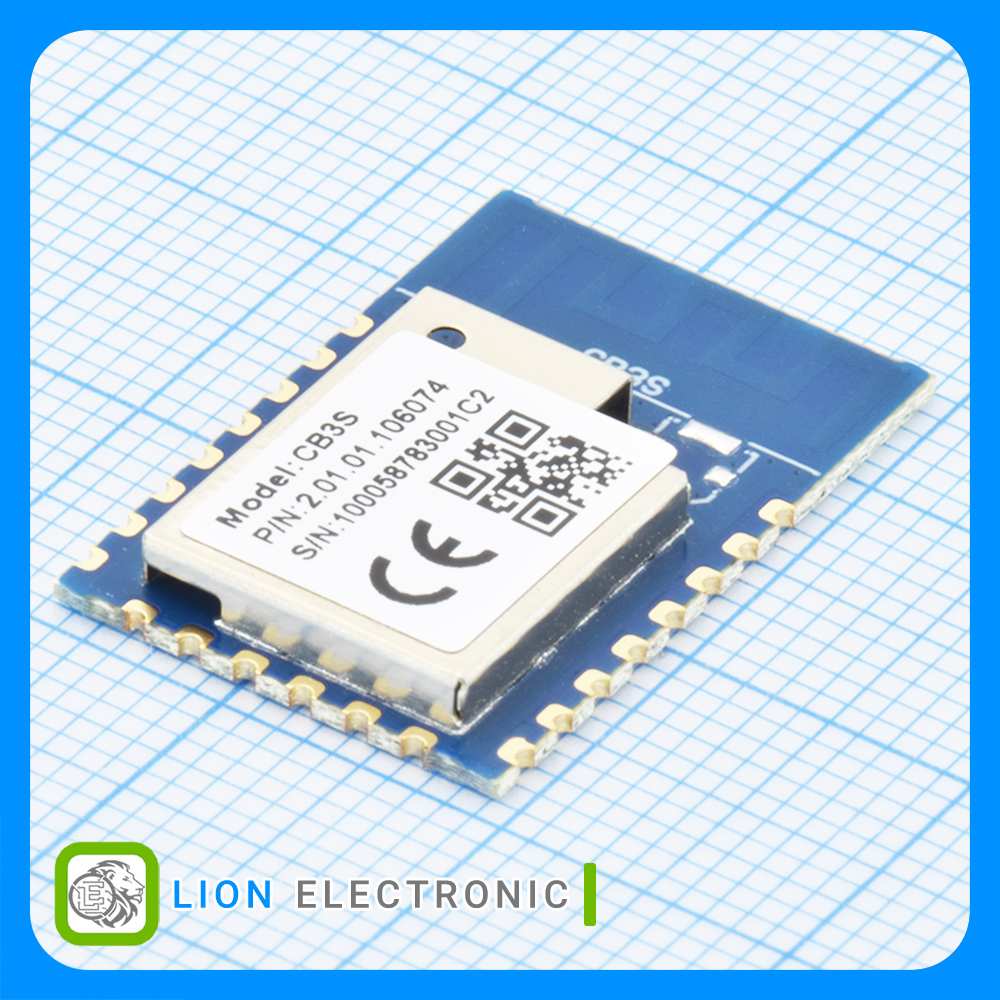

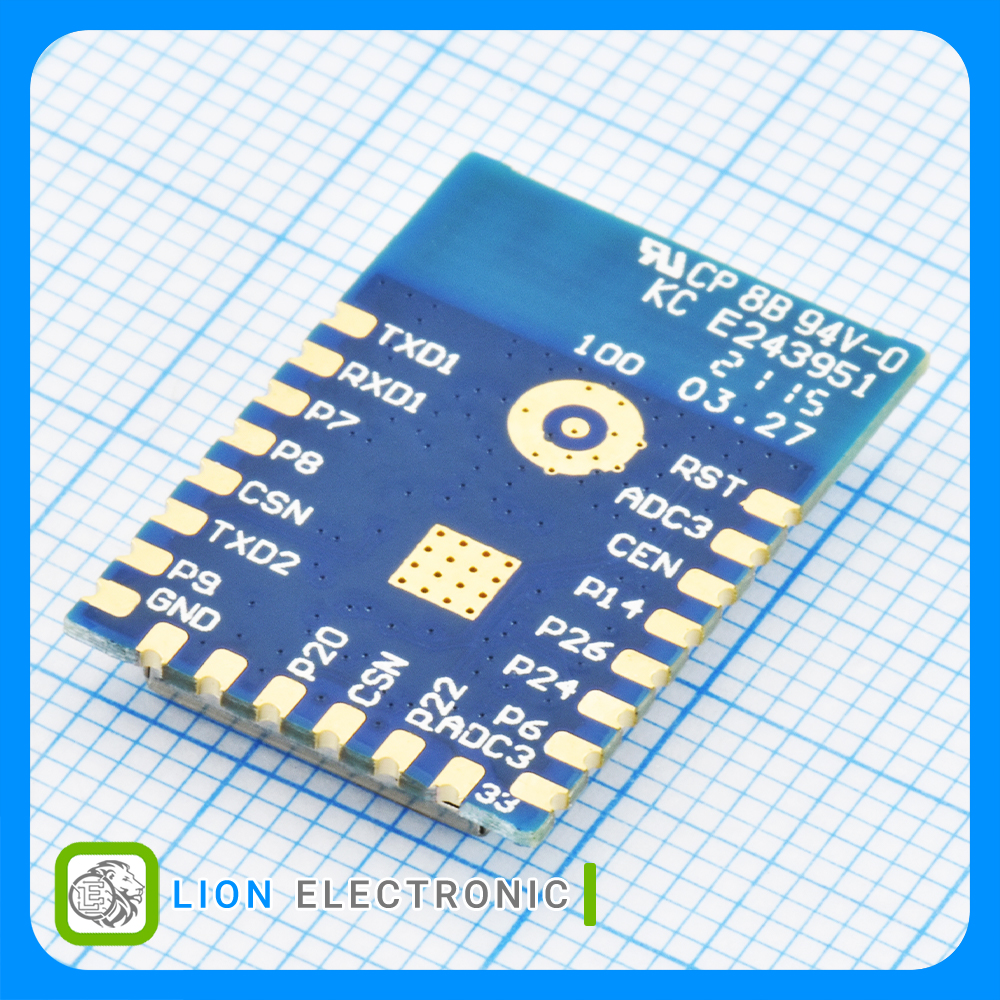

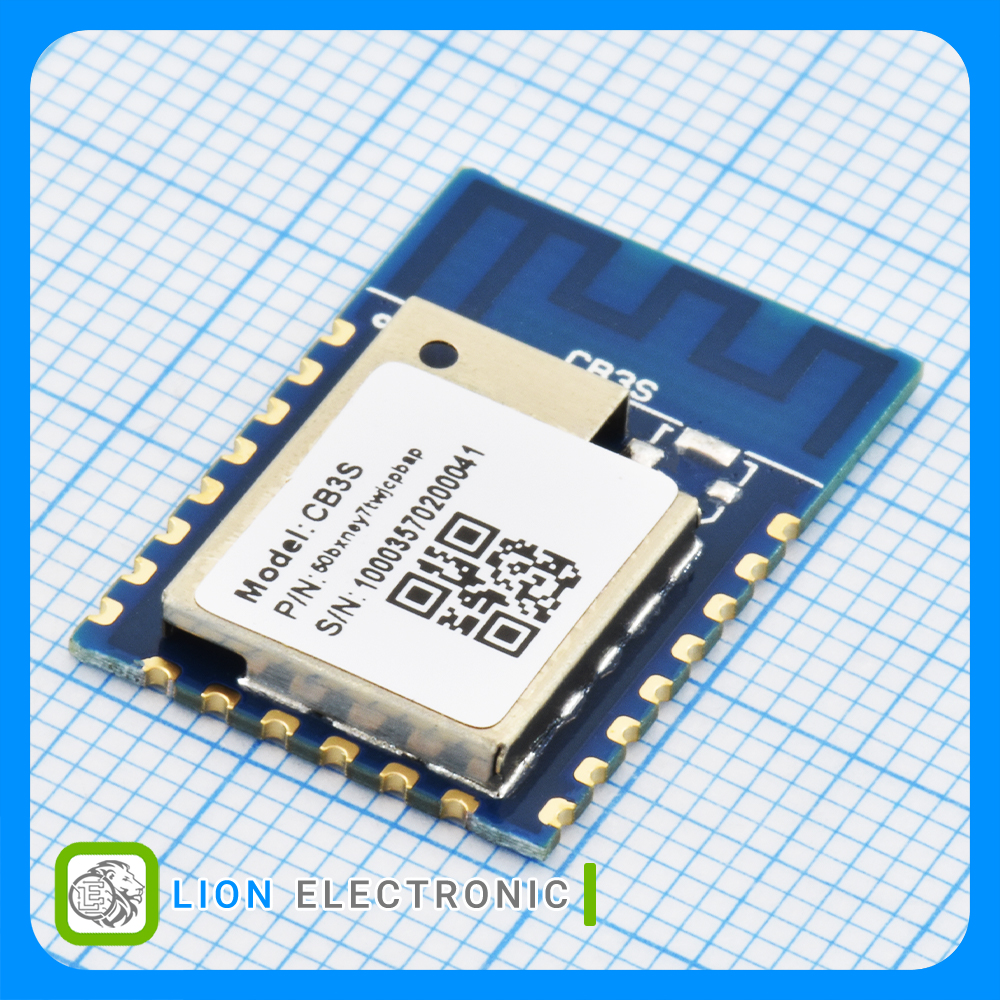

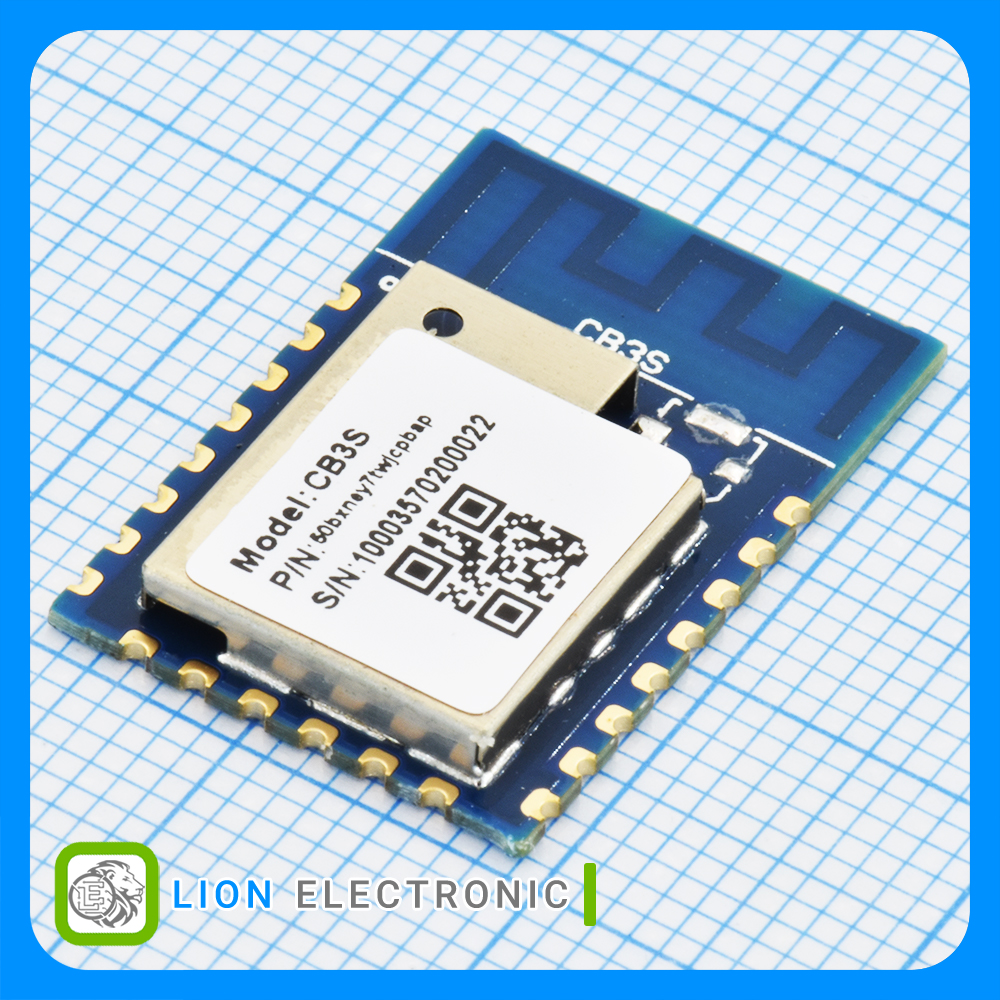

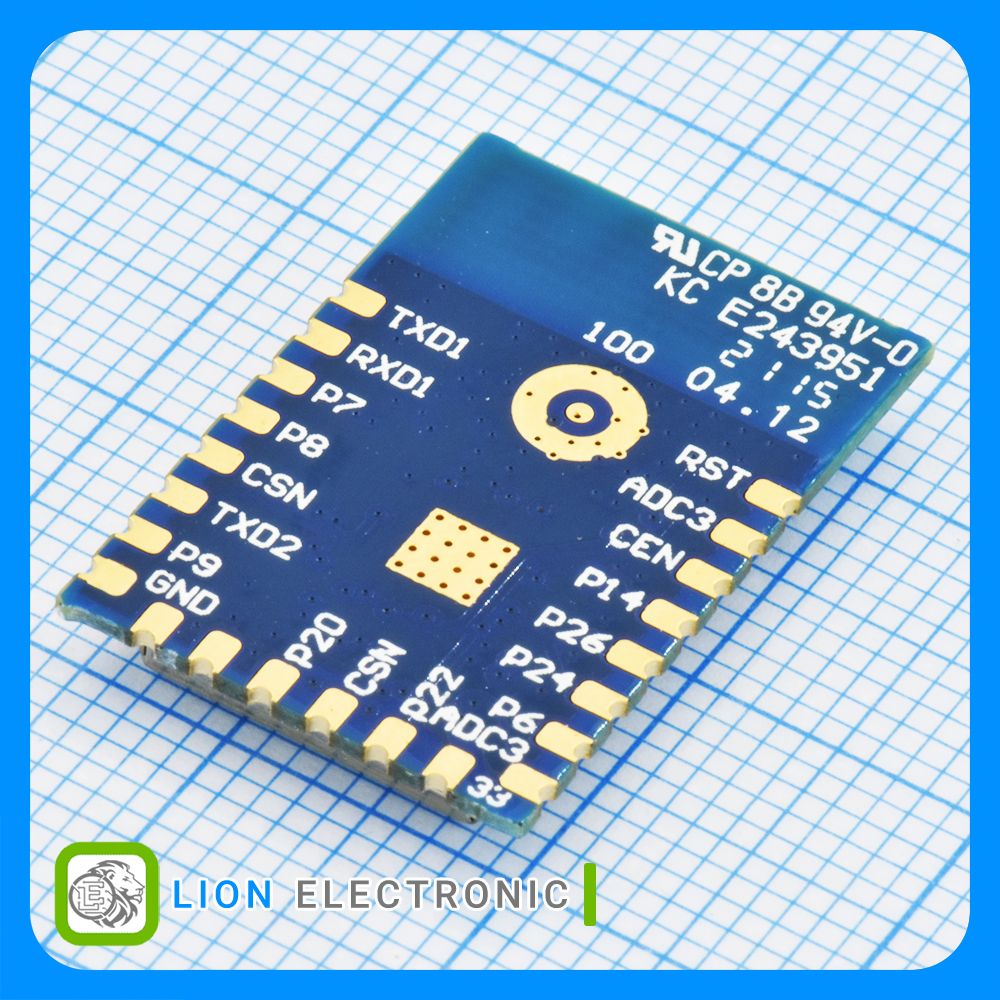

CB3S
CB3S
Part Number
4765
Lion Part
Datasheet
YTL Manufacture
ماژول وایفای/بلوتوث 2.4 گیگاهرتز مبتنی بر BK7231N با رابط UART، آنتن PCB، حافظه 2MB فلش و 256KB RAM، توان خروجی 16dBm و تغذیه 3 تا 3.6 ولت
2.4GHz WiFi and BLE Module Based on BK7231N with 2MB Flash, 256KB RAM, UART Interface, Onboard PCB Antenna, 16dBm Output Power and 3 - 3.6V Supply
معرفی
ماژول وایفای/بلوتوث 2.4 گیگاهرتز مبتنی بر BK7231N با رابط UART، آنتن PCB، حافظه 2MB فلش و 256KB RAM، توان خروجی 16dBm و تغذیه 3 تا 3.6 ولت
2.4GHz WiFi and BLE Module Based on BK7231N with 2MB Flash, 256KB RAM, UART Interface, Onboard PCB Antenna, 16dBm Output Power and 3 - 3.6V Supply
Specifications
- Product: WiFi & Bluetooth Module
- Interface Type: UART
- Antenna Connector Type: PCB
- Frequency: 120MHz
- Number of I/Os: 14
- Output Power: 16dBm
- Operating Supply Voltage: 3 - 3.6V
- Supply Current Transmitting: 240mA
- Supply Current Receiving: 82mA
- Dimensions: 16x24x2.8mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات ماژول وای فای و بلوتوث CB3S
ماژول وای فای و بلوتوث CB3S
Part Number
Reel
Packaging
-40C
Minimum Operating Temperature
PCB
Antenna Connector Type
+85C
Maximum Operating Temperature
14
Number of I-Os
16x24x2.8mm
Dimensions
240mA
Supply Current Transmitting
120MHz
Frequency
82mA
Supply Current Receiving
16dBm
Output Power
3 - 3.6V
Operating Supply Voltage
WiFi & Bluetooth Module
Product
UART
Interface Type
