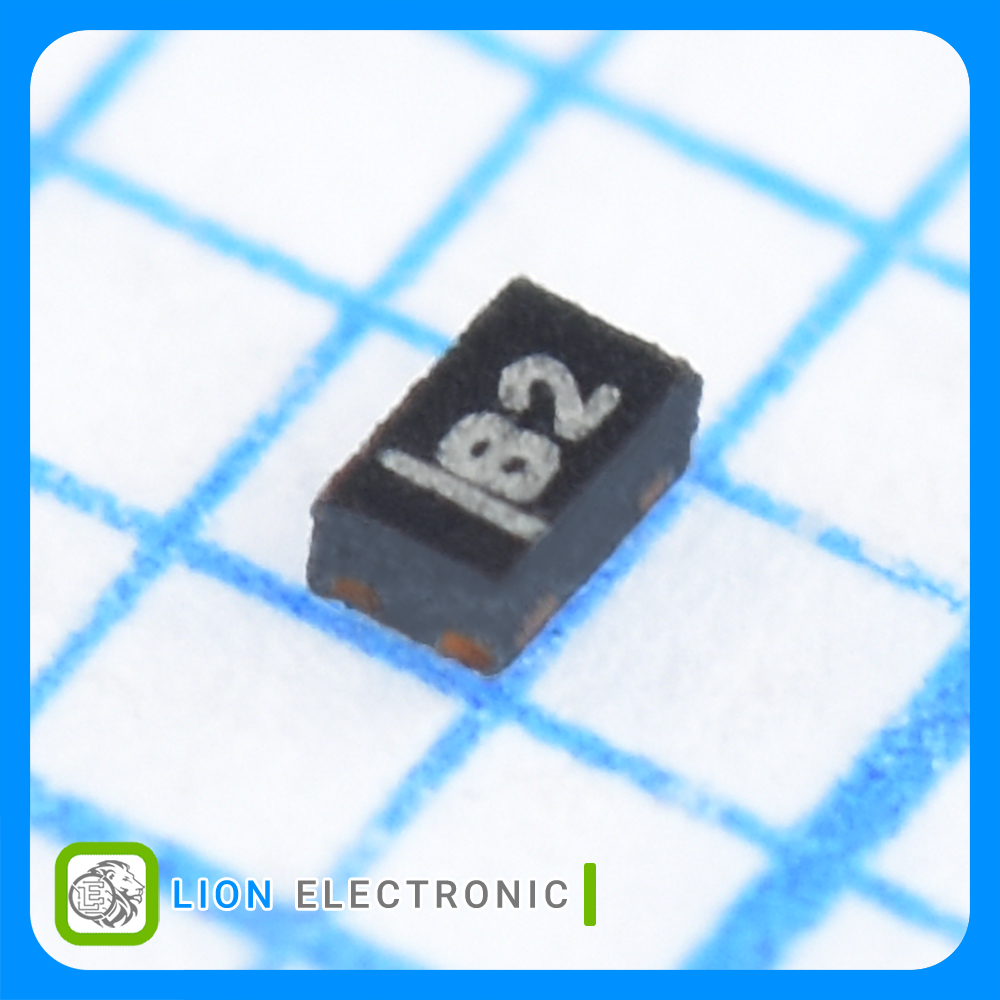

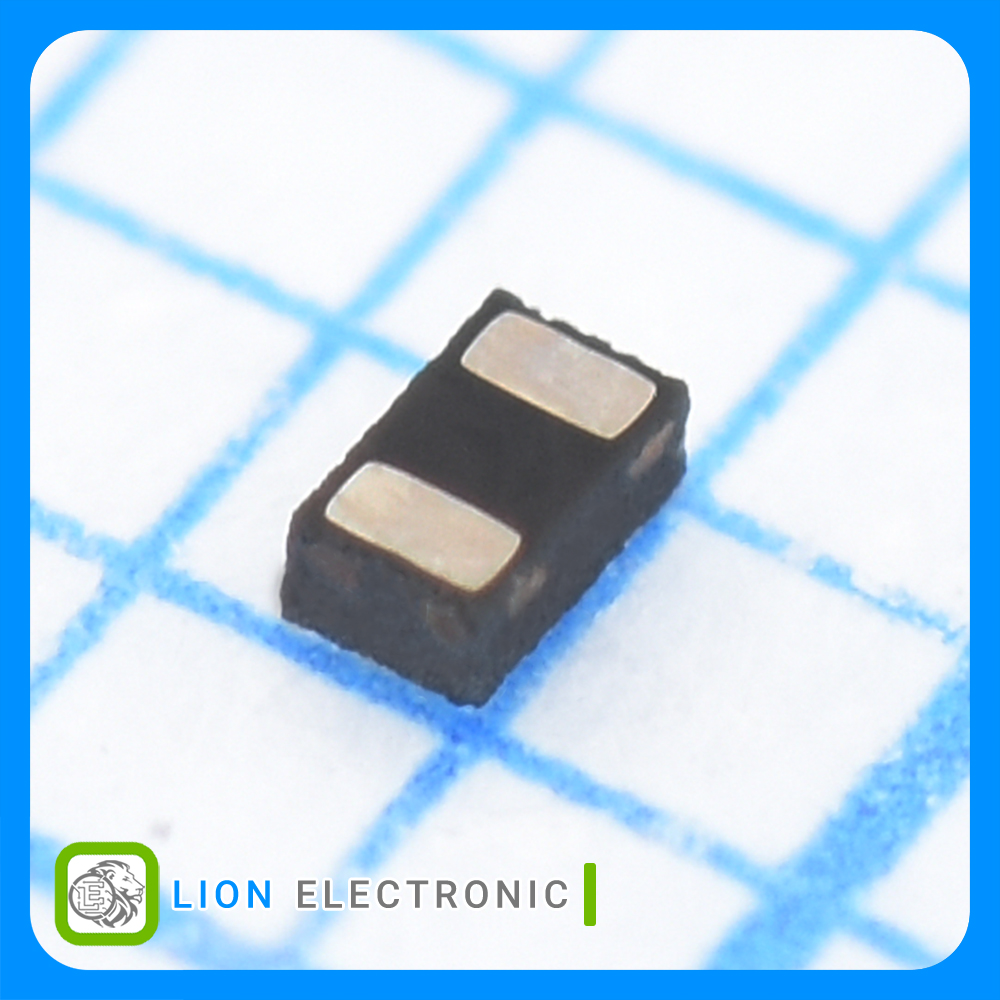

TPD1E10B06DPYR
TPD1E10B06DPYR
Part Number
4695
Lion Part
Datasheet
Texas Instruments Manufacture
دیود TVS تک کانال دوطرفه محافظ ESD ولتاژ کاری 5.5 ولت، ولتاژ شکست 6 ولت، 90 وات با پکیج X1SON-2 (0402) دقت شود این قطعه کاملا متقارن نیست
TVS Diode Single-Channel Bidirectional ESD Protection Suppressor 5.5V working, 6V breakdown, 90W with X1SON-2 Package (0402), note: this part is not fully symmetric
معرفی
دیود TVS تک کانال دوطرفه محافظ ESD ولتاژ کاری 5.5 ولت، ولتاژ شکست 6 ولت، 90 وات با پکیج X1SON-2 (0402) دقت شود این قطعه کاملا متقارن نیست
TVS Diode Single-Channel Bidirectional ESD Protection Suppressor 5.5V working, 6V breakdown, 90W with X1SON-2 Package (0402), note: this part is not fully symmetric
Specifications
- Product Type: ESD Suppressors
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 5.5V
- Breakdown Voltage: 6V
- Clamping Voltage: 10V
- Pppm - Peak Pulse Power Dissipation: 90W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 12pF
- Ipp - Peak Pulse Current: 6A
- Termination style: SMD/SMT
- Package/Case: X1SON-2
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات دیود تی‌وی‌اس دوجهته TPD1E10B06DPYR
دیود تی‌وی‌اس دوجهته TPD1E10B06DPYR
Part Number
Bidirectional
Polarity
1
Number of Channels
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
-40C
Minimum Operating Temperature
5.5V
Working Voltage
90W
Pppm - Peak Pulse Power Dissipation
10V
Clamping Voltage
6V
Breakdown Voltage
12pF
Cd - Diode Capacitance
+125C
Maximum Operating Temperature
ESD Suppressors
Product Type
6A
Ipp - Peak Pulse Current
X1SON-2
Package-Case
