Melexis
معرفی
سنسور مغناطیسی/اثر هال دوقطبی سه سیمه نوع Latch تغذیه 3.5 تا 24 ولت با پکیج TO-92-3

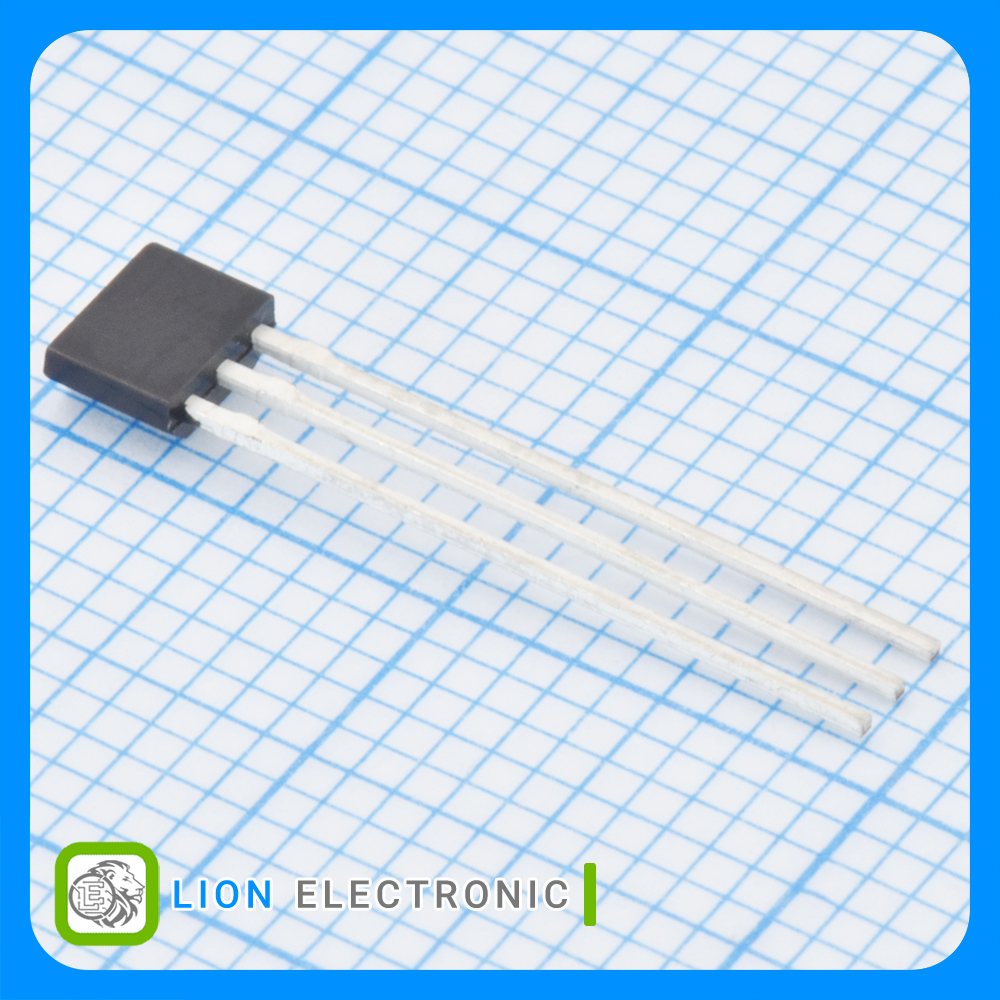

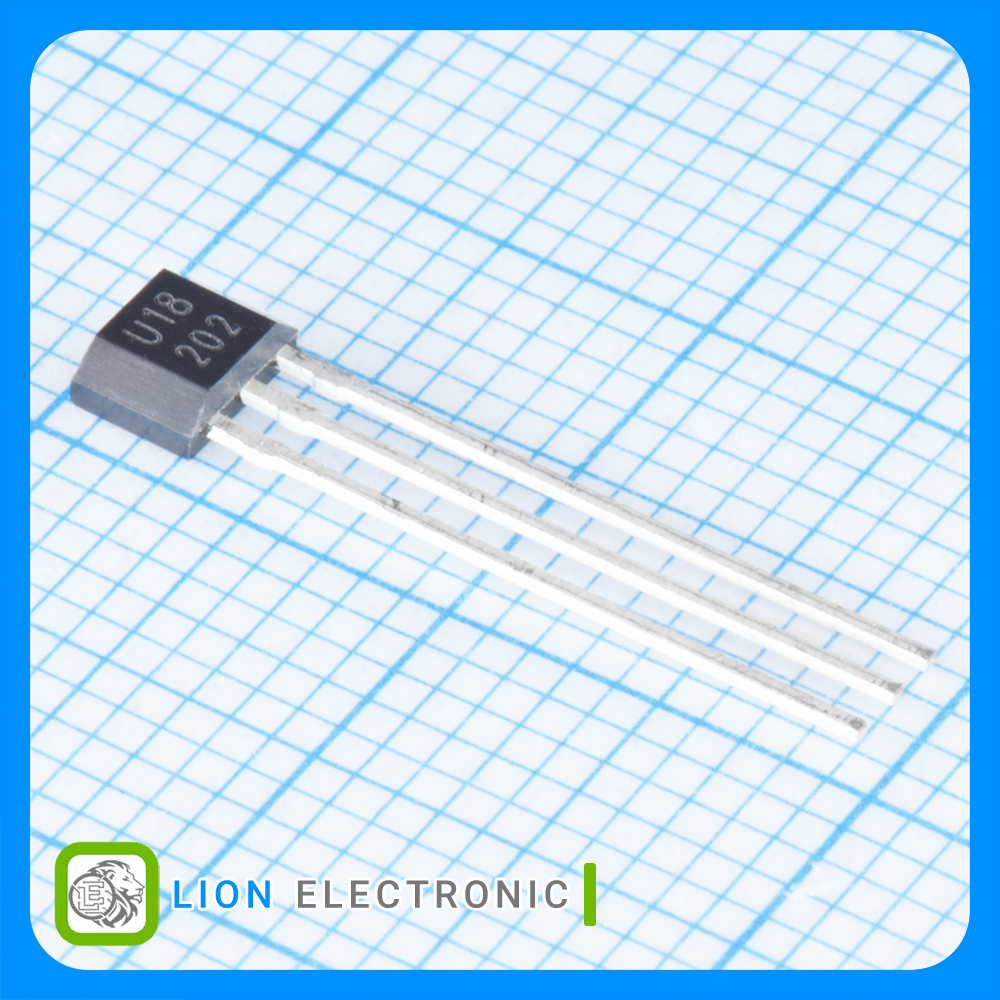

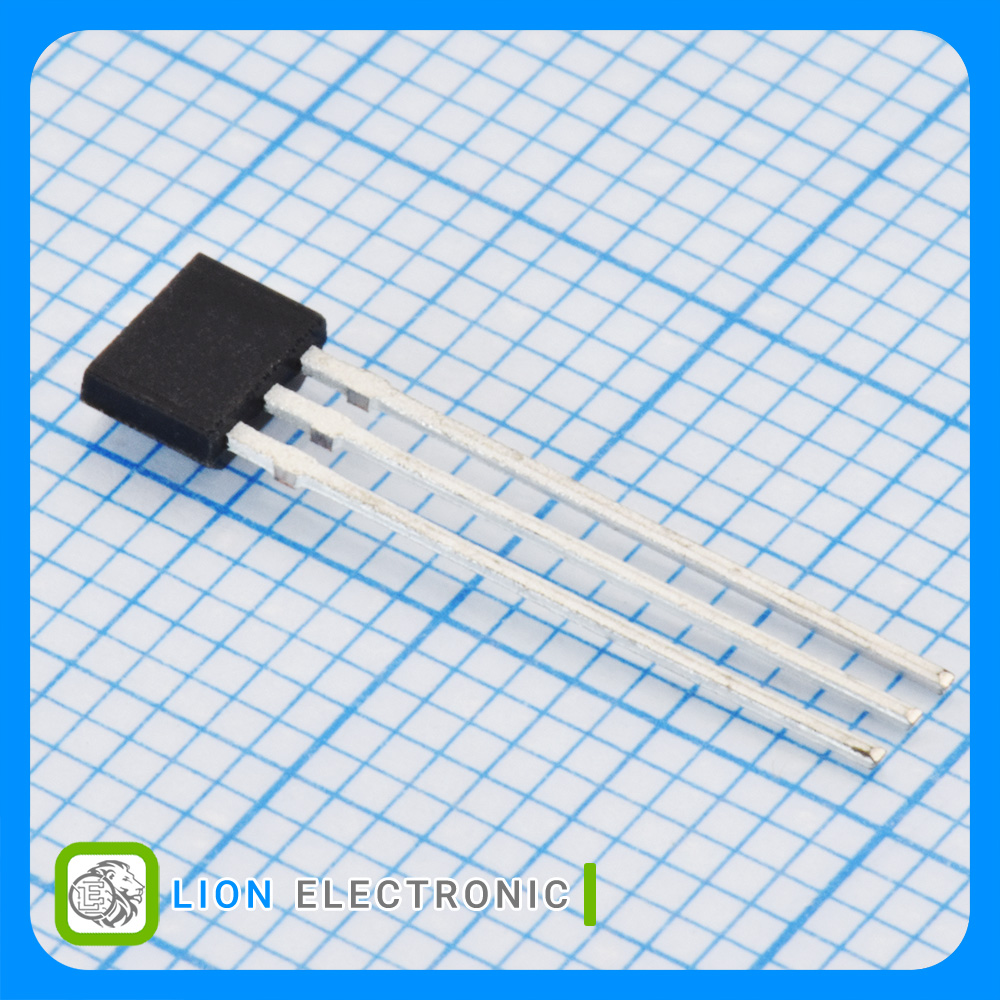

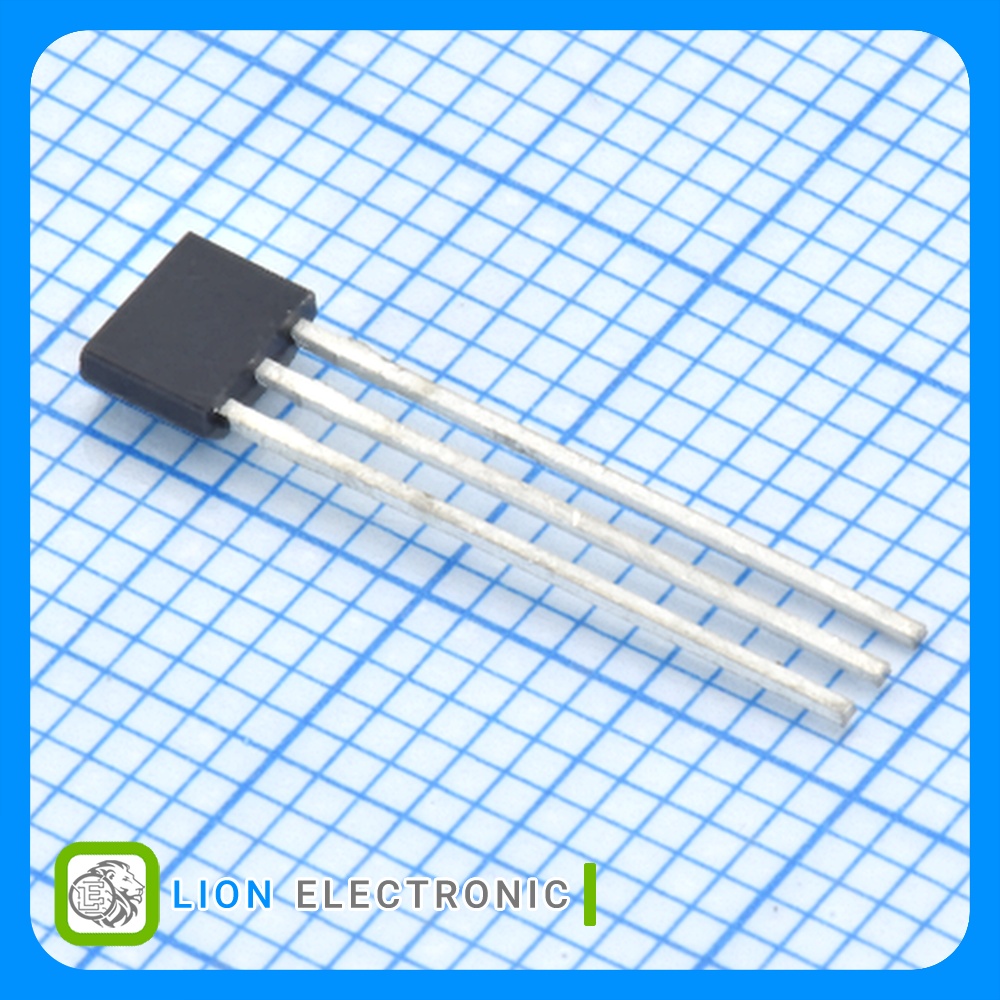

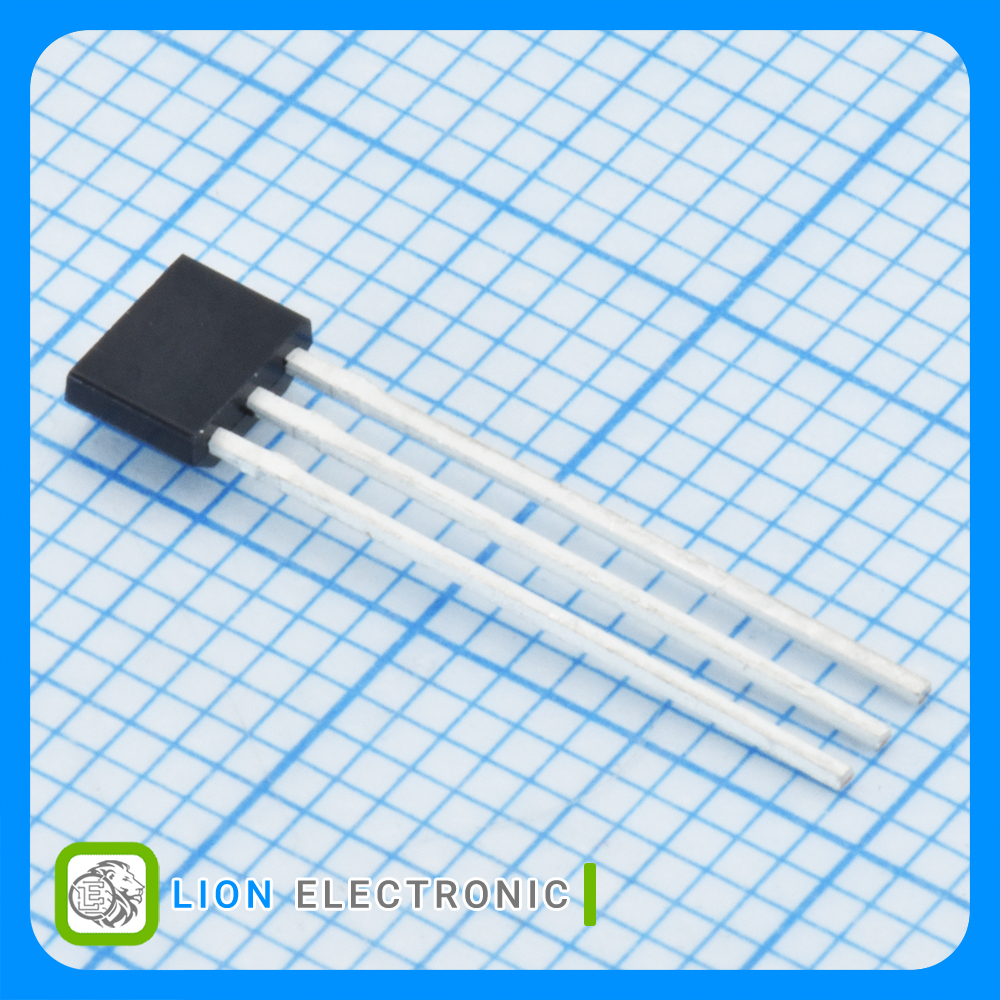

Board Mount Hall Effect/Magnetic Sensor Bipolar, 3 wire Latch, 3.5 - 24V with TO-92-3 Package
Specifications
- Type: Bipolar
- Operating Point Min/Max: 0.5mT to 9.5mT
- Release Point Min/Max (Brp): -9.5mT to -0.5mT
- Operating Supply Voltage: 3.5 - 24V
- Operating Supply Current: 5mA
- Maximum Output Current: 50mA
- Mounting Style: Through Hole
- Package/Case: TO-92 (SOT-54)
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات مگنت سنسور US1881KUA-AAA-000-BU

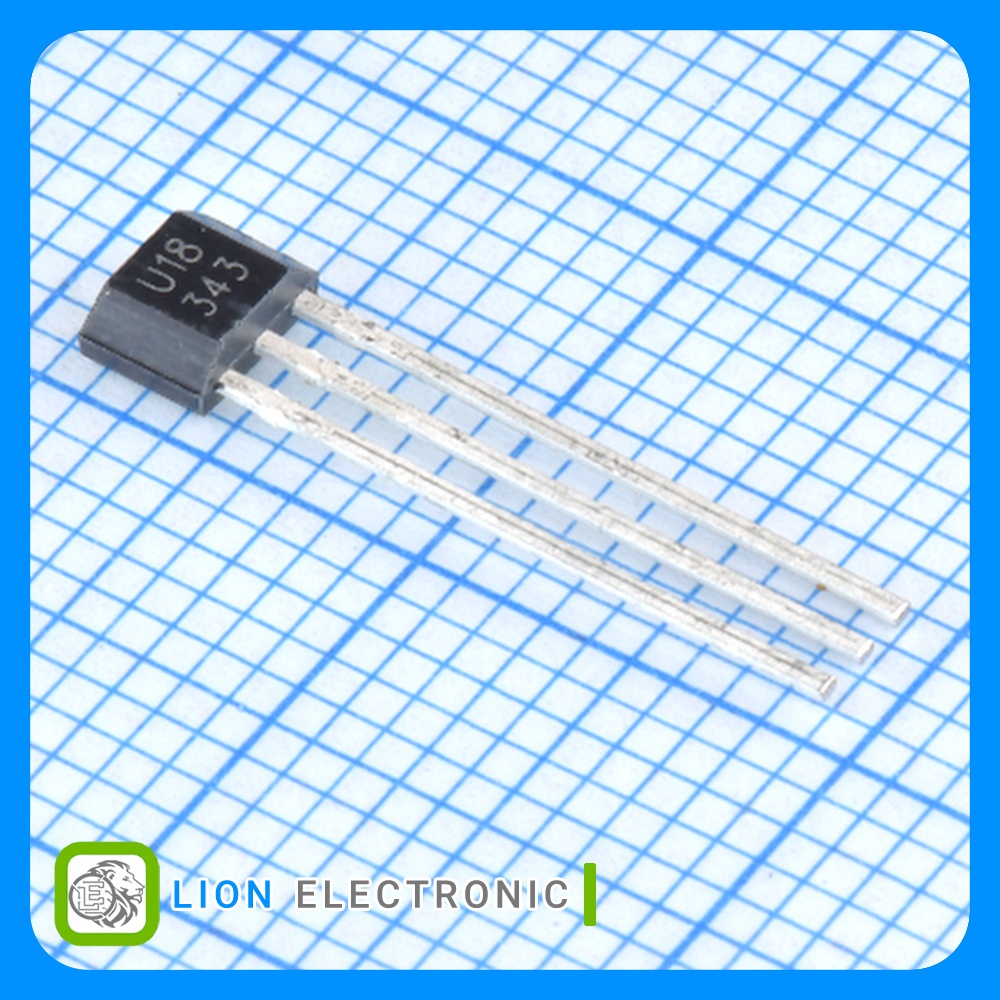

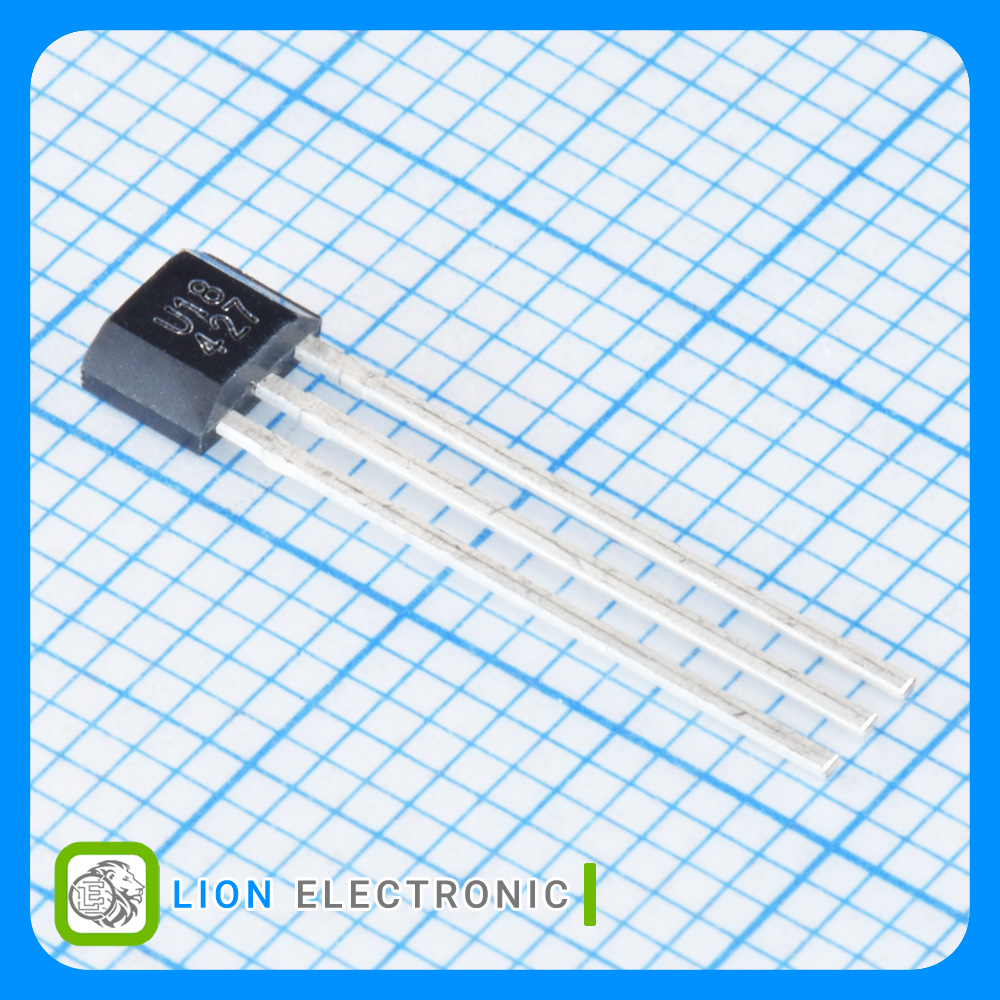

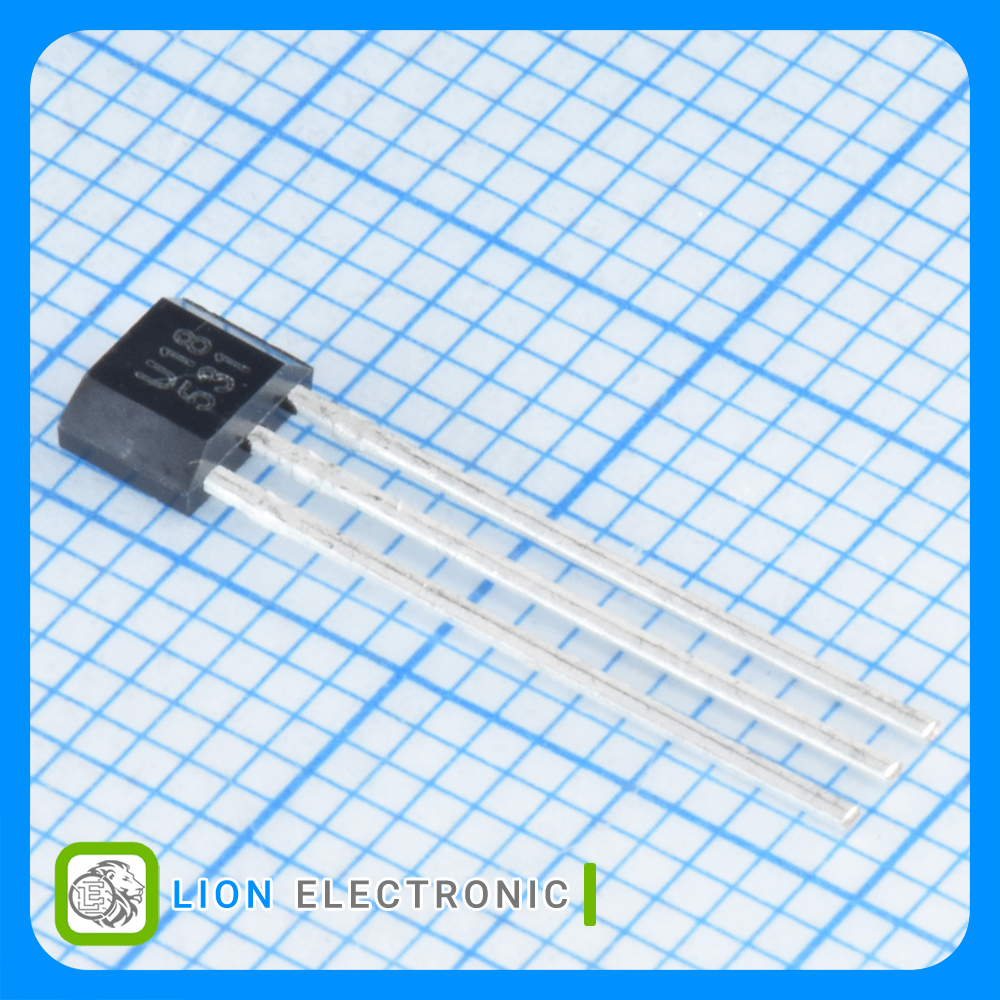

مگنت سنسور US1881KUA-AAA-000-BU
Part Number
-9.5mT to -0.5mT
Release Point Min-Max (Brp)
Bulk
Packaging
-40C
Minimum Operating Temperature
0.5mT to 9.5mT
Operating Point Min-Max
Through Hole
Mounting Style
50mA
Maximum Output Current
Bipolar
Type
+125C
Maximum Operating Temperature
3.5 - 24V
Operating Supply Voltage
5mA
Operating Supply Current
TO-92
Package-Case
