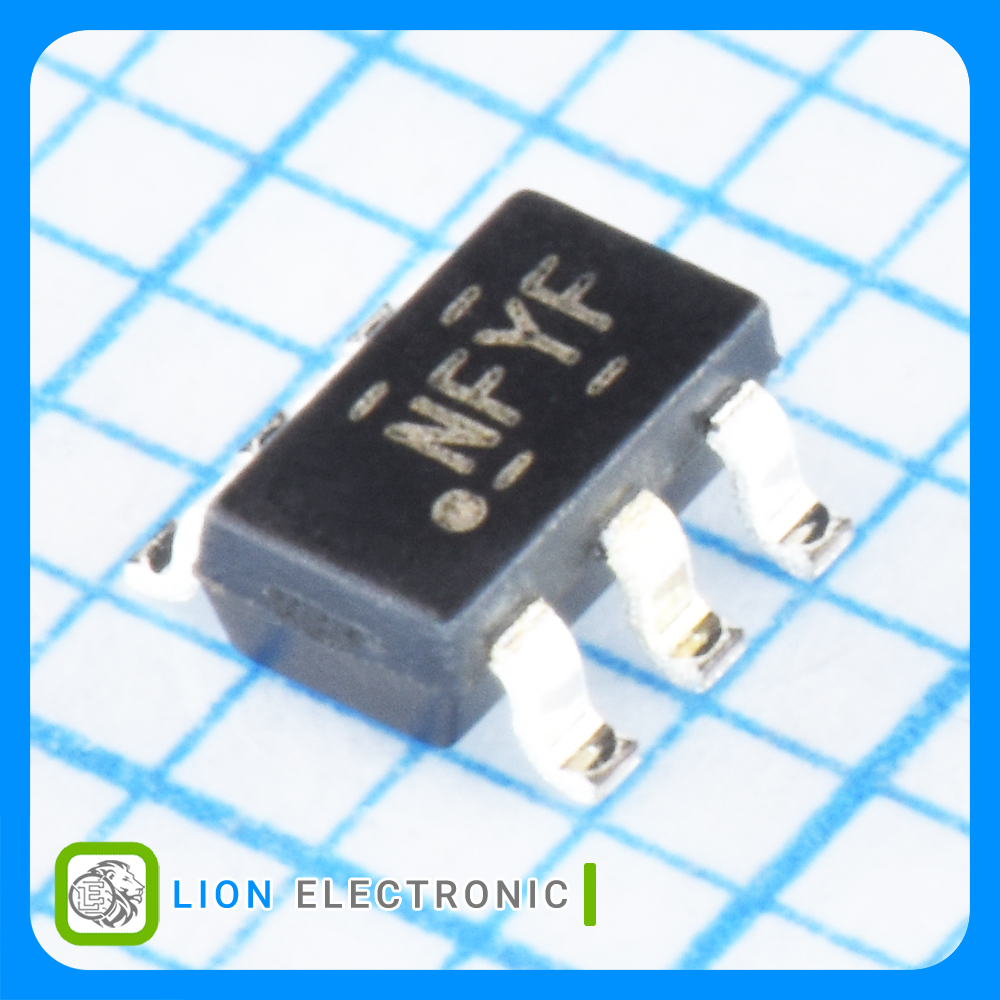

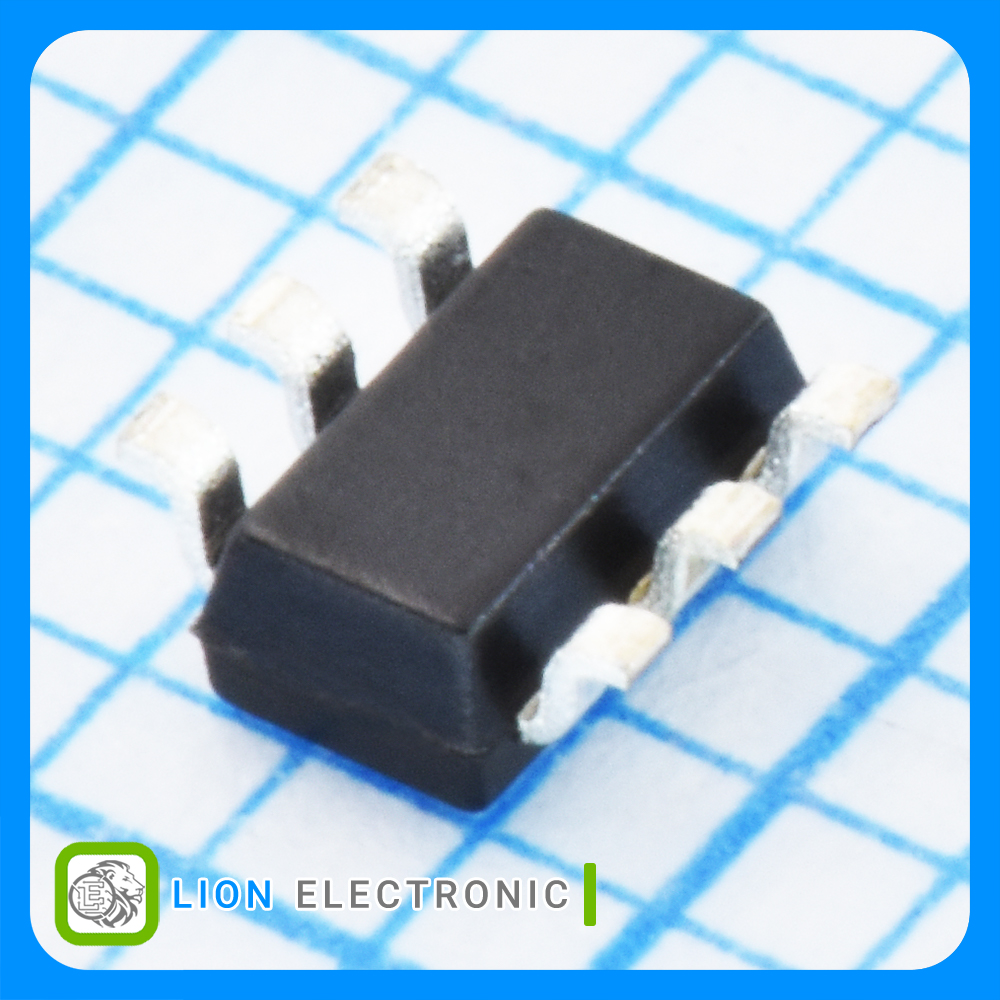

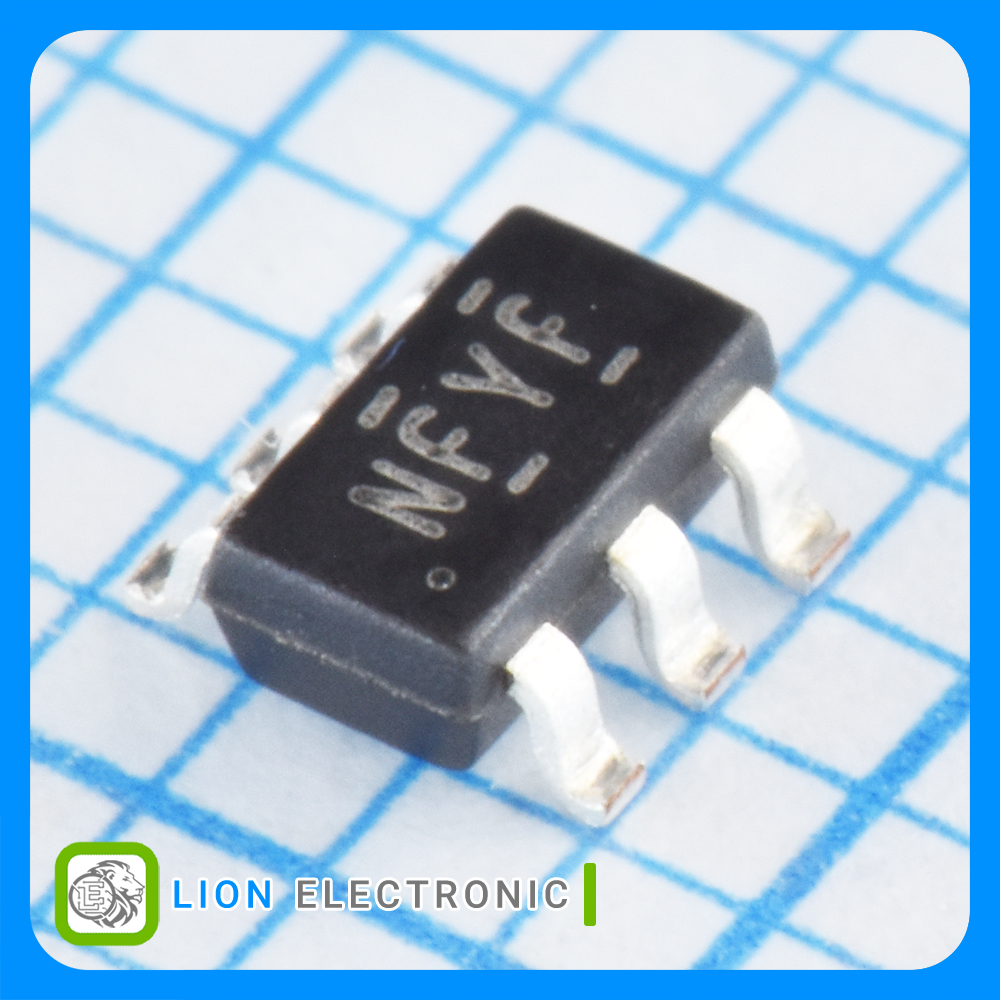

TPD4E001DBVR
TPD4E001DBVR
Part Number
4713
Lion Part
Datasheet
Texas Instruments Manufacture
دیود TVS تک جهته 4 کانال ولتاژ کاری 5.5 ولت، ولتاژ شکست 11 ولت ظرفیت 1.5 پیکوفاراد محافظت ESD با پکیج SOT-23-6
TVS Diode Unidirectional 4 Channel, Working Voltage 5.5V, Breakdown 11V, 1.5pF Capacitance, Low Capacitance ESD Protection for High-Speed Data Interfaces with SOT-23-6 Package
معرفی
دیود TVS تک جهته 4 کانال ولتاژ کاری 5.5 ولت، ولتاژ شکست 11 ولت ظرفیت 1.5 پیکوفاراد محافظت ESD با پکیج SOT-23-6
TVS Diode Unidirectional 4 Channel, Working Voltage 5.5V, Breakdown 11V, 1.5pF Capacitance, Low Capacitance ESD Protection for High-Speed Data Interfaces with SOT-23-6 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 4
- Working Voltage: 5.5V
- Breakdown Voltage: 11V
- Clamping Voltage: 25V
- Pppm - Peak Pulse Power Dissipation: 100W
- Vesd - Voltage ESD Contact: 8kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 1.5pF
- Ipp - Peak Pulse Current: 5.5A
- Termination style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات TPD4E001DBVR
TPD4E001DBVR
Part Number
8kV
Vesd - Voltage ESD Contact
15kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
4
Number of Channels
-40C
Minimum Operating Temperature
Unidirectional
Polarity
5.5V
Working Voltage
100W
Pppm - Peak Pulse Power Dissipation
+85C
Maximum Operating Temperature
1.5pF
Cd - Diode Capacitance
ESD Suppressors
Product Type
5.5A
Ipp - Peak Pulse Current
11V
Breakdown Voltage
25V
Clamping Voltage
SOT-23-6
Package-Case
