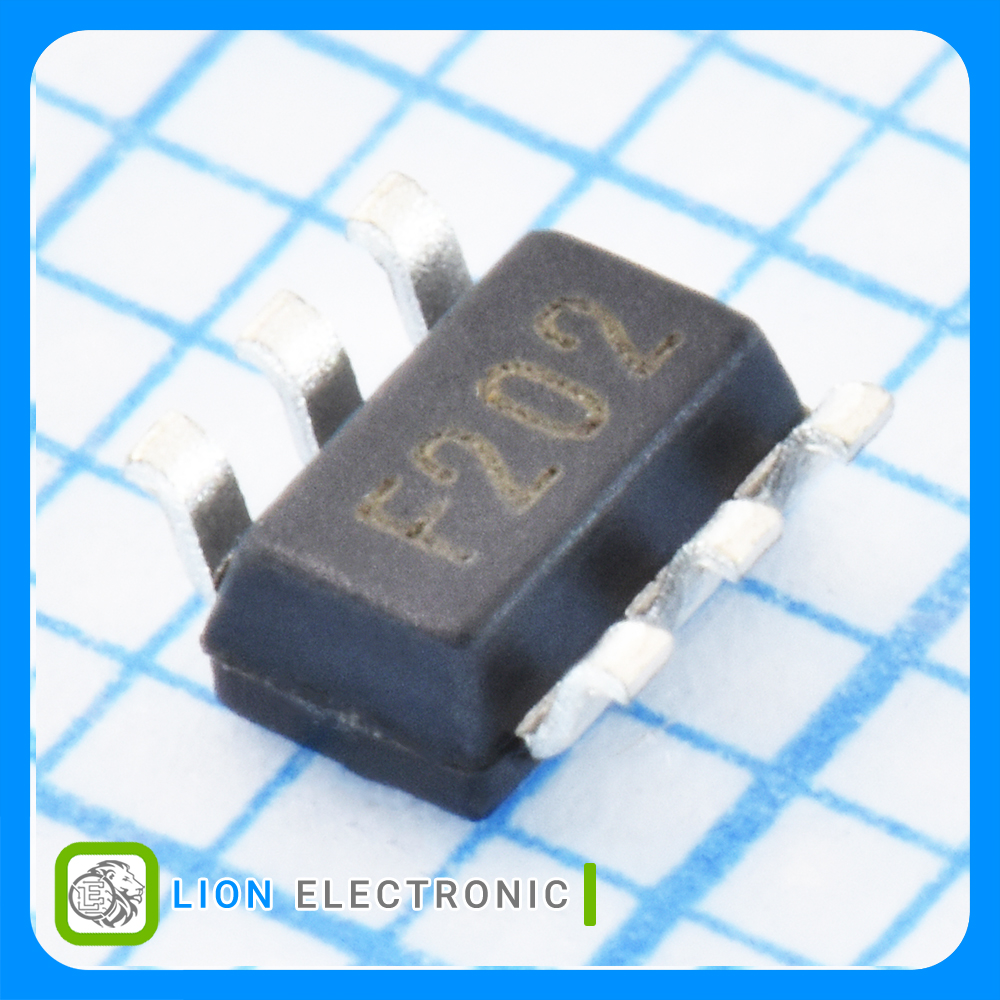

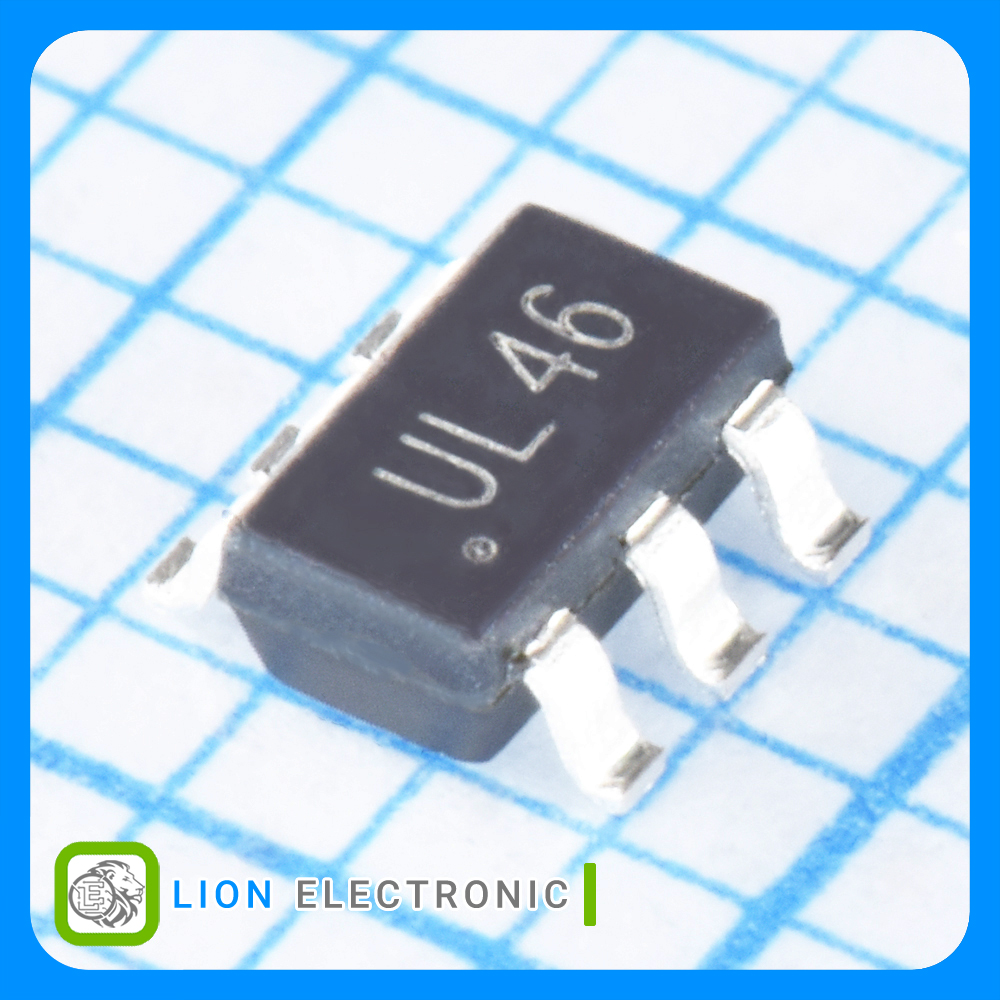

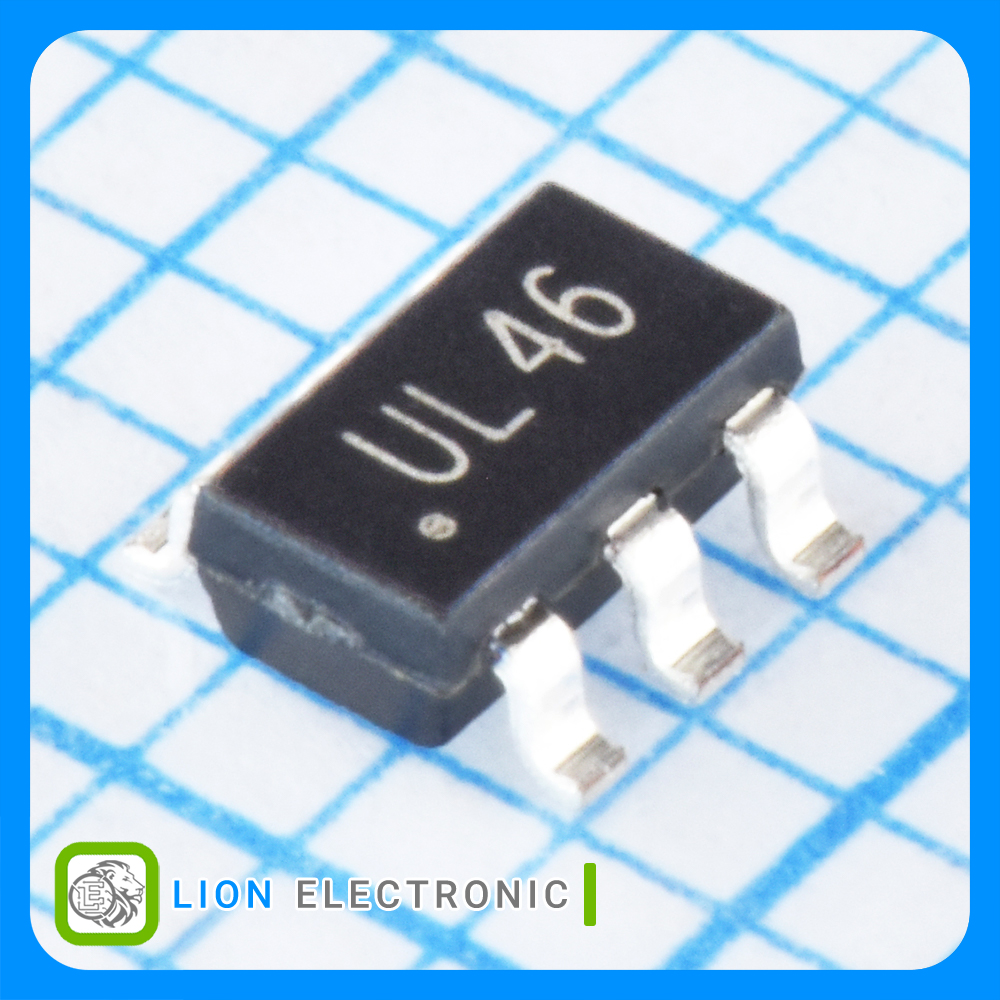

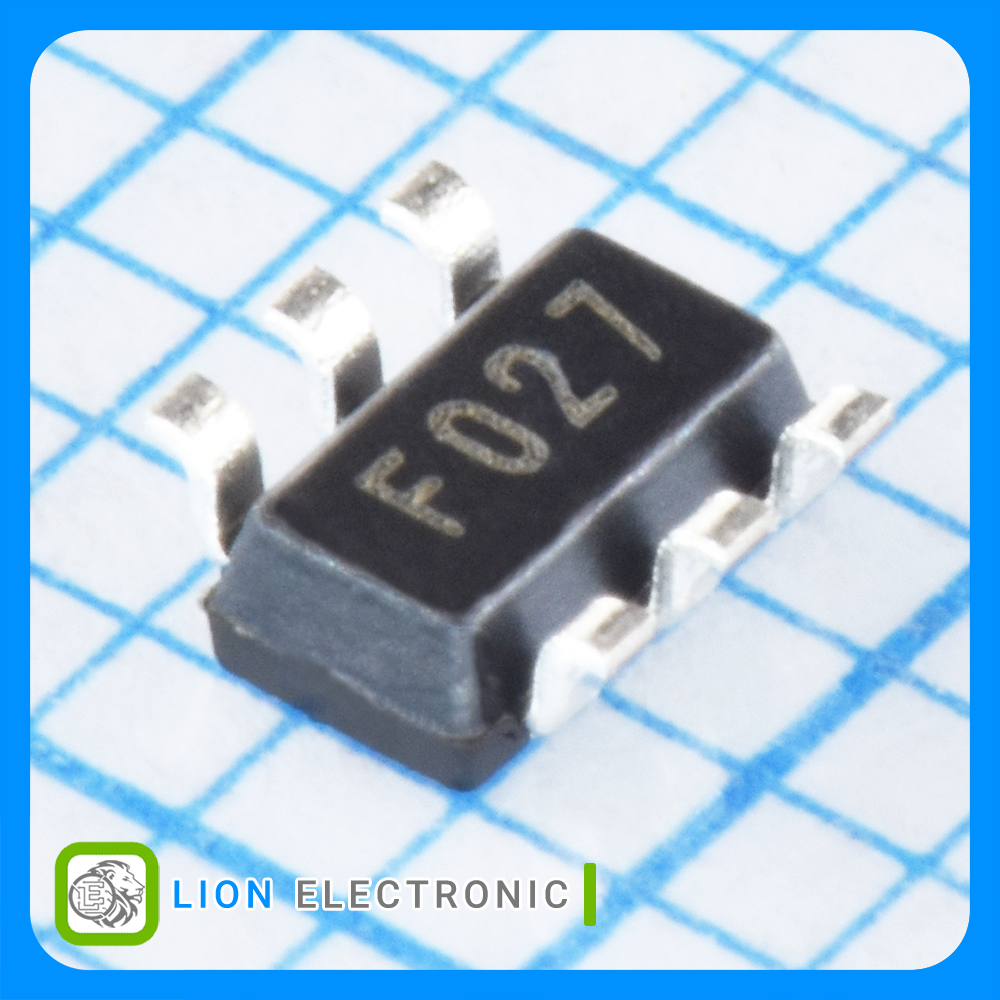

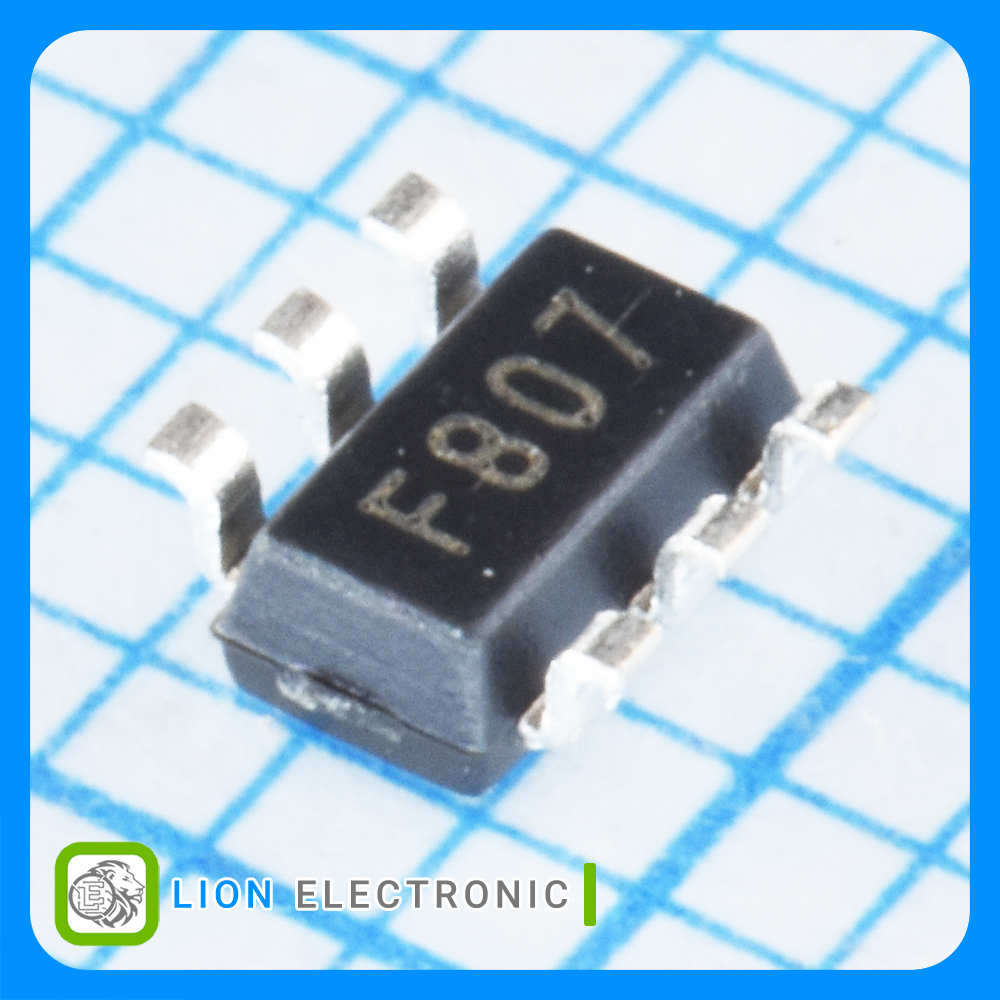

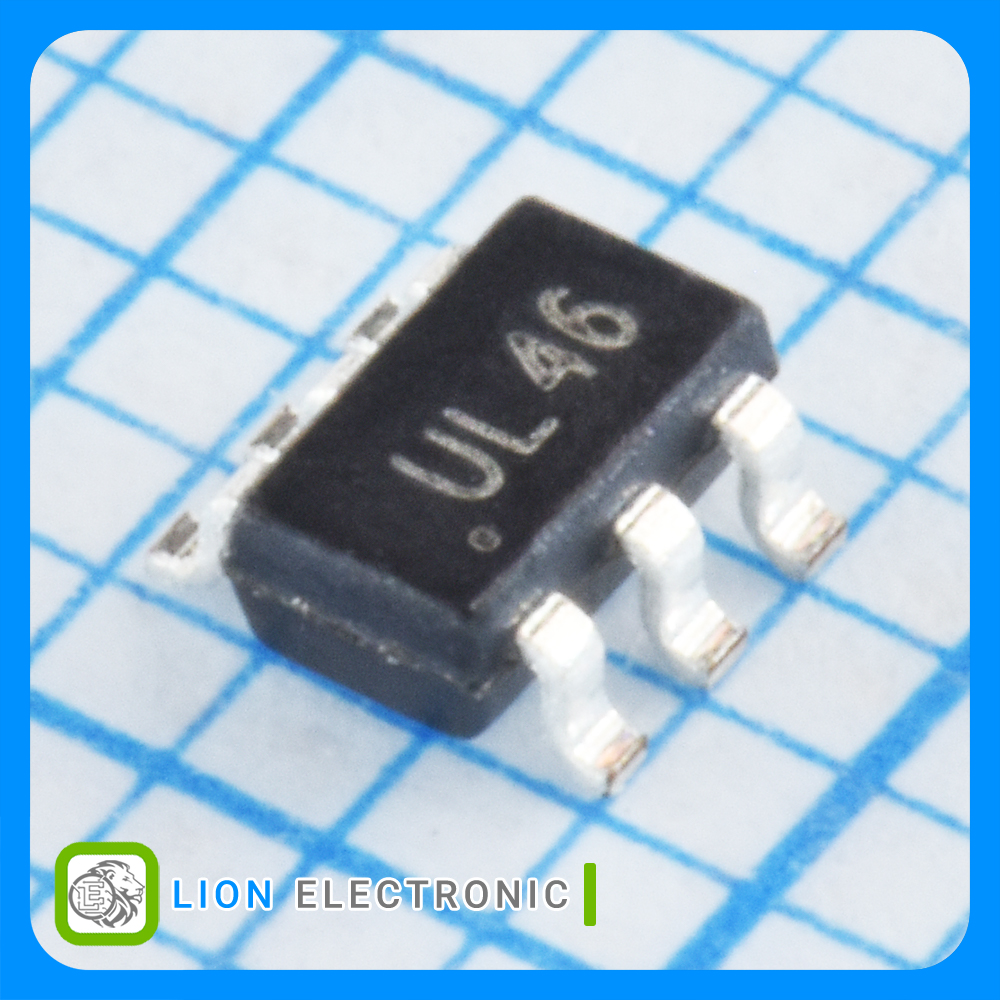

USBLC6-4SC6
USBLC6-4SC6
Part Number
4780
Lion Part
Datasheet
STMicroelectronics Manufacture
دیود TVS چهار خط (4 خط) یکطرفه ولتاژ کاری 5 ولت، ولتاژ شکست 6 ولت، 150 وات، ظرفیت خازنی 3 پیکوفاراد، با پکیج SOT-23-6
4Line TVS Diode Unidirectional, Working Voltage 5V, Breakdown Voltage 6V, 150W, 3pF Capacitance, Very Low Capacitance ESD Protection for High Speed Interfaces with SOT-23-6 Package
معرفی
دیود TVS چهار خط (4 خط) یکطرفه ولتاژ کاری 5 ولت، ولتاژ شکست 6 ولت، 150 وات، ظرفیت خازنی 3 پیکوفاراد، با پکیج SOT-23-6
4Line TVS Diode Unidirectional, Working Voltage 5V, Breakdown Voltage 6V, 150W, 3pF Capacitance, Very Low Capacitance ESD Protection for High Speed Interfaces with SOT-23-6 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 4
- Working Voltage: 5V
- Breakdown Voltage: 6V
- Clamping Voltage: 17V
- Pppm - Peak Pulse Power Dissipation: 150W
- Vesd - Voltage ESD Contact: 8kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 3pF
- Ipp - Peak Pulse Current: 5A
- Termination style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات USBLC6-4SC6
USBLC6-4SC6
Part Number
8kV
Vesd - Voltage ESD Contact
15kV
Vesd - Voltage ESD Air Gap
5V
Working Voltage
SMD/SMT
Termination style
Reel
Packaging
4
Number of Channels
-40C
Minimum Operating Temperature
Unidirectional
Polarity
150W
Pppm - Peak Pulse Power Dissipation
6V
Breakdown Voltage
3pF
Cd - Diode Capacitance
+125C
Maximum Operating Temperature
5A
Ipp - Peak Pulse Current
17V
Clamping Voltage
ESD Suppressors
Product Type
SOT-23-6
Package-Case
