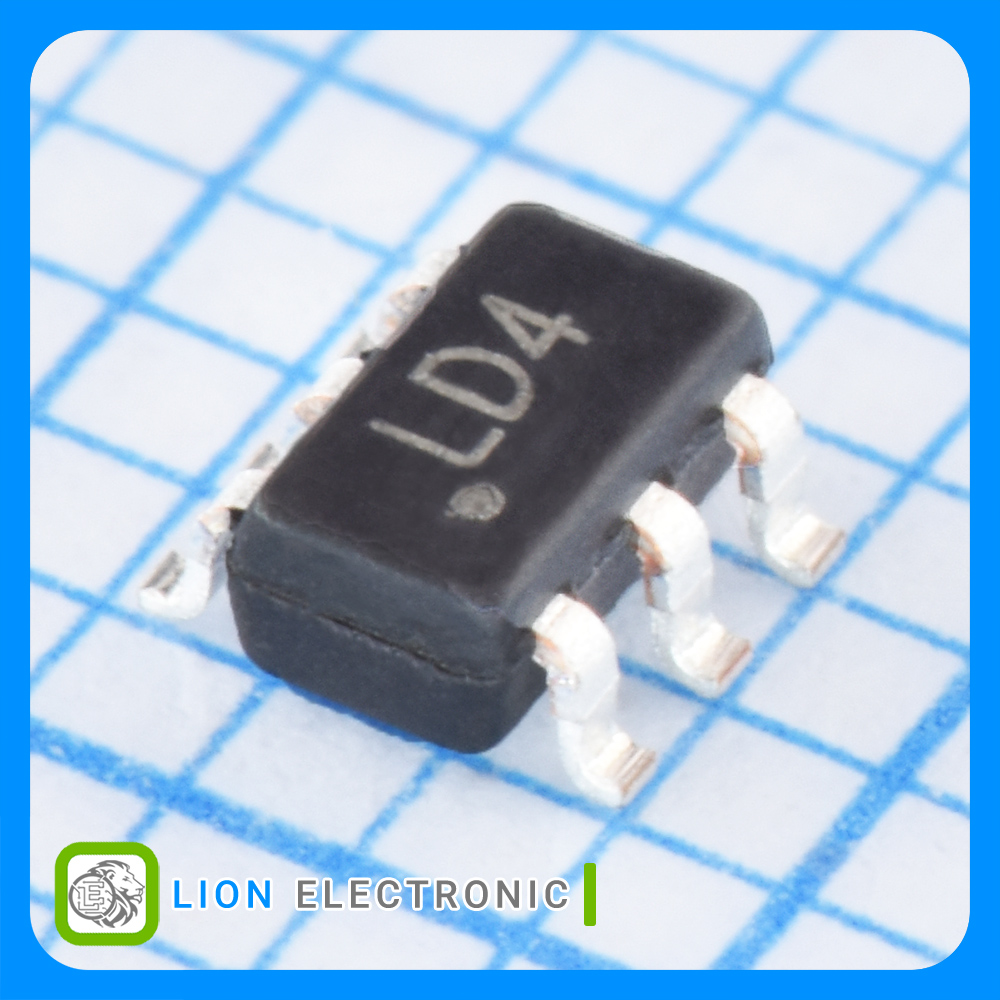

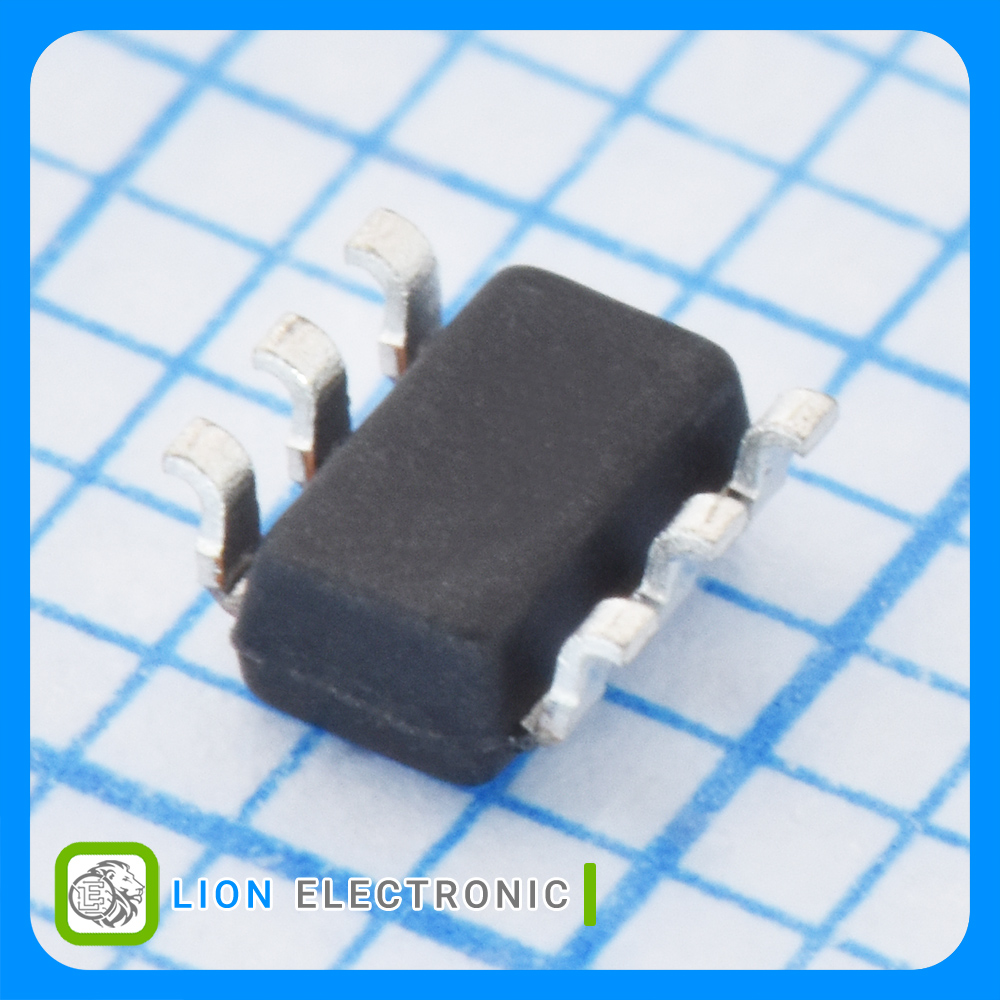

SRV05-4HTG-D
SRV05-4HTG-D
Part Number
4786
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکطرفه 6 ولت 150 وات با پکیج SOT-23-6
TVS Diode Unidirectional 6V, 150W with SOT-23-6 Package
معرفی
دیود TVS یکطرفه 6 ولت 150 وات با پکیج SOT-23-6
TVS Diode Unidirectional 6V, 150W with SOT-23-6 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 4
- Working Voltage: 6V
- Breakdown Voltage: 8.5V
- Clamping Voltage: 13.2V
- Pppm - Peak Pulse Power Dissipation: 150W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 1pF
- Ipp - Peak Pulse Current: 10A
- Termination style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات آرایه دیود تی وی اس SRV05-4HTG-D

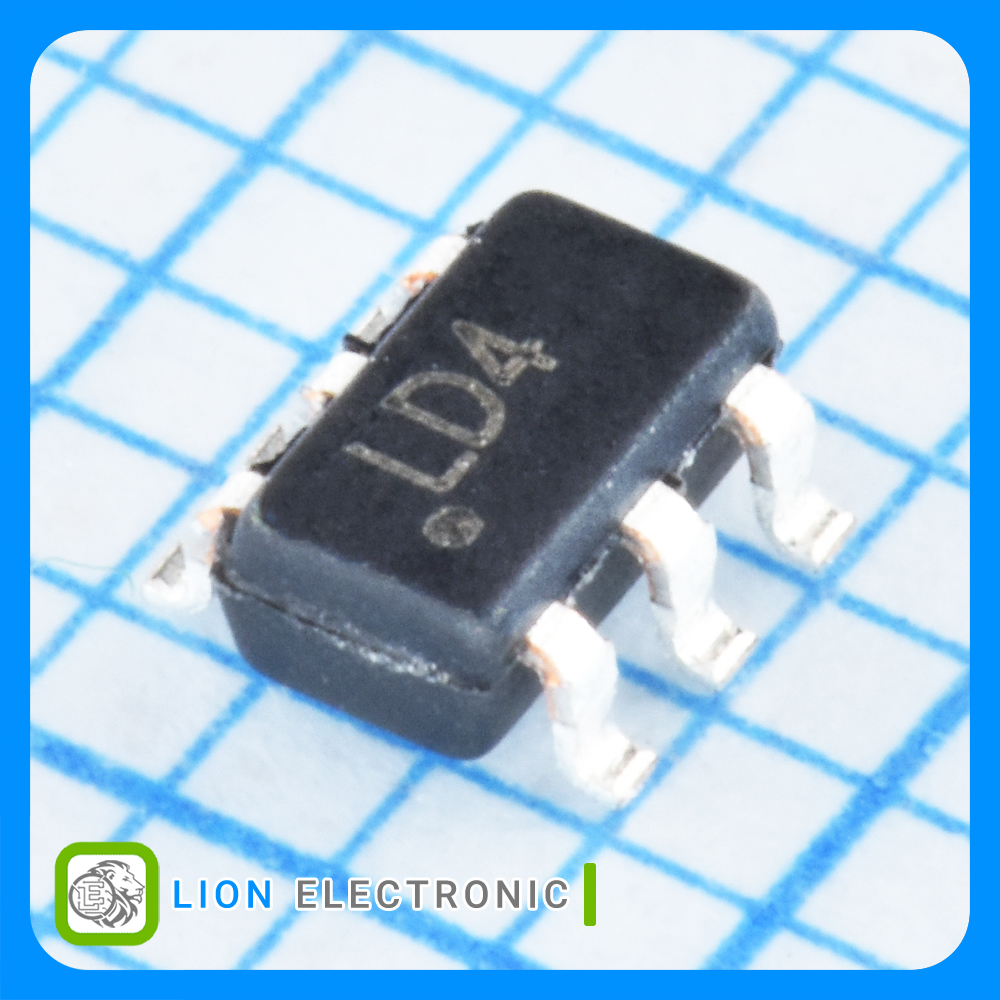

آرایه دیود تی وی اس SRV05-4HTG-D
Part Number
30kV
Vesd - Voltage ESD Air Gap
30kV
Vesd - Voltage ESD Contact
Reel
Packaging
4
Number of Channels
SMD/SMT
Termination style
-40C
Minimum Operating Temperature
Unidirectional
Polarity
1pF
Cd - Diode Capacitance
6V
Working Voltage
150W
Pppm - Peak Pulse Power Dissipation
+125C
Maximum Operating Temperature
13.2V
Clamping Voltage
8.5V
Breakdown Voltage
10A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
SOT-23-6
Package-Case
