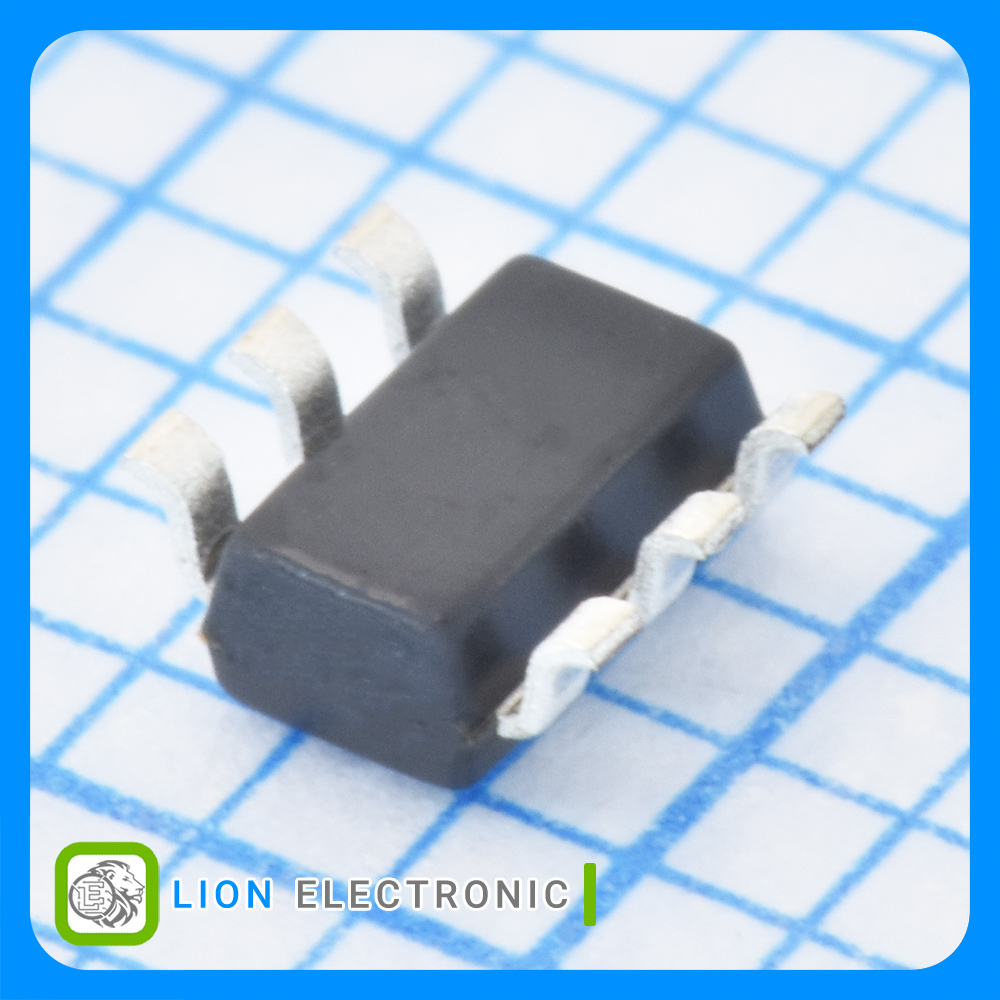

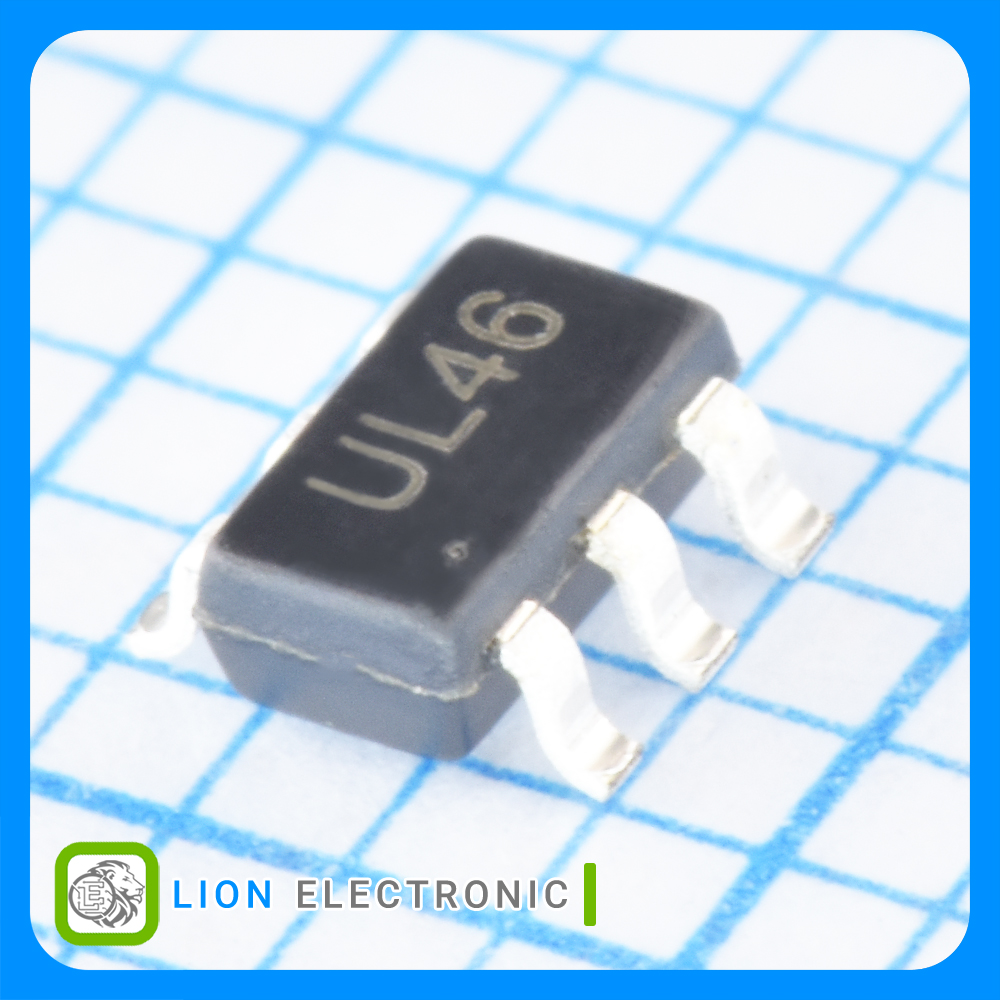

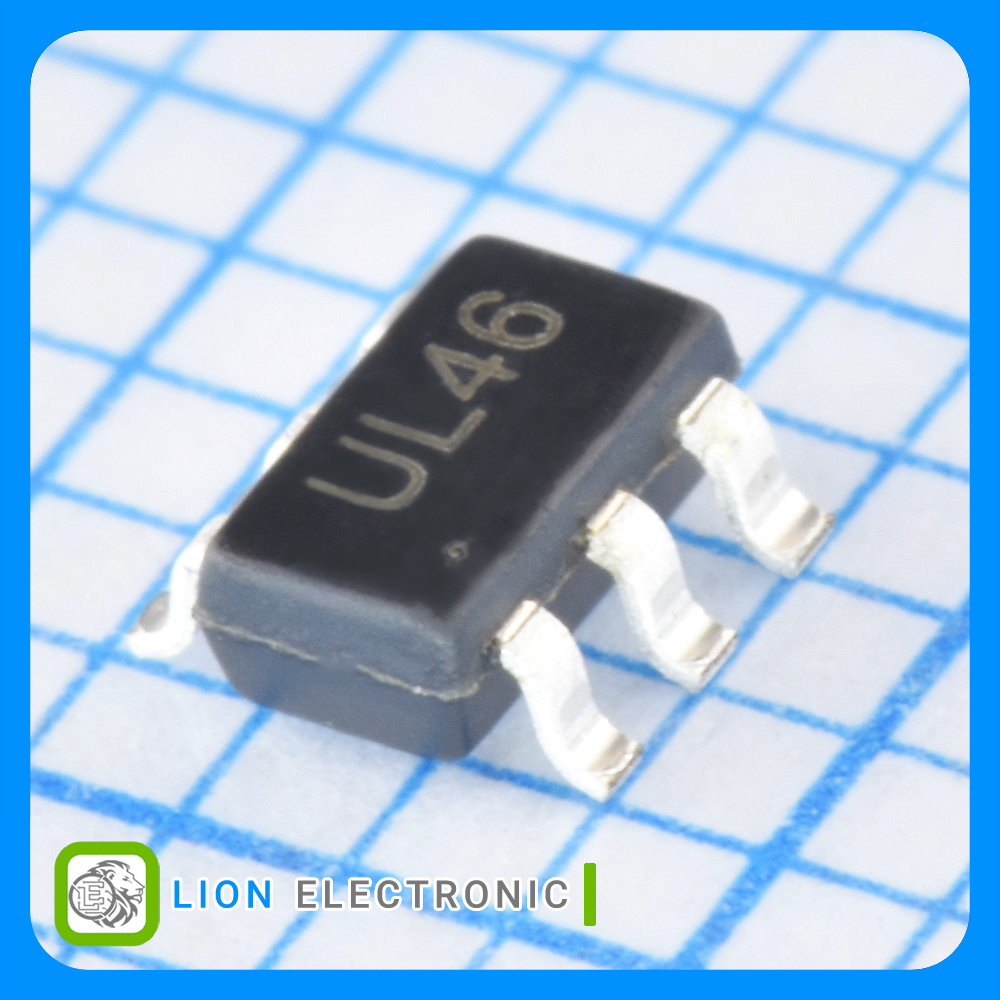

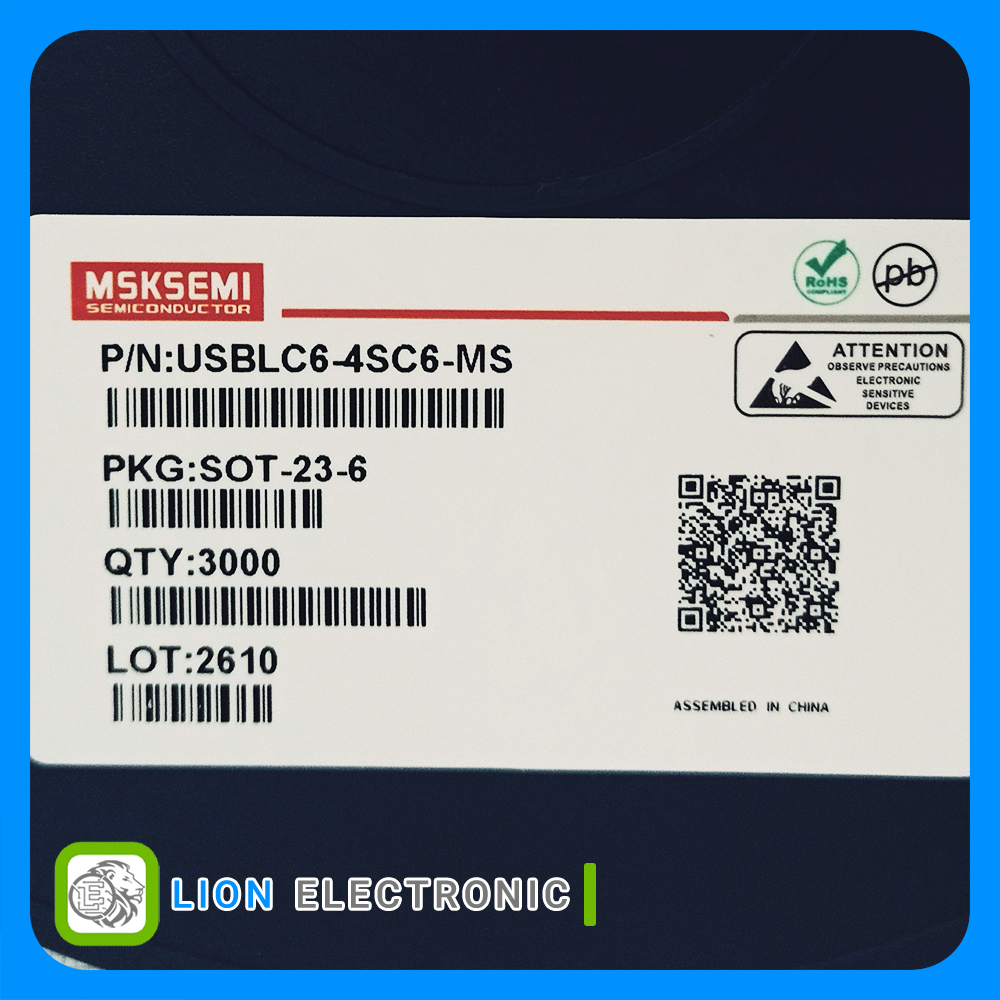

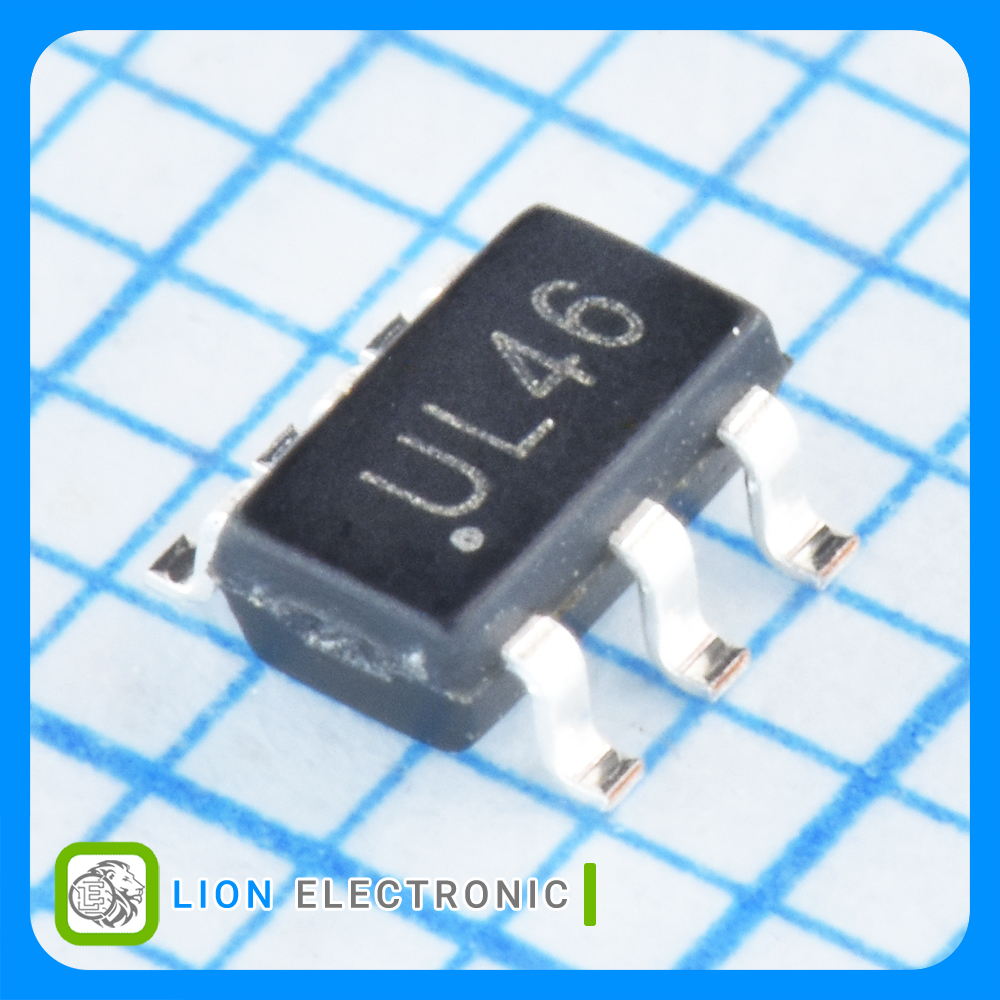

USBLC6-4SC6-MS
USBLC6-4SC6-MS
Part Number
4787
Lion Part
Datasheet
MSKSEMI Manufacture
دیود TVS چهار کانال دو جهته 5 ولت 80 وات مناسب برای ارتباطات سرعت بالا مثل USB با خازن پارازیتی 0.6 پیکوفاراد، با پکیج SOT-23-6
TVS Diode Bidirectional 4-Channel 5V, 80W, 4-Line Bidirectional ESD Protection for High Speed Interfaces like USB, 0.6pF Parasitic Capacitance, with SOT-23-6 Package
معرفی
دیود TVS چهار کانال دو جهته 5 ولت 80 وات مناسب برای ارتباطات سرعت بالا مثل USB با خازن پارازیتی 0.6 پیکوفاراد، با پکیج SOT-23-6
TVS Diode Bidirectional 4-Channel 5V, 80W, 4-Line Bidirectional ESD Protection for High Speed Interfaces like USB, 0.6pF Parasitic Capacitance, with SOT-23-6 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 4
- Working Voltage: 5V
- Breakdown Voltage: 6V
- Clamping Voltage: 12V
- Pppm - Peak Pulse Power Dissipation: 80W
- Vesd - Voltage ESD Contact: 10kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 0.6pF
- Ipp - Peak Pulse Current: 5A
- Termination style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات USBLC6-4SC6-MS
USBLC6-4SC6-MS
Part Number
15kV
Vesd - Voltage ESD Air Gap
10kV
Vesd - Voltage ESD Contact
-55C
Minimum Operating Temperature
5V
Working Voltage
SMD/SMT
Termination style
Reel
Packaging
4
Number of Channels
0.6pF
Cd - Diode Capacitance
80W
Pppm - Peak Pulse Power Dissipation
Unidirectional
Polarity
6V
Breakdown Voltage
12V
Clamping Voltage
+125C
Maximum Operating Temperature
5A
Ipp - Peak Pulse Current
ESD Suppressors
Product Type
SOT-23-6
Package-Case
