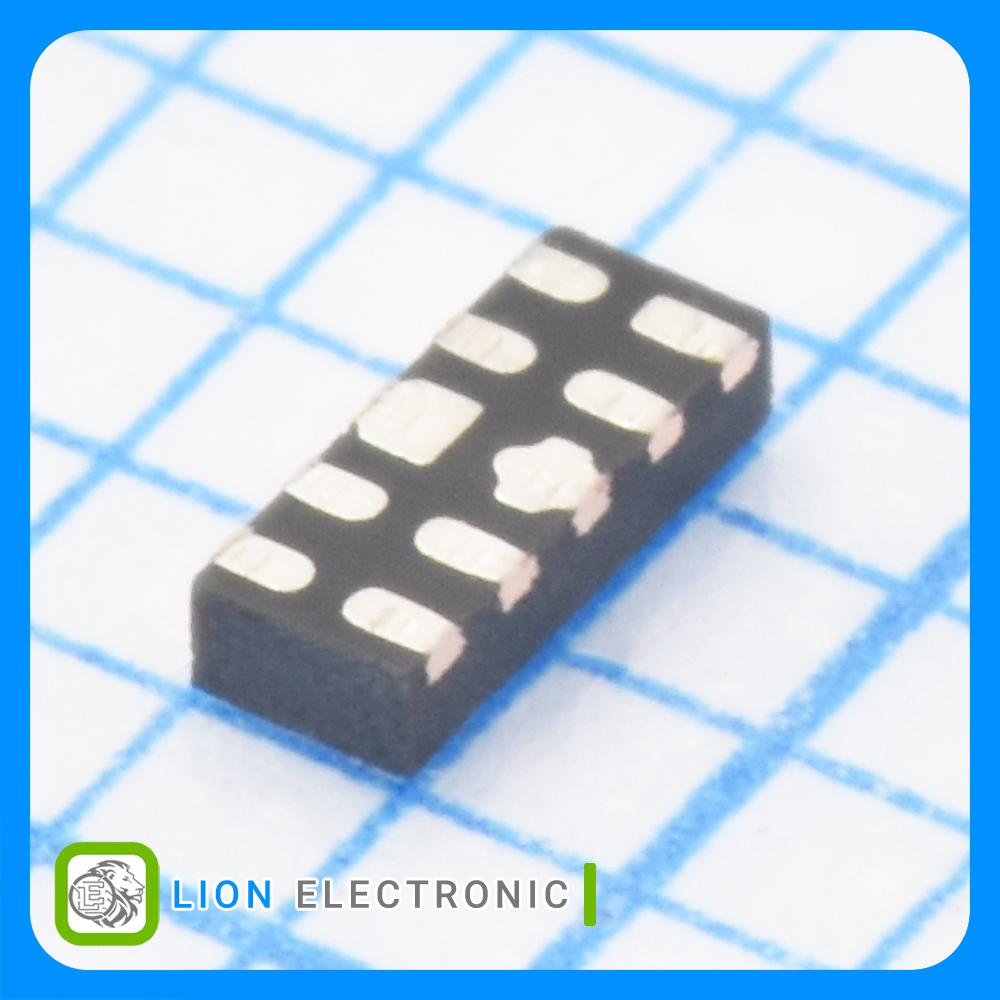

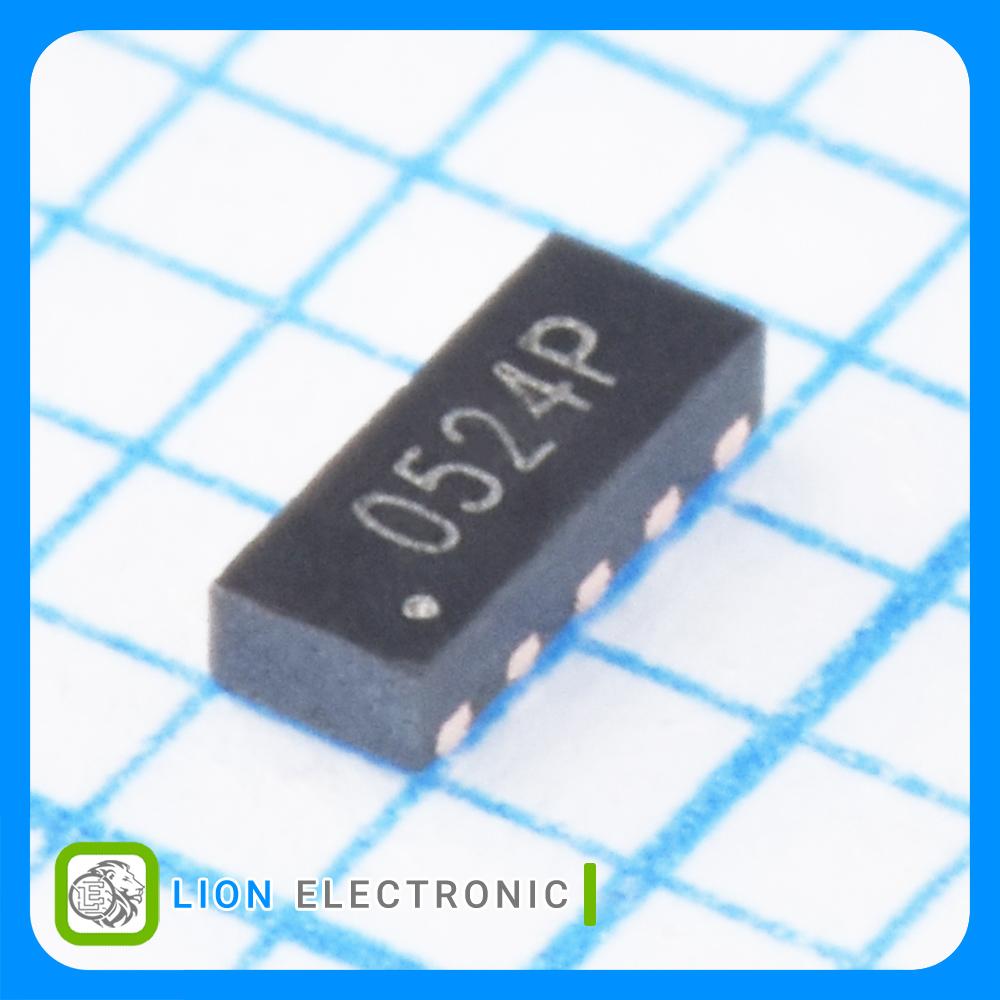

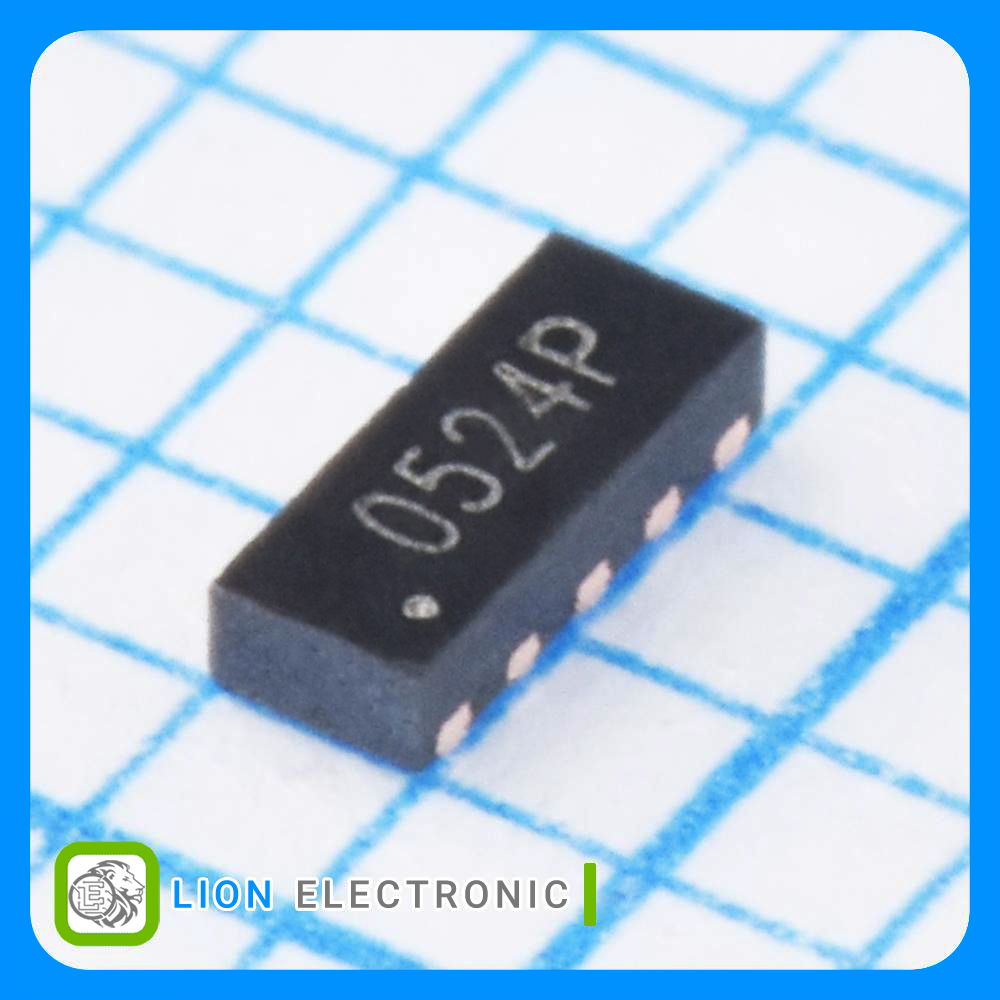

SEUC10F5V4U-MS
SEUC10F5V4U-MS
Part Number
4788
Lion Part
Datasheet
MSKSEMI Manufacture
دیود TVS چهار کانال دوطرفه 5 ولت 60 وات مناسب برای ارتباطات سرعت بالا مثل USB با خازن پارازیتی 0.2 پیکوفاراد، با پکیج DFN2510-10L
TVS Diode Bidirectional 4-Channel 5V, 60W, 4-Line Bidirectional ESD Protection for High Speed Interfaces like USB, 0.2pF Parasitic Capacitance, with DFN2510-10L Package
معرفی
دیود TVS چهار کانال دوطرفه 5 ولت 60 وات مناسب برای ارتباطات سرعت بالا مثل USB با خازن پارازیتی 0.2 پیکوفاراد، با پکیج DFN2510-10L
TVS Diode Bidirectional 4-Channel 5V, 60W, 4-Line Bidirectional ESD Protection for High Speed Interfaces like USB, 0.2pF Parasitic Capacitance, with DFN2510-10L Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Bidirectional
- Number of Channels: 4
- Working Voltage: 5V
- Breakdown Voltage: 6V
- Clamping Voltage: 15V
- Pppm - Peak Pulse Power Dissipation: 60W
- Vesd - Voltage ESD Contact: 20kV
- Vesd - Voltage ESD Air Gap: 25kV
- Cd - Diode Capacitance: 0.2pF
- Ipp - Peak Pulse Current: 4A
- Termination style: SMD/SMT
- Package/Case: DFN2510-10L
- Packaging: Reel
مشخصات SEUC10F5V4U-MS
SEUC10F5V4U-MS
Part Number
Bidirectional
Polarity
0.2pF
Cd - Diode Capacitance
25kV
Vesd - Voltage ESD Air Gap
5V
Working Voltage
20kV
Vesd - Voltage ESD Contact
4
Number of Channels
SMD/SMT
Termination style
Reel
Packaging
60W
Pppm - Peak Pulse Power Dissipation
6V
Breakdown Voltage
4A
Ipp - Peak Pulse Current
N/A
Minimum Operating Temperature
15V
Clamping Voltage
ESD Suppressors
Product Type
N/A
Maximum Operating Temperature
DFN2510-10L
Package-Case
