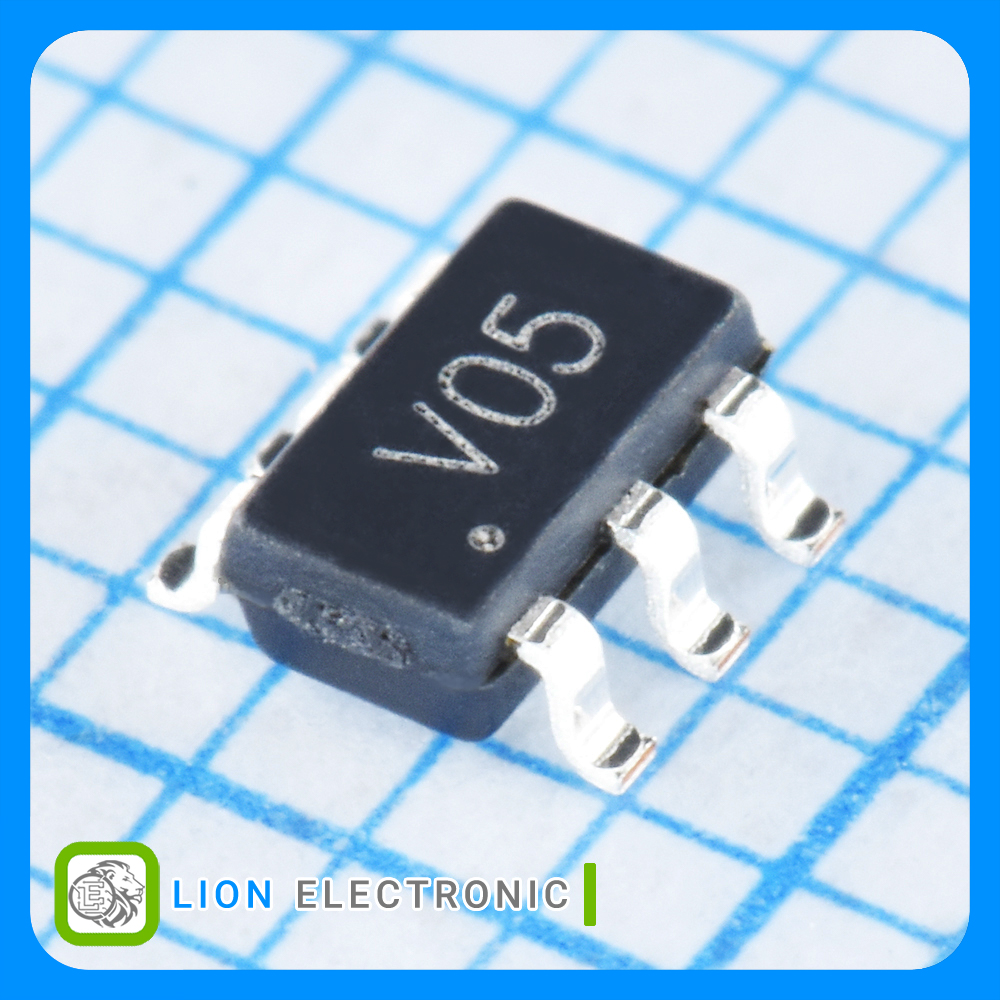

SRV05-4
SRV05-4
Part Number
4847
Lion Part
Datasheet
MSKSEMI Manufacture
دیود TVS دوجهته 5 ولت 60 وات حفاظت گذرا برای دیتالاینهای پرسرعت، 4 کانال دیتا و 1 کانال تغذیه با پکیج SOT-23-6
TVS Diode Bidirectional 5V, 60W, Transient Protection for High-Speed Datalines, Protects 4 data lines and 1 Vcc line, with SOT-23-6 Package
معرفی
دیود TVS دوجهته 5 ولت 60 وات حفاظت گذرا برای دیتالاینهای پرسرعت، 4 کانال دیتا و 1 کانال تغذیه با پکیج SOT-23-6
TVS Diode Bidirectional 5V, 60W, Transient Protection for High-Speed Datalines, Protects 4 data lines and 1 Vcc line, with SOT-23-6 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 4
- Working Voltage: 5V
- Breakdown Voltage: 9V
- Clamping Voltage: 15V
- Pppm - Peak Pulse Power Dissipation: 60W
- Vesd - Voltage ESD Contact: 20kV
- Vesd - Voltage ESD Air Gap: 25kV
- Cd - Diode Capacitance: 0.5pF
- Termination style: SMD/SMT

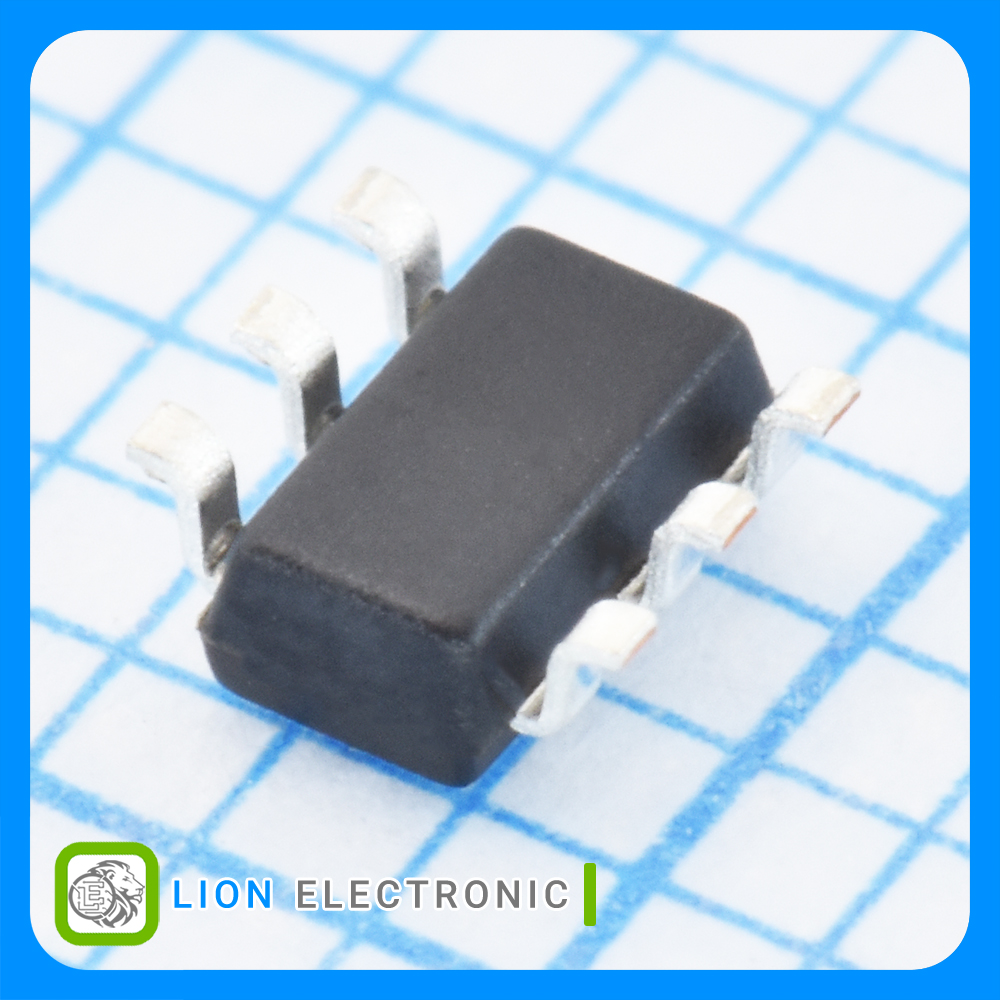

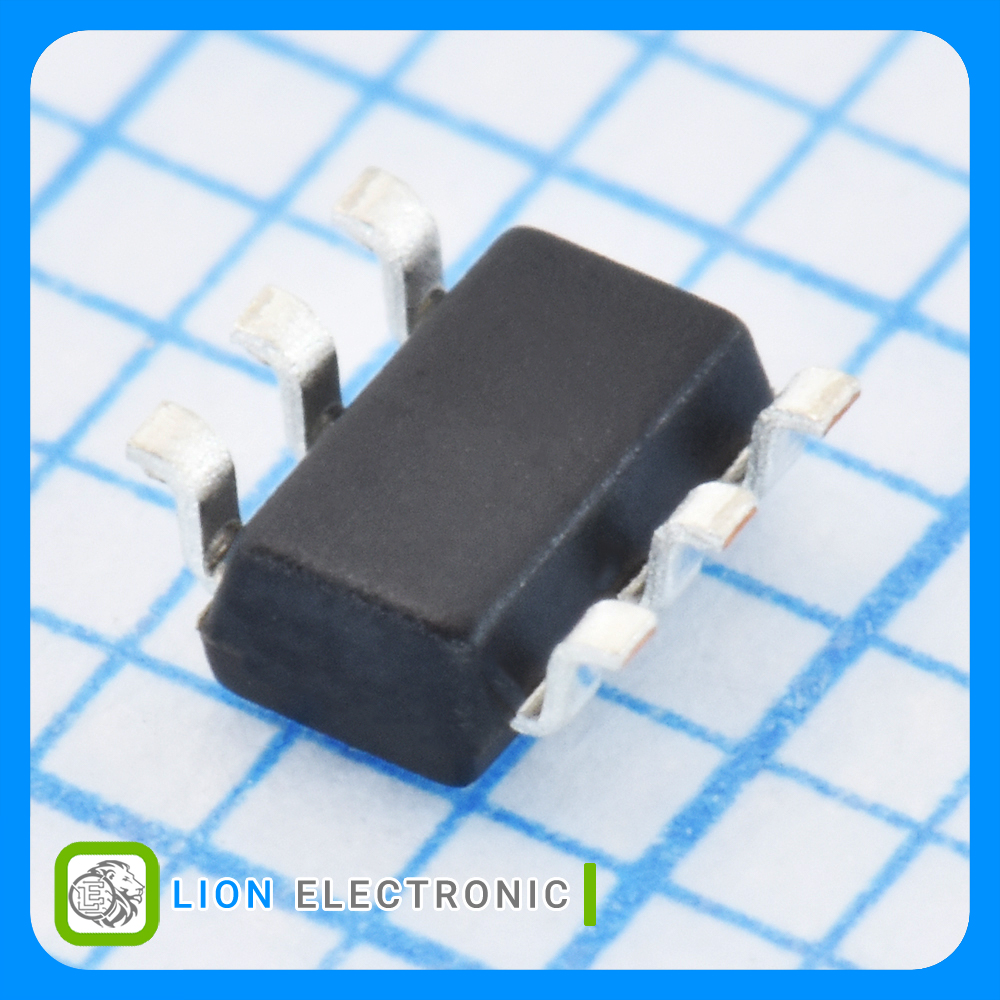

- Package/Case: SOT-23-6
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات SRV05-4
SRV05-4
Part Number
Bidirectional
Polarity
25kV
Vesd - Voltage ESD Air Gap
-55C
Minimum Operating Temperature
5V
Working Voltage
20kV
Vesd - Voltage ESD Contact
0.5pF
Cd - Diode Capacitance
4
Number of Channels
60W
Pppm - Peak Pulse Power Dissipation
SMD/SMT
Termination style
Reel
Packaging
+125C
Maximum Operating Temperature
15V
Clamping Voltage
9V
Breakdown Voltage
N/A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
SOT-23-6
Package-Case
