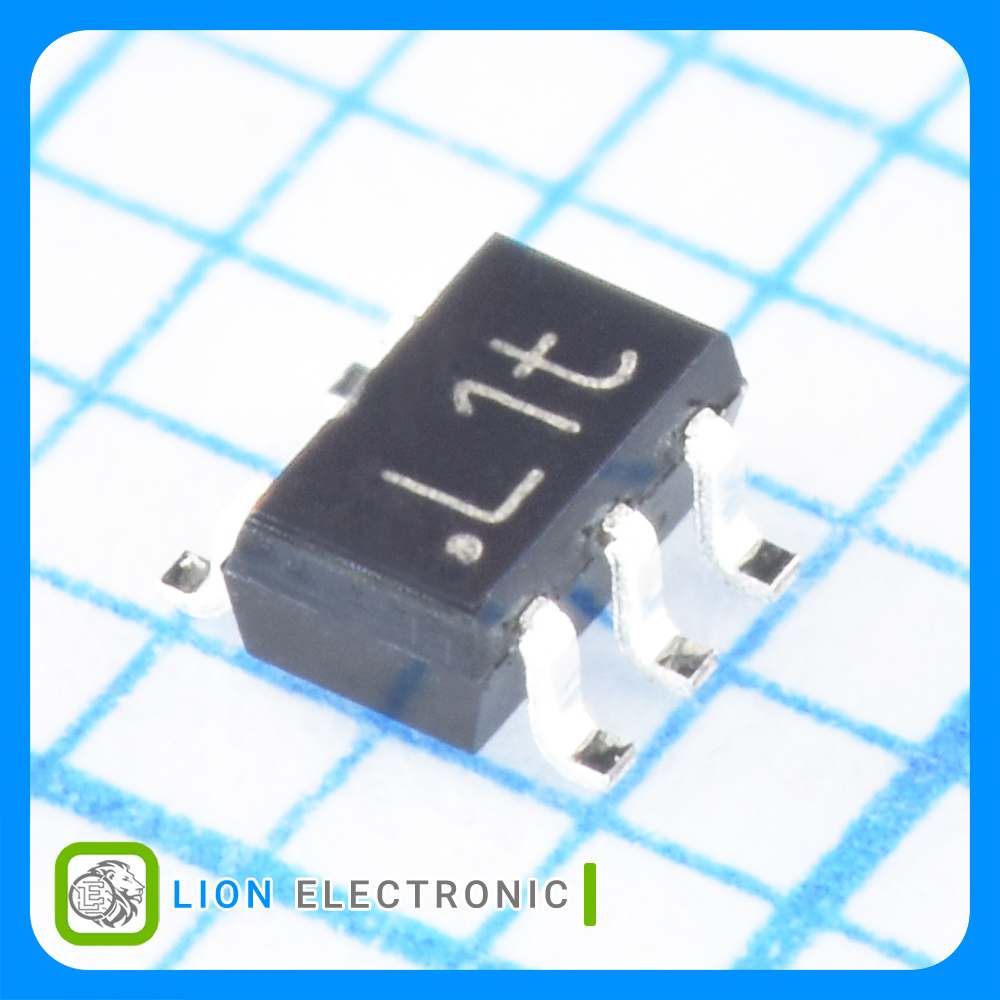

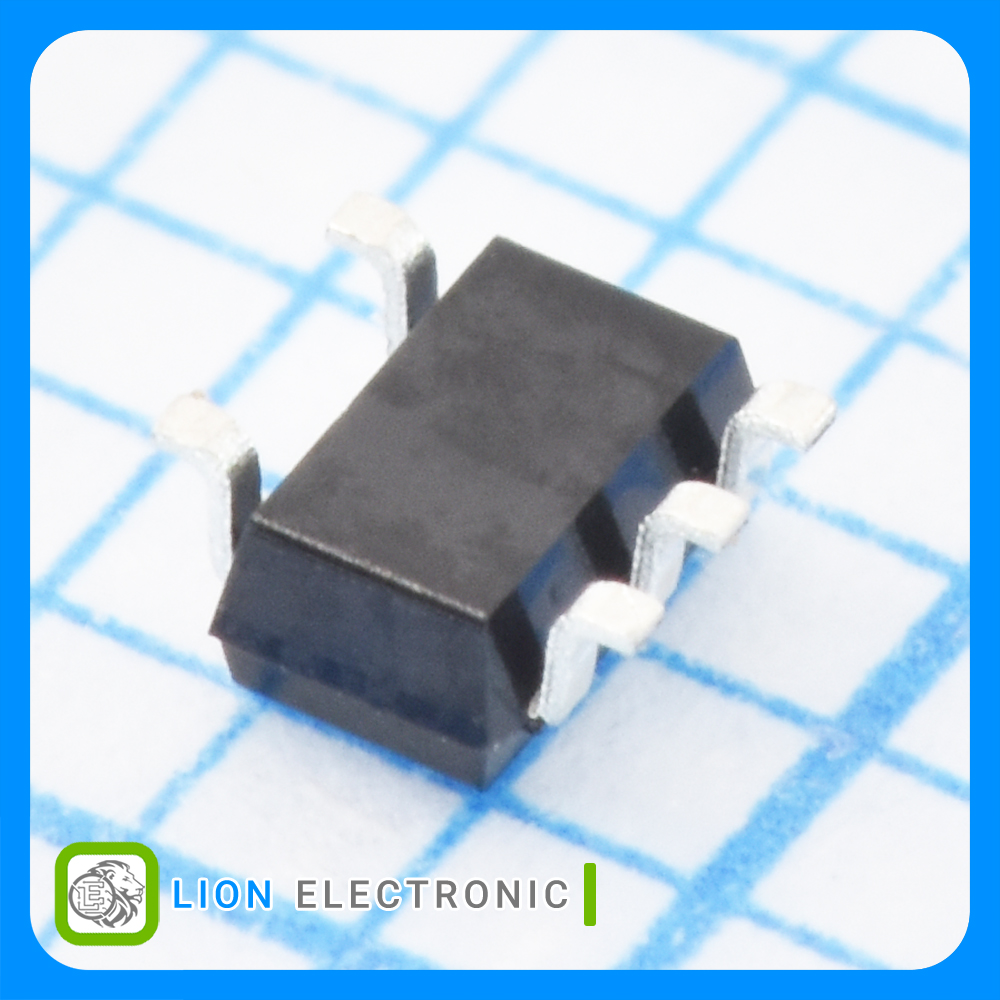

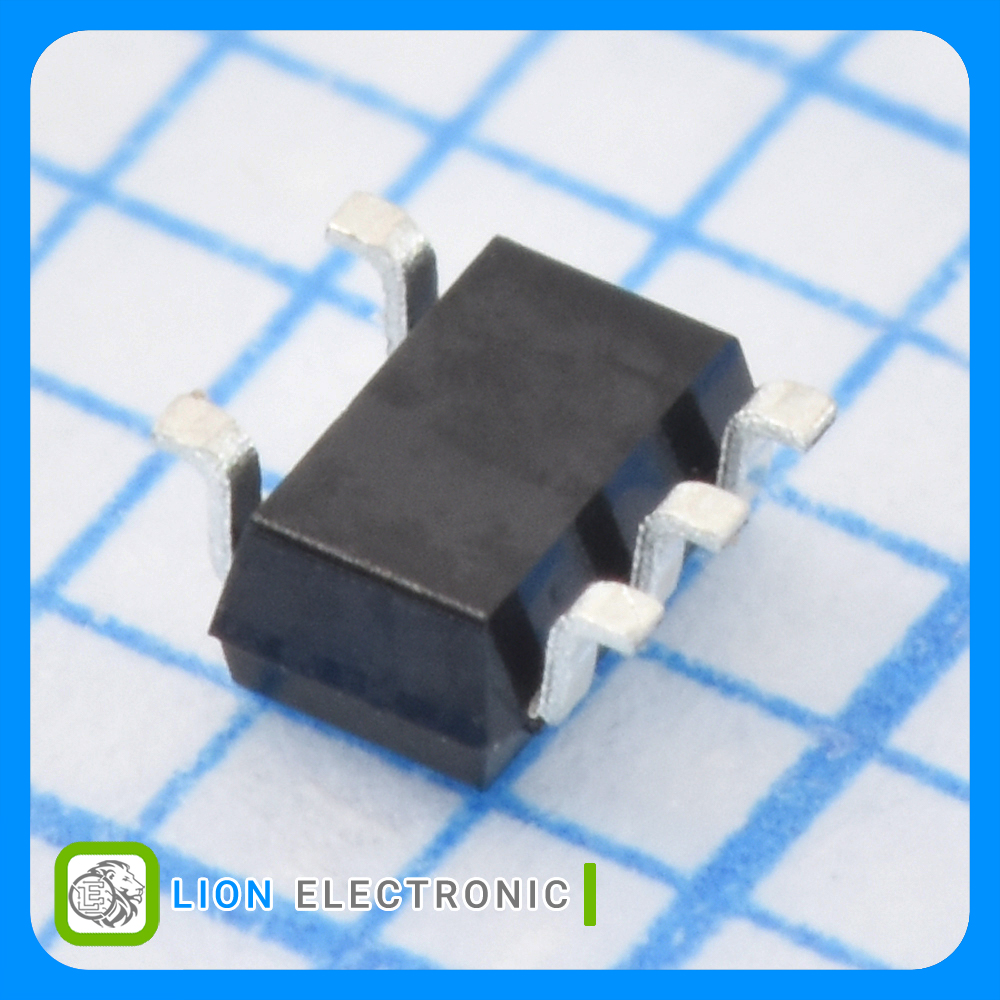

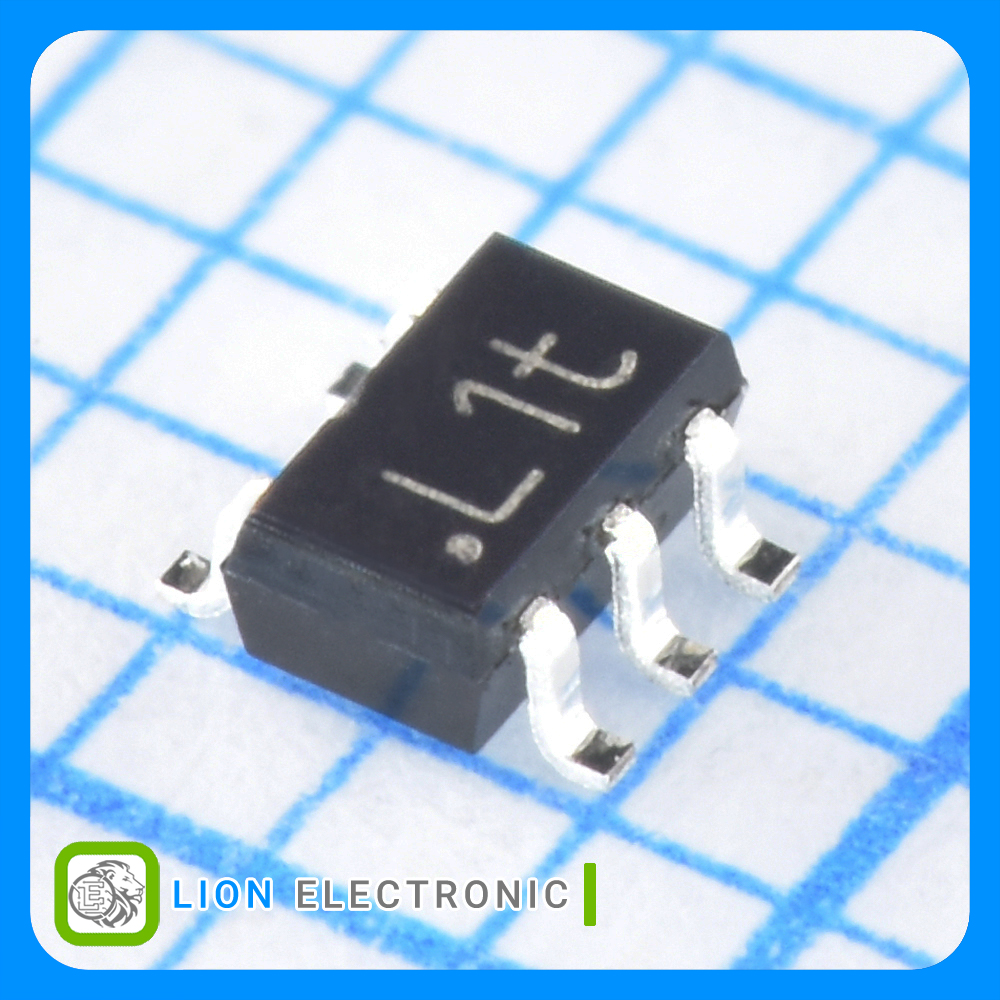

PESD3V3L4UG,115
PESD3V3L4UG,115
Part Number
5375
Lion Part
Datasheet
Nexperia Manufacture
آرایه چهارتایی دیود TVS محافظ ESD یکطرفه 4 کاناله ولتاژ کاری 3.3 ولت، ولتاژ شکست 5.6 ولت، ولتاژ کلمپ 8 ولت، توان 30 وات، ظرفیت پایین با پکیج SOT-353
TVS Diode Unidirectional Quadruple ESD Protection Array, 4-Channel, 3.3V Working, 5.6V Breakdown, 8V Clamping, 30W, Low Capacitance with SOT-353 Package
معرفی
آرایه چهارتایی دیود TVS محافظ ESD یکطرفه 4 کاناله ولتاژ کاری 3.3 ولت، ولتاژ شکست 5.6 ولت، ولتاژ کلمپ 8 ولت، توان 30 وات، ظرفیت پایین با پکیج SOT-353
TVS Diode Unidirectional Quadruple ESD Protection Array, 4-Channel, 3.3V Working, 5.6V Breakdown, 8V Clamping, 30W, Low Capacitance with SOT-353 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 4
- Working Voltage: 3.3V
- Breakdown Voltage: 5.6V
- Clamping Voltage: 8V
- Pppm - Peak Pulse Power Dissipation: 30W
- Vesd - Voltage ESD Contact: 20kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 22pF
- Ipp - Peak Pulse Current: 3A
- Termination style: SMD/SMT
- Package/Case: SOT-353
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات PESD3V3L4UG,115
PESD3V3L4UG,115
Part Number
15kV
Vesd - Voltage ESD Air Gap
3.3V
Working Voltage
-65C
Minimum Operating Temperature
30W
Pppm - Peak Pulse Power Dissipation
8V
Clamping Voltage
20kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
Reel
Packaging
4
Number of Channels
Unidirectional
Polarity
5.6V
Breakdown Voltage
3A
Ipp - Peak Pulse Current
22pF
Cd - Diode Capacitance
+150C
Maximum Operating Temperature
ESD Suppressors
Product Type
SOT-353
Package-Case
