Nexperia
معرفی

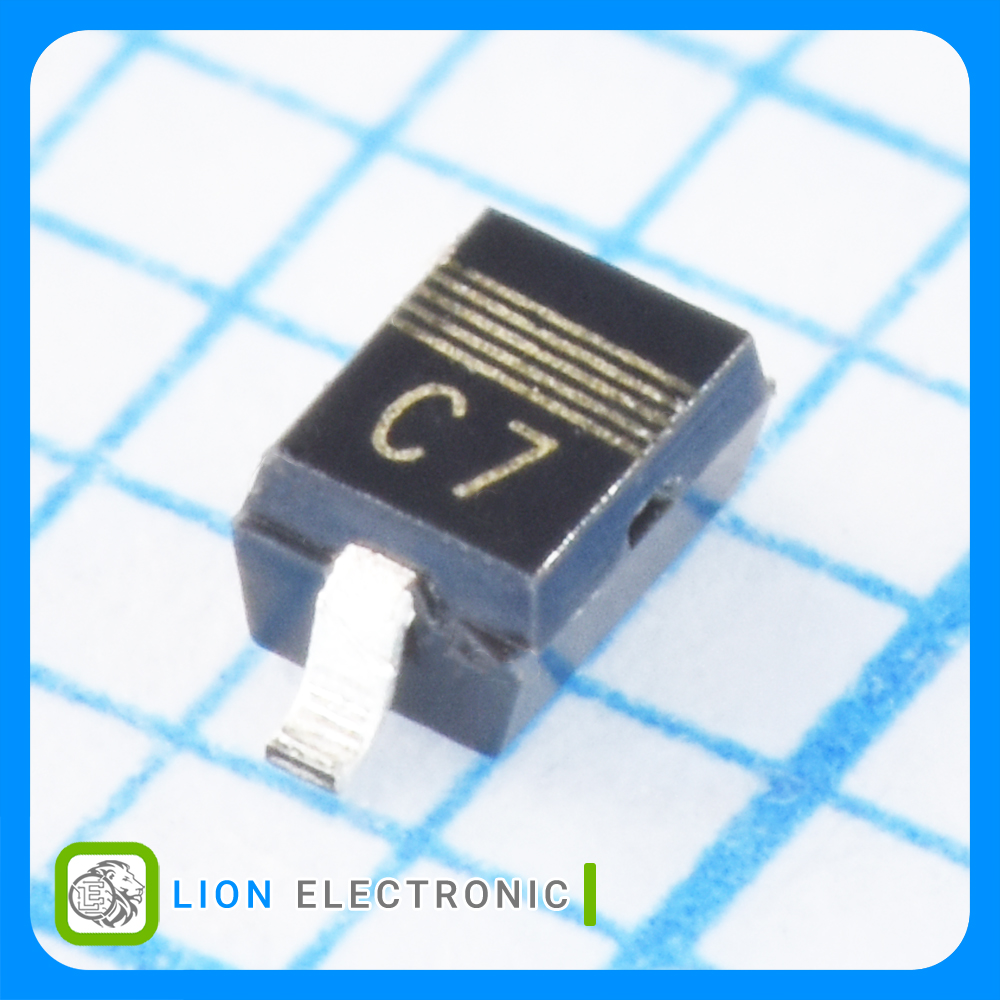

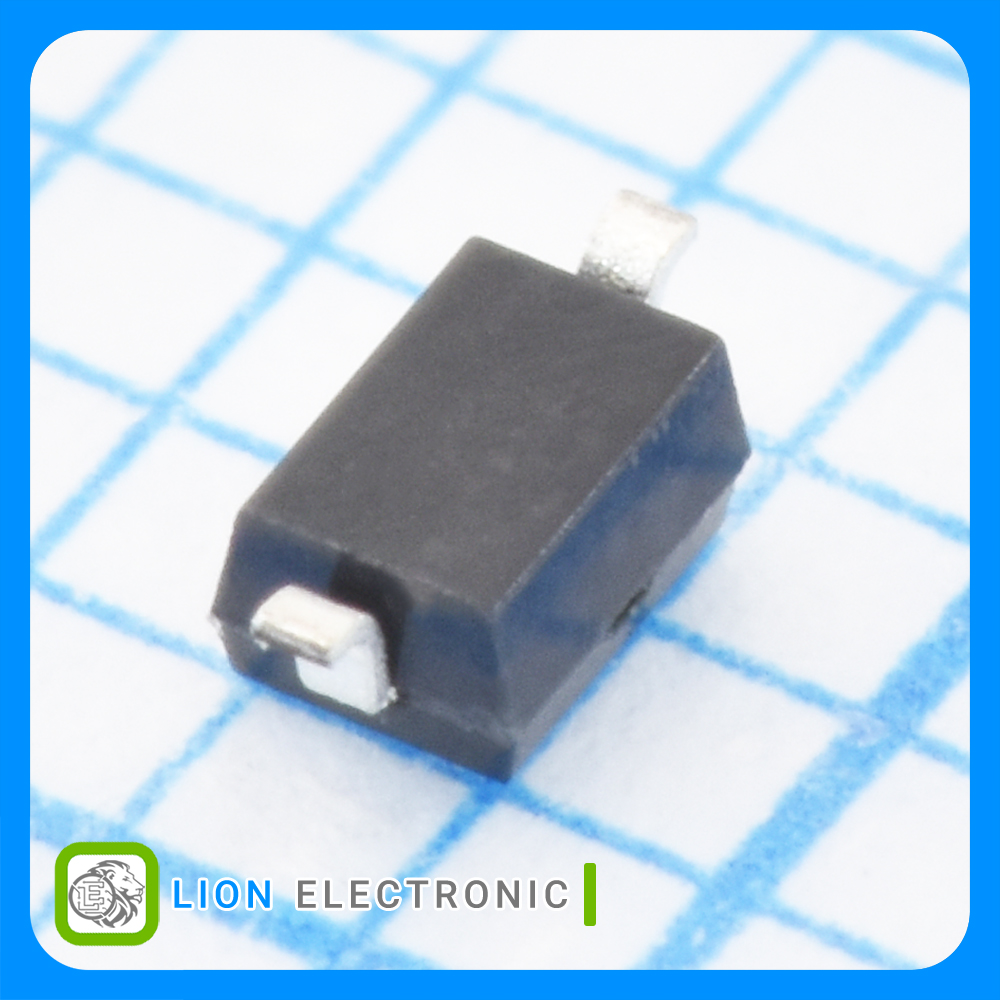

دیود محافظ ESD تکطرفه 5 ولت 1.3 آمپر ظرفیت 2 پیکوفاراد با پکیج SOD-323
Ultra Low Capacitance 5V Unidirectional ESD Protection Diode, 1.3A, 2pF, SOD-323 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 5V
- Breakdown Voltage: 6.8V
- Clamping Voltage: 9V
- Vesd - Voltage ESD Contact: 9kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 2pF
- Ipp - Peak Pulse Current: 1.3A
- Termination style: SMD/SMT
- Package/Case: SOD-323
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات PESD5V0U1UA,115
PESD5V0U1UA,115
Part Number
1
Number of Channels
9kV
Vesd - Voltage ESD Contact
15kV
Vesd - Voltage ESD Air Gap
-55C
Minimum Operating Temperature
5V
Working Voltage
1.3A
Ipp - Peak Pulse Current
Reel
Packaging
SMD/SMT
Termination style
9V
Clamping Voltage
Unidirectional
Polarity
2pF
Cd - Diode Capacitance
6.8V
Breakdown Voltage
N/A
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
ESD Suppressors
Product Type
SOD-323
Package-Case
