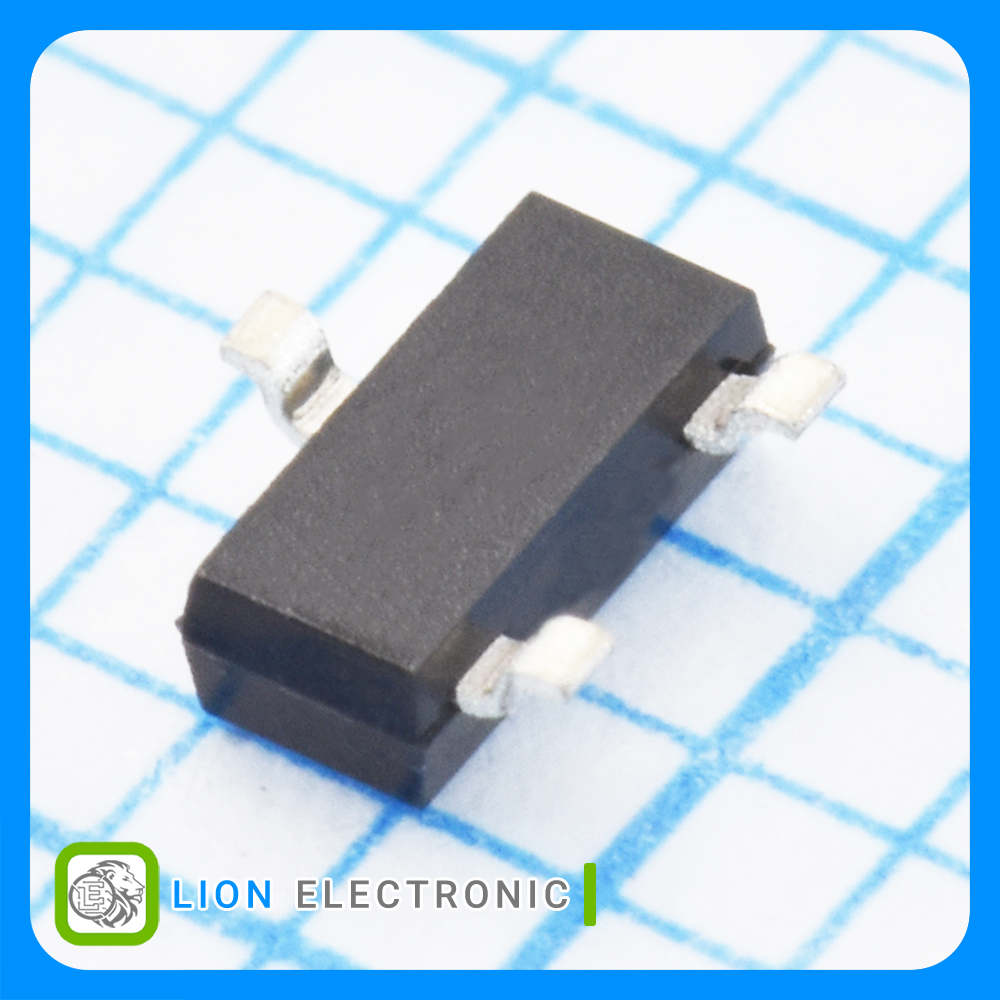

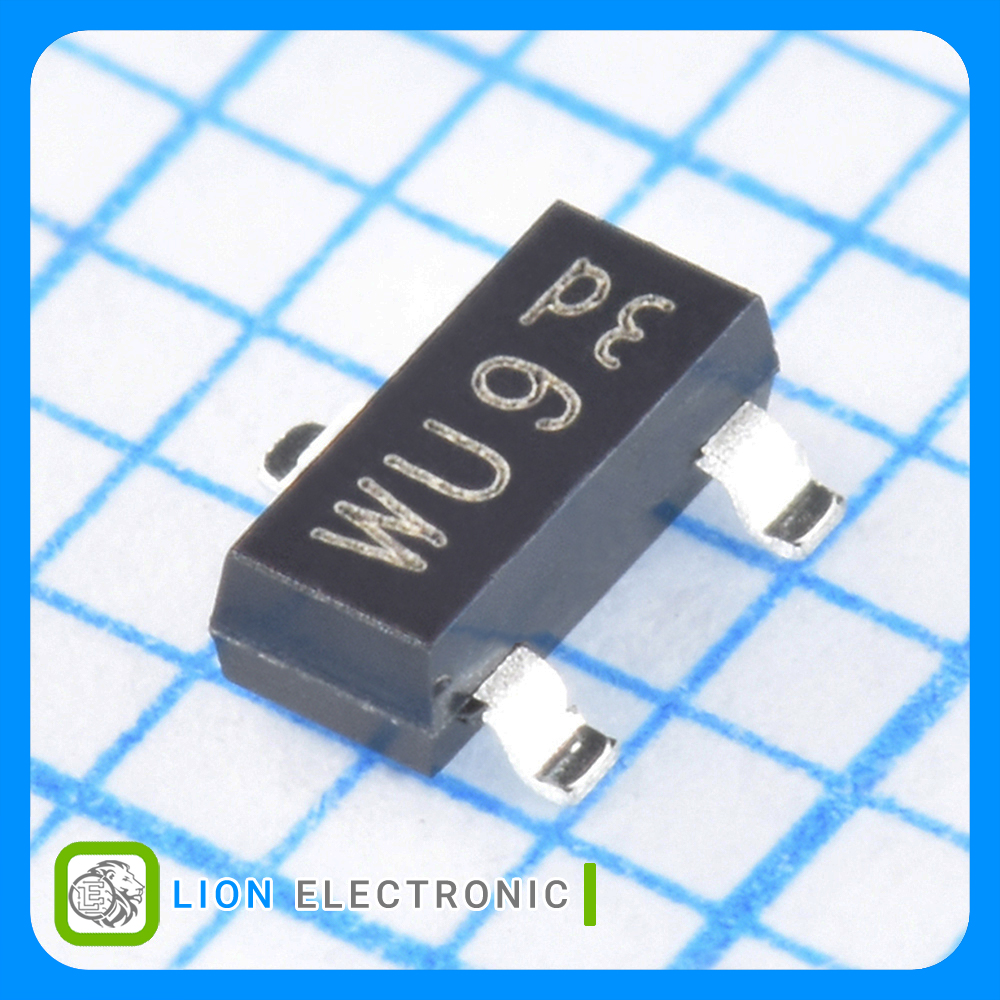

PESD3V3S2UT,215
PESD3V3S2UT,215
Part Number
5421
Lion Part
Datasheet
Nexperia Manufacture
دیود TVS محافظ ESD یکطرفه دوبل 3.3 ولت 330 وات با خازن دیود 207 پیکوفاراد (تیپیک) با پکیج SOT-23-3 پلاستیکی
TVS Diode Uni-directional Double ESD Protection, 3.3V, 330W, 207pF Typ Diode Capacitance, with SOT-23-3 Plastic Package
معرفی
دیود TVS محافظ ESD یکطرفه دوبل 3.3 ولت 330 وات با خازن دیود 207 پیکوفاراد (تیپیک) با پکیج SOT-23-3 پلاستیکی
TVS Diode Uni-directional Double ESD Protection, 3.3V, 330W, 207pF Typ Diode Capacitance, with SOT-23-3 Plastic Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 2
- Working Voltage: 3.3V
- Breakdown Voltage: 5.6V
- Clamping Voltage: 20V
- Pppm - Peak Pulse Power Dissipation: 330W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 207pF
- Ipp - Peak Pulse Current: 18A
- Termination style: SMD/SMT
- Package/Case: SOT-23-3
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات PESD3V3S2UT,215
PESD3V3S2UT,215
Part Number
-65C
Minimum Operating Temperature
2
Number of Channels
15kV
Vesd - Voltage ESD Air Gap
3.3V
Working Voltage
30kV
Vesd - Voltage ESD Contact
Reel
Packaging
SMD/SMT
Termination style
Unidirectional
Polarity
5.6V
Breakdown Voltage
330W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
ESD Suppressors
Product Type
20V
Clamping Voltage
207pF
Cd - Diode Capacitance
18A
Ipp - Peak Pulse Current
SOT-23-3
Package-Case
