ESDA5V3L
ESDA5V3L
Part Number
5422
Lion Part
Datasheet
STMicroelectronics Manufacture
دیود TVS دوبل با ولتاژ کاری 3 ولت، ولتاژ شکست 5.3 ولت، 300 وات، محافظت 1 خط دوطرفه یا 2 خط یکطرفه در برابر ESD، خازن پارازیتی پایین، پکیج SOT-23-3

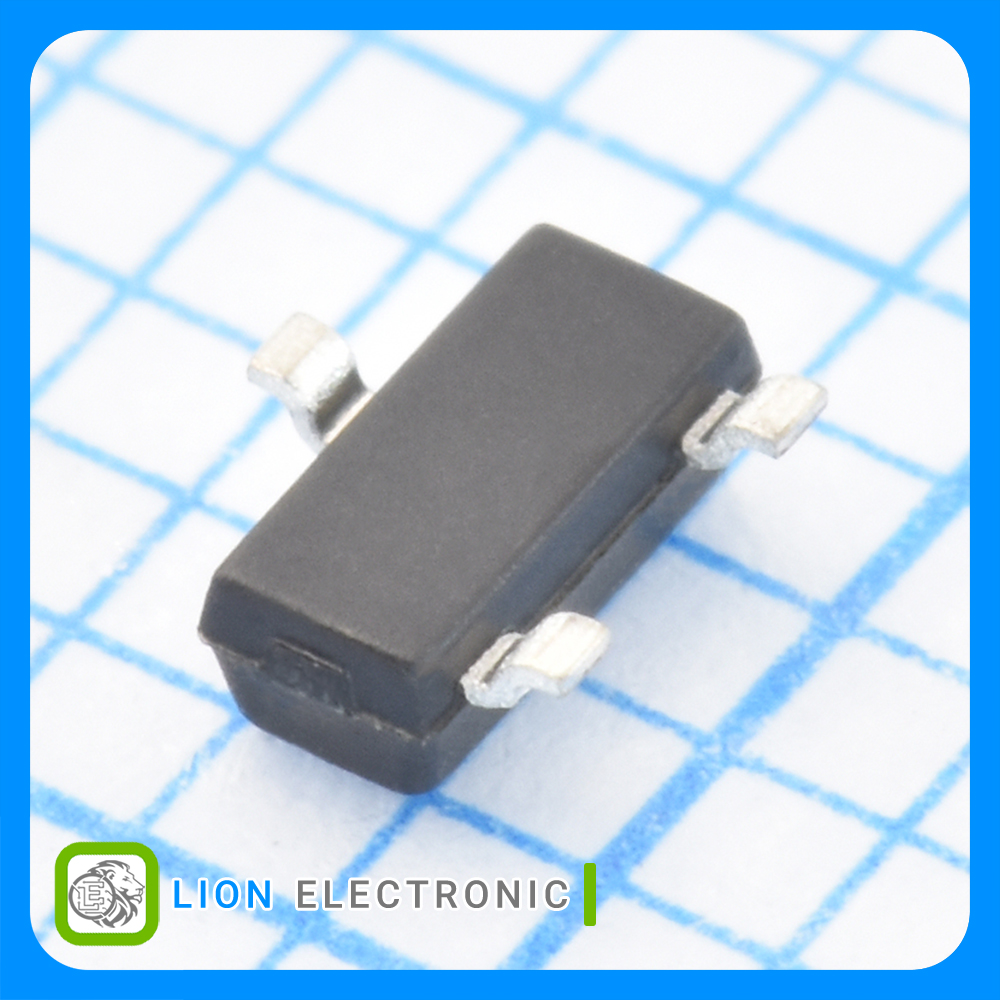

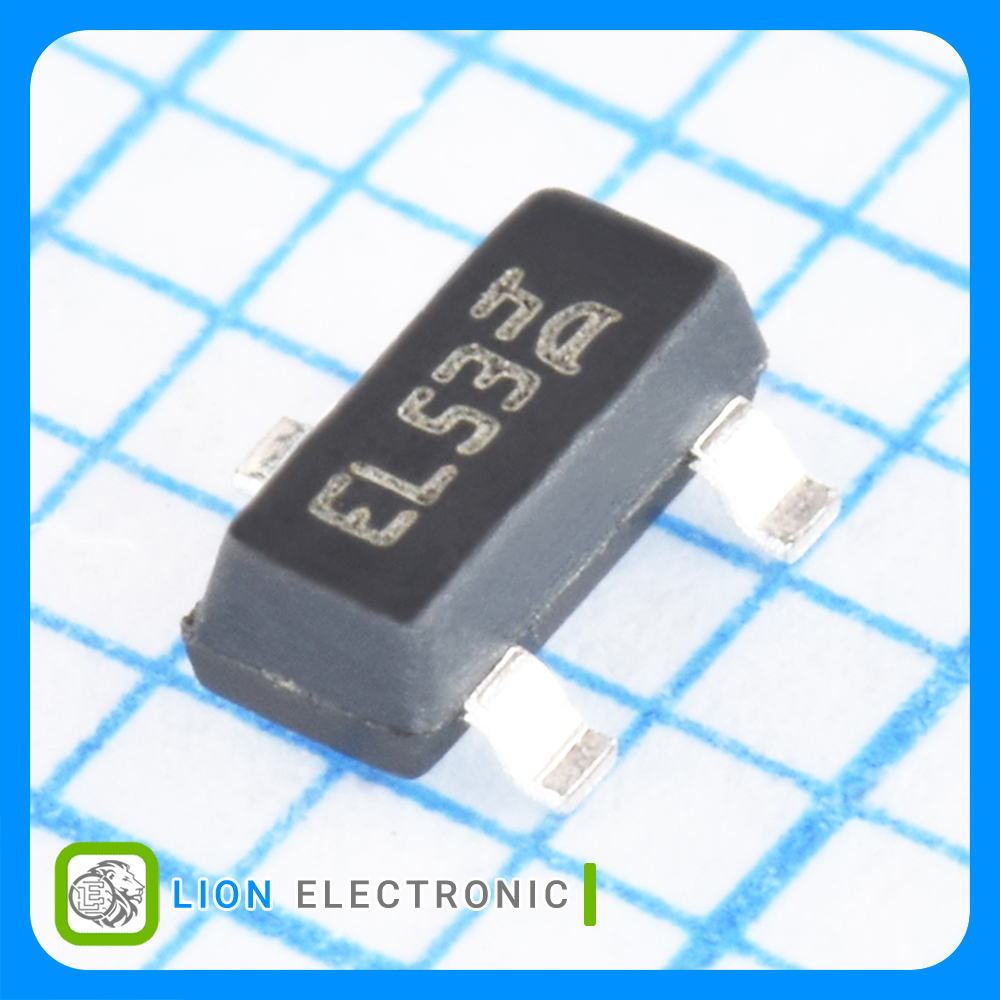

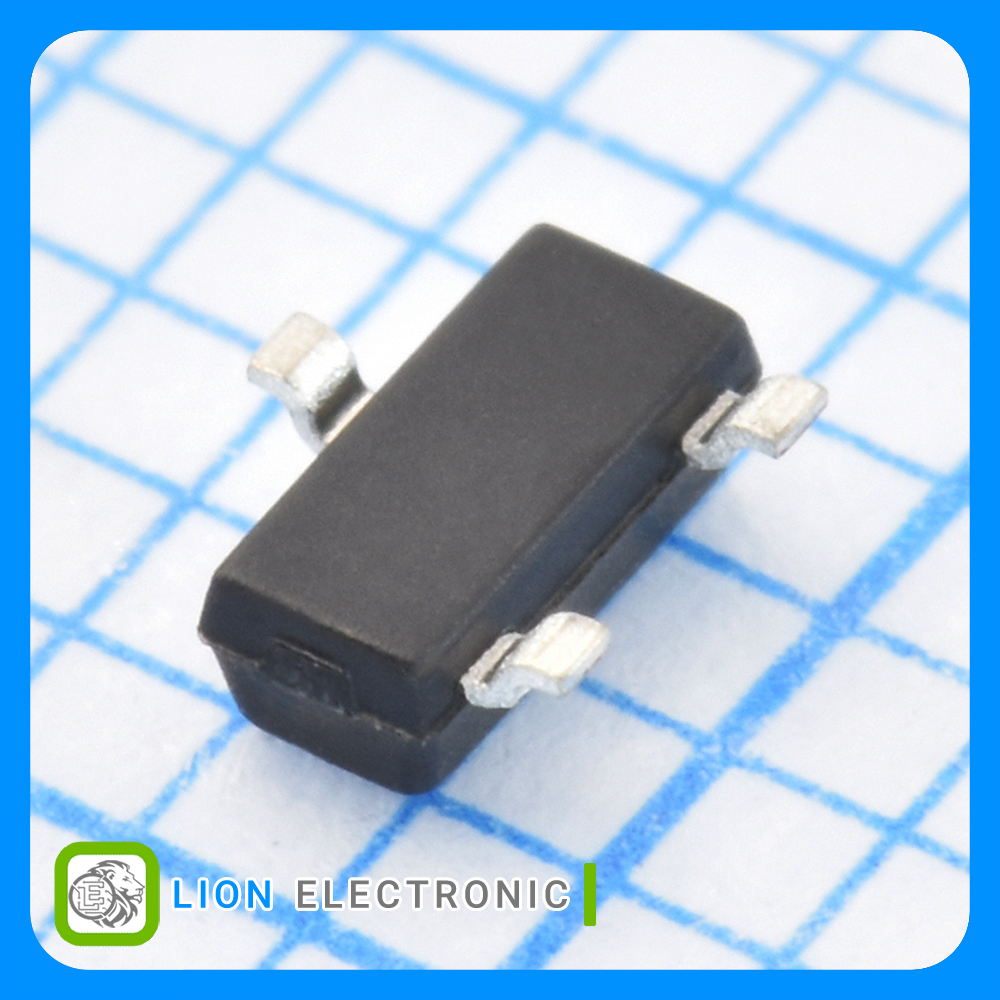

Dual TVS Array Designed to Protect 1 Bidirectional Line or 2 Unidirectional Lines Against ESD Transients, 3V Working, 5.3V Breakdown, 300W, SOT-23-3 Package
معرفی
دیود TVS دوبل با ولتاژ کاری 3 ولت، ولتاژ شکست 5.3 ولت، 300 وات، محافظت 1 خط دوطرفه یا 2 خط یکطرفه در برابر ESD، خازن پارازیتی پایین، پکیج SOT-23-3
Dual TVS Array Designed to Protect 1 Bidirectional Line or 2 Unidirectional Lines Against ESD Transients, 3V Working, 5.3V Breakdown, 300W, SOT-23-3 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 2
- Working Voltage: 3V
- Breakdown Voltage: 5.3V
- Pppm - Peak Pulse Power Dissipation: 300W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 220pF
- Ipp - Peak Pulse Current: 25A
- Termination style: SMD/SMT
- Package/Case: SOT-23-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ESDA5V3L
ESDA5V3L
Part Number
3V
Working Voltage
2
Number of Channels
30kV
Vesd - Voltage ESD Air Gap
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
-40C
Minimum Operating Temperature
5.3V
Breakdown Voltage
Unidirectional
Polarity
300W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
ESD Suppressors
Product Type
220pF
Cd - Diode Capacitance
25A
Ipp - Peak Pulse Current
N/A
Clamping Voltage
SOT-23-3
Package-Case
