Nexperia
معرفی

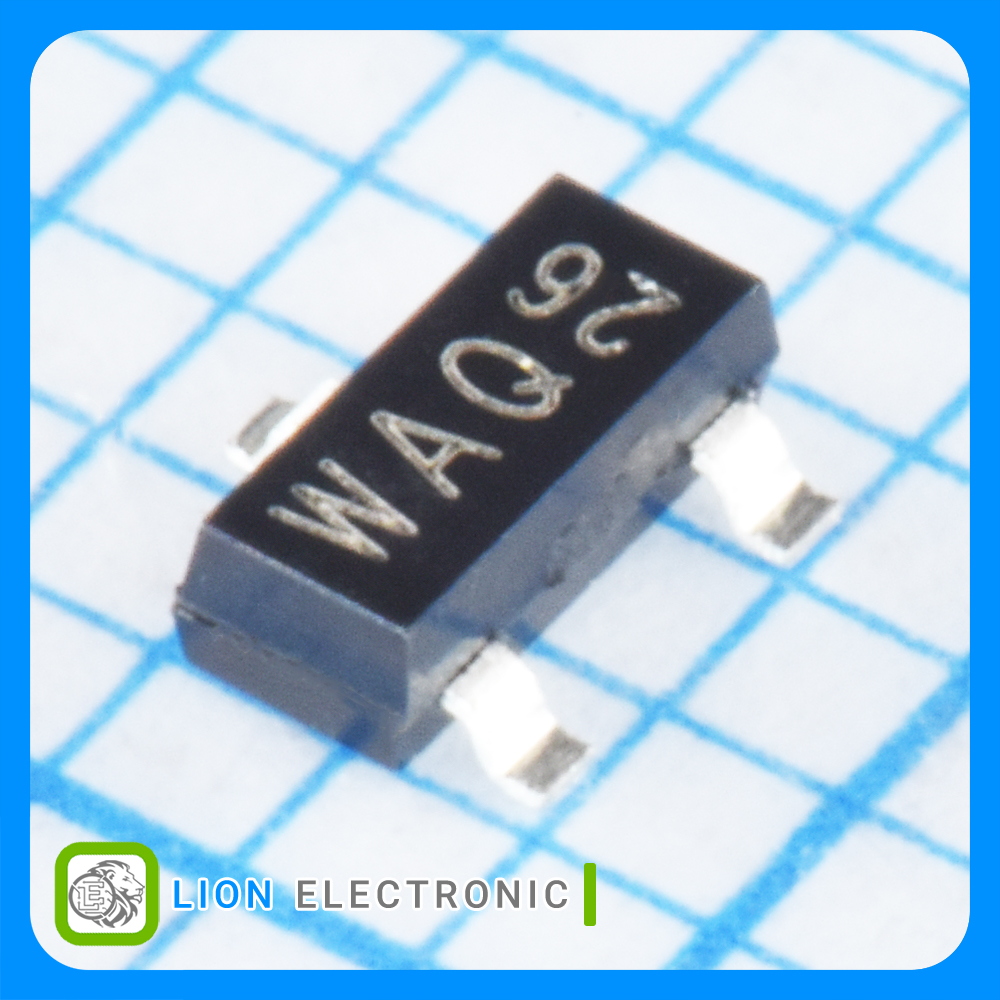

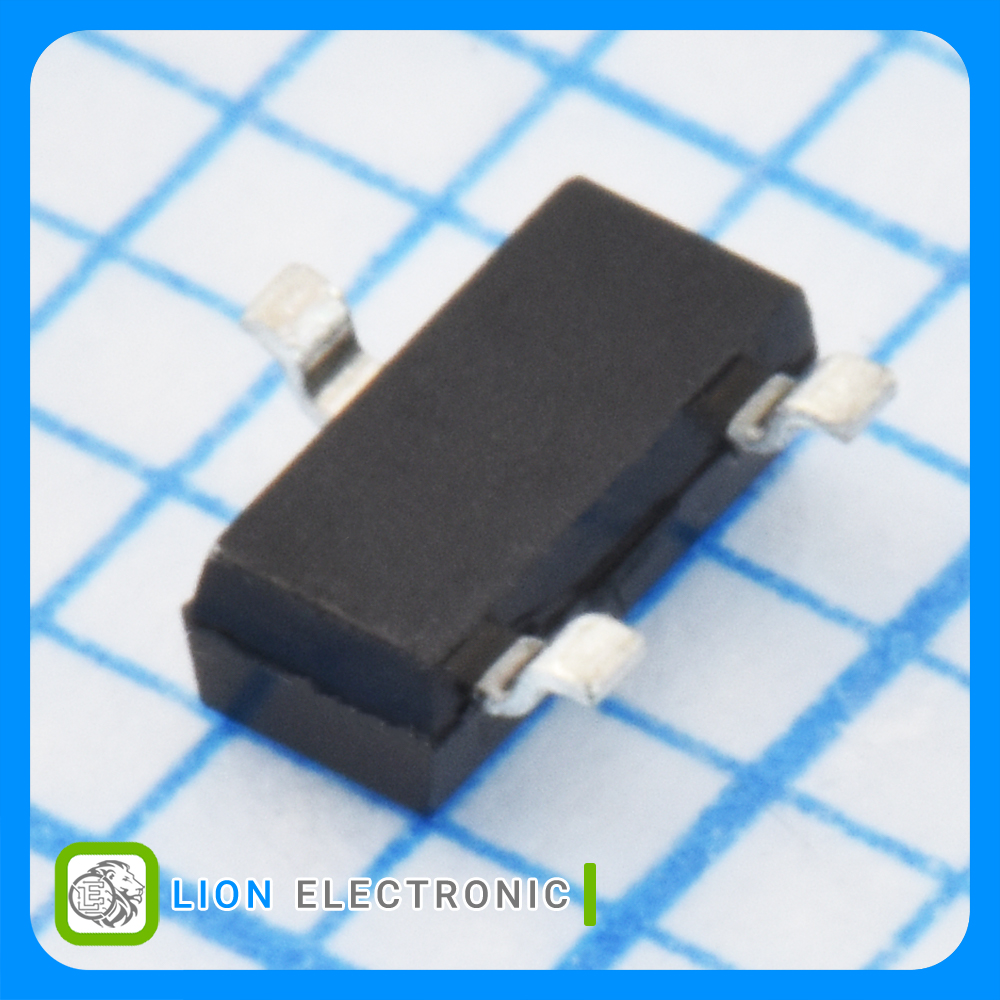

دیود محافظ ESD یکطرفه با ولتاژ کاری 5 ولت و توان پالس 80 وات، ظرفیت پایین 0.6 پیکوفاراد، پکیج SOT-23
Unidirectional TVS ESD Protection Diode 5V, 80W, Ultra Low Capacitance 0.6pF with SOT-23 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 5V
- Breakdown Voltage: 7.6V
- Clamping Voltage: 21V
- Pppm - Peak Pulse Power Dissipation: 80W
- Vesd - Voltage ESD Contact: 8kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 0.6pF
- Ipp - Peak Pulse Current: 5A
- Termination style: SMD/SMT
- Package/Case: SOT-23
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات PESD5V0U1UT,215

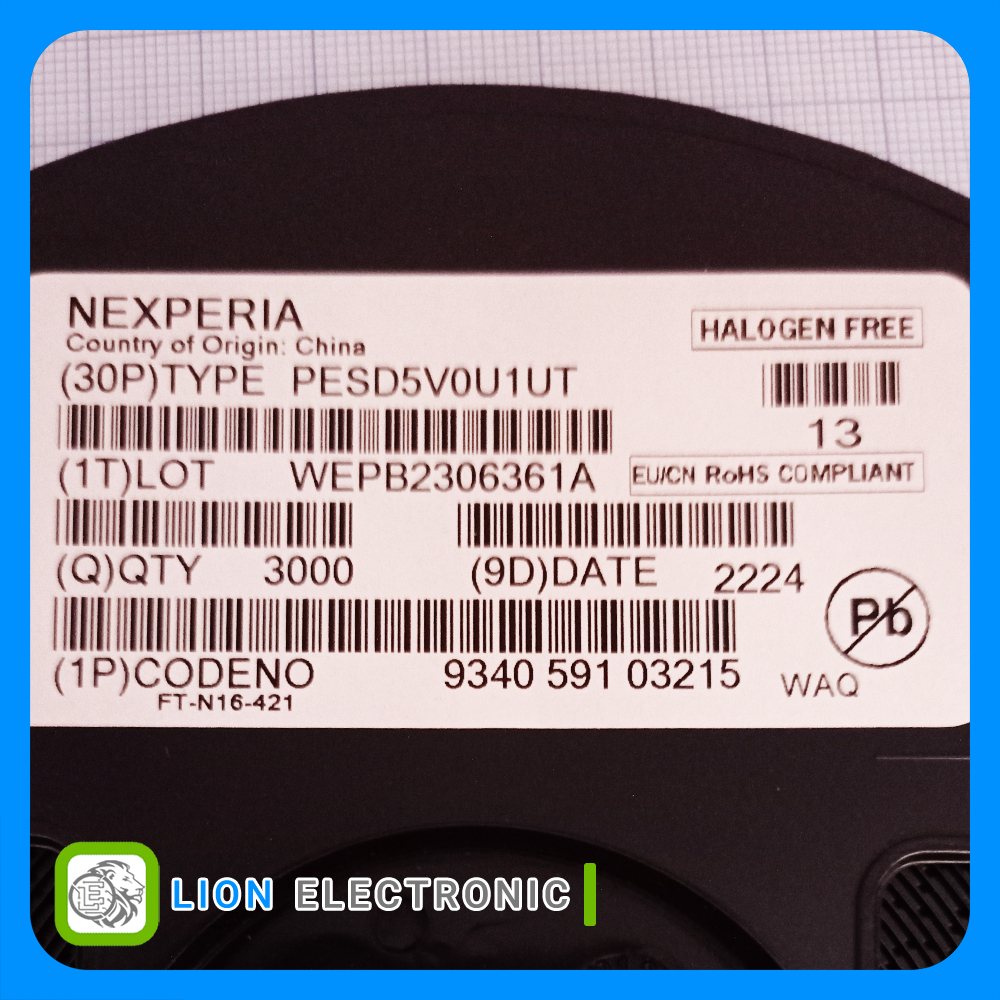

PESD5V0U1UT,215
Part Number
8kV
Vesd - Voltage ESD Contact
1
Number of Channels
-65C
Minimum Operating Temperature
15kV
Vesd - Voltage ESD Air Gap
5V
Working Voltage
Reel
Packaging
SMD/SMT
Termination style
0.6pF
Cd - Diode Capacitance
80W
Pppm - Peak Pulse Power Dissipation
Unidirectional
Polarity
5A
Ipp - Peak Pulse Current
+150C
Maximum Operating Temperature
7.6V
Breakdown Voltage
ESD Suppressors
Product Type
21V
Clamping Voltage
