Nexperia
معرفی
دیود محافظ ESD دوطرفه با ولتاژ کاری 5 ولت و ظرفیت 2.9 پیکوفاراد، ظرفیت پایین، پکیج SOD-323

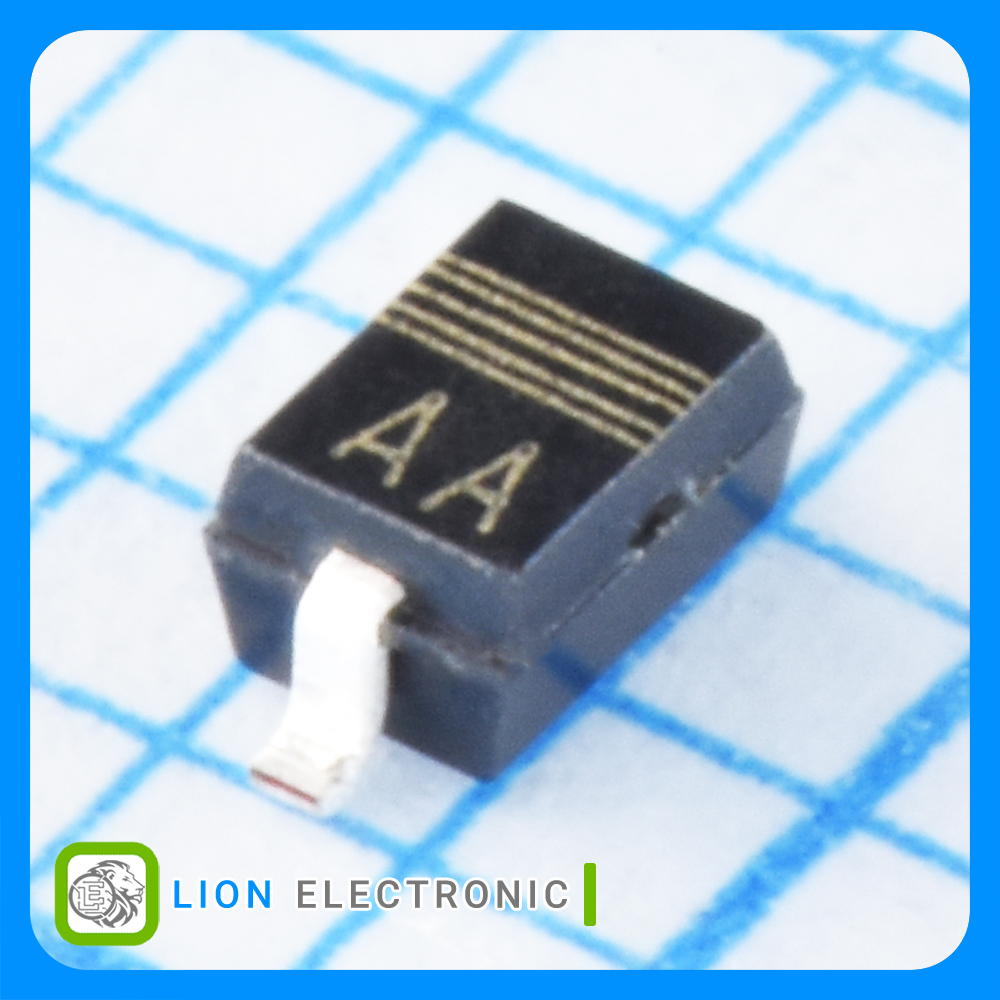

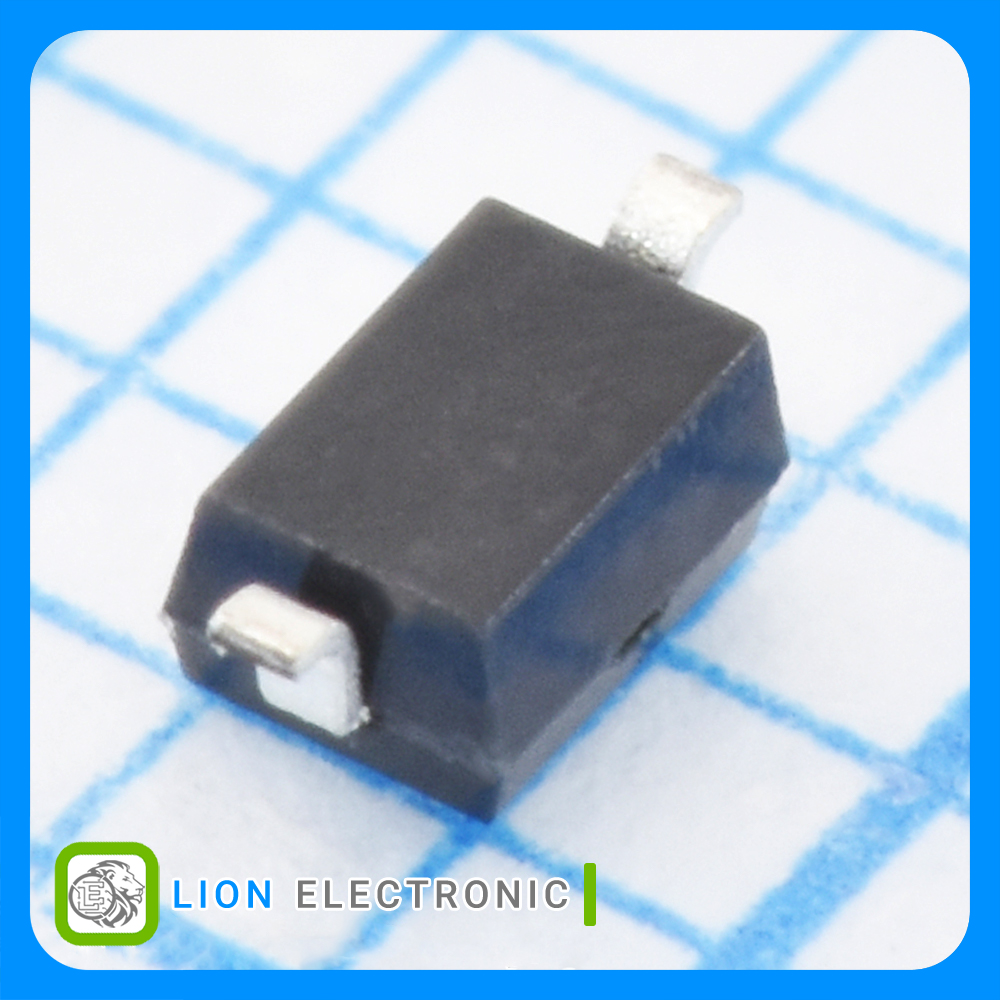

Bidirectional ESD Protection Diode 5V, 2.9pF, Low Capacitance with SOD-323 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 5V
- Breakdown Voltage: 7V
- Vesd - Voltage ESD Contact: 10kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 2.9pF
- Termination style: SMD/SMT
- Package/Case: SOD-323
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود(TVS) PESD5V0U1BA,115
دیود(TVS) PESD5V0U1BA,115
Part Number
Bidirectional
Polarity
1
Number of Channels
15kV
Vesd - Voltage ESD Air Gap
10kV
Vesd - Voltage ESD Contact
-55C
Minimum Operating Temperature
5V
Working Voltage
Reel
Packaging
SMD/SMT
Termination style
2.9pF
Cd - Diode Capacitance
7V
Breakdown Voltage
N/A
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
ESD Suppressors
Product Type
N/A
Clamping Voltage
N/A
Ipp - Peak Pulse Current
SOD-323
Package-Case
